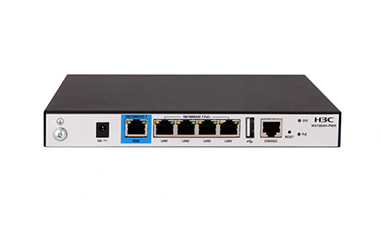

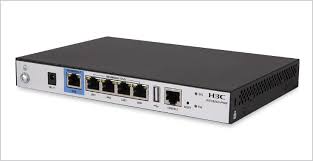

WX1804H PWR
H3C
New
1 Year
| Quantity: | |
|---|---|
The WX1804H series AC includes AP license as following by default, which protects customer’s investment to maximum, which also give SMB/SME a great opportunity to add new AP with the wireless network expansion without additional cost. The AP license support AP management, performance management, and RF management. The AP license allows AC to independently manage all H3C series of FIT APS including performance management, AP provision and RF management. All purchased licenses (AP licenses and public cloud licenses) are quoted for lifetime.
model | AP license by default |
WX1804H-PWR | 4 |
The WX1804H series AC integrates PoE, gateway and AC function in one box, which is perfect for SOHO, SMB and SME environment. WX1804H series AC supports full enterprise controller feature sets, in addition, WX1804H series AC supports gateway function, such as PPPOE, NAT, dynamic IP address, and static IP address setting function. It also support Bonjour Gateway, which helps enterprise to easily manage and control Apple devices, such as AirPrint printers, Apple TVs, iPad and more.
The WX1804H series AC all LAN ports support 802.3af/802.3at PoE function, which saves TCO to customer’s existing environment and reduce the single points of failure at the same time. Single port can provide maximum 30w, providing power to connected devices, such as IP phones, wireless APs, and high power cameras.
In addition to 802.11a/b/g/ac/ac wave2 AP management, the WX1804H series AC can work together with H3C 802.11ax based APs to provide wireless access speed several times faster than a traditional 802.11a/b/g/ac/ac wave2 network. With 802.11ax large proximity which makes WLAN multimedia applications deployment a reality.
WX1804H series AC is developed based on the latest H3C V7 platform. The new system sports significantly improvements in performance and reliability over the previous version, and is able to run the increasingly complicated network applications in the enterprise market. V7 features the following advantages:
· Multi-core control: V7 can adjust the ratio of control cores to the forwarding cores in the CPU to make the most out of CPU computing power and strike the balance between control tasks and forwarding tasks, while providing strong concurrent computing power
· User mode multi-tasking: V7 adopts a completely new software privilege level system, where most network applications are executed in user mode, and allow each application runs a different task. Each task has its own dedicated resource and when a task fault occurs which will be isolated at its own space avoiding interruption of other tasks. This makes system run more securely and reliably
· User task monitoring: V7 comes with task monitoring feature, in which all tasks are monitored. When a user task goes wrong, system will reload and application will quickly recover
· New independent application upgrade: V7 supports independent application upgrade, where a single application module is upgraded instead of the whole operating system. This greatly reduces the number of system reboots compared with the previous version, keeping the upgrade secure and sustaining the network stability
Item | WX1804H-PWR |
Dimensions (WxDxH) | 220mm*145.5mm*27mm |
Weight | 1.45kg |
Wireless throughput | 500Mbps |
Port | WAN 1*GE + LAN 4*GE(PoE+) + 1*USB |
Power supplies | 100V AC~240V AC:50/60Hz |
Operating and storage temperature | 0℃~45℃/-40℃~70℃ |
Operating and storage relative humidity | 5%~95% |
Safety Compliance | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 EN60601-1-2 FDA 21 CFR Subchapter J |
EMC | ETSI EN 300 386 V1.3.3:2005 EN 55024: 1998+ A1: 2001 + A2: 2003 EN 55022 :2006 VCCI V-3:2007 ICES-003:2004 EN 61000-3-2:2000+A1:2001+A2:2005 EN 61000-3-3:1995+A1:2001+A2:2005 AS/NZS CISPR 22:2004 FCC PART 15:2005 GB 9254:1998 GB/T 17618:1998 |
MTBF | ≥38 years |
Item | Feature | WX1804H-PWR | |
Basic functions | Number of managed APs by default | 4 | |
Maximum number of managed APs | 4 | ||
Maximum users of authentication | 128 | ||
802.11MAC | 802.11 Protocols | √ | |
Multi-SSID (Per RF) | 16 | ||
SSID hiding | √ | ||
11G protection | √ | ||
11n only | √ | ||
Use number limit | Supported: SSID based, per RF based | ||
Keepalive | √ | ||
Idle | √ | ||
Multi-country code assignment | √ | ||
Wireless user isolation | Supported: VLAN based wireless users 2-layer isolation SSID based wireless user 2-layer isolation | ||
20MHz/40MHz auto-switch in 40MHz mode | √ | ||
Local forwarding | Local forwarding based on SSID+VLAN | ||
CAPWAP | Auto AP serial number entry | √ | |
AC discovery (DHCP option43, DNS) | √ | ||
IPv6 tunnel | √ | ||
Clock synchronization | √ | ||
Jumbo frame forwarding | √ | ||
Assign basic AP network parameter through AC | Supported: Static IP, VLAN, connected AC address | ||
L2/L3 connection between AP and AC | √ | ||
NAT traversal between AP and AC | √ | ||
Roaming | Intra-AC, Inter-AP L2 and L3 roaming | √ | |
Inter-AC, Inter-AP L2 and L3 roaming | √ | ||
GW Features | NAT | √ | |
PPPoE | √ | ||
DDNS | √ | ||
SSL VPN | √ | ||
IPSEC VPN | √ | ||
RIP | √ | ||
GRE | √ | ||
Access control | Open system, Shared-Key | √ | |
WEP-64/128, dynamic WEP | √ | ||
WPA,WPA2,WPA3 | √ | ||
TKIP | √ | ||
CCMP | √(11n recommended) | ||
SSH v1.5/v2.0 | √ | ||
Wireless EAD (End-point Access Domination) | √ | ||
Portal authentication | Supported: Remote Authentication, external server | ||
Portal page redirection | Supported: SSID based, AP Portal page push | ||
Portal by-pass Proxy | √ | ||
802.1x authentication | EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only) | ||
Local authentication | 802.1X, Portal, MAC authentication | ||
LDAP authentication | 802.1X and Portal EAP-GTC and EAP-TLS supported by 802.1X login | ||
AP location-based user access control | √ | ||
Guest Access control | √ | ||
VIP channel | √ | ||
ARP attack detection | Supported: Wireless SAVI | ||
SSID anti-spoofing | SSID + user name binding | ||
AAA server selection based on SSID and domain | √ | ||
AAA server back up | √ | ||
Local AAA server for wireless user | √ | ||
TACACS+ | √ | ||
QoS | Priority mapping | √ | |
L2-L4 packet filtering and traffic classification | √ | ||
Rate limit | Supported with granularity of 8Kbps | ||
802.11e/WMM | √ | ||
Access control based on user profile | √ | ||
Intelligent bandwidth limit (equal bandwidth share algorithm) | √ | ||
Intelligent bandwidth limit (user specific) | √ | ||
Intelligent bandwidth guarantee | Supported: Free flow for packets coming from every SSID When traffic is not congested, and guarantee a minimum bandwidth for each SSID when traffic is congested | ||
QoS Optimization for SVP phone | √ | ||
CAC(Call Admission Control) | Supported: based on user number/bandwidth | ||
End-to-end QoS | √ | ||
AP upload speed limit | √ | ||
