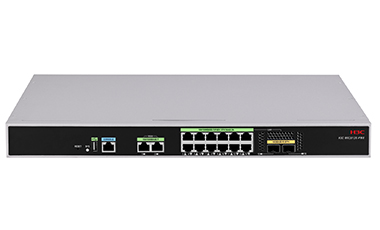

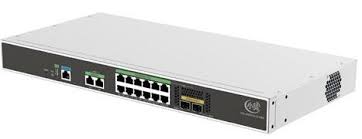

WX2812X-PWR
H3C
New
1 Year
| Quantity: | |
|---|---|
The WX2812X-PWR series AC includes AP license as following by default, which protects customer’s investment to maximum, which also give SMB/SME a great opportunity to add new AP with the wireless network expansion without additional cost.
model | AP license by default |
WX2812X-PWR | 18 |
The WX2812X-PWR series AC integrates PoE, gateway and AC function in one box, which is perfect for SOHO, SMB and SME environment. WX2812X-PWR series AC supports full enterprise controller feature sets, in addition, WX2812X-PWR series AC supports gateway function, such as PPPOE, NAT, dynamic IP address, and static IP address setting function. It also supports Bonjour Gateway, which helps enterprise to easily manage and control Apple devices, such as AirPrint printers, Apple TVs, iPad and more.
The WX2812X-PWR series AC all LAN ports support 802.3af/802.3at PoE function, which saves TCO to customer’s existing environment and reduce the single points of failure at the same time. Single port can provide maximum 30W, providing power to connected devices, such as IP phones, wireless APs, and high-power cameras.
In addition to 802.11a/b/g/ac/ac wave2 AP management, the WX2812X-PWR series AC can work together with H3C 802.11ax based APs to provide wireless access speed several times faster than a traditional 802.11a/b/g/ac/ac wave2 network. With 802.11ax large proximity which makes WLAN multimedia applications deployment a reality.
Item | WX2812X-PWR |
Dimensions (WxDxH) | 440*220*43.6mm |
Weight | 2.9kg |
Wireless throughput | 4Gbps |
Port | LAN：2*SFP Plus + 12*PoE+ WAN：2 GE + 1*USB |
Power supplies | 100V AC~240V AC:50/60Hz |
Operating and storage temperature | 0℃~45℃/-40℃~70℃ |
Operating and storage relative humidity | 5%~95% |
Safety Compliance | UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 EN60601-1-2 FDA 21 CFR Subchapter J |
EMC | ETSI EN 300 386 V1.3.3:2005 EN 55024: 1998+ A1: 2001 + A2: 2003 EN 55022 :2006 VCCI V-3:2007 ICES-003:2004 EN 61000-3-2:2000+A1:2001+A2:2005 EN 61000-3-3:1995+A1:2001+A2:2005 AS/NZS CISPR 22:2004 FCC PART 15:2005 GB 9254:1998 GB/T 17618:1998 |
Item | Feature | WX2812X-PWR |
Basic functions | Number of managed APs by default | 18 |
Size of license | NA | |
Maximum number of managed APs | 18 | |
Maximum users of authentication | 1024 | |
802.11MAC | 802.11 Protocols | Support |
Multi-SSID (Per RF) | 18 | |
SSID hiding | Support | |
11G protection | Support | |
11n only | Support | |
Use number limit | Supported: SSID based, per RF based | |
Keepalive | Support | |
Idle | Support | |
Multi-country code assignment | Support | |
Wireless user isolation | Supported: VLAN based wireless users 2-layer isolation SSID based wireless user 2-layer isolation | |
20MHz/40MHz auto-switch in 40MHz mode | Support | |
Local forwarding | Local forwarding based on SSID+VLAN | |
CAPWAP | Auto AP serial number entry | Support |
AC discovery (DHCP option43, DNS) | Support | |
Compatible with LWAPP AP | Support | |
IPv6 tunnel | Support | |
Clock synchronization | Support | |
Jumbo frame forwarding | Support | |
Assign basic AP network parameter through AC | Supported: Static IP, VLAN, connected AC address | |
L2/L3 connection between AP and AC | Support | |
NAT traversal between AP and AC | Support | |
Remote AP | Support | |
Roaming | Intra-AC, Inter-AP L2 and L3 roaming | Support |
Inter-AC, Inter-AP L2 and L3 roaming | Support | |
WIFI5 zero roaming | Support | |
WIFI6 zero roaming | Support | |
AGV zero roaming | Support | |
GW Features | NAT | Support |
PPPoE | Support | |
DDNS | Support | |
SSL VPN | Support | |
IPSEC VPN | Support | |
RIP | Support | |
GRE | Support | |
Access control | Open system, Shared-Key | Support |
WEP-64/128, dynamic WEP | Support | |
WPA,WPA2,WPA3 | Support | |
TKIP | Support | |
CCMP | Support(11n recommended) | |
SSH v1.5/v2.0 | Support | |
Wireless EAD (End-point Access Domination) | Support | |
Portal authentication | Supported: Remote Authentication, external server | |
Portal page redirection | Supported: SSID based, AP Portal page push | |
Portal by-pass Proxy | Support | |
802.1x authentication | EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only) | |
Local authentication | 802.1X, Portal, MAC authentication | |
LDAP authentication | 802.1X and Portal EAP-GTC and EAP-TLS supported by 802.1X login | |
AP location-based user access control | Support | |
Guest Access control | Support | |
VIP channel | Support | |
ARP attack detection | Supported: Wireless SAVI | |
SSID anti-spoofing | SSID + user name binding | |
AAA server selection based on SSID and domain | Support | |
AAA server back up | Support | |
Local AAA server for wireless user | Support | |
TACACS+ | Support |
