H3C WX3800H Series WX3840H EWP-WX 3840H-GL New Generation High Performance Enterprise Wireless Access Controller

The H3C WX3800H series wireless access controller is the latest generation of unified wired and wireless access controller featuring high performance, large capacity, high reliability and versatile business services and is targeted at enterprise networks. The WX3800H series AC equips with a high performance multi-core CPU and it adopts the innovative Comware V7 platform (referred to as V7 hereafter). V7 comes with the standard granular user control management, comprehensive RF resource management, 7x24 wireless security control, fast layer-2 and layer-3 roaming, strong QoS and IPv4/IPv6 dual stack. V7 adds in various novel wireless technologies such as multi-core control plane, next generation CUPID wireless positioning technology, Bonjour and Hotspot 2.0. It also supports multiple network configurations such as cloud computing management, hierarchical AC and IRF.

H3C WX3800H series AC consists of two models: WX3820H and WX3840H. When paired with H3C Fit Access Point (AP), it serves as an ideal access control solution for WLAN access of medium to large enterprise campus networks and wireless MAN coverage.

*Warranty Information:H3Care CT Foundation Basic 9X5 NBD-Ship Service(1Y)
  • WX3840H

  • H3C

  • New

  • 1 Year

Availability:
Quantity:

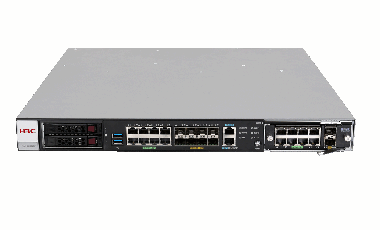

H3C WX3840H Access Controller

802.11ax AP Management

In addition to 802.11a/b/g/n/ac AP management, the WX3800H series AC can work together with H3C 802.11ax based APs to provide wireless access speed several times faster than a traditional 802.11a/b/g/n/ac network. With 802.11ax large proximity which makes WLAN multimedia applications deployment a reality.

Brand New Operating System

WX3800H series AC is developed based on the latest H3C V7 platform. The new system sports significantly improvements in performance and reliability over the previous version, and is able to run the increasingly complicated network applications in the enterprise market. V7 features the following advantages:

Multi-core control: V7 can adjust the ratio of control cores to the forwarding cores in the CPU to make the most out of CPU computing power and strike the balance between control tasks and forwarding tasks, while providing strong concurrent computing power

User mode multi-tasking: V7 adopts a completely new software privilege level system, where most network applications are executed in user mode, and allow each application runs a different task. Each task has its own dedicated resource and when a task fault occurs which will be isolated at its own space avoiding interruption of other tasks. This makes system run more securely and reliably

User task monitoring: V7 comes with task monitoring feature, in which all tasks are monitored. When a user task goes wrong, system will reload and application will quickly recover

New independent application upgrade: V7 supports independent application upgrade, where a single application module is upgraded instead of the whole operating system. This greatly reduces the number of system reboots compared with the previous version, keeping the upgrade secure and sustaining the network stability

Wired and Wireless Processing Capability

WX3800H series AC adopts the latest high performance multi-core CPU. WX3840H AC CPU possesses 8 independent cores that can be virtualized to 32 logical cores, WX3820H series ACs have 4 independent cores that can be virtualized to 16 logical cores. The strong computing power allows the devices to handle more users, more concurrent transactions, decrease latency in order to improve user experience.

High Port Density for Access

WX3800H series AC provides high port density for external access. This results in better unified wired and wireless access (integrated wired and wireless user management including user access, user authentication and billing management) and satisfy network construction and access requirements.

WX3820H provides 8 GE Combo and 2 10G SFP+ ports;

WX3840H provides 8 GE Combo, 2 10G SFP+ ports and 1 management port. The management provides out-of-band management capability

Hardware specifications

Item

WX3820H


Dimensions (WxDxH)

440mm×420mm×43.6mm

Weight

7.3kg (installed with dual power supplies)

Throughput

16Gbps


Port

8 GE+SFP combo

2 SFP+

1 console

1 OBM


Power supplies

1 AC power supply included, swappable power supply, 1+1 redundant backup (separately ordered)

Max power consumption

<300W

Operating and storage

temperature

0℃~45℃/-40℃~70℃

Operating and storage relative humidity

5%~95%

Safety Compliance

UL 60950-1

CAN/CSA C22.2 No 60950-1

IEC 60950-1

EN 60950-1/A11

AS/NZS 60950

EN 60825-1

EN 60825-2

EN60601-1-2

FDA 21 CFR Subchapter J

EMC

ETSI EN 300 386 V1.3.3:2005

EN 55024: 1998+ A1: 2001 + A2: 2003

EN 55022 :2006

VCCI V-3:2007

ICES-003:2004

EN 61000-3-2:2000+A1:2001+A2:2005

EN 61000-3-3:1995+A1:2001+A2:2005

AS/NZS CISPR 22:2004

FCC PART 15:2005

GB 9254:1998

GB/T 17618:1998

MTBF

≥38 years

Software specifications

Item

Feature

WX3820H


Basic functions

Number of managed APs by default

0


Size of license

1/4/8/16/32/64/128/512/1024

Maximum number of managed APs

1024


Maximum number of STA

20480


802.11MAC

802.11 Protocols

Multi-SSID (Per RF)

16

SSID hiding

11G protection

11n only

Use number limit

Supported: SSID based, per RF based

Keep-alive

Idle

Multi-country code assignment

Wireless user isolation

Supported:

VLAN based wireless users 2-layer isolation

SSID based wireless user 2-layer isolation

20MHz/40MHz auto-switch in 40MHz mode

Local forwarding

Local forwarding based on SSID+VLAN

CAPWAP

Auto AP serial number entry

AC discovery (DHCP option43, DNS)

IPv6 tunnel

Clock synchronization

Jumbo frame forwarding

Assign basic AP network parameter through AC

Supported: Static IP, VLAN, connected AC address

L2/L3 connection between AP and AC

NAT traversal between AP and AC

Roaming

Intra-AC, Inter-AP L2 and L3 roaming

Inter-AC, Inter-AP L2 and L3 roaming

GW features

NAT

PPPoE

DDNS

IPSEC VPN

SSL VPN

GRE

Access control

Open system, Shared-Key

WEP-64/128, dynamic WEP

WPA,WPA2,WPA3

TKIP

CCMP

√(11n recommended)

SSH v1.5/v2.0

Wireless EAD (End-point Access Domination)

Portal authentication

Supported: Remote Authentication, external server

Portal page redirection

Supported: SSID based, AP Portal page push

Portal by-pass Proxy

802.1x authentication

EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only)

Local authentication

802.1X, Portal, MAC authentication

LDAP authentication

802.1X and Portal

EAP-GTC and EAP-TLS supported by 802.1X login

AP location-based user access control

Guest Access control

VIP channel

ARP attack detection

Supported: Wireless SAVI

SSID anti-spoofing

SSID + user name binding

AAA server selection based on SSID and domain

AAA server back up

Local AAA server for wireless user

TACACS+

QoS

Priority mapping

L2-L4 packet filtering and traffic classification

Rate limit

Supported with granularity of 8Kbps

802.11e/WMM

Access control based on user profile

Intelligent bandwidth limit (equal bandwidth share algorithm)

Intelligent bandwidth limit (user specific)

Intelligent bandwidth guarantee

Supported: Free flow for packets coming from every SSID When traffic is not congested, and guarantee a minimum bandwidth for each SSID when traffic is congested

QoS Optimization for SVP phone

CAC(Call Admission Control)

Supported: based on user number/bandwidth

End-to-end QoS

AP upload speed limit

40
