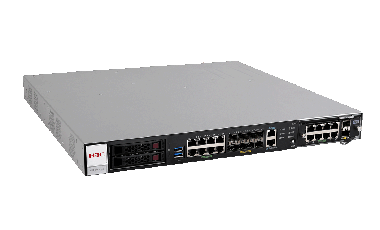

WX3820X
H3C
New
1 Year
| Quantity: | |
|---|---|
In addition to 802.11a/b/g/n/ac/ax AP management, the WX3800X series AC can work together with H3C 802.11be based APs to provide wireless access speed several times faster than a traditional 802.11a/b/g/n/ac/ax network. With 802.11be large proximity which makes WLAN multimedia applications deployment a reality.
WX3800X series AC is developed based on the latest H3C V9 platform. The new system sports significantly improvements in performance and reliability over the previous version, and is able to run the increasingly complicated network applications in the enterprise market. V9 features the following advantages:
Multi-core control: V9 can adjust the ratio of control cores to the forwarding cores in the CPU to make the most out of CPU computing power and strike the balance between control tasks and forwarding tasks, while providing strong concurrent computing power
User mode multi-tasking: V9 adopts a completely new software privilege level system, where most network applications are executed in user mode, and allow each application runs a different task. Each task has its own dedicated resource and when a task fault occurs which will be isolated at its own space avoiding interruption of other tasks. This makes system run more securely and reliably
User task monitoring: V9 comes with task monitoring feature, in which all tasks are monitored. When a user task goes wrong, system will reload and application will quickly recover
New independent application upgrade: V9 supports independent application upgrade, where a single application module is upgraded instead of the whole operating system. This greatly reduces the number of system reboots compared with the previous version, keeping the upgrade secure and sustaining the network stability
WX3800X series AC adopts the latest high performance multi-core CPU. WX3840X AC CPU possesses 8 independent cores that can be virtualized to 32 logical cores, WX3820X series ACs have 4 independent cores that can be virtualized to 16 logical cores. The strong computing power allows the devices to handle more users, more concurrent transactions, decrease latency in order to improve user experience.
In a wireless network of centralized forwarding mode, all wireless traffic is sent to an AC for processing which the forwarding capability of the AC may become a bottleneck. Especially on wireless networks where APs are deployed at branches, ACs are deployed at the headquarters, and APs and ACs are connected over a WAN. In this scenario, Distributed forwarding is more suitable. The WX3800X series AC supports both distributed forwarding modes and centralized forwarding mode and it can set SSID based forwarding as needed.
Item | WX3820X | |
Dimensions (WxDxH) | 440 mm × 435 mm × 44 mm | |
Weight | 9kg (installed with dual power supplies) | |
Throughput | 20Gbps | |
Port | Fixed: 8 × GE ports 8 × SFP ports 1 × OOBM port 2 × USB ports Expandable to: 8 × GE ports 2 × SFP+ ports | |
Power supplies | Pluggable power supply, 1 + 1 redundant backup, supporting AC or DC (power supply needs to be configured separately) | |
Storage | H3C WCG300 1.92TB 6G SATA 2.5in SSD | |
Max power consumption | 36 to 132.7 W | |
Operating and storage temperature | 0℃~45℃/-40℃~70℃ | |
Operating and storage relative humidity | 5%~95% | |
Safety Compliance | FDA 21 CFR Subchapter J GB 4943.1 UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 AS/NZS 62368-1 | |
EMC | CISPR 32； CISPR 35； EN 55032； EN 55035； EN IEC 61000-3-2； EN 61000-3-3； ETSI EN 300 386 ； IEC 61000-4-2； IEC 61000-4-3； IEC 61000-4-4； IEC 61000-4-5； IEC 61000-4-6； IEC 61000-4-8； IEC 61000-4-11; GB/T 9254.1; GB/T 9254.2; GB 17626.1; GB 17626.2; | |
MTBF | 83 years | |
Item | Feature | WX3820X | |
Basic functions | Number of managed APs by default | 0 | |
Size of license | 1/4/8/16/32/64/128/512 | ||
Maximum number of managed APs | 768 | ||
Maximum number of STA | 15360 | ||
802.11MAC | 802.11 Protocols | support | |
Max number of SSIDs | 2048 | ||
SSID hiding | support | ||
11G protection | support | ||
11n only | support | ||
Use number limit | Supported: SSID based, per RF based | ||
Keep-alive | support | ||
Idle | support | ||
Multi-country code assignment | support | ||
Wireless user isolation | Supported: VLAN based wireless users 2-layer isolation SSID based wireless user 2-layer isolation | ||
20MHz/40MHz auto-switch in 40MHz mode | support | ||
LACP | support | ||
Local forwarding | Local forwarding based on SSID+VLAN | ||
CAPWAP | Auto AP serial number entry | support | |
AC discovery (DHCP option43, DNS) | support | ||
IPv6 tunnel | support | ||
DTLS encryption | support | ||
Clock synchronization | support | ||
Jumbo frame forwarding | support | ||
Assign basic AP network parameter through AC | Supported: Static IP, VLAN, connected AC address | ||
L2/L3 connection between AP and AC | support | ||
NAT traversal between AP and AC | support | ||
Roaming | Intra-AC, Inter-AP L2 and L3 roaming | support | |
Inter-AC, Inter-AP L2 and L3 roaming | support | ||
GW features | NAT | support | |
PPPoE | support | ||
DDNS | support | ||
IPSEC VPN | support | ||
SSL VPN | support | ||
GRE | support | ||
Access control | Open system, Shared-Key | support | |
WEP-64/128, dynamic WEP | support | ||
WPA/WPA2 authentication and encryption | WPA/WPA2-PSK+TKIP WPA/WPA2-PSK+CCMP WPA/WPA2-802.1X+TKIP WPA/WPA2-802.1X+CCMP WPA/WPA2-PSK+TKIP-CCMP WPA/WPA2-802.1X+TKIP-CCMP | ||
Encryption | TKIP, CCMP WPA2-Personal (802.11i) WPA2-Enterprise with 802.1X WPA3-Personal, WPA3-Enterprise WPA3-Enhanced Open (OWE) Advanced Encryption Standard (AES) | ||
AES | support | ||
TKIP | support | ||
CCMP | support (11n recommended) | ||
SSH v1.5/v2.0 | support | ||
Wireless EAD (End-point Access Domination) | support | ||
PSK | Support PSK and Private-PSK Support Multiple SSIDs and multiple PSKs Each SSID use a unique PSK password | ||
PPSK | Private Pre-Shared Key, obtain passwords to access wireless networks through the Cloudnet platform | ||
Portal authentication | Supported: Remote Authentication, external server | ||
Portal page redirection | Supported: SSID based, AP Portal page push | ||
Portal by-pass Proxy | support | ||
802.1x authentication | EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (TLS, PEAP only) | ||
Local authentication | 802.1X, Portal, MAC authentication | ||
LDAP authentication | 802.1X and Portal EAP-GTC and EAP-TLS supported by 802.1X login | ||
AP location-based user access control | support | ||
Guest/Captive portal control | support | ||
VIP channel | support | ||
ARP attack detection | Supported: Wireless SAVI | ||
SSID anti-spoofing | SSID + user name binding | ||
AAA server selection based on SSID and domain | support | ||
Radius | support radius authentication and accounting packets | ||
AAA server back up | support | ||
Local AAA server for wireless user | support | ||
Third-party server | ISE/ClearPass/FreeRADIUS/Active Directory | ||
TACACS+ | support | ||
