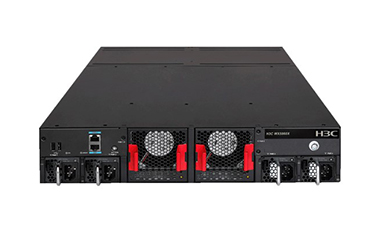

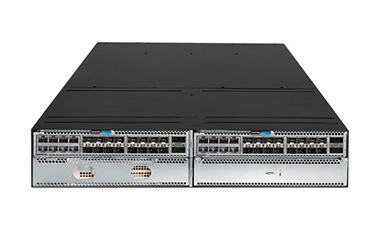

WX5860X
H3C
New
1 Year
| Quantity: | |
|---|---|
802.11be AP management
In addition to 802.11a/b/g/n/ac/ax APs, the WX5860X can work together with H3C 802.11be APs to improve user experience and ensures the application of wireless multimedia technology that requires high transmission rate.
The WX5860X runs H3C's state-of-the-art Comware 7 network operating system. This system significantly improves product performance and reliability, and supports the increasingly complicated network applications in the enterprise market. This system offers the following advantages:
Multi-core control—Comware 7 can adjust the ratio of the control cores to forwarding cores in the CPU to achieve an optimal balance as demanded, remarkably improving the CPU control capabilities and computing capabilities while providing strong concurrent computing capabilities.
User-mode multitasking—In Comware 7, most network applications are executed in user mode. When you start an application, the system creates a task for the application and provides the task with private resources. If a task error occurs, the error is limited to this task and does not affect other applications and the operating system.
User-mode task monitoring—Comware 7 monitors each task executed in user mode. When a task error occurs, the system will reload the task to ensure quick recovery of the application.
Independent application upgrade—Comware 7 can upgrade a single module independently instead of the whole system, which enhances upgrade security and network stability significantly.
Equipped with robust hardware, the WX5860X delivers strong concurrent computing capabilities and industry-leading wireless packet processing capabilities:
Lately-developed high-performance multicore CPU, with 8 independent cores that can be virtualized to 32 logical cores
High-bandwidth switching chips
High-performance programmable FPGA card
The WX5860X offers multiple port types and high port density, significantly facilitating wired and wireless accesses and improving networking agility.
H3C license synchronization technology enhances availability of a network with multiple ACs and provides agility for network deployment.
Item | Specification |
Dimensions (H × W × D) | 88.1 × 440 × 660 mm ( 3.47 ×17.32×25.98 in) |
Weight (full configuration) | 22.9 kg |
Throughput | 80/160Gbps |
Ports | Support 2 interface cards at most. Specifications for each card are as follows: 2 x 40G（QSFP+） 8 x 10G（SFP+） 8 x GE Combo (2×40G and 8×10G are mutuallyexclusive) Host interfaces: 1 x Console 2 x USB 1 x OOBM |
Power supply | Removable AC or DC power modules Support for 1+1 or 1+3 power module redundancy (Power module should be purchased separately.) |
Rated input voltage range: 100 to 240 VAC @ 50/60 Hz Max input voltage range: 90 to 264 VAC @ 47 to 63 Hz Max output power: 650 W | |
RemovableDC power supply | Rated input voltage range: -48V DC to 60V DC Max output power: 650 W |
Maximum power consumption | < 502 W |
Temperature | Operating temperature: 0°C to +45°C (+32°F to +113°F) Storage temperature: –40°C to +70°C (–40°F to +158°F) |
Relative humidity (non-condensing) | Operating and storage humidity: 5% to 95% |
Safety standards | FDA 21 CFR Subchapter J GB 4943.1 UL 62368-1 CAN/CSA C22.2 No 62368-1 IEC 62368-1 EN 62368-1 AS/NZS 62368-1 |
EMC standards | CISPR 32 CISPR 35 CISPR 35 EN 55032 ETSI EN 300 386 EN 55035 EN IEC 61000-3-2 EN 61000-3-3 IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 GB/T 9254.1 GB/T 9254.2 GB 17626.1 GB 17626.2 |
MTBF | 52 years |
Product ID | Product Description |
EWP-WX5860X | H3C WX5860X Access Controller |
EWPXM1BSTX80 | H3C WX5500X Hardware Acceleration Module |
PSR650B-12D1-GL | 650W DC Power Supply Module (Power Panel Side Intake Airflow) |
PSR650B-12A1-D | 650W AC Power Supply |
LSWM1BFANSCB-SN | H3C Fan Module (Fan Panel Side Exhaust Airflow) |
LIS-WX-1-BE | Enhanced Access Controller License, 1 AP, for V7 |
LIS-WX-4-BE | Enhanced Access Controller License,4 APs, for V7 |
LIS-WX-8-BE | Enhanced Access Controller License,8 APs, for V7 |
LIS-WX-16-BE | Enhanced Access Controller License,16 APs, for V7 |
LIS-WX-32-BE | Enhanced Access Controller License,32 APs, for V7 |
LIS-WX-64-BE | Enhanced Access Controller License,64 APs, for V7 |
LIS-WX-128-BE | Enhanced Access Controller License,128 APs, for V7 |
LIS-WX-512-BE | Enhanced Access Controller License,512 APs, for V7 |
LIS-WX-1024-BE | Enhanced Access Controller License,1024 APs, for V7 |
SFP-GE-LX-SM1310-D | 1000BASE-LX SFP Transceiver, Single Mode (1310nm, 10km, LC) |
SFP-GE-LX-SM1310-A | 1000BASE-LX SFP Transceiver, Single Mode (1310nm, 10km, LC) |
SFP-GE-SX-MM850-D | 1000BASE-SX SFP Transceiver, Multi-Mode (850nm, 550m, LC) |
SFP-GE-SX-MM850-A | 1000BASE-SX SFP Transceiver, Multi-Mode (850nm, 550m, LC) |
LSWM3STK | SFP+ Cable 3m |
SFP-XG-SX-MM850-D | SFP+ Module (850nm,300m, LC) |
SFP-XG-LX-SM1310-D | SFP+ Module (1310nm,10km, LC) |
LSWM1QSTK2 | 40G QSFP+ Cable 5m |
QSFP-40G-LR4-WDM1300 | QSFP+ 40GBASE Optical Transceiver Module (1310nm,10km, LR4, LC) |
QSFP-40G-BIDI-SR-MM850 | QSFP+ 40GBASE BIDI Optical Transceiver Module (850nm,100m, SR) |
QSFP-40G-LR4L-WDM1300 | QSFP+ 40GBASE Optical Transceiver Module (1310nm,2km, LR4L, LC) |
QSFP-40G-CSR4-MM850 | QSFP+ 40GBASE Optical Transceiver Module (850nm,300m, CSR4, Support 40G to 4*10G) |
QSFP-40G-SR4-MM850 | QSFP+ 40GBASE Optical Transceiver Module (850nm,100m, SR4, Support 40G to 4*10G) |
