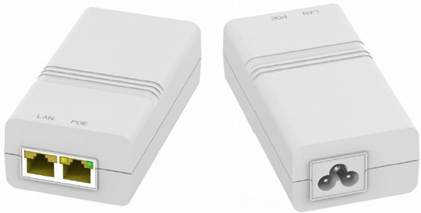

EWPAM1HPOE
H3C
New
1 Year
| Quantity: | |
|---|---|
Model | EWPAM1HPOE |
Dimensions(L,W,H) | 107.3mm X 56.0mm X 34.5mm |
Weight | 157g |
AC Power Cord | 80cm, deliver according to country or area |
Input | 100-240Vac, 1.0A, 50/60Hz |
POE Output | 30.25W, 55V±2% @0.55A |
Power Pins | 4, 5 (+) and 7, 8 (-) |
Connectors | Shielded RJ-45, EIA 568A and 568B |
Data Rates | 100/1000/2500Mbps |
Operating Temperature | -10℃ to 45℃ |
Operating Humidity | 10% to 90%, non-condensation |
Storage Temperature | -40℃ to 85℃ |
Reliability | MTBF: 200,000 hrs @ 25ºC |
Operating Altitude | Up to 5000 meters |
Surge Protection (both PoE port and Power port) | EN61000-4-5 Perfomance B Common Mode 4KV Difference Mode 2KV |
Weather Rating | IP41 |
Inrush Current | 30A MAX, at 115Vac, Cold Start 60A MAX, at 230Vac, Cold Start |
Average active efficiency | ≥85% （230Vac） |
No-load power consumption | 0.5W |
Output Ripple | <200mV |
AC Connector | IEC-320 C6 |
Certifications | CE, CB, FCC, CCC |
