AP-335
Aruba
100% Original Brand
1 Year
| Color: | |
|---|---|
| Size: | |
| Quantity: | |
JW801A is the Aruba AP-335 802.11n/ac 4x4:4 MU-MIMO Dual Radio Integrated Antenna 2.5+1 GbE AP. The Aruba 330 Series access points provide the fastest gigabit data speeds and superb user experience for mobile devices and applications in a digital workplace. Designed with an integrated HPE Smart Rate port to scale up to 5Gbps Ethernet, the 330 Series allows enterprises to leverage their multi-gigabit Ethernet wired network infrastructures to eliminate bottlenecks.

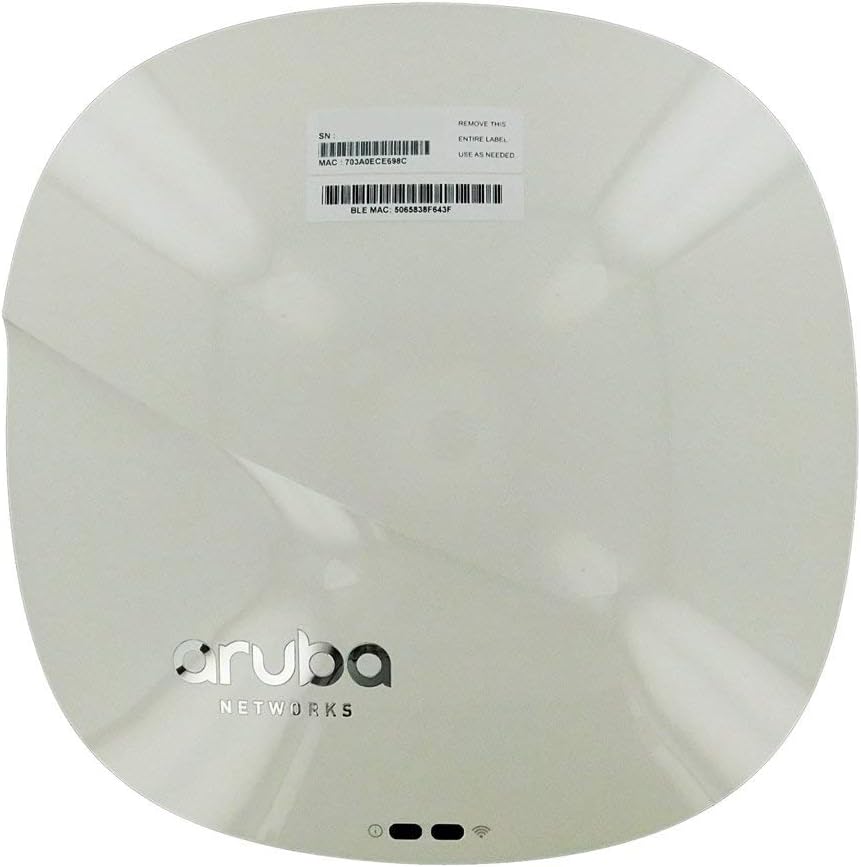

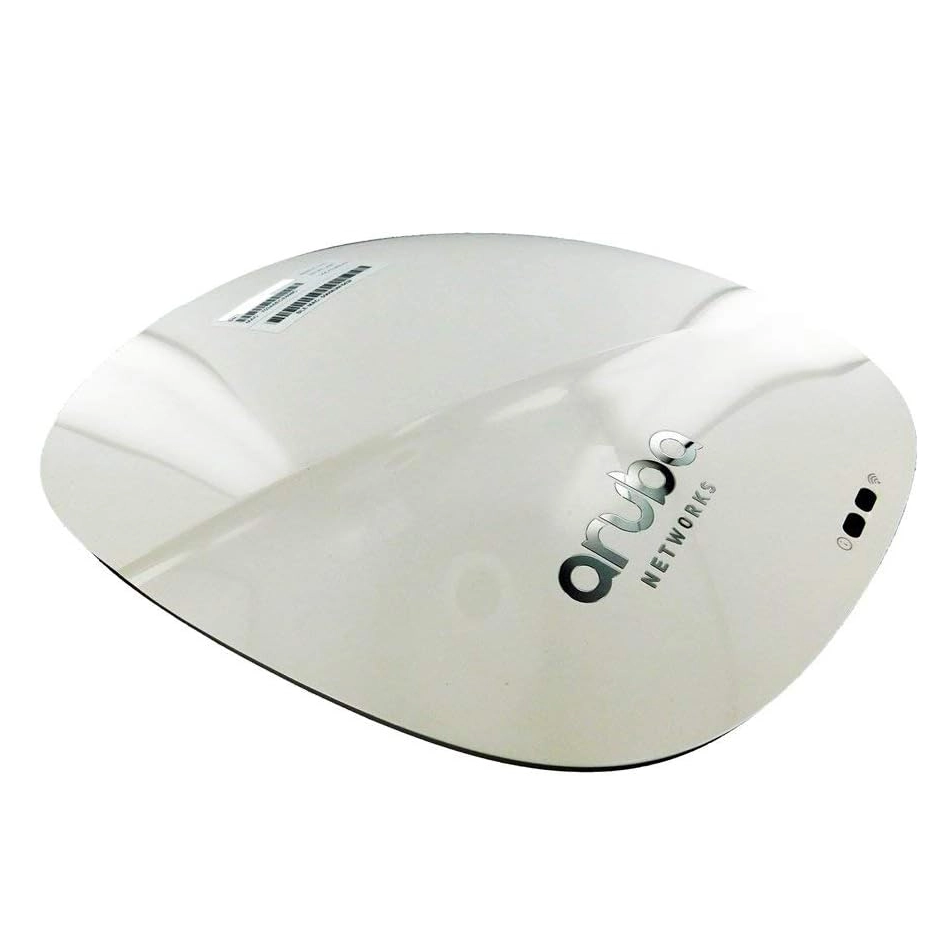

Figure 1 shows the appearance of JW801A.
Table 1 shows the quick spec.
SKU | JW801A |
Product Model | Aruba AP-335 802.11n/ac 4x4:4 MU-MIMO Dual Radio Integrated Antenna 2.5+1 GbE AP |
Wireless LAN Standard | IEEE 802.11ac |
Frequency Band | 5 GHz 2.40 GHz |
Antennas | 12 Internal Antennas |
Wireless Transmission Speed | 2.50 Gbit/s |
Form Factor | Wall Mountable Ceiling Mountable |
Dimension (H × W × D) | 2" × 8.9" × 8.8" |
Figure 2 shows the front panel of JW801A.
Figure 3 shows the back panel of JW801A.
The benefits of Aruba AP-330 include:
• Dual Radio 802.11ac access point with Multi-User MIMO
• Antenna polarization diversity for optimized RF performance
- Each 5 GHz radio chain has a switch and two antennas.
- Software controlled; Horizontally and vertically polarized.
• HPE Smart Rate uplink port that scales up to 5Gbps
• Built-in Bluetooth Low-Energy (BLE) radio
• Advanced Cellular Coexistence (ACC)
• RF Management
- Adaptive Radio Management (ARM) technology automatically assigns channel and power settings, provides airtime fairness and ensures that APs stay clear of all sources of RF interference to deliver reliable, high-performance WLANs.
- The Aruba 330 Series Access Points can be configured to provide part-time or dedicated air monitoring for spectrum analysis and wireless intrusion protection, VPN tunnels to extend remote locations to corporate resources, and wireless mesh connections where Ethernet drops are not available.
• Spectrum analysis
- Capable of part-time or dedicated air monitoring, the spectrum analyzer remotely scans the 2.4 GHz and 5 GHz radio bands to identify sources of RF interference from HT20 through VHT160 operation.
• Security
- Integrated wireless intrusion protection offers threat protection and mitigation, and eliminates the need for separate RF sensors and security appliances.
- IP reputation and security services identify, classify, and block malicious files, URLs and IPs, providing comprehensive protection against advanced online threats.
- Integrated Trusted Platform Module (TPM) for secure storage of credentials and keys.
- SecureJack-capable for secure tunneling of wired Ethernet traffic.
• Intelligent Power Monitoring (IPM)
- Enables the AP to continuously monitor and report its actual power consumption and optionally make autonomous decisions to disable certain capabilities based on the amount of power available to the unit
- Software configurable to disable capabilities in certain orders. For the 330 Series Access Points, by default, the USB interface will be the first feature to turn off if the AP power consumption exceeds the available power budget.
Table 2 shows the accessories of JW801A.
Mount Kit | |
JW046A | AP-220-MNT-W1 Basic Mount Kit:HP Aruba Campus AP Mounting Kits |
JW047A | AP-220-MNT-W1W Mt Basic White Kit |
Power Adaptor | |
R3K01A | AP-AC2-48C 48V/50W AC/DC desktop style power adapter with 1.35/3.5mm connector |
Table 3 shows the comparison.
SKU | JW801A | JW823A |
Product Model | Aruba AP-335 802.11n/ac 4x4:4 MU-MIMO Dual Radio Integrated Antenna 2.5+1 GbE AP | Aruba Instant IAP-335 (RW) 802.11n/ac Dual 4x4:4 MU-MIMO Radio Integrated Antenna 2.5+1 GbE AP |
Wireless LAN Standard | IEEE 802.11ac | IEEE 802.11ac |
Frequency Band | 5 GHz 2.40 GHz | 5 GHz 2.40 GHz |
Antennas | 12 Internal Antennas | 12 Internal Antennas |
Wireless Transmission Speed | 2.50 Gbit/s | 2.50 Gbit/s |
Form Factor | Wall Mountable Ceiling Mountable | Wall Mountable Ceiling Mountable |
