R2H28A
Aruba
Within 3-5days in stock/ out of stock Item Backordered
Brand New Sealed
1 Year Warranty
| Quantity: | |
|---|---|

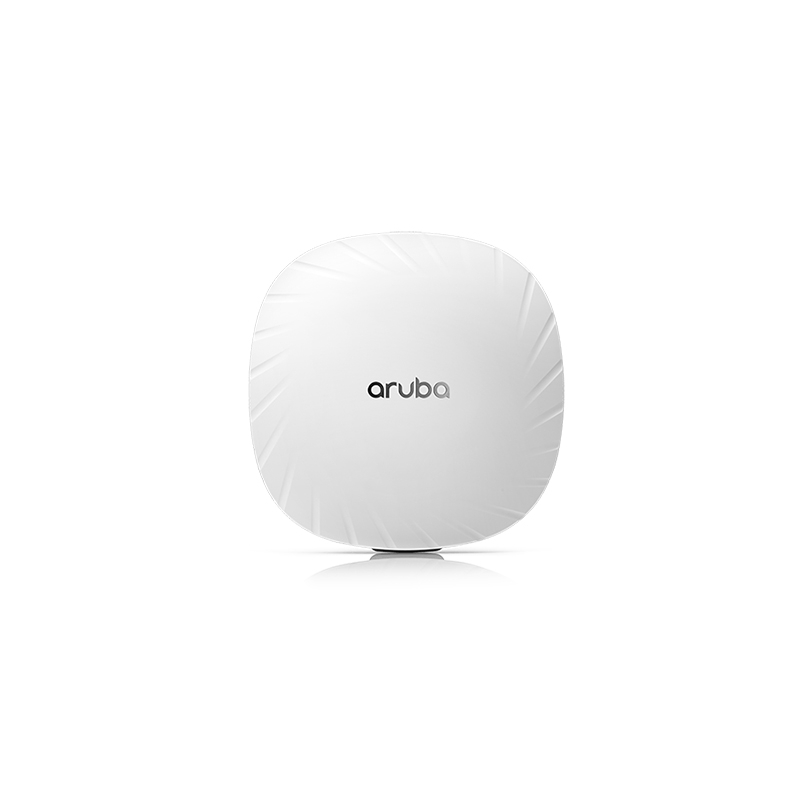

Figure 1 shows the appearance of R2H28A.
Table 1 shows the quick spec.
Model | R2H28A |
Series | Aruba AP-505 |
AP type | Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO |
5GHz radio | Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices |
2.4GHz radio | Two spatial stream Single User (SU) MIMO for up to 574Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices |
Antenna | 2 Internal Omni-directional 5.7 DBi Antenna |
Maximum number of associated client devices | Up to 256 associated client devices per radio |
Supported data rates (Mbps) | • 802.11b: 1, 2, 5.5, 11 • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 • 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM • 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM • 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) • 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) |

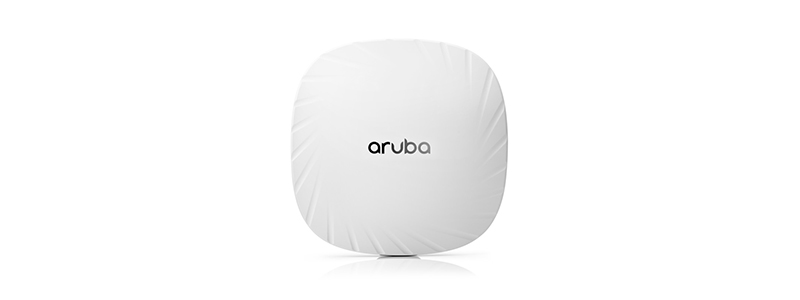

Figure 2 shows the front panel of R2H28A.

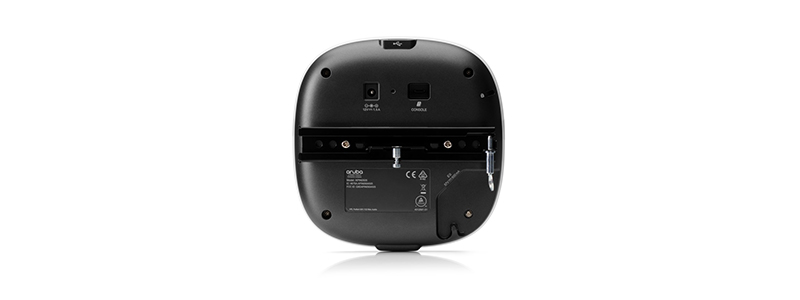

Figure 3 shows the back panel of R2H28A.
Aruba AP-500 provides these key features:
• 1.49 Gbps maximum real-world speed (HE80/HE20)
• WPA3 and Enhanced Open security
• Built-in technology that resolves sticky client issues
for Wi-Fi 6 and Wi-Fi 5 devices
• OFDMA for enhanced multi-user efficiency
• IoT-ready Bluetooth 5 and Zigbee support
Table 2 shows the accessories of R2H28A.
Mount Kit | |
AP-MNT-D Campus AP mount bracket kit (individual) type D: solid surface | |
AP-MNT-E Campus AP mount bracket kit (individual) type E: wall-box | |
Power Adaptor | |
AP-AC2-12B 12V/48W AC/DC desktop style power adapter with 2.1/5.5mm connector | |
Table 3 shows the comparison.
Model | R2H28A | |
Series | Aruba AP-505 | Aruba AP-535 |
AP type | Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO | Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 4x4 MIMO |
5GHz radio | Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices | Four spatial stream Single User (SU) MIMO for up to 2.4Gbps wireless data rate with individual 4SS HE80 (or 2SS HE160) 802.11ax client devices, or with four 1SS or two 2SS HE80 802.11ax MU-MIMO capable client devices simultaneously |
2.4GHz radio | Two spatial stream Single User (SU) MIMO for up to 574Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices | Four spatial stream Single User (SU) MIMO for up to 1,147Mbps (574Mbps) wireless data rate with individual 4SS HE40 (HE20) 802.11ax client devices or with two 2SS HE40 (HE20) 802.11ax MU-MIMO capable client devices simultaneously |
Antenna | 2 Internal Omni-directional 5.7 DBi Antenna | 4 integrated dual-band downtilt omnidirectional antennas for 4x4 MIMO with peak antenna gain of 3.5dBi in 2.4GHz and 5.4dBi in 5GHz. |
Supported data rates (Mbps) | • 802.11b: 1, 2, 5.5, 11 • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 • 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM • 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM • 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) • 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) | - 802.11b: 1, 2, 5.5, 11 - 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 - 802.11n: 6.5 to 600 (MCS0 to MCS31, HT20 to HT40), 800 with 256-QAM - 802.11ac: 6.5 to 1,733 (MCS0 to MCS9, NSS = 1 to 4, VHT20 to VHT160), 2,166 with 1024-QAM - 802.11ax (2.4GHz): 3.6 to 1,147 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE40) - 802.11ax (5GHz): 3.6 to 2,402 (MCS0 to MCS11, NSS = 1 to 4, HE20 to HE160) |
R2H28A Specification | |
Series | Aruba AP-505 |
AP type | Indoor, dual radio, 5GHz and 2.4GHz 802.11ax 2x2 MIMO |
5GHz radio | Two spatial stream Single User (SU) MIMO for up to 1.2Gbps wireless data rate with 2SS HE80 802.11ax client devices |
2.4GHz radio | Two spatial stream Single User (SU) MIMO for up to 574Mbps (287 Mbps) wireless data rate with 2SS HE40 (HE20) 802.11ax client devices |
Maximum number of BSSIDs | 16 BSSIDs per radio |
Supported frequency bands (country-specific restrictions apply) | • 2.400 to 2.4835GHz • 5.150 to 5.250GHz • 5.250 to 5.350GHz • 5.470 to 5.725GHz • 5.725 to 5.850GHz |
Available channels | Dependent on configured regulatory domain |
Supported radio technologies | • 802.11b: Direct-sequence spread-spectrum (DSSS) • 802.11a/g/n/ac: Orthogonal frequency-division multiplexing (OFDM) • 802.11ax: Orthogonal frequency-division multiple access (OFDMA) with up to 8 resource units |
Supported modulation types | • 802.11b: BPSK, QPSK, CCK • 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM (proprietary extension) • 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM (proprietary extension) • 802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM |
Antenna | 2 Internal Omni-directional 5.7 DBi Antenna |
Maximum number of associated client devices | Up to 256 associated client devices per radio |
Supported data rates (Mbps) | • 802.11b: 1, 2, 5.5, 11 • 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 • 802.11n: 6.5 to 300 (MCS0 to MCS15, HT20 to HT40), 400 with 256-QAM • 802.11ac: 6.5 to 867 (MCS0 to MCS9, NSS = 1 to 2, VHT20 to VHT80), 1,083 with 1024-QAM • 802.11ax (2.4GHz): 3.6 to 574 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE40) • 802.11ax (5GHz): 3.6 to 1,201 (MCS0 to MCS11, NSS = 1 to 2, HE20 to HE80) |
802.11n high-throughput (HT) support | HT20/40 |
802.11ac very high throughput (VHT) support | VHT20/40/80 |
802.11ax high efficiency (HE) support | HE20/40/80 |
802.11n/ac/ax packet aggregation | A-MPDU, A-MSDU |
Transmit power | Configurable in increments of 0.5 dBm |
Maximum (aggregate, conducted total) transmit power (limited by local regulatory requirements) | 2.4 GHz band: +21 dBm (18dBm per chain) 5 GHz band: +21 dBm (18 dBm per chain) Note: conducted transmit power levels exclude antenna gain. For total (EIRP) transmit power, add antenna gain. |
