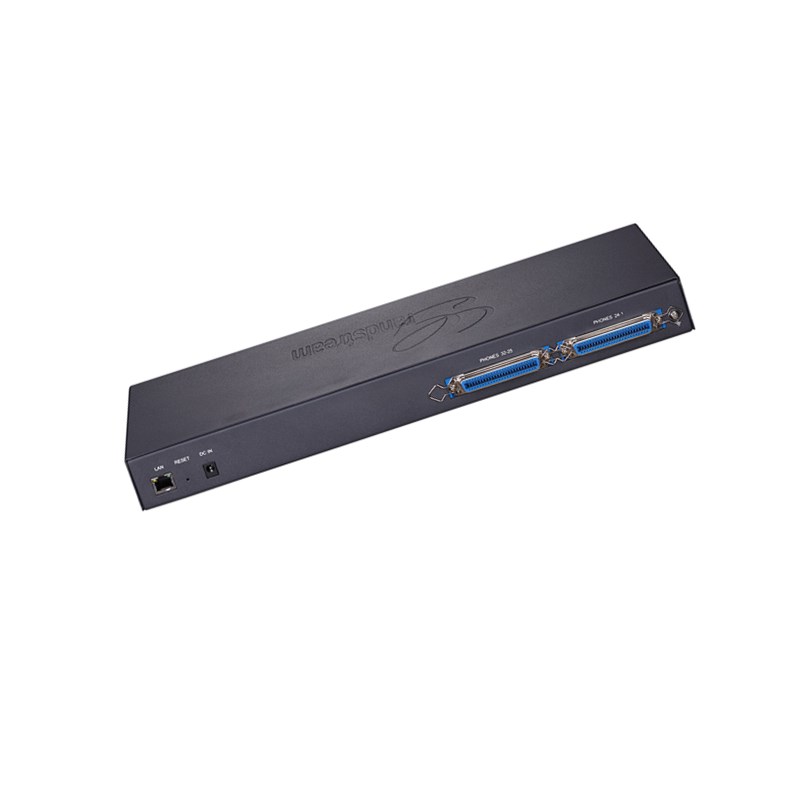

GXW4216
Grandstream
Original New
1 year
| Quantity: | |
|---|---|
| GXW4216 | |
| Telephone Interfaces | GXW4216: 16/24/32 x RJ11 & 1/1/2 50-pin Telco connectors |
| Network Interfaces | 1 x 10M/100M/1000Mbps auto-sensing RJ45 port |
| LED indicators | LAN Link, LAN Activity, Connection Per Telephone Port |
| LCD display | Backlit 128x32 graphic LCD display with support for multiple languages |
| Voice-over-Packet Capabilities | Window based carrier grade line echo cancellation, dynamic jitter buffer, modern detection & auto-switch to G.711 |
| Voice Compression | G.711, G.723.1, G.76 (40/32/24/16), G.729 A/B, iLBC |
| Fax over IP | T.38 compliant Group 3 Fax Relay up to 14.4kpbs and auto-switch to G.711 for Fax Pass through, Fax data pump V.17, V.21, V.27ter, V.29 for T.38 fax relay |
| Telephony Feature | Caller ID display or block, call waiting, blind or attended call transfer, call forward, do not disturb, 3-way conference, last call return, paging, message waiting indicator LED (NEON LED) support and stutter tone, auto dial |
| QoS | DiffServ, TOS, 802.1P/Q VLAN tagging |
| Network Protocols | TCP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS, DHCP, NTP, TFTP, TELNET, PPPoE, STUN, LLDP |
| DTMF Method | Flexible DTMF transmission methods including in-audio, RFC2833, and/or SIP INFO |
| Signaling | SIP (RFC 3261) over UDP/TCP/TLS |
| SIP Server Profiles & Accounts Per System | 4 distinct SIP server profiles per system and independent SIP account per telephone port |
| Provisioning | TFTP, HTTP, HTTTPS, TR069 |
| Security | SRTP, TLS/SIPS, HTTPS (AES-128 encryption for SRTP, TLS and HTTPS), 802.1x |
| Management | Syslog, HTTPS, Web browser, voice prompt, TR-069 |
| Universal Power Supply | GXW4216: Output: 12VDC, 5A; Input: 100 ~ 240VAC, 50 ~ 60Hz |
| Environmental | Operating: 0 °C ~ 40C; Storage: -20°C ~ 60°C; Humidity: 10% ~90% (non-condensing) |
| Electrical Protection | Over-voltage and over-current protection (ITU-T Reccomendation K.21, Basic Test Level) |
| Physical | 440mm (L) x 185mm (W) x 44mm (H) |
| Mounting | Desktop and rack mount with front brackets |
| LED Indicators | Power, LAN Link/Activity, Hard Drive Activity |
| Short & Long Haul | 2 REN, up to 6000ft on 24 AWG wire |
| Caller ID | Bellcore Type 1&2, ETSI, BT, NTT, and DTMF-based CID |
| Disconnect Methods | Busy Tone, Polarity Reversal/Wink, Loop Current |
| Compliance | FCC: Part 15 (CFR 47) Class B CE: EN55022 Class B, EN55024, EN61000-3-2, EN16000-3-3, EN60950-1, RoHS C-TICK; AS/NZS CISPR 22 Class B, AS/NZS CISPR 24, AN/NZS 60950 ITU-T K.21 (Basic Test Level); UL 60950 (power adapter) |
