Logitech Connect

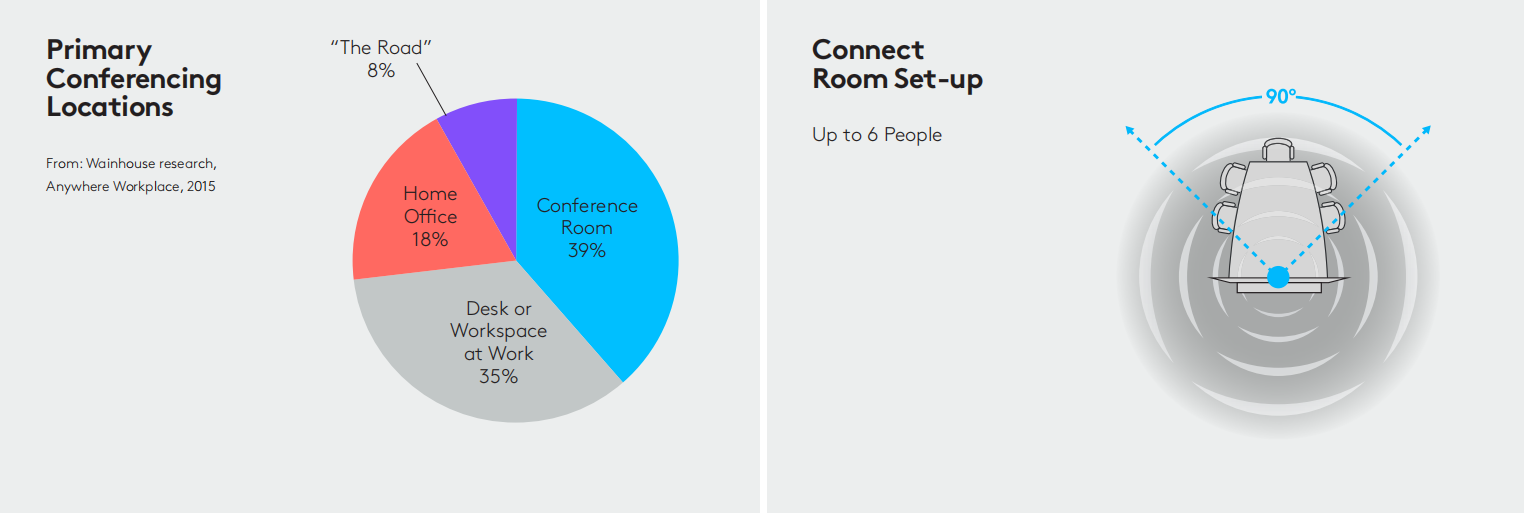

Logitech Connect goes beyond its award winning design - video conferencing so simple to use that anyone can set it up and so afordable you can enable every meeting room with video. Designed for small groups of up to six people, this video conference solution ofers a generous 90o feld of view with digital pan and mechanical tilt, 4x digital HD zoom, and razor-sharp optics making it easy to see everyone in the room. An all-in-one design, built-in battery, and optional travel case make it easy to take Connect on the road. And with a compact footprint just 2.95” (75mm) in diameter, Connect is a perfect ft for both home ofce and huddle room.
With Connect, you can also use the USB and Bluetooth mobile speakerphone for great sounding audio calls. With true 360o sound, users can hear and be heard within a 12-foot diameter range while acoustic echo and noise-cancelling technology delivers life-like sound.
b2b-datasheet-connect-web-v9-2018.pdf
Logitech Connect
| Logitech Connect | ||||
| DIMENSIONS | * Main Unit: * Height x Width x Depth: * 11.98 in (304.2 mm) x 2.95 in (75 mm) x 2.95 in (75 mm) * Weight: 1.69 lb (766 g) Remote Control: * Height x Width x Depth: * 5 in (128 mm) x 1.6 in (41 mm) x .35 in (9 mm) * Weight: 1.13 oz (32 g) | |||
| SYSTEM REQUIREMENTS | Windows® 7, 8.1 or 10 macOS® X 10.10 or higher | |||
| TECHNICAL SPECIFICATIONS | ||||
| CAMERA | Full HD 1080p video calling (up to 1920 x 1080 pixels); 720p HD video calling (up to 1280 x 720 pixels) with supported clients H.264 UVC 1.5 with Scalable Video Coding (SVC) Supports H.264 SVC 1080p, along with optimizations for best call performance in single or multiparty HD video | |||
| Field of View | * Diagonal: 90° * Horizontal: 82.1° * Vertical: 52.2° 4X digital zoom Rightlight™ 2 Technology for clarity in various lighting environments, even low light Digital pan, tilt and zoom from remote control or optional downloadable app Mechanical tilt wheel Camera LED for active streaming indication | |||
| SPEAKERPHONE | Integrated full duplex speakerphone with echo and noise cancellation 360° wideband audio Bluetooth® and NFC enabled LEDs for speakerphone streaming, mute, hold, and Bluetooth pairing Controls for call answer/end, volume and mute | |||
| Microphones (Tx) | Two omni-directional microphones supporting 3.6 m diameter range Frequency response: 100Hz – 16KHz Sensitivity: -34dB +/-3dB Distortion: <1% @ 1KHz at 65dB | |||
| Speakers (Rx) | Frequency response: 140Hz – 16KHz Sensitivity: 89dBSPL +/-3dB at 1W/0.5M Max output: 91.5dBSPL at 0.5M Distortion: <5% from 200Hz | |||

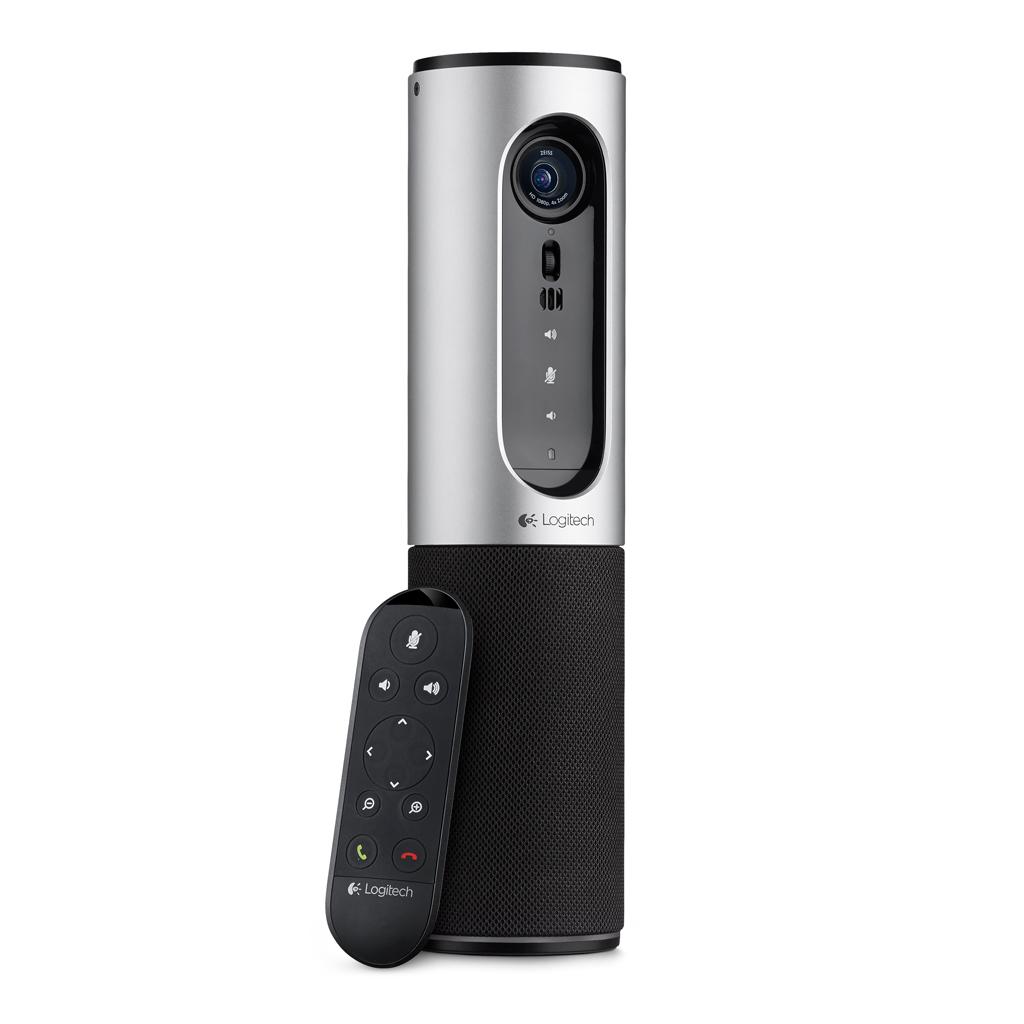

| REMOTE CONTROL | Docks on device and functions as a lens cover IR 10-ft (3 m) range CR2032 battery (included) | |||
| CABLES / POWER | AC Power adapter with regional plugs USB cable (6ft/1.8 m) Integrated rechargeable battery | |||
