AirEngine 5760-10
Huawei
100% Original Brand
1 Year
| Color: | |
|---|---|
| Size: | |
| Quantity: | |

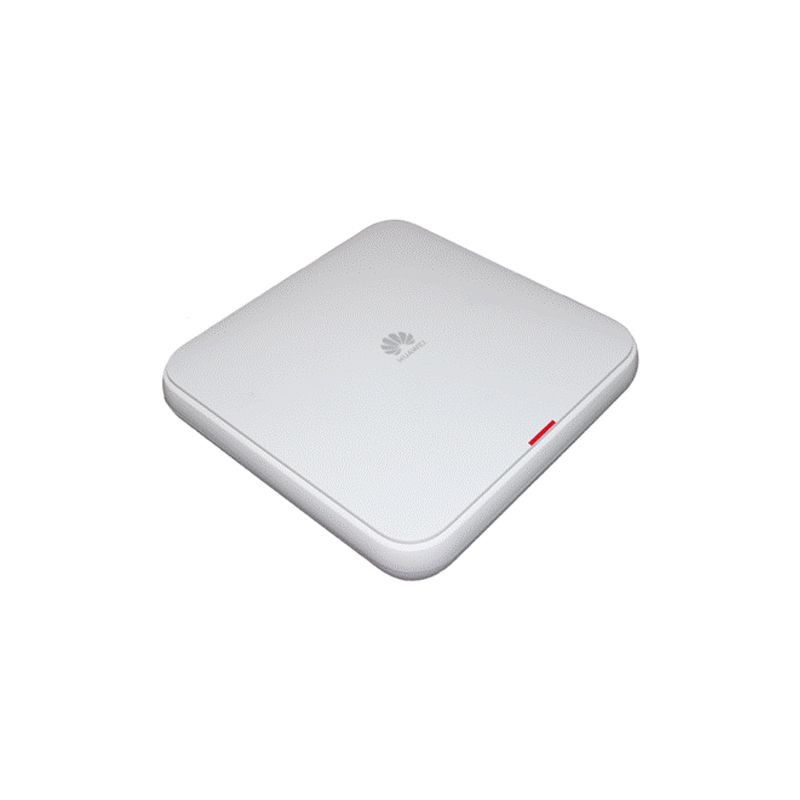

The Huawei AirEngine 5760-10 is a Wi-Fi 6 (802.11ax) wireless access point (AP) released by Huawei. AirEngine 5760-10 supports 2x2 MIMO on the 2.4 GHz band and 2x2 MIMO on the 5 GHz band. When delivering services on both bands, the device can reach a rate of up to 1.774 Gbps. AirEngine 5760-10 has built-in smart antennas and is compatible with 802.11n, 802.11ac, and 802.11ax. AirEngine 5760-10 supports high bandwidth and high concurrency, and allows for IoT extension, which greatly enhances user experience on wireless networks and applies to enterprise office, education, and business scenarios.
Table 1 shows the Quick Specs.
Product Code | Huawei AirEngine 5760-10 |
Dimensions (H x W x D) | 47 mm x 200 mm x 200 mm |
Interface type | 1 x 10/100/1000M self-adaptive Ethernet interface (RJ45 x 2) 1 x USB interface |
Built-in Bluetooth | BLE5.0 |
External IoT module | 1 x USB External IoT module (supporting ZigBee and RFID) |
LED indicator | Indicates the power-on, startup, running, alarm, and fault states of the system. |
Power input | • DC: 12 V ± 10% • PoE power supply: In compliance with 802.3at |
Maximum number of SSIDs for each radio | ≤ 16 |
Maximum number of users | ≤ 512 NOTE The actual number of users varies according to the environment. |
Huawei AirEngine 5760-10 provides these features:
• Provides services simultaneously on both the 2.4 GHz and 5 GHz frequency bands, at a rate of up to 574 Mbps at 2.4 GHz (2x2 MIMO), 1.2 Gbps at 5 GHz (2x2 MIMO), and 1.774 Gbps for the device.
• Uses smart antenna technology to enable targeted signal coverage for mobile terminals, reduce interferences, and improve signal quality. Additionally, this technology implements switchover as STAs move.
• Supports Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP, and precise locating of Bluetooth terminals by collaborating with eSight.
• Provides a USB interface for external power supply and storage. An IoT module can also be installed on the USB interface to implement flexible IoT application extension.
• Supports the Fat, Fit, and cloud modes and enables Huawei cloud-based management platform to manage and operate APs and services on the APs, reducing network O&M costs.
Table 2 shows the comparison.
Product Code | AP5510-W-GP | AirEngine 5760-10 |
Dimensions (H x W x D) | 86mm x 150mm x 38.5mm | 47 mm x 200 mm x 200 mm |
Interface type | Uplink: 1 x GPON Downlink: 4 x GE | 1 x 10/100/1000M self-adaptive Ethernet interface (RJ45 x 2) 1 x USB interface |
Built-in Bluetooth | \ | BLE5.0 |
Maximum power consumption
| 14.2 W
| 15.8 W (excluding output power consumption of the USB interface and IoT) |
Antenna type | Built-in dual-band smart antenna | Built-in adaptive array antennas (smart antennas) |
Antenna gain | 2.4G: 3 dBi 5G: 4 dBi | 2.4G: 3.5 dBi 5G: 5 dBi |
Maximum transmit power
| 2.4G: 23 dBm (combined power) 5G: 23 dBm (combined power) | 2.4G: 25 dBm (combined power) 5G: 25 dBm (combined power) |
Power increment | 1 dBm | 1 dBm |
The Huawei AirEngine 5760-10 is a Wi-Fi 6 (802.11ax) wireless access point (AP) released by Huawei. AirEngine 5760-10 supports 2x2 MIMO on the 2.4 GHz band and 2x2 MIMO on the 5 GHz band. When delivering services on both bands, the device can reach a rate of up to 1.774 Gbps. AirEngine 5760-10 has built-in smart antennas and is compatible with 802.11n, 802.11ac, and 802.11ax. AirEngine 5760-10 supports high bandwidth and high concurrency, and allows for IoT extension, which greatly enhances user experience on wireless networks and applies to enterprise office, education, and business scenarios.
Table 1 shows the Quick Specs.
Product Code | Huawei AirEngine 5760-10 |
Dimensions (H x W x D) | 47 mm x 200 mm x 200 mm |
Interface type | 1 x 10/100/1000M self-adaptive Ethernet interface (RJ45 x 2) 1 x USB interface |
Built-in Bluetooth | BLE5.0 |
External IoT module | 1 x USB External IoT module (supporting ZigBee and RFID) |
LED indicator | Indicates the power-on, startup, running, alarm, and fault states of the system. |
Power input | • DC: 12 V ± 10% • PoE power supply: In compliance with 802.3at |
Maximum number of SSIDs for each radio | ≤ 16 |
Maximum number of users | ≤ 512 NOTE The actual number of users varies according to the environment. |
Huawei AirEngine 5760-10 provides these features:
• Provides services simultaneously on both the 2.4 GHz and 5 GHz frequency bands, at a rate of up to 574 Mbps at 2.4 GHz (2x2 MIMO), 1.2 Gbps at 5 GHz (2x2 MIMO), and 1.774 Gbps for the device.
• Uses smart antenna technology to enable targeted signal coverage for mobile terminals, reduce interferences, and improve signal quality. Additionally, this technology implements switchover as STAs move.
• Supports Bluetooth serial interface-based O&M through built-in Bluetooth and CloudCampus APP, and precise locating of Bluetooth terminals by collaborating with eSight.
• Provides a USB interface for external power supply and storage. An IoT module can also be installed on the USB interface to implement flexible IoT application extension.
• Supports the Fat, Fit, and cloud modes and enables Huawei cloud-based management platform to manage and operate APs and services on the APs, reducing network O&M costs.
Table 2 shows the comparison.
Product Code | AP5510-W-GP | AirEngine 5760-10 |
Dimensions (H x W x D) | 86mm x 150mm x 38.5mm | 47 mm x 200 mm x 200 mm |
Interface type | Uplink: 1 x GPON Downlink: 4 x GE | 1 x 10/100/1000M self-adaptive Ethernet interface (RJ45 x 2) 1 x USB interface |
Built-in Bluetooth | \ | BLE5.0 |
Maximum power consumption
| 14.2 W
| 15.8 W (excluding output power consumption of the USB interface and IoT) |
Antenna type | Built-in dual-band smart antenna | Built-in adaptive array antennas (smart antennas) |
Antenna gain | 2.4G: 3 dBi 5G: 4 dBi | 2.4G: 3.5 dBi 5G: 5 dBi |
Maximum transmit power
| 2.4G: 23 dBm (combined power) 5G: 23 dBm (combined power) | 2.4G: 25 dBm (combined power) 5G: 25 dBm (combined power) |
Power increment | 1 dBm | 1 dBm |
