AirEngine 5761S-11
Huawei
100% Original Brand
1 Year
| Color: | |
|---|---|
| Size: | |
| Quantity: | |

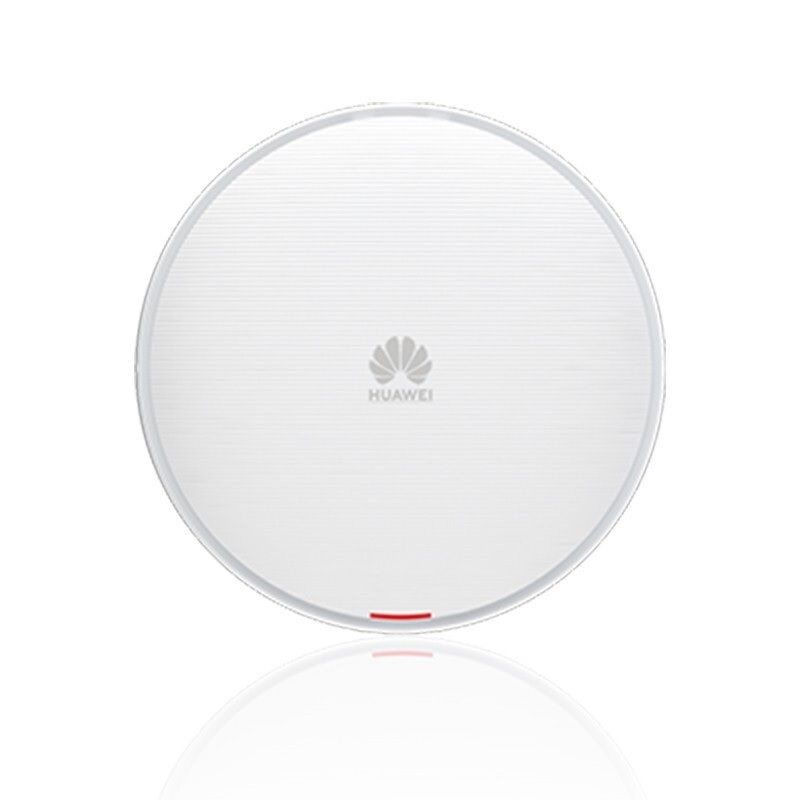

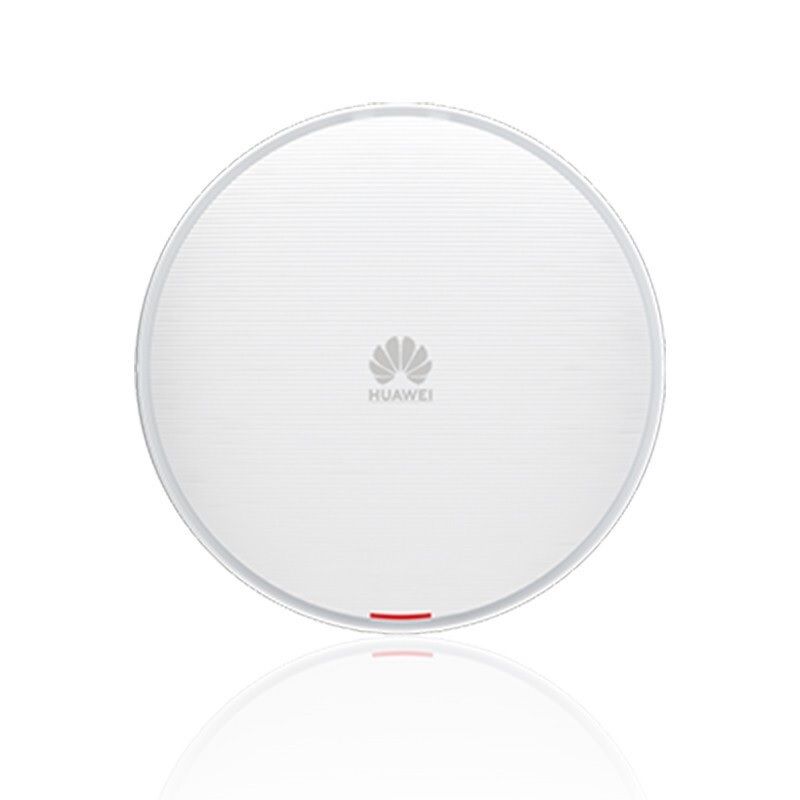

Huawei AirEngine 5761S-11 is a wireless access point (AP) in compliance of the Wi-Fi 6 standard. It can simultaneously provide services on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands. The AP uses built-in smart antennas to move Wi-Fi signals with users, significantly enhancing users' wireless network experience. It is ideal for indoor coverage scenarios, such as small- and medium-sized enterprise offices, hospitals, and cafes.
Table 1 shows the Quick Specs.
Product Code | AirEngine5761S-11 |
System memory | DDR4 1 GB |
Flash | NAND FLASH 512 MB |
Power input | DC: 12 V ± 10% PoE power supply: in compliance with IEEE 802.3at/802.3af |
Maximum power consumption | 14.2 W (Without USB) |
Antenna gain | WLAN 2.4 GHz radio: 4 dBi WLAN 5 GHz radio: 5 dBi Bluetooth 2.4 GHz: 4 dBi |
Maximum number of users | ≤ 512 for each radio |
Huawei AirEngine5761S-11 provides these features:
-1 x GE electrical port
-Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
-USB port for IoT application extension (such as ZigBee and RFID)
-Bluetooth serial interface–based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP Collaboration with a location server to accurately locate Bluetooth terminals and tags
-Working modes: Fit, Fat, and cloud management
Huawei AirEngine 5761S-11 is a wireless access point (AP) in compliance of the Wi-Fi 6 standard. It can simultaneously provide services on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands. The AP uses built-in smart antennas to move Wi-Fi signals with users, significantly enhancing users' wireless network experience. It is ideal for indoor coverage scenarios, such as small- and medium-sized enterprise offices, hospitals, and cafes.
Table 1 shows the Quick Specs.
Product Code | AirEngine5761S-11 |
System memory | DDR4 1 GB |
Flash | NAND FLASH 512 MB |
Power input | DC: 12 V ± 10% PoE power supply: in compliance with IEEE 802.3at/802.3af |
Maximum power consumption | 14.2 W (Without USB) |
Antenna gain | WLAN 2.4 GHz radio: 4 dBi WLAN 5 GHz radio: 5 dBi Bluetooth 2.4 GHz: 4 dBi |
Maximum number of users | ≤ 512 for each radio |
Huawei AirEngine5761S-11 provides these features:
-1 x GE electrical port
-Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
-USB port for IoT application extension (such as ZigBee and RFID)
-Bluetooth serial interface–based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP Collaboration with a location server to accurately locate Bluetooth terminals and tags
-Working modes: Fit, Fat, and cloud management
