AirEngine 5761S-11W
Huawei
100% Original Brand
1 Year
| Color: | |
|---|---|
| Quantity: | |

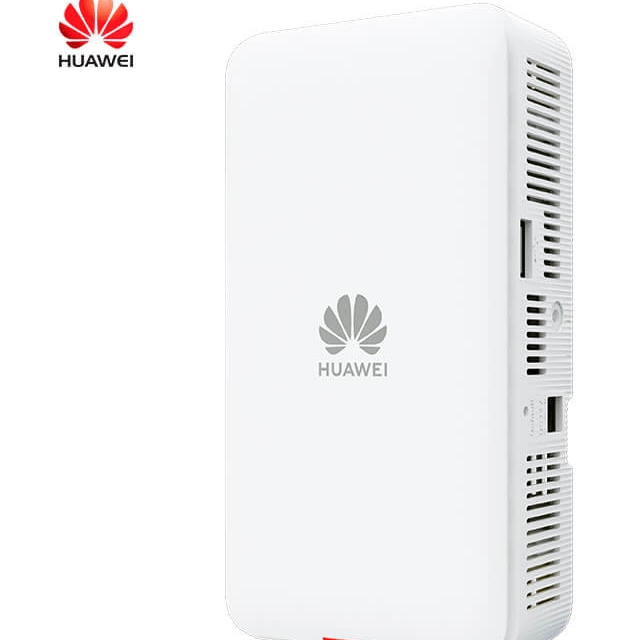

AirEngine 5761S-11W is Huawei's Wi-Fi 6 wall plate access point (AP). It can simultaneously provide services on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands. The AP uses built-in smart antennas to move Wi-Fi signals with users, significantly enhancing users' wireless network experience. It is ideal for scenarios with high-density rooms, such as hotel guest rooms, dormitory rooms, and hospital wards.
Table 1 shows the Quick Specs.
Product Code | AirEngine5761S-11W |
System memory | DDR4 1 GB |
Flash | NAND FLASH 512 MB |
Power input | DC: 12 V ± 10% PoE power supply: in compliance with IEEE 802.3at/802.3af |
Maximum power consumption | 12.7 W (without USB) |
Antenna gain |
|
Maximum number of users | ≤ 512 for each radio When functioning as a leader AP, the AirEngine 5761S-11W can manage a maximum of 1152 users. |
Huawei AirEngine5761S-11W provides these features:

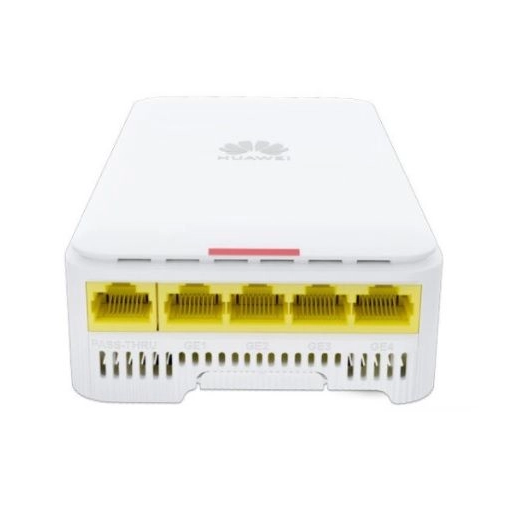

-Uplink: 1 x GE electrical port; downlink: 4 x GE electrical port + 2 x RJ45 passthrough port
-Mounting on a junction box or wall, facilitating deployment
-Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
-USB port for IoT application extension (such as ZigBee and RFID)
-Bluetooth serial interface–based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
-Working modes: Fit, Fat, and cloud management
AirEngine 5761S-11W is Huawei's Wi-Fi 6 wall plate access point (AP). It can simultaneously provide services on the 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) frequency bands. The AP uses built-in smart antennas to move Wi-Fi signals with users, significantly enhancing users' wireless network experience. It is ideal for scenarios with high-density rooms, such as hotel guest rooms, dormitory rooms, and hospital wards.
Table 1 shows the Quick Specs.
Product Code | AirEngine5761S-11W |
System memory | DDR4 1 GB |
Flash | NAND FLASH 512 MB |
Power input | DC: 12 V ± 10% PoE power supply: in compliance with IEEE 802.3at/802.3af |
Maximum power consumption | 12.7 W (without USB) |
Antenna gain |
|
Maximum number of users | ≤ 512 for each radio When functioning as a leader AP, the AirEngine 5761S-11W can manage a maximum of 1152 users. |
Huawei AirEngine5761S-11W provides these features:
-Uplink: 1 x GE electrical port; downlink: 4 x GE electrical port + 2 x RJ45 passthrough port
-Mounting on a junction box or wall, facilitating deployment
-Built-in smart antennas that automatically adjust the coverage direction and signal strength based on the intelligent switchover algorithm to adapt to the application environment change, and provide accurate and stable coverage as STAs move
-USB port for IoT application extension (such as ZigBee and RFID)
-Bluetooth serial interface–based O&M through the built-in Bluetooth module by collaborating with CloudCampus APP; collaboration with a location server to accurately locate Bluetooth terminals and tags
-Working modes: Fit, Fat, and cloud management
