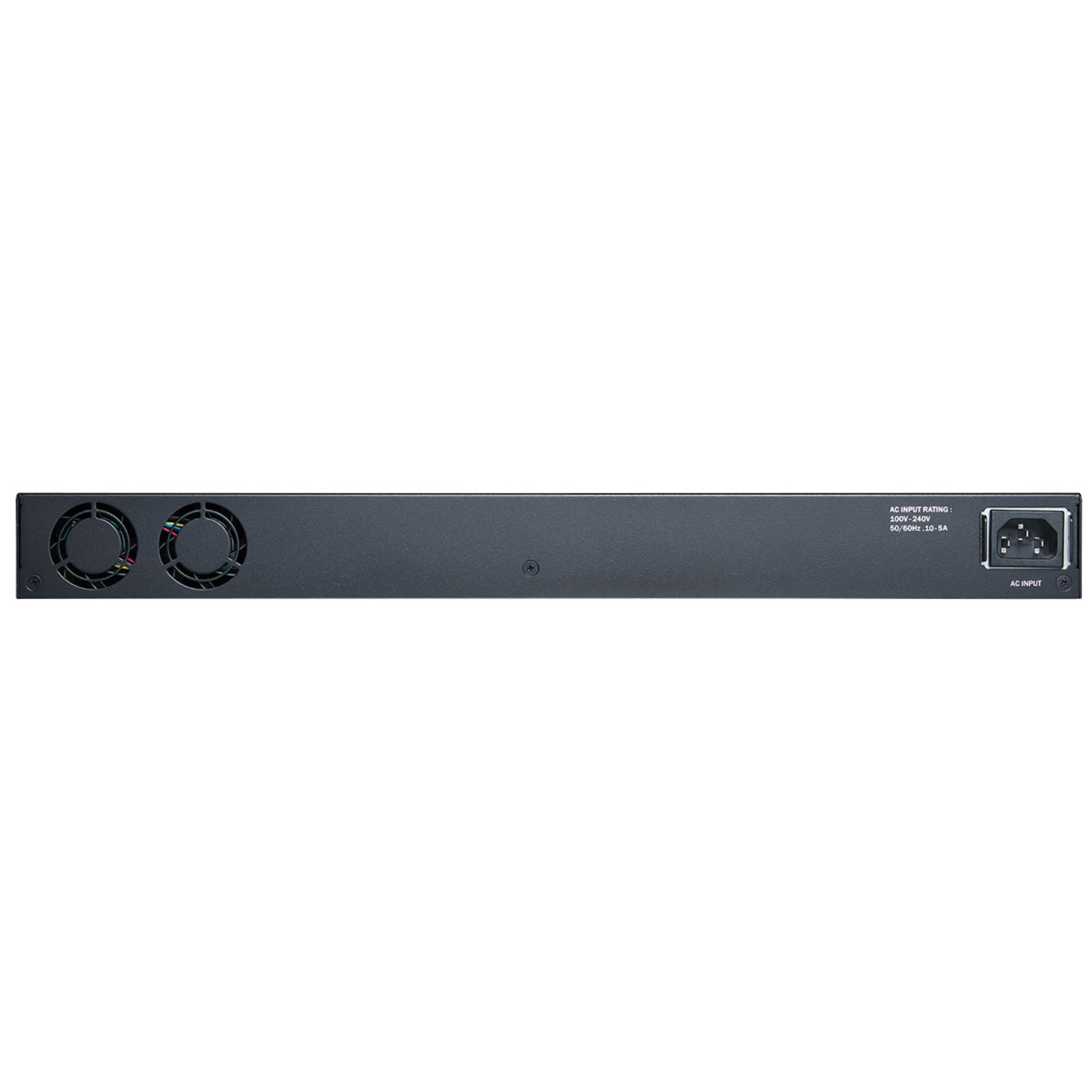

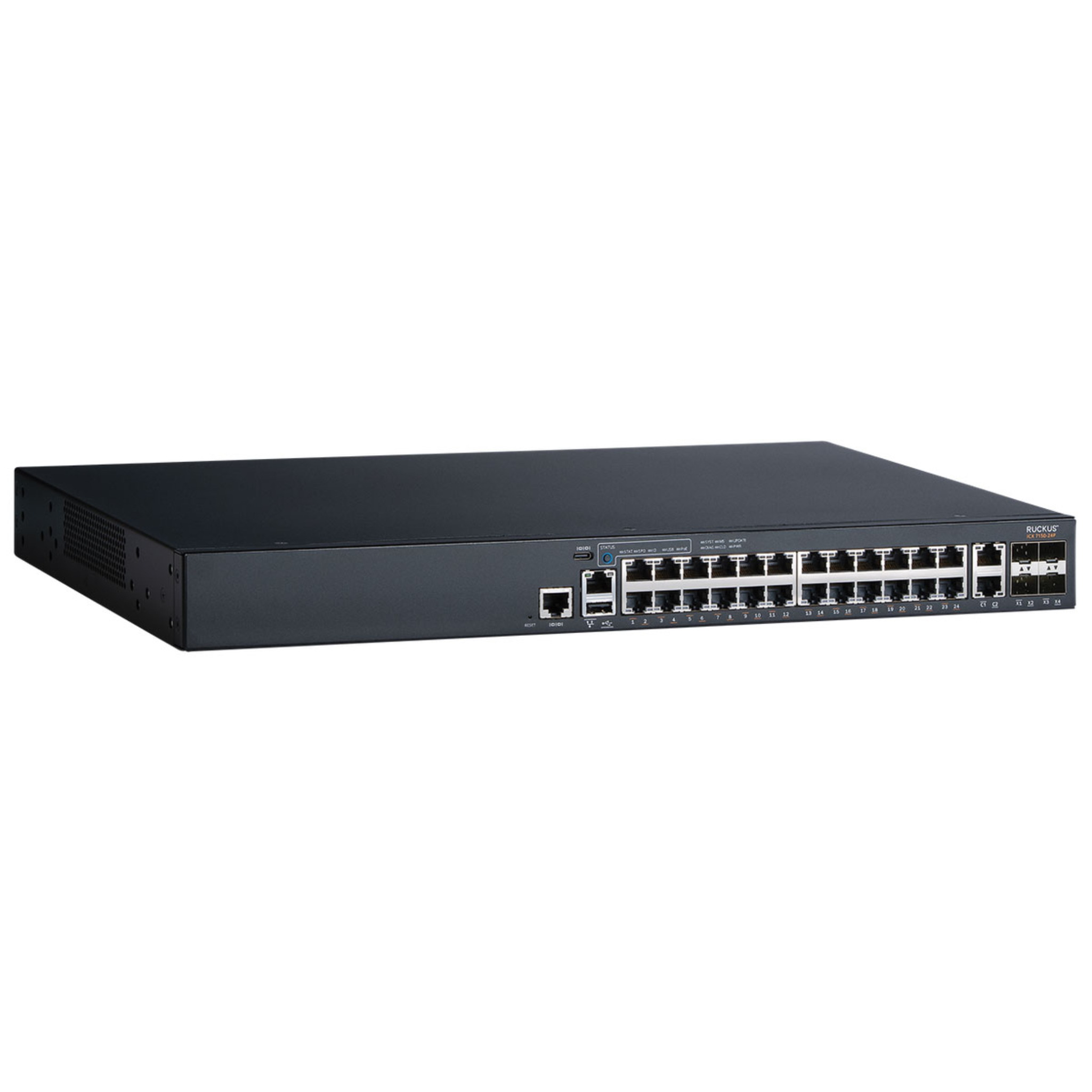

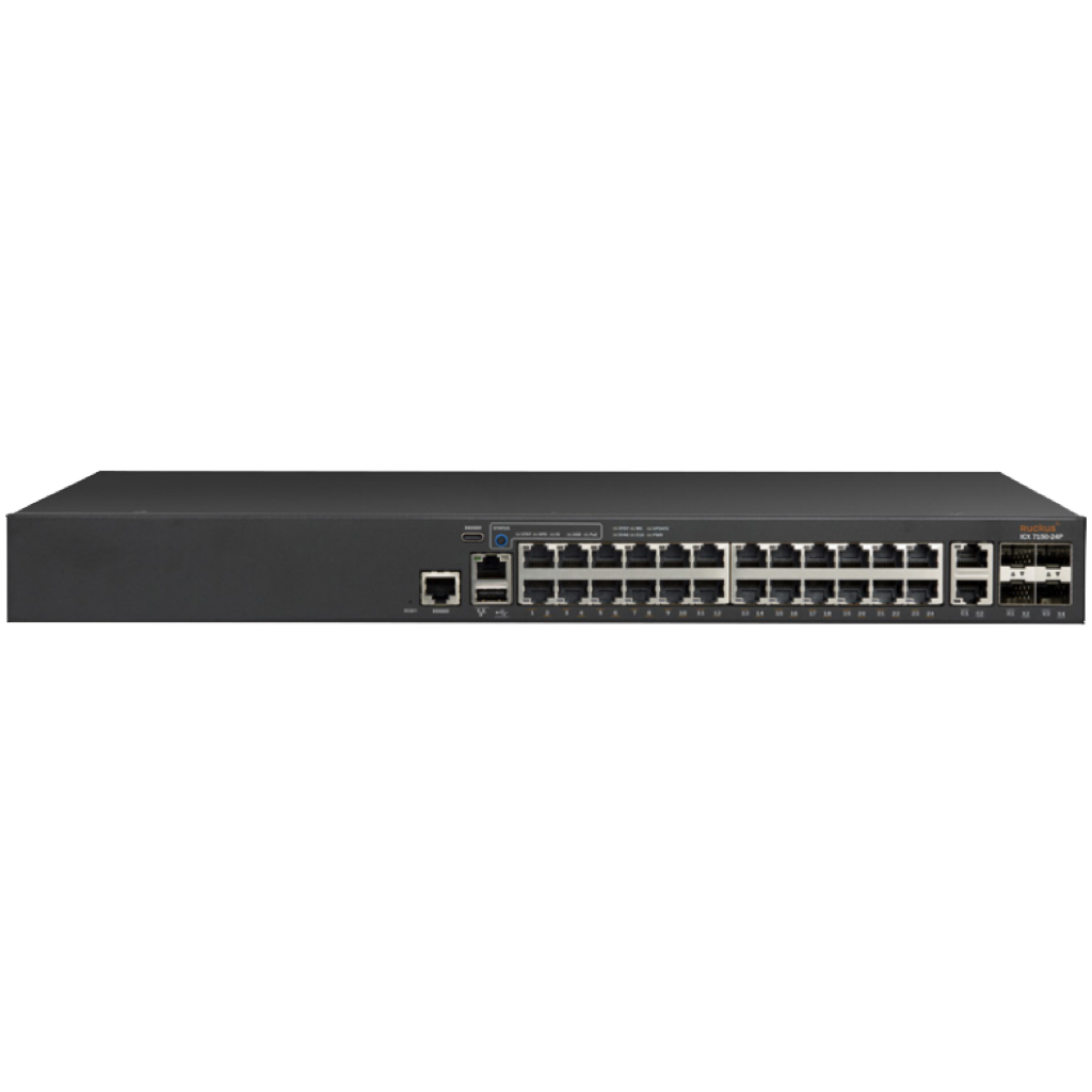

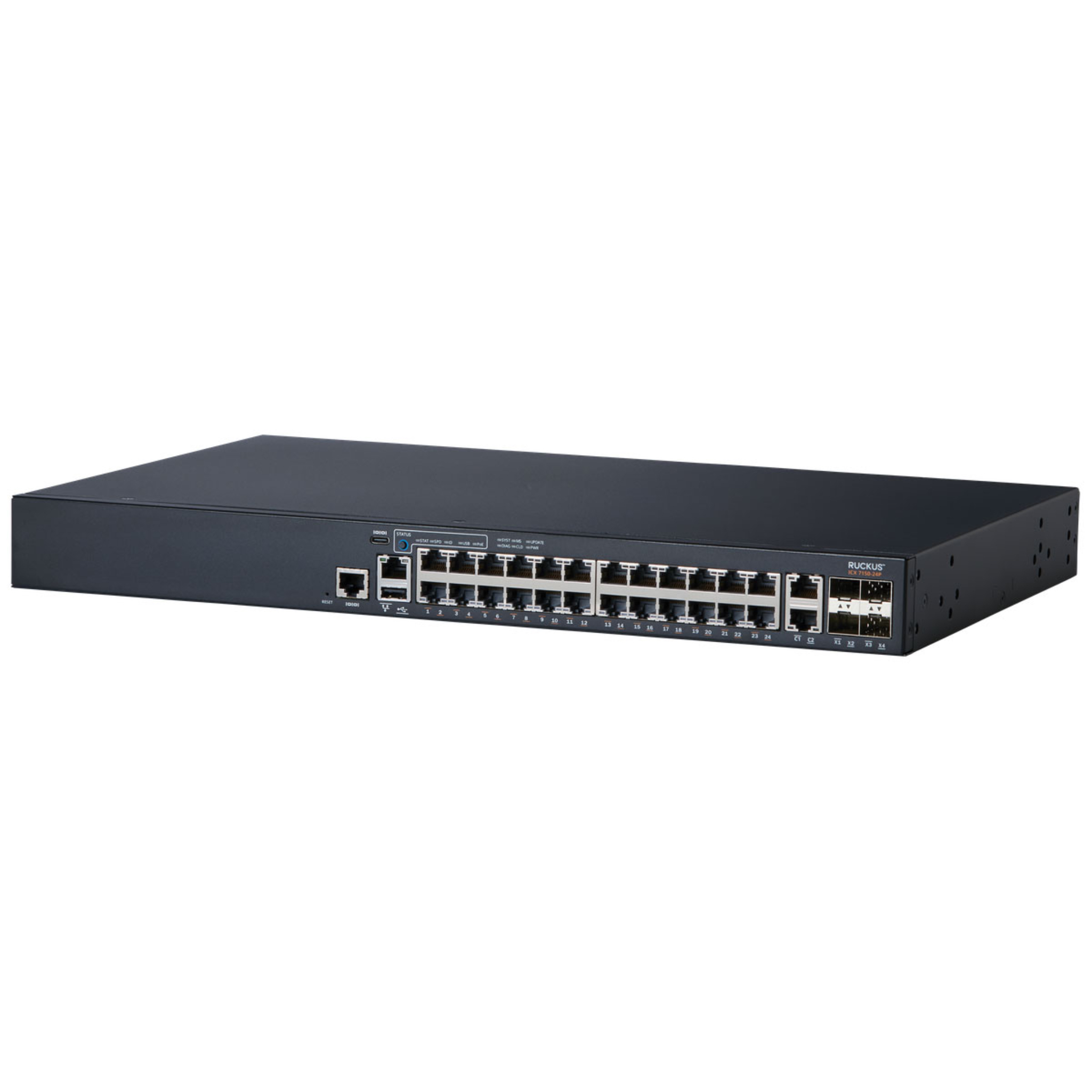

The Ruckus ICX 7150-24P-4X1G is a high-performance, enterprise-class Gigabit Layer 3 managed switch designed to deliver reliable, secure, and scalable network connectivity for small to medium-sized businesses, branch offices, educational institutions, hospitality environments, and enterprise edge deployments. Equipped with 24 Gigabit Ethernet PoE+ ports, the switch provides up to 30W of power per port, enabling seamless deployment of IP phones, wireless access points, IP surveillance cameras, and other PoE-enabled devices without the need for separate power supplies. Four dedicated 1GbE SFP uplink ports offer flexible fiber connectivity for high-speed network aggregation and long-distance connections, ensuring efficient traffic transmission across the network. Powered by the advanced Ruckus ICX operating system, the ICX 7150-24P-4X1G supports comprehensive Layer 2 and Layer 3 features including static routing, RIP, VLANs, Link Aggregation (LACP), Spanning Tree Protocol (STP/RSTP/MSTP), Access Control Lists (ACLs), Quality of Service (QoS), IGMP Snooping, DHCP Snooping, IPv4/IPv6 dual-stack support, and robust security policies to optimize network performance and simplify management. The switch also supports flexible deployment options with standalone or stackable operation, allowing organizations to expand their network infrastructure while maintaining centralized management and operational efficiency. Its energy-efficient hardware design reduces power consumption without compromising performance, making it a cost-effective solution for modern enterprise networks. With enterprise-grade reliability, advanced traffic management capabilities, easy integration with existing network infrastructure, and support for mission-critical business applications, the Ruckus ICX 7150-24P-4X1G provides a dependable switching platform capable of supporting voice, video, cloud services, wireless networking, and data-intensive workloads. As an ideal solution for organizations seeking secure, high-speed, and scalable Ethernet switching, this switch combines outstanding performance, simplified management, and long-term investment protection to meet the evolving demands of today's digital business environments.
ICX 7150-24P-4X1G
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | ICX7150-24P-4X1G |
Product Series | RUCKUS ICX 7150 Stackable Enterprise Access Switch |
Typical Application | SMB Office, Branch Networks, IP Camera Surveillance, Wi-Fi AP Deployment, IP Phone Infrastructure |
Warranty | 1-Year RUCKUS Standard Hardware Warranty |
Port Configuration | 24 × 10/100/1000BASE-T RJ45 PoE+ Downlinks 2 × 1G RJ45 Fixed Uplink Ports 4 × 1G SFP Uplink/Stacking Slots (Upgradable to 4×10G SFP+ via License) |
PoE Standard Compliance | IEEE 802.3af (15.4W/port), IEEE 802.3at PoE+ (30W/port) |
Total PoE Power Budget | 370W |
Switching Capacity | 132 Gbps Full-Duplex |
64-byte Packet Forwarding Rate | 98 Mpps |
MAC Address Table | 16,000 MAC Entries |
Packet Buffer Memory | 4MB Shared Buffer |
Jumbo Frame Support | Up to 9216 Bytes |
QoS Queues | 8 Hardware Queues per Port, WRR & Strict Priority Scheduling |
VLAN Support | Up to 4094 VLANs, 802.1Q Tagging, Voice VLAN, Guest VLAN |
Spanning Tree Protocols | STP, RSTP, MSTP, PVST |
Link Aggregation | IEEE 802.3ad LACP, Static Trunking |
Multicast Features | IGMP Snooping v1/v2/v3, MLD Snooping, Multicast Filtering |
Layer 3 Routing (Base License) | IPv4/IPv6 Static Routing, RIP v1/v2, RIPng |
Advanced L3 (Premium License) | OSPF v2/v3, PIM, VRRP-E, ECMP Routing |
Stacking Capability | Max 12 Switches per Stack, 480Gbps Stack Bandwidth |
Management Interfaces | RJ45 Console, USB-C Console, USB-A Storage Port, Out-of-Band Management Port, Web GUI, CLI, SNMP v1/v2c/v3, RUCKUS SmartZone |
Security Features | 802.1X Port Auth, Web Auth, RADIUS/TACACS+, Port Security, DoS Protection, SSH/HTTPS Encrypted Management, ARP Guard, Rogue DHCP Suppression |
Energy Saving | EEE Energy Efficient Ethernet, Quiet Fan Mode (PoE limited to 150W) |
Cooling & Noise | Variable-speed side-to-back airflow fans, 52 dBA at 25°C min speed |
Physical Dimensions (W × D × H) | 440 mm × 280 mm × 43.65 mm (17.32 × 11.02 × 1.72 in), 19-inch 1U Rackmount |
Net Unit Weight | 6.61 kg (14.57 lbs) |
Power Input | Built-in universal AC PSU, 100–240V AC, 50/60Hz, C14 Power Inlet |
Idle Power Consumption (No PoE Load) | 32W @ 220V |
Max Full Load Power (Full PoE Output) | 472W @ 220V |
Operating Temperature | 0°C ~ 45°C, 5%–95% Non-Condensing Humidity |
Storage Temperature | -25°C ~ 70°C, 5%–95% Non-Condensing Humidity |
MTBF (25°C Ambient) | 104,626 Hours |
Installation Methods | Standard 1U Rack Mount, Desktop Placement |
Regulatory Certifications | CE, FCC, UL, RoHS, BSMI |
