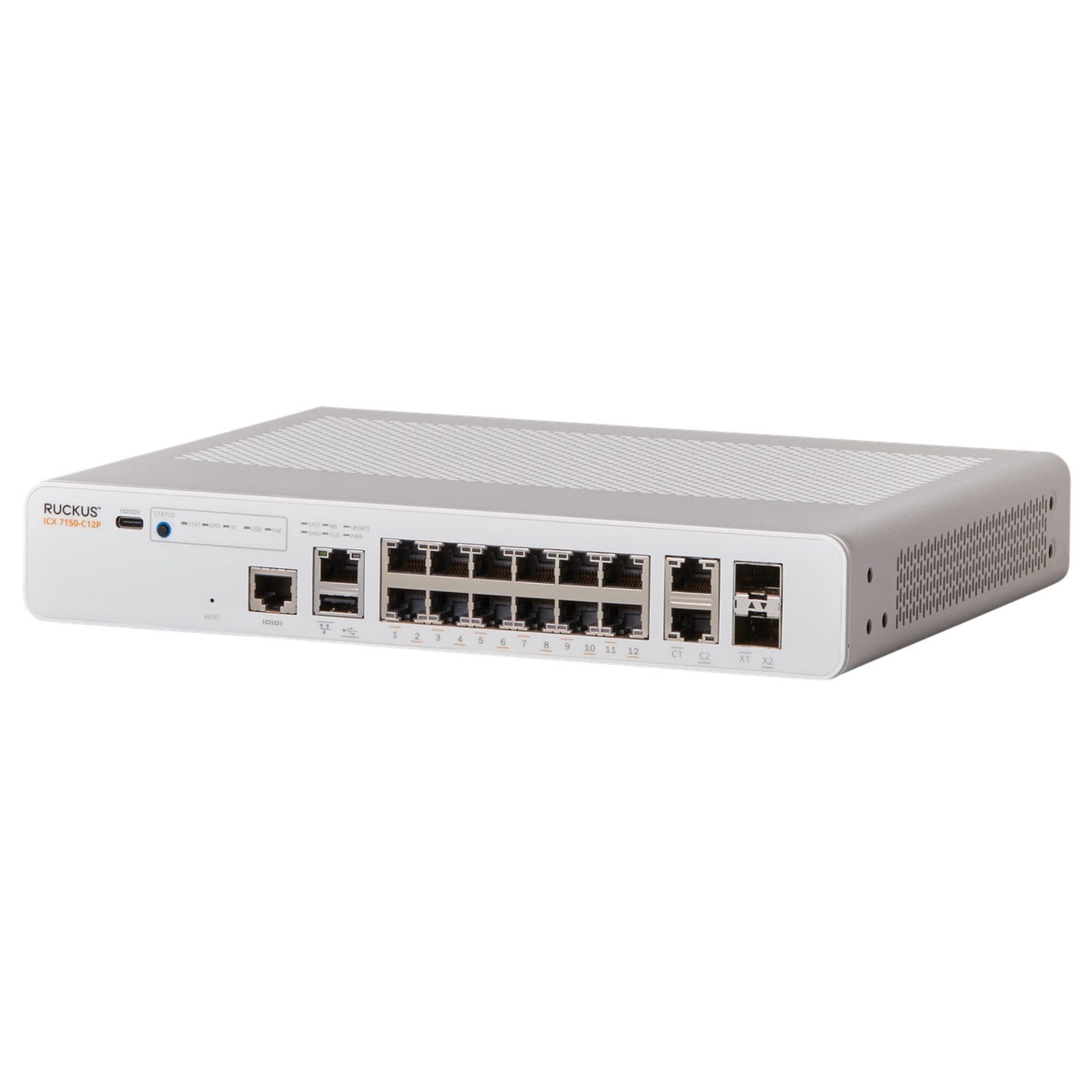

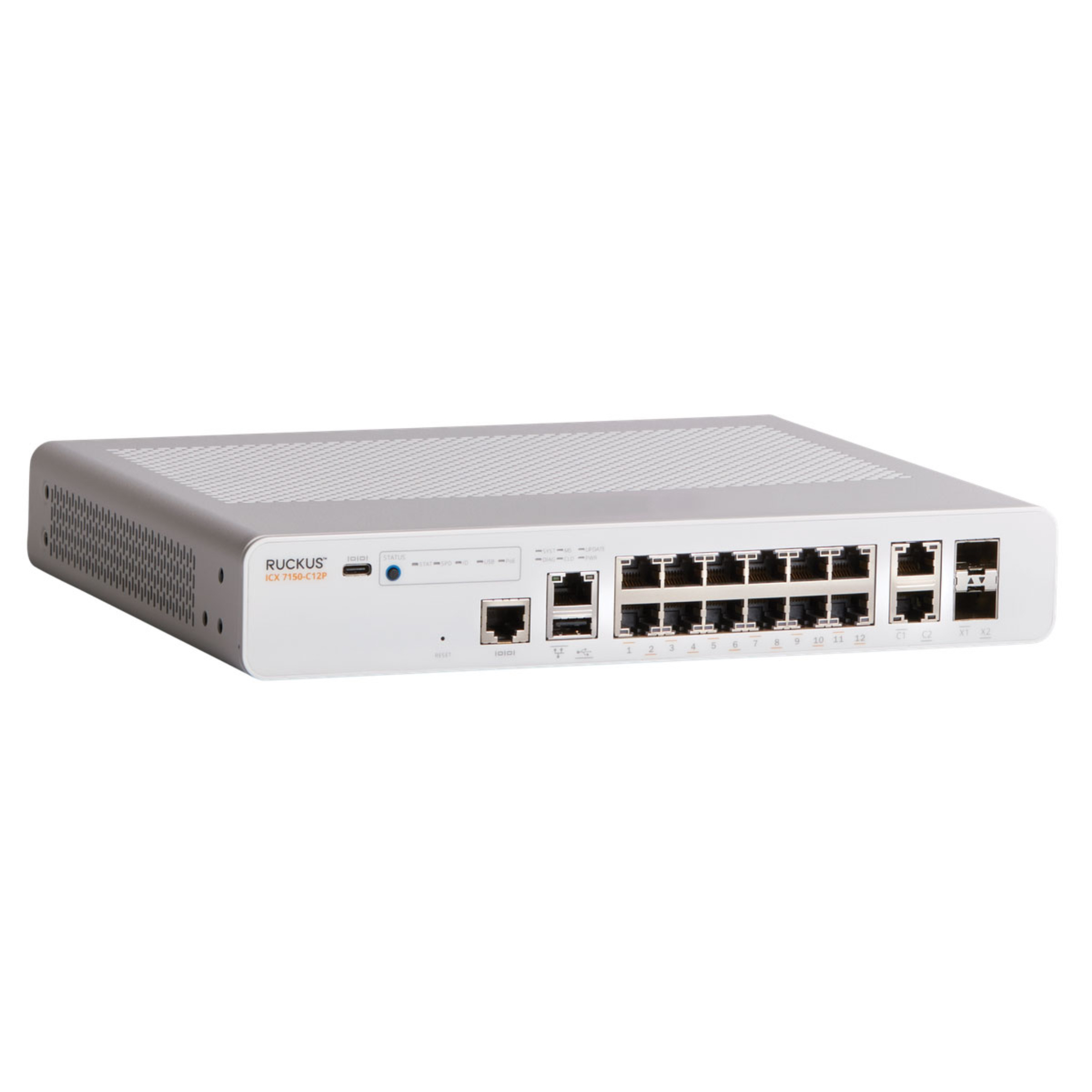

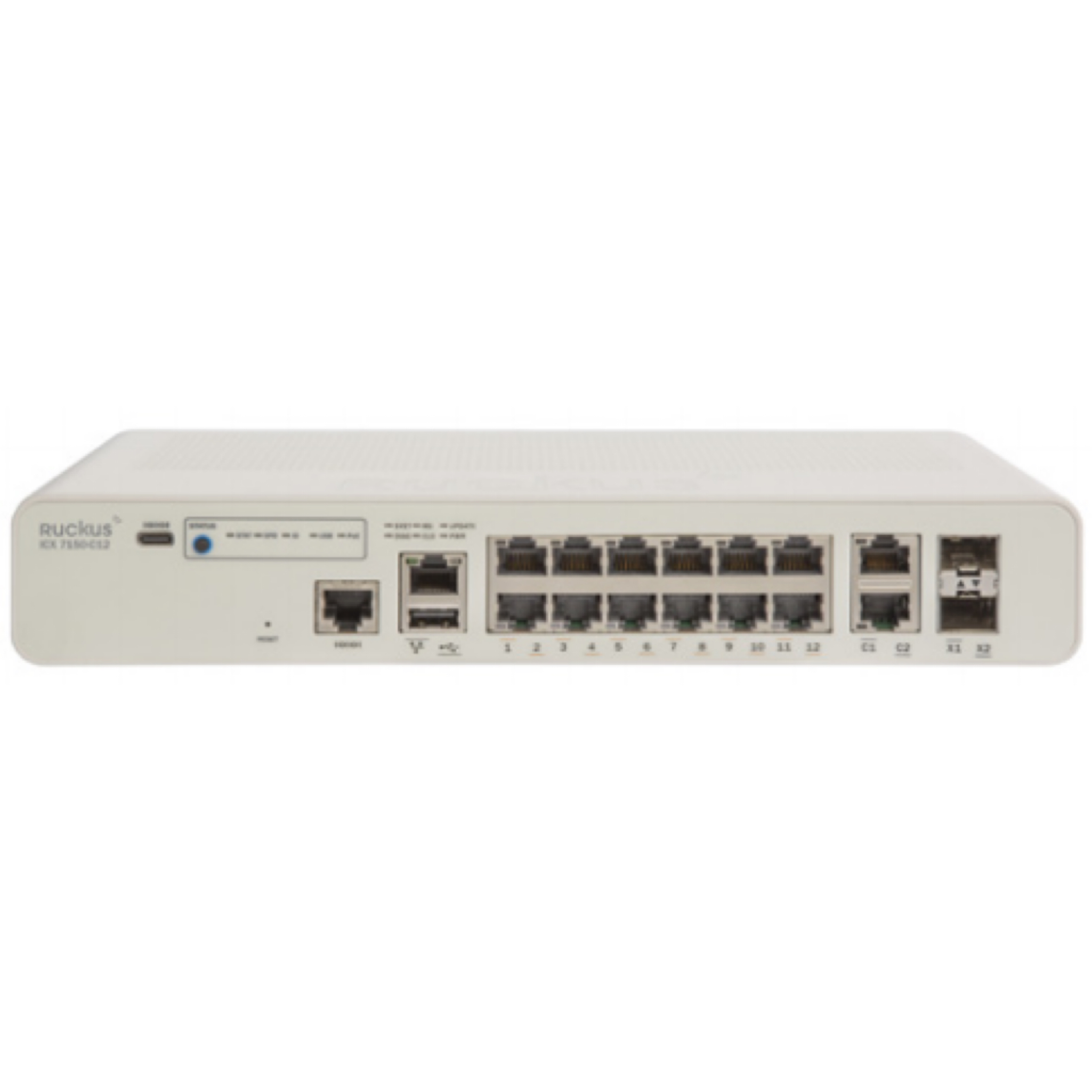

The Ruckus ICX 7150-C12P-2X1G is a compact, enterprise-class Gigabit Ethernet switch designed to deliver reliable, high-performance wired connectivity for small and medium-sized businesses, branch offices, retail stores, hospitality environments, educational institutions, and remote workspaces. Featuring 12 × 10/100/1000 Mbps PoE+ Ethernet ports compliant with IEEE 802.3af/at standards, the switch provides up to 30W of power per port, making it ideal for powering IP phones, wireless access points, IP surveillance cameras, IoT devices, and other PoE-enabled equipment without requiring additional power supplies. It also includes 2 × 1G SFP uplink ports and 2 × 10GbE SFP+ uplink ports, delivering flexible, high-speed connectivity for aggregation, server access, or network expansion while minimizing bottlenecks. Built on Ruckus's proven ICX architecture, the ICX 7150-C12P-2X1G offers advanced Layer 2 switching and Layer 3 Lite routing capabilities, including static routing, VLANs, QoS, ACLs, link aggregation, multicast support, and robust security features to ensure efficient traffic management and reliable network performance. The switch supports seamless integration with Ruckus SmartZone and RUCKUS One management platforms, enabling simplified deployment, centralized monitoring, configuration, and troubleshooting across distributed networks. Designed with energy efficiency and quiet operation in mind, its fanless compact form factor allows flexible desktop, wall-mount, or under-desk installation, making it an excellent choice for noise-sensitive environments such as offices, classrooms, clinics, and conference rooms. Enterprise-grade reliability, carrier-class hardware quality, and comprehensive management features ensure long-term operational stability while reducing maintenance costs. Whether deployed as an access switch for wireless edge networking or as part of a scalable campus infrastructure, the Ruckus ICX 7150-C12P-2X1G delivers exceptional performance, security, scalability, and investment protection. As a trusted global supplier of genuine networking equipment, we provide brand-new original Ruckus switches with competitive pricing, abundant inventory, fast worldwide shipping, professional technical support, and flexible logistics solutions to meet the needs of distributors, resellers, system integrators, enterprise customers, and organizations worldwide.
ICX 7150-C12P-2X1G
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | ICX7150-C12P-2X1G |
Brand & Series | Ruckus ICX 7150 Compact Stackable Layer 3 Managed Switch |
Typical Application | Small offices, branch networks, Wi-Fi AP deployments, IP phone & IP camera access networks, retail & hospitality |
Hardware Warranty | 13-Year Limited Hardware Warranty |
Port Configuration | 12 × 10/100/1000BASE-T PoE+ RJ45 access ports 2 × 1G RJ45 fixed uplink ports 2 × SFP slots (1G native, upgradable to 10G SFP+ via license) |
PoE Standard Support | IEEE 802.3af (15.4W/port), IEEE 802.3at PoE+ (30W/port) |
Total PoE Power Budget | 124W |
Max PoE Port Capacity | Up to 8 × Class 3 (15.4W) ports / Up to 4 × Class 4 (30W) PoE+ ports |
Switching Capacity | 68 Gbps |
Forwarding Rate (64-byte packets) | 50.6 Mpps |
MAC Address Table | 16,000 MAC entries |
Packet Buffer Memory | 1MB shared buffer |
Jumbo Frame Support | Up to 9,000 bytes |
Supported Cabling | Cat5e / Cat6 / Cat6a copper cables |
Stacking Function | Supports ICX stacking, cross-model stacking within ICX 7150 family |
Layer 3 Features | Static IPv4/IPv6 routing, RIP v1/v2, basic Layer 3 forwarding |
VLAN Capacity | Up to 4,094 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN |
Spanning Tree Protocols | STP, RSTP, MSTP |
Link Aggregation | IEEE 802.3ad LACP, static LAG groups |
Multicast Features | IGMP Snooping v1/v2/v3, MLD Snooping, multicast replication |
QoS | 8 hardware queues per port, WRR + strict priority scheduling, DSCP/802.1p mapping |
Security Functions | 802.1X port authentication, RADIUS/TACACS+, port security, storm control, SSH/HTTPS management, ARP guard, DoS protection |
Management Interfaces | RJ45 serial console, USB-C console, out-of-band RJ45 management port, USB-A storage port, Web GUI, CLI, SNMP v1/v2c/v3 |
Cooling Design | Fanless silent operation |
Physical Dimensions (W × D × H) | 269 mm × 213 mm × 43.4 mm |
Net Weight | 2.58 kg |
Power Supply | Built-in universal AC power supply |
Input Voltage | 100–240 VAC, 50/60 Hz, max input power 150W |
Operating Temperature | 0°C to +40°C (full PoE load); 0°C to +35°C (wall-mount short bracket) |
Storage Temperature | -20°C to +70°C |
Humidity | 10%–90% non-condensing |
MTBF @ 25°C Ambient | 562,889 hours |
Installation Options | Desktop placement, wall mount, compact rack mount |
Certifications | CE, FCC, UL, RoHS Compliant |
