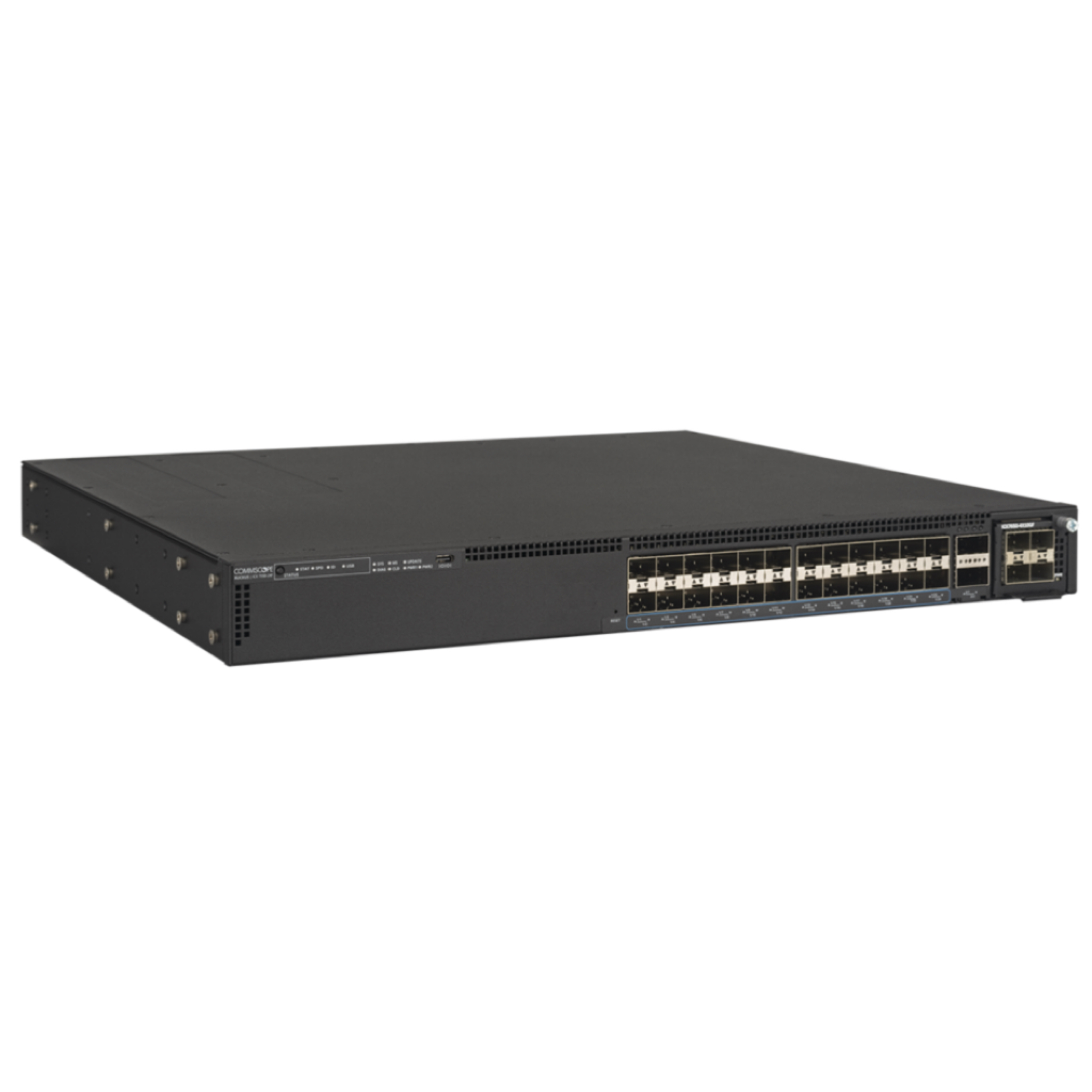

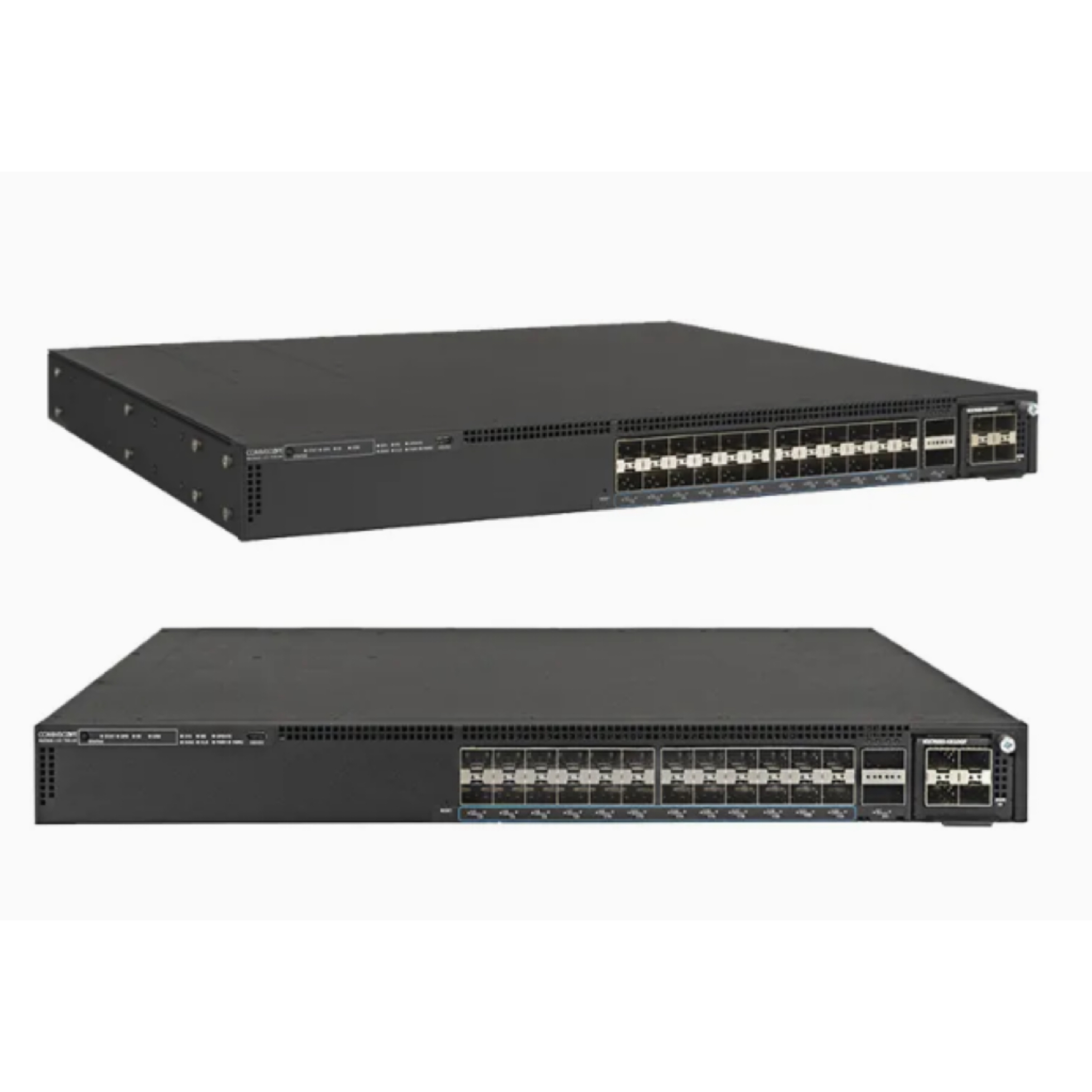

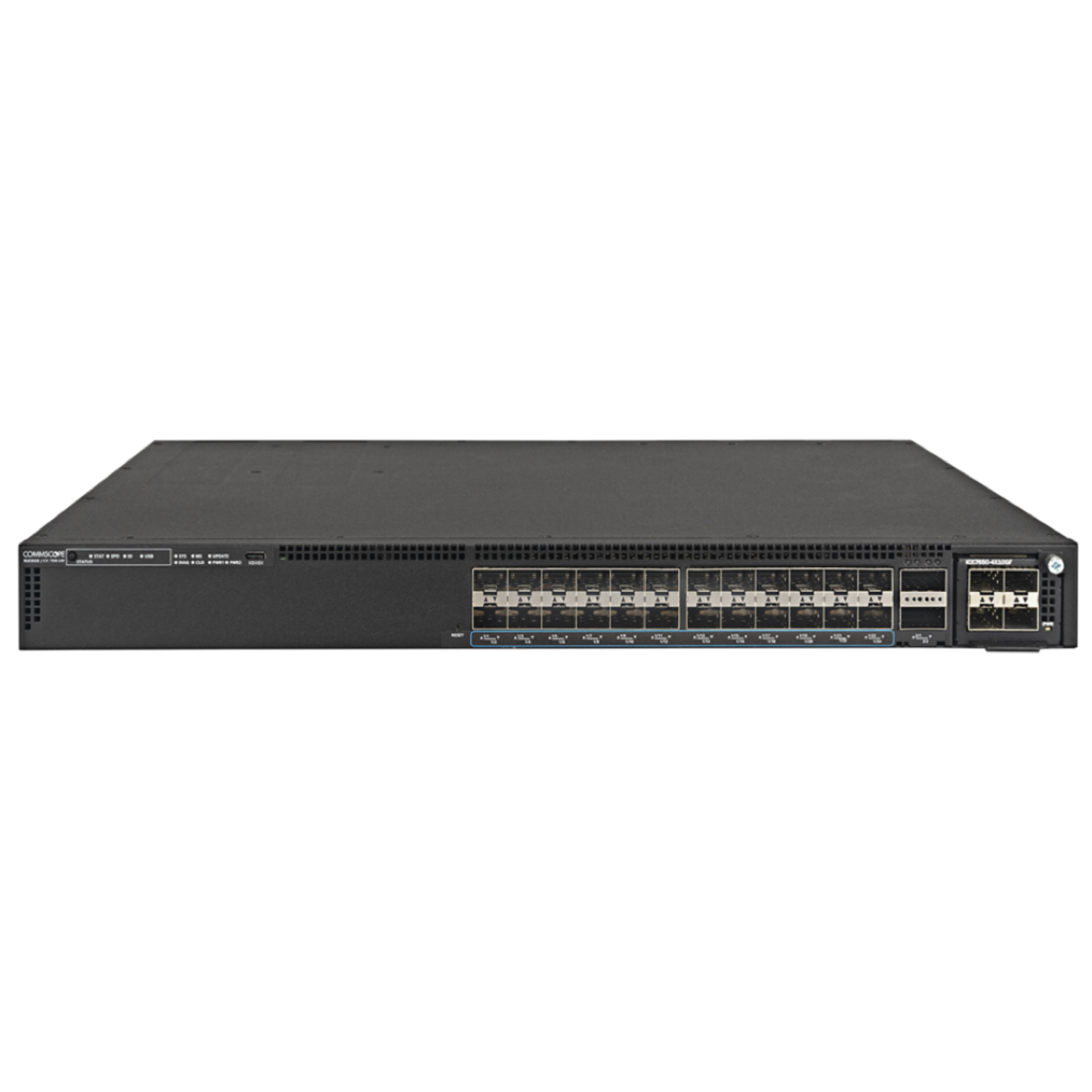

The Ruckus ICX 7550-24F-E2 is a high-performance enterprise-class Layer 3 managed switch designed to deliver exceptional network reliability, scalability, and security for modern campus, enterprise, education, healthcare, and data center environments. Equipped with 24 1/10GbE SFP+ fiber ports, this switch provides high-speed fiber connectivity for bandwidth-intensive applications, making it an ideal solution for aggregation, core, and high-performance access layer deployments. Powered by the advanced Ruckus FastIron operating system, the ICX 7550-24F-E2 supports comprehensive Layer 2 and Layer 3 routing features, including static routing, RIP, OSPF, VRRP, multicast routing, VLANs, ACLs, QoS, and IPv4/IPv6 dual-stack networking, enabling businesses to build flexible and future-ready network infrastructures. Its enterprise-grade hardware architecture delivers wire-speed forwarding, ultra-low latency, and high switching capacity to ensure seamless performance for cloud services, unified communications, video conferencing, virtualization, and large-scale data transfers. The switch also supports advanced network security features such as 802.1X authentication, MAC-based access control, DHCP snooping, Dynamic ARP Inspection, IP Source Guard, and extensive policy enforcement to protect critical business resources from unauthorized access and network threats. Designed for simplified deployment and management, the ICX 7550-24F-E2 offers an intuitive command-line interface, web-based management, SNMP, REST APIs, and centralized network management compatibility, allowing IT administrators to efficiently monitor, configure, and maintain enterprise networks. Its high-availability capabilities include switch stacking, link aggregation, redundant power support, and rapid failover technologies that maximize uptime and minimize service interruptions. With energy-efficient operation, robust enterprise reliability, and extensive software functionality, the ICX 7550-24F-E2 helps organizations reduce operational costs while delivering consistent network performance. Whether deployed in enterprise campuses, government institutions, financial organizations, educational campuses, healthcare facilities, service provider networks, or high-density business environments, this switch provides the scalability, security, and performance required to support digital transformation initiatives. The Ruckus ICX 7550-24F-E2 is an excellent choice for businesses seeking a reliable, high-speed, fully managed 10 Gigabit fiber Ethernet switch that combines advanced Layer 3 capabilities, flexible deployment options, enterprise-level security, and long-term investment protection for growing network infrastructures.
ICX 7550-24F-E2
Ruckus
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | ICX 7550-24F-E2 |
Product Series | RUCKUS ICX 7550 Stackable Enterprise Layer 3 Aggregation Switch |
Typical Application | Enterprise Aggregation Layer, Fiber Backbone Interconnect, Server Farm, Long-Distance Optical Networking, Wi-Fi 6/6E Core Deployment |
Warranty | 3-Year RUCKUS TAC Hardware Support Included |
Port Configuration | 24 × Dual-speed 1G/10G SFP+ Fiber Downlink Ports; 2 × Modular QSFP28 Uplink/Stacking Slots (40G / 100G Dual-mode) |
Transceiver Compatibility | SFP (1G), SFP+ (10G SR/LR/ER/ZR), QSFP28 (40G/100G), Breakout 4×10G/4×25G Modules |
PoE Support | No PoE (Fiber-only model, no power delivery over ports) |
Switching Capacity | 880 Gbps Full Duplex |
64-byte Packet Forwarding Rate | 660 Mpps |
MAC Address Table | 64,000 MAC Entries |
Packet Buffer Memory | 16 MB Dynamic Shared Buffer |
Jumbo Frame Support | Up to 12288 Bytes |
QoS Scheduling | 8 Hardware Queues per Port, WRR + Strict Priority, 802.1p/DSCP Mapping |
VLAN Capacity | Up to 4094 VLANs, 802.1Q Tagging, Voice VLAN, Private VLAN |
Spanning Tree Protocols | STP, RSTP, MSTP, PVST+ |
Link Aggregation | IEEE 802.3ad LACP, Static Trunk, Max 32 Trunk Groups |
Multicast Features | IGMP Snooping v1/v2/v3, MLD Snooping, PIM-SM/SSM, Multicast Replication |

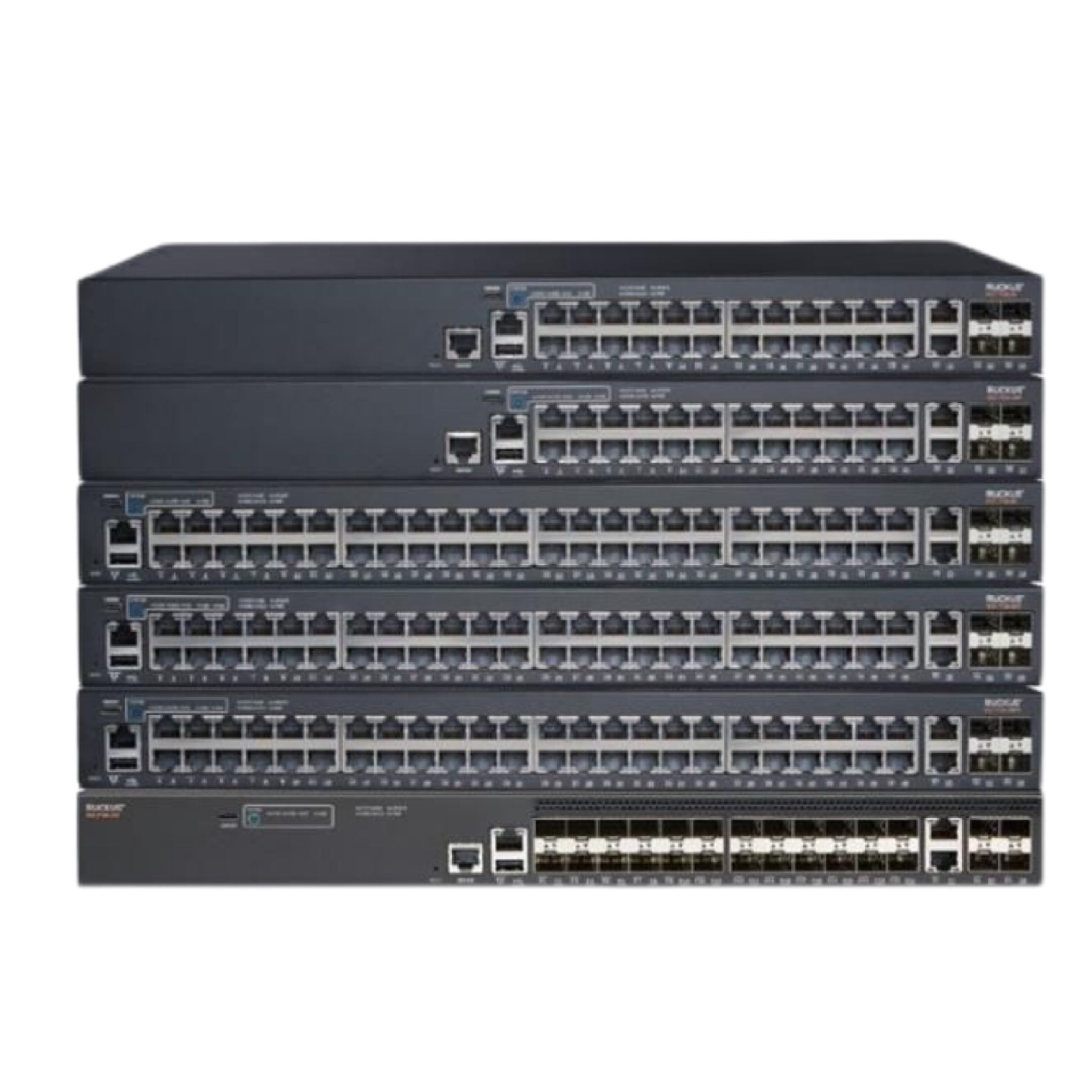

Stacking Functionality | Max 12 Switches per Logical Stack; Stack Bandwidth up to 2400 Gbps; Max 10km Stack Distance via Fiber |
Layer 3 Routing | Base: Static IPv4/IPv6, RIP; Advanced: OSPF, BGP, VRRP, PIM, Policy-Based Routing (Requires License) |
Security Features | 802.1X Port Auth, Web Authentication, RADIUS/TACACS+, Port Security, DoS Protection, SSH/HTTPS, ARP Guard, Rogue DHCP Blocking, FIPS 140-3 Compliant |
Management Interfaces | Local RJ45 Console, Out-of-Band 1G Management Port, Web GUI, CLI, SNMP v1/v2c/v3, REST API, sFlow |

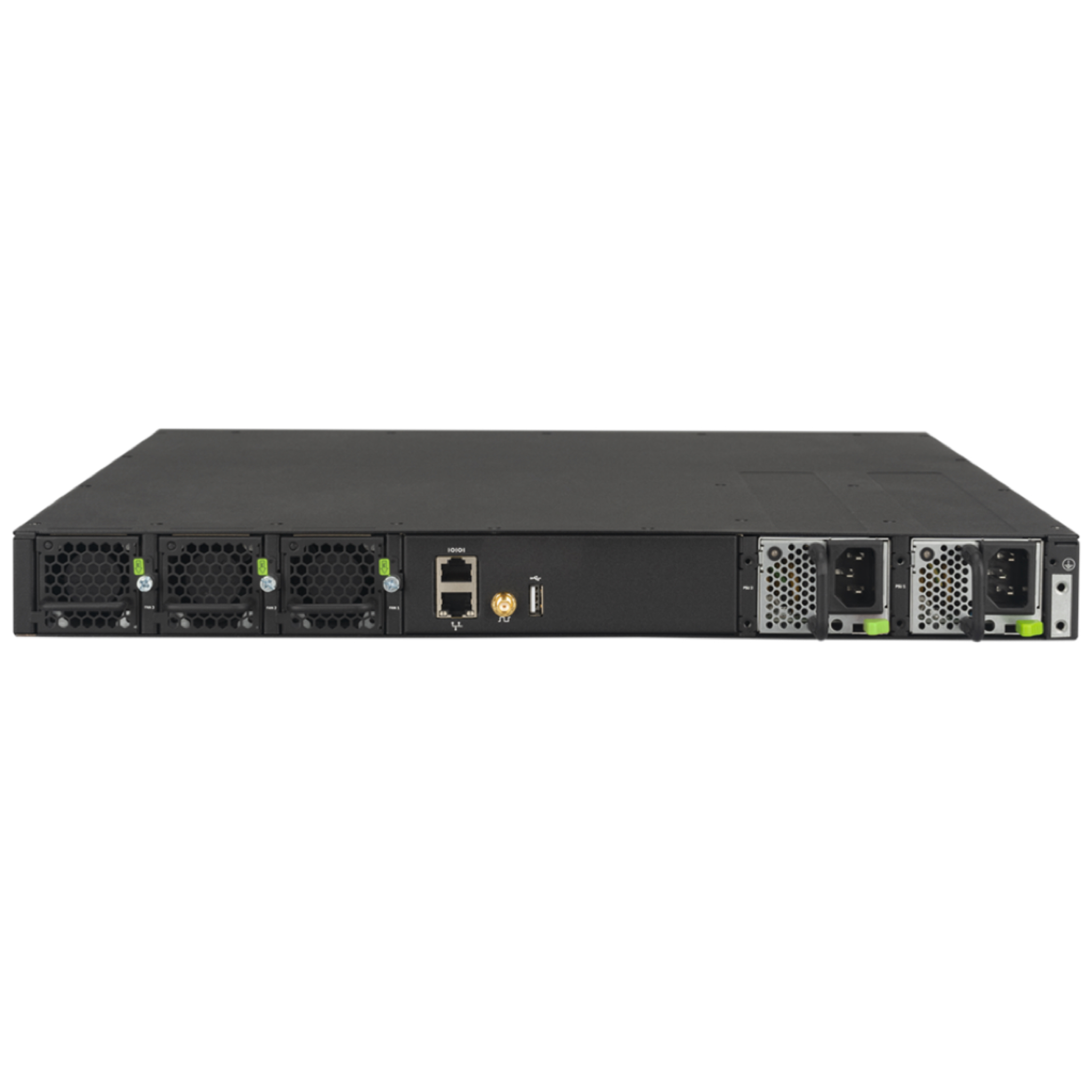

Power Supply (E2 SKU) | Dual Hot-Swappable 400W AC Power Supplies, Redundant Power |
Cooling System | 3 Hot-Swappable Variable-Speed Fans, Front-to-Back Exhaust Airflow |
Physical Dimensions (W × D × H) | 445 mm × 440 mm × 44 mm (17.5 × 17.32 × 1.73 in), 1U Standard 19-inch Rackmount |
Net Weight | 7.2 kg (15.87 lbs) |
Input Power | Universal AC 100–240V, 50/60Hz |
Typical Idle Power Draw | 81.3 W (25°C, No Traffic) |
Max Full Load Power Draw | 166.8 W (25°C, 100% Traffic) |
Operating Temperature | 0°C ~ 40°C, 10%–90% Non-Condensing Humidity |
Storage Temperature | -20°C ~ 70°C, 10%–90% Non-Condensing Humidity |
MTBF (25°C Ambient) | 1,420,000 Hours |
Installation Options | Standard 19-inch Rack Mount, Desktop Placement |
Global Certifications | CE, FCC Class A, UL, CSA, RoHS, REACH |
