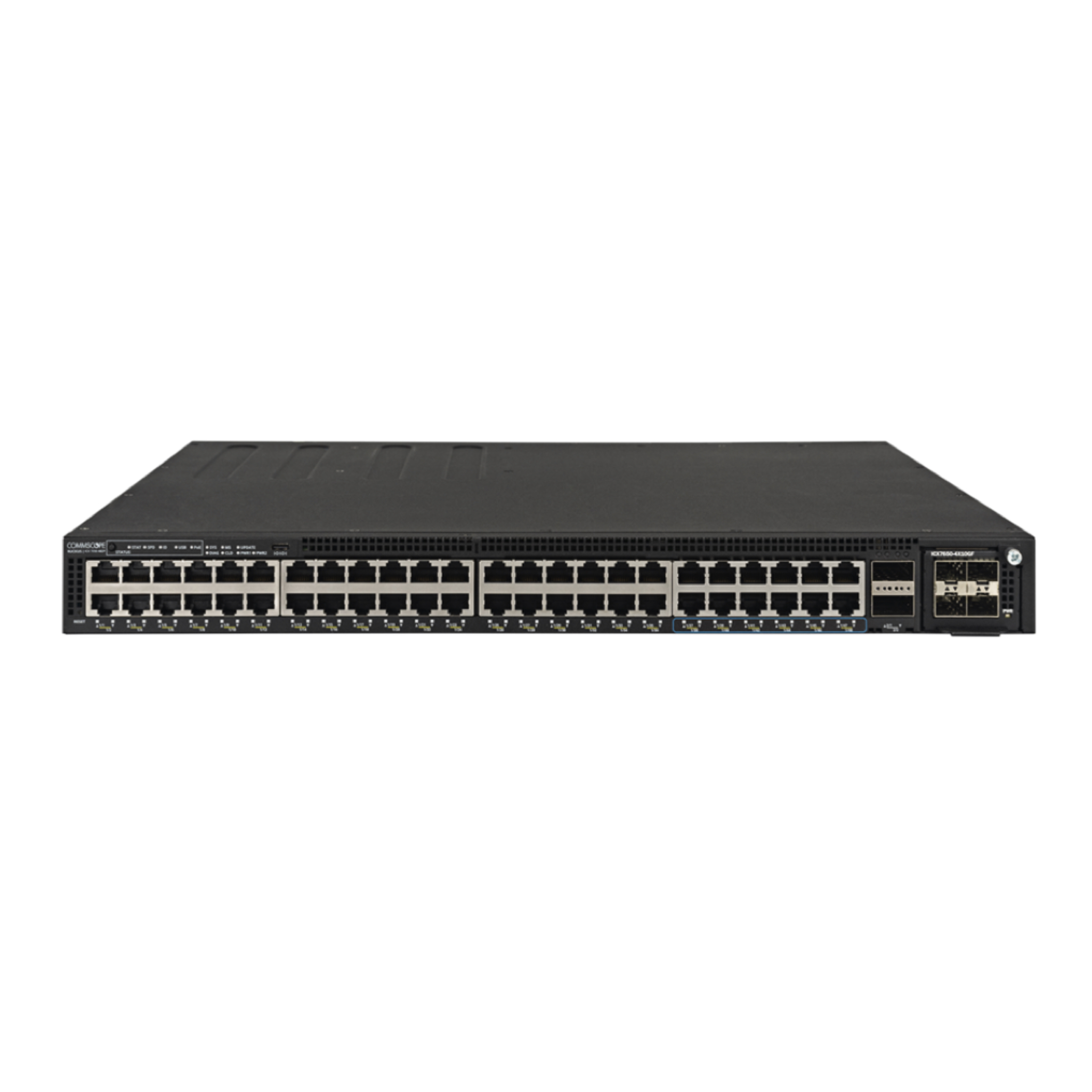

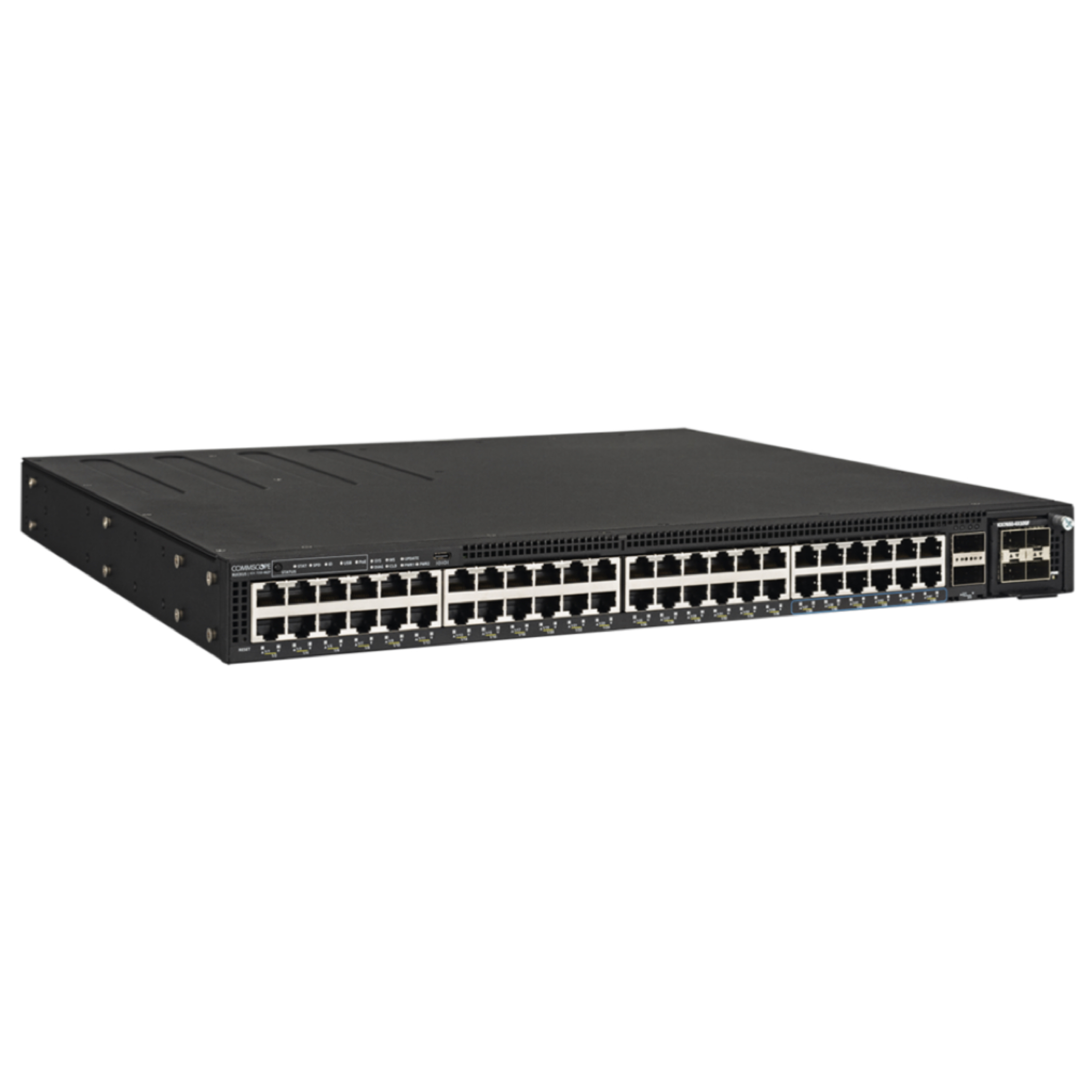

ICX7550-48ZP-E2, Ruckus ICX7550 Switch, 48x10/25G SFP28 Ports/2x40/100G QSFP28/Uplink Flexibility/Advanced Layer 3

The Ruckus ICX 7550-48ZP-E2 is a high-performance enterprise-class Layer 3 stackable switch designed to deliver exceptional network performance, advanced security, and reliable connectivity for modern campus networks, enterprise offices, educational institutions, healthcare facilities, hospitality environments, and high-density IoT deployments. Equipped with 48 high-speed 1/2.5/5/10GbE Multigigabit Ethernet ports supporting IEEE 802.3bt PoE++, the switch provides up to 90W per port, enabling seamless power delivery for Wi-Fi 6/6E access points, IP cameras, VoIP phones, digital signage, IoT devices, and other power-hungry network endpoints without requiring additional power infrastructure. Its high PoE budget simplifies network expansion while reducing deployment costs and improving operational efficiency. Built on a powerful switching architecture with wire-speed forwarding, low latency, and high switching capacity, the ICX 7550-48ZP-E2 ensures smooth operation of bandwidth-intensive applications such as cloud services, real-time collaboration, UHD video streaming, virtualization, and unified communications. Advanced Layer 2 and Layer 3 routing features, including static routing, RIP, OSPF, VRRP, IPv4/IPv6 support, VLANs, QoS, multicast, ACLs, and comprehensive security policies, allow organizations to build scalable, secure, and resilient network infrastructures. The switch also supports enterprise-class stacking technology for simplified management and high availability, enabling multiple switches to operate as a single logical unit while providing redundancy and streamlined administration. Flexible high-speed uplink options ensure seamless integration with aggregation and core network layers, supporting future network growth and increasing bandwidth demands. Intelligent network management through Ruckus management platforms, CLI, SNMP, and web-based interfaces allows IT administrators to simplify configuration, monitoring, troubleshooting, and maintenance while reducing operational complexity. Designed with energy-efficient technologies, redundant power capabilities, enterprise-grade reliability, and long-term stability, the ICX 7550-48ZP-E2 minimizes downtime and maximizes business continuity in mission-critical environments. As an ideal solution for organizations upgrading to next-generation wired and wireless infrastructures, the Ruckus ICX 7550-48ZP-E2 combines multigigabit performance, high-density PoE++, advanced routing intelligence, robust security, and outstanding scalability, making it an excellent choice for enterprises seeking a future-ready, high-performance access switch that supports demanding digital transformation initiatives while protecting long-term network investments.

  • ICX 7550-48ZP-E2

  • Ruckus

  • Original New

  • 1 year

Availability:
Quantity:

Item

Official Specification

Model Number

ICX7550-48ZP-E2

Product Series

Ruckus ICX 7550 Enterprise Stackable Multigigabit PoE Switch

Application Scenarios

Enterprise Access/Aggregation, Wi-Fi 6/6E AP Deployment, IP Cameras, IP Phones, Smart Building IoT, High-Density PoE Installations

Included Bundle Hardware

2×1200W Hot-Swap AC Power Supplies, 3× Hot-Swap Fans, Front-to-Back Airflow

Management Ports

1× Out-of-Band 1G RJ45 Management Port, Console Port

Stacking Capacity

Max 12 switches per stack, Max 2400 Gbps stack aggregate bandwidth

Downlink Port Configuration

36× 10/100/1000/2.5G RJ45 802.3bt PoE++ Ports

12× 10/100/1000/2.5/5/10G RJ45 802.3bt PoE++ Ports

Uplink/Stacking Slots

Dual QSFP28 slots, support 40G QSFP+ / 100G QSFP28 transceivers & breakout cables

PoE Standards

IEEE 802.3af, 802.3at PoE+, 802.3bt PoE++ (max 90W per port)

Total PoE Power Budget

1666W (100–180V AC); 2000W (180–240V AC)

Supported Cabling

Cat5e, Cat6, Cat6a for multigigabit transmission

Switching Capacity

1020 Gbps Full-Duplex

64-byte Packet Forwarding Rate

759 Mpps

MAC Address Table

Multiple profiles: 16,000 / 32,000 / 114,000 MAC entries

Packet Buffer Memory

Dynamic shared on-chip buffer

Jumbo Frame Support

Up to 12288 Bytes

QoS Features

8 hardware queues per port, Strict Priority, WRR, EEE Energy Efficient Ethernet

VLAN Support

Up to 4094 VLANs, 802.1Q tagging, Voice VLAN, Guest VLAN

Spanning Tree Protocols

STP, RSTP, MSTP, PVST+

Link Aggregation

IEEE 802.3ad LACP, static trunk groups

Multicast Functions

IGMP Snooping v1/v2/v3, Multicast replication, sFlow monitoring

Layer 3 Routing Protocols

Static IPv4/IPv6 Routes, RIP, OSPF, VRF support

Security Functions

802.1X port authentication, Port Security, DoS protection, SSH/HTTPS management, ARP Guard, Rogue DHCP suppression

Power Input

Dual redundant universal AC power supplies, 100–240V 50/60Hz

Power Consumption (25°C)

139.7W (No PoE, full traffic); 1183.7W (Full PoE load)

Physical Dimension (W × D × H)

440 mm × 445 mm × 44 mm (17.3 × 17.5 × 1.73 in), 1U Rackmount

Unit Weight

7.8 kg (17.2 lbs)

Operating Environment

Temp: 0°C ~ 45°C; Humidity: 10%–90% non-condensing; Altitude ≤3048m

Storage Environment

Temp: -40°C ~ 70°C; Humidity: 5%–95% non-condensing

Hot-Swap Components

Redundant power supplies, removable fan trays

Regulatory Certifications

CE, FCC, UL, RoHS Compliant

Supported OS

FastIron OS (Recommended stable release: 10.0.10g_cd6 GA)

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q: What are the key features of the ICX7550-48ZP-E2?

A: The ICX7550-48ZP-E2 features 48 PoE+ ports, advanced stacking capabilities, and high performance with low latency, ideal for demanding environments.

Q: What are the application scenarios for ICX7550-48ZP-E2?

A: The ICX7550-48ZP-E2 is suited for enterprise, campus, and data center environments requiring high-density, high-performance networking.

Q: How to install the ICX7550-48ZP-E2?

A: Installation of the ICX7550-48ZP-E2 involves rack mounting, connecting power, and configuring via CLI or web interface; detailed steps are in the user manual.

Q: Does the ICX7550-48ZP-E2 require regular upgrades?

A: Yes, regular firmware updates are recommended to ensure optimal performance and security for the ICX7550-48ZP-E2.

Q: Are there alternative products to the ICX7550-48ZP-E2?

A: Yes, alternatives include the Ruckus ICX7450 series and other similar switches in the Ruckus portfolio, though each has different specifications.
