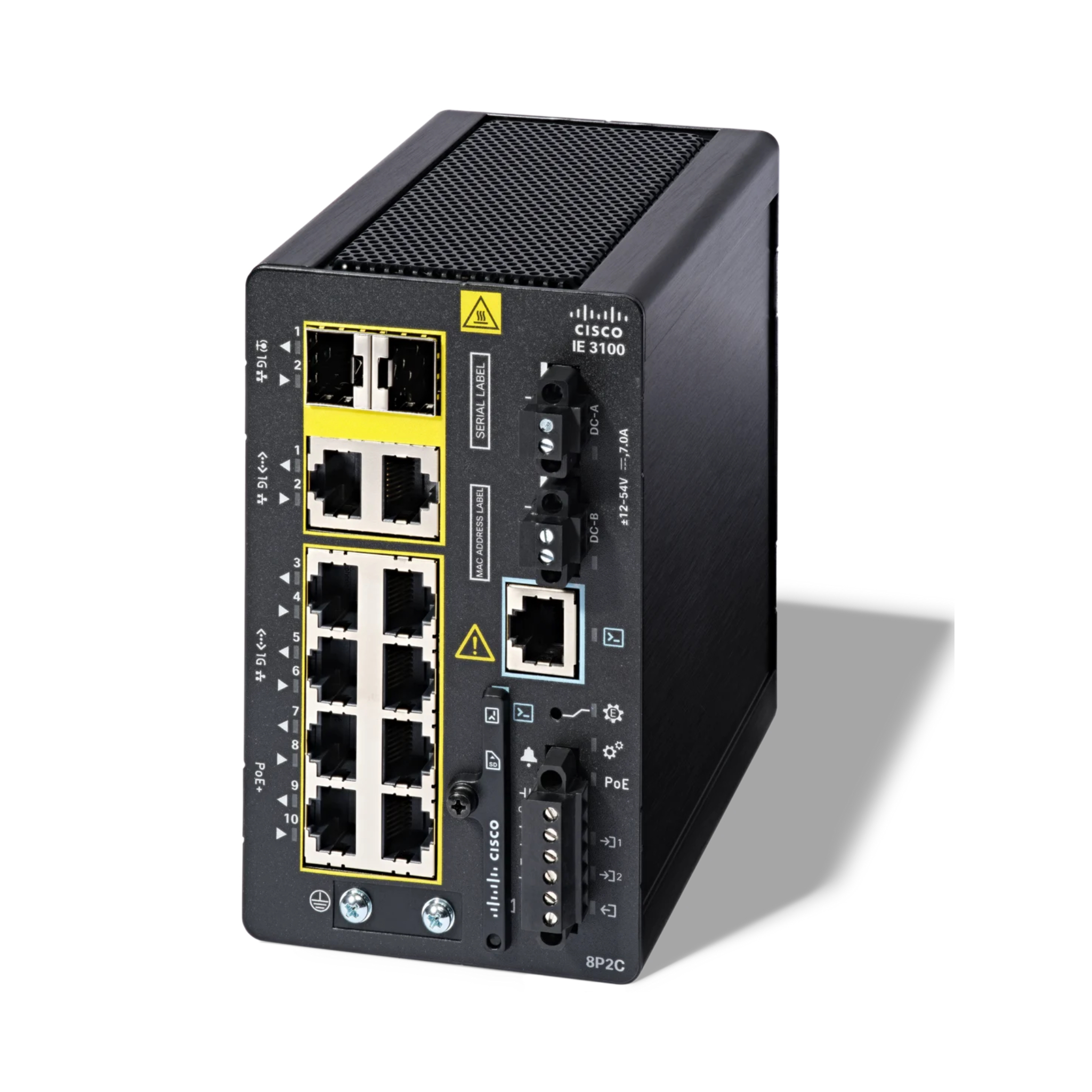

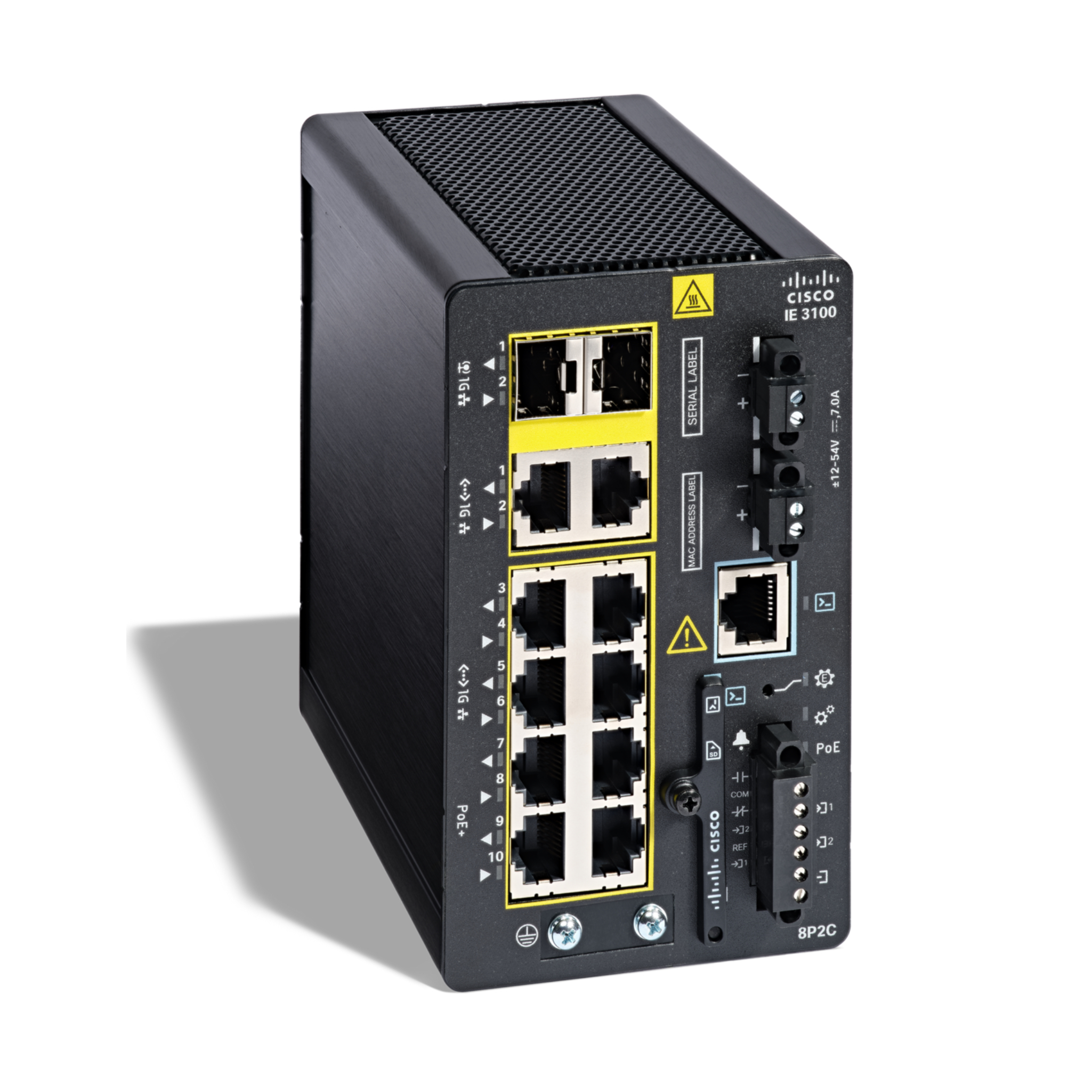

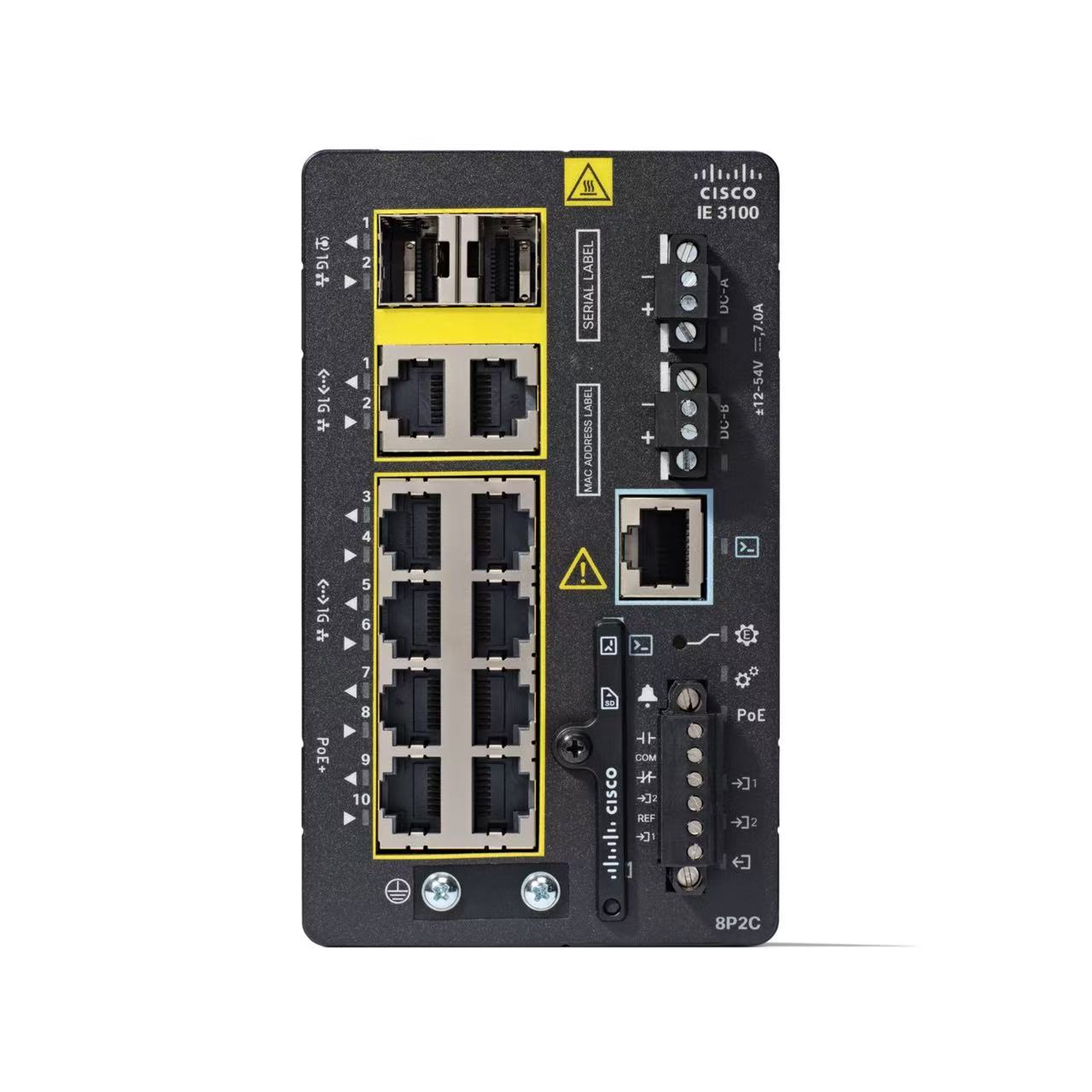

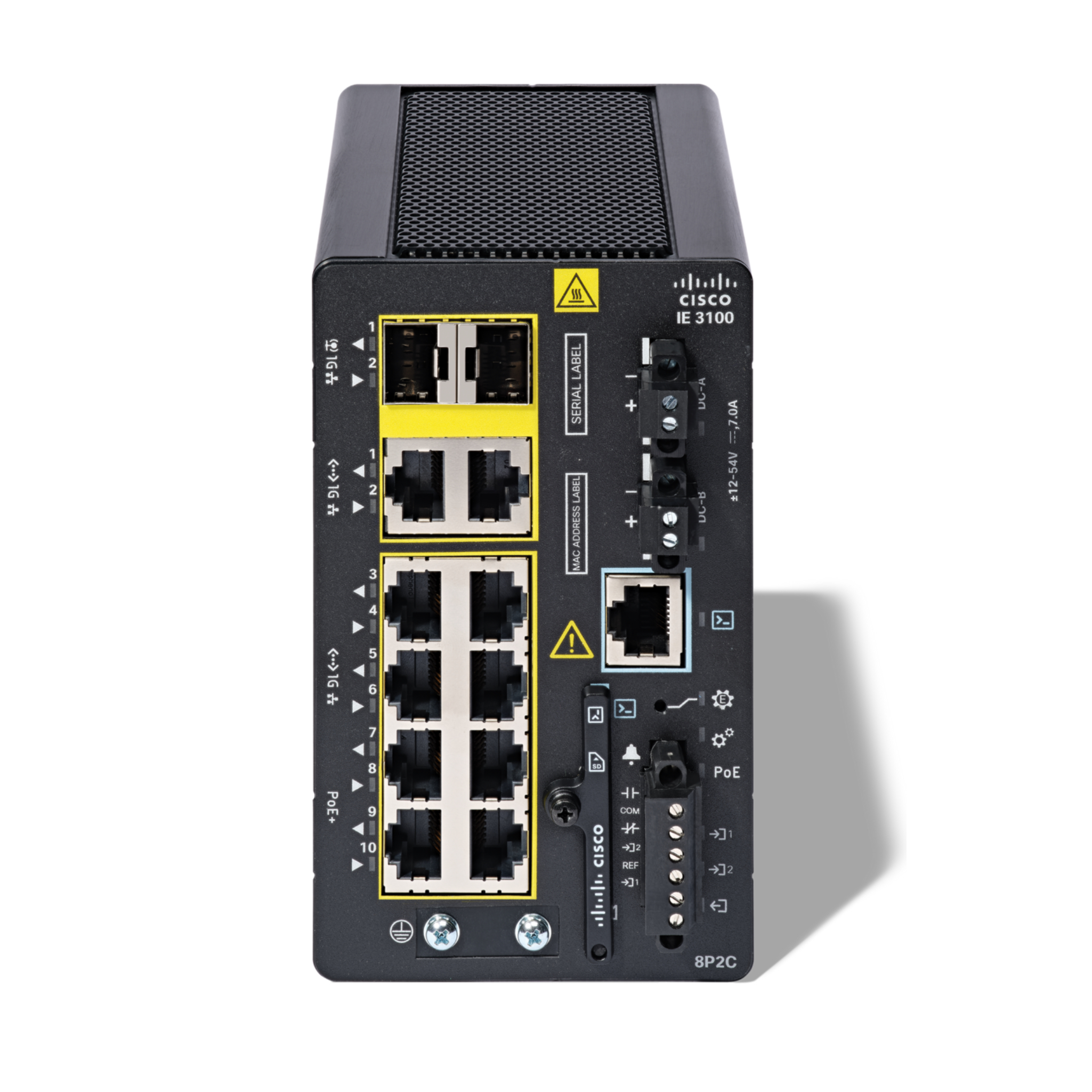

The Cisco IE-3100-8P2C-E is a rugged industrial Ethernet switch engineered to deliver secure, reliable, and high-performance network connectivity for harsh industrial environments. Designed to support Industry 4.0, Industrial IoT (IIoT), smart manufacturing, transportation, energy, and utility applications, it features 8 Gigabit PoE+ Ethernet ports and 2 dual-purpose combo uplink ports (RJ45/SFP), providing flexible connectivity for a wide range of industrial devices, IP cameras, wireless access points, PLCs, and edge computing equipment. Built with an industrial-grade design, the IE-3100-8P2C-E operates reliably across extended temperature ranges while offering resistance to shock, vibration, and electromagnetic interference. It supports advanced Layer 2 switching features, comprehensive security capabilities, Quality of Service (QoS), VLANs, multicast management, rapid redundancy protocols, and centralized management through Cisco's industrial networking solutions, ensuring stable, low-latency communications for mission-critical operations. With support for Power over Ethernet Plus (PoE+), simplified deployment, scalable network architecture, and enterprise-class reliability, the Cisco IE-3100-8P2C-E is an ideal solution for organizations seeking to build secure, resilient, and future-ready industrial Ethernet networks while reducing installation complexity and maintenance costs.
IE-3100-8P2C-E
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | IE-3100-8P2C-E |
Product Series | Cisco Catalyst IE3100 Rugged Industrial Managed Switch |
Software License | Network Essentials |
Application Scenarios | Factory Automation, Transportation, Energy & Utilities, Smart City, Industrial IP Camera, Industrial Wi-Fi AP, Field Sensors |
Total Ports | 10 ports total |
Downlink Ports | 8 × 10/100/1000BASE-T RJ45, all PoE+ capable |
Uplink Ports | 2 × 1G Combo Ports (1000BASE-T RJ45 / 1000BASE-X SFP dual-media) |
PoE Standards Supported | IEEE 802.3af (15.4W/port), IEEE 802.3at PoE+ (30W/port) |
Total PoE Power Budget | 240W (Max full PoE output) |
Switching Bandwidth | 20 Gbps |
64-byte Packet Forwarding Rate | 14.88 Mpps |
MAC Address Table Size | 16,000 MAC entries |
Packet Buffer Memory | 2 MB shared buffer |
Jumbo Frame Support | Up to 9000 bytes |
VLAN Capacity | Max 4093 VLANs, 802.1Q tagging |
Redundancy Protocols | REP, MRP, STP/RSTP/MSTP, PVST+ |
Industrial Automation Protocols | PROFINET, EtherNet/IP (CIP), Modbus TCP |
Link Aggregation | IEEE 802.3ad LACP, static LAG |
Multicast Functions | IGMP Snooping v1/v2/v3, Multicast Filtering |
QoS | 8 hardware queues per port, WRR + strict priority scheduling |
Management Interfaces | RJ45 RS232 Console, Micro USB Console, Web UI, Cisco IOS XE CLI, SD card slot |
Alarm Interface | 2 dry-contact alarm input terminals |
Security Features | 802.1X authentication, Port Security, SSH/HTTPS, DoS protection, Secure Boot, Trust Anchor Module |
Power Input | Dual redundant DC power inputs, 12–54 VDC nominal, 9.6–60 VDC absolute max |
Normal Idle Power Draw | 26W |
Physical Dimensions (H × W × D) | 127 × 76.2 × 129 mm (5.0 × 3.0 × 5.08 in) |
Net Weight | 1.04 kg (2.3 lbs) |
Mounting Method | DIN rail mount, wall mount |
Operating Temperature | -34°C ~ +75°C |
Storage Temperature | -40°C ~ +85°C |
Humidity Range | 5%–95% non-condensing |
Cooling | Fanless passive cooling design |
Regulatory Certifications | CE, FCC, UL, IEC 61010, IEC 61131-2, RoHS compliant |
OS System | Cisco IOS XE Universal Image |
Warranty | Cisco Limited Hardware Warranty |
