The Cisco IE-3100-8T2C-E is a rugged industrial Ethernet switch designed to deliver secure, reliable, and high-performance network connectivity for harsh industrial environments. Built to support industrial automation, manufacturing, transportation, energy, mining, and smart infrastructure applications, it features 8 Gigabit Ethernet RJ45 ports and 2 combo Gigabit uplink ports (RJ45/SFP), providing flexible copper or fiber connectivity for seamless network expansion. Engineered with an industrial-grade design, the IE-3100-8T2C-E operates reliably under extreme temperatures, vibration, and electrical interference while ensuring continuous operation in mission-critical environments. It supports advanced Layer 2 switching features, comprehensive security capabilities including IEEE 802.1X authentication, Access Control Lists (ACLs), MACsec encryption, Secure Boot, and Trust Anchor technologies, helping protect industrial networks from cyber threats. With support for Quality of Service (QoS), VLANs, Rapid Spanning Tree Protocol (RSTP), Multiple Spanning Tree Protocol (MSTP), Link Aggregation (LACP), IGMP Snooping, and industrial redundancy protocols, the switch delivers optimized traffic management, high network availability, and minimal downtime. Cisco DNA Center and Cisco Industrial Network Director (IND) compatibility simplify deployment, monitoring, and lifecycle management, reducing operational complexity for IT and OT teams. The Cisco IE-3100-8T2C-E also supports Power over Ethernet management integration, industrial automation protocols, and scalable network architectures, making it an ideal solution for building secure, resilient, and future-ready industrial Ethernet networks. Whether deployed in factory production lines, utility substations, intelligent transportation systems, oil and gas facilities, or remote industrial sites, the Cisco IE-3100-8T2C-E provides enterprise-class performance, long-term reliability, and simplified network management to meet the evolving demands of Industrial IoT (IIoT) and digital transformation initiatives.
IE-3100-8T2C-E
Cisco
Original New
1 year
| Quantity: | |
|---|---|
Item | Official Specification |
|---|---|
Model Number | IE-3100-8T2C-E |

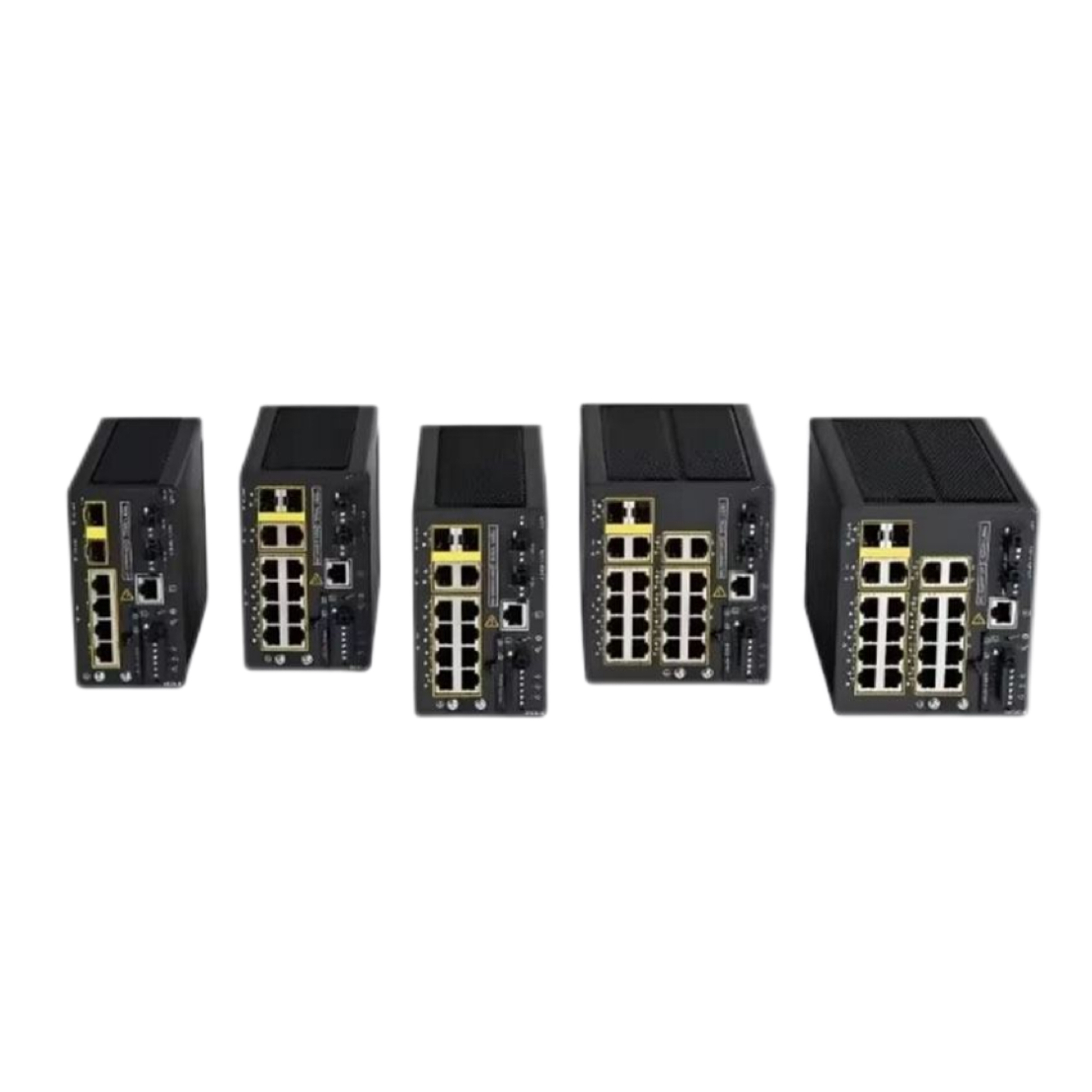

Product Series | Cisco Catalyst IE3100 Rugged Industrial Layer 2 Managed Switch |
Software License | Network Essentials IOS XE |
Typical Application | Factory Automation, Intelligent Transportation, Outdoor Kiosks, IoT Edge, Surveillance, Harsh Industrial Environments |
Hardware Warranty | 5-year Cisco Limited Hardware Warranty |

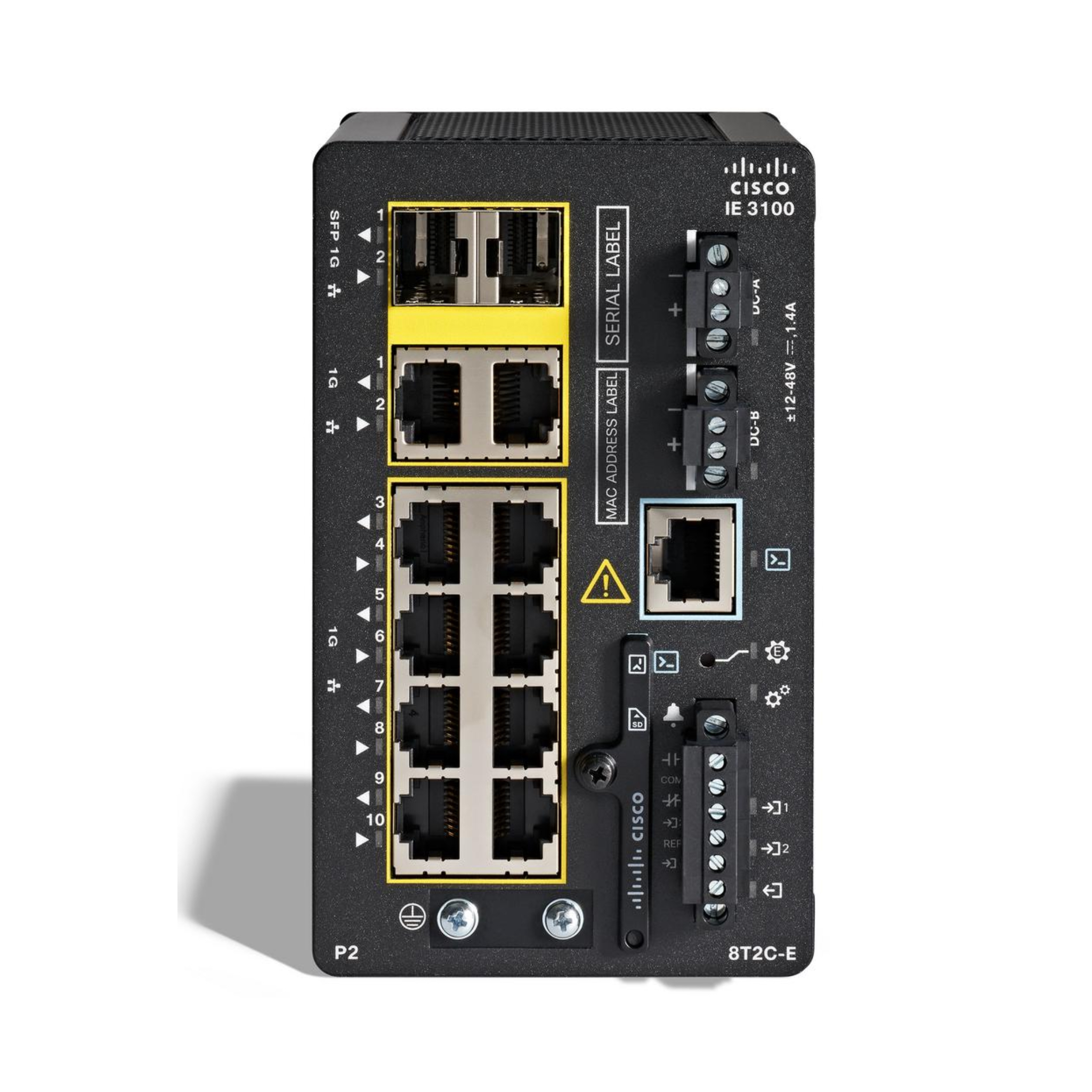

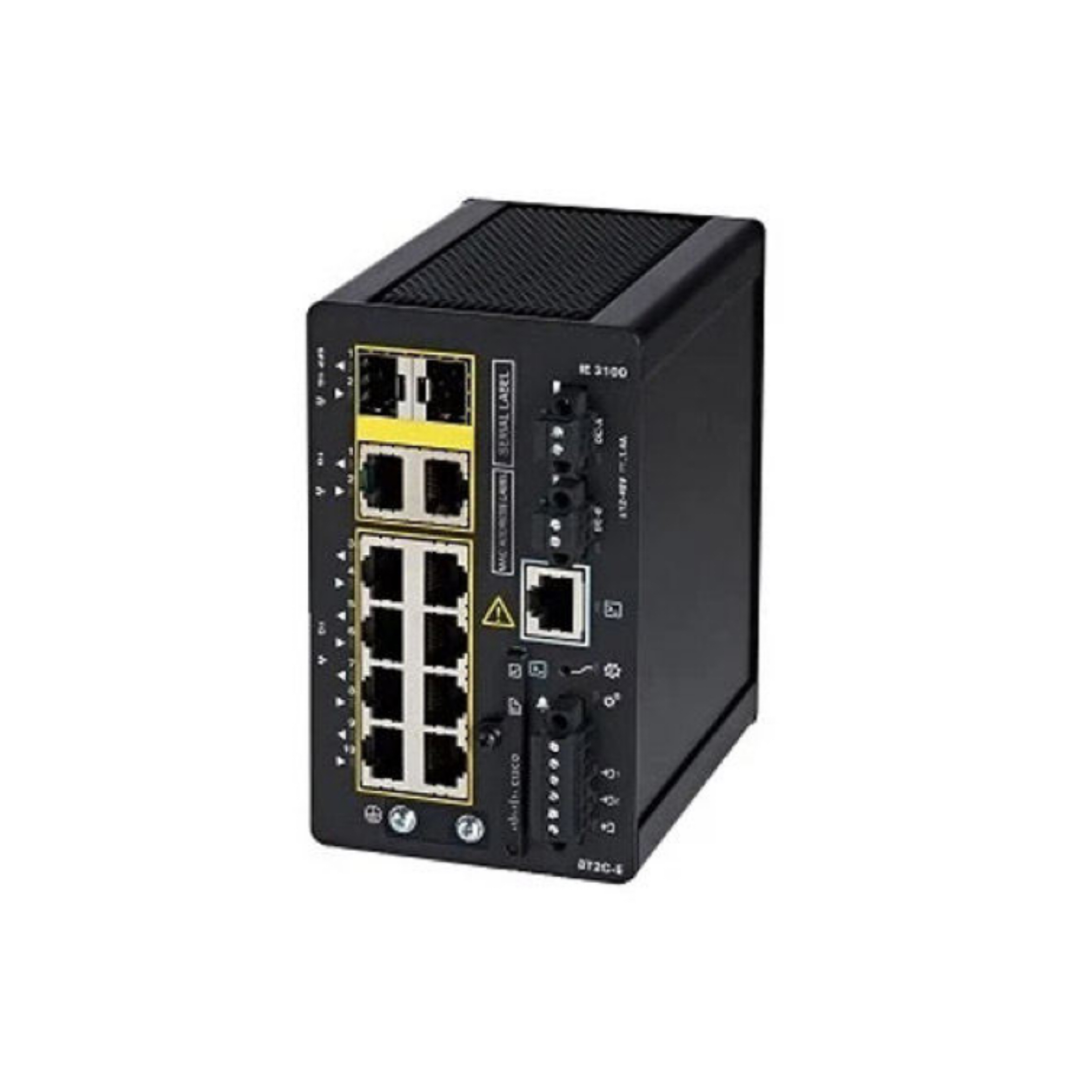

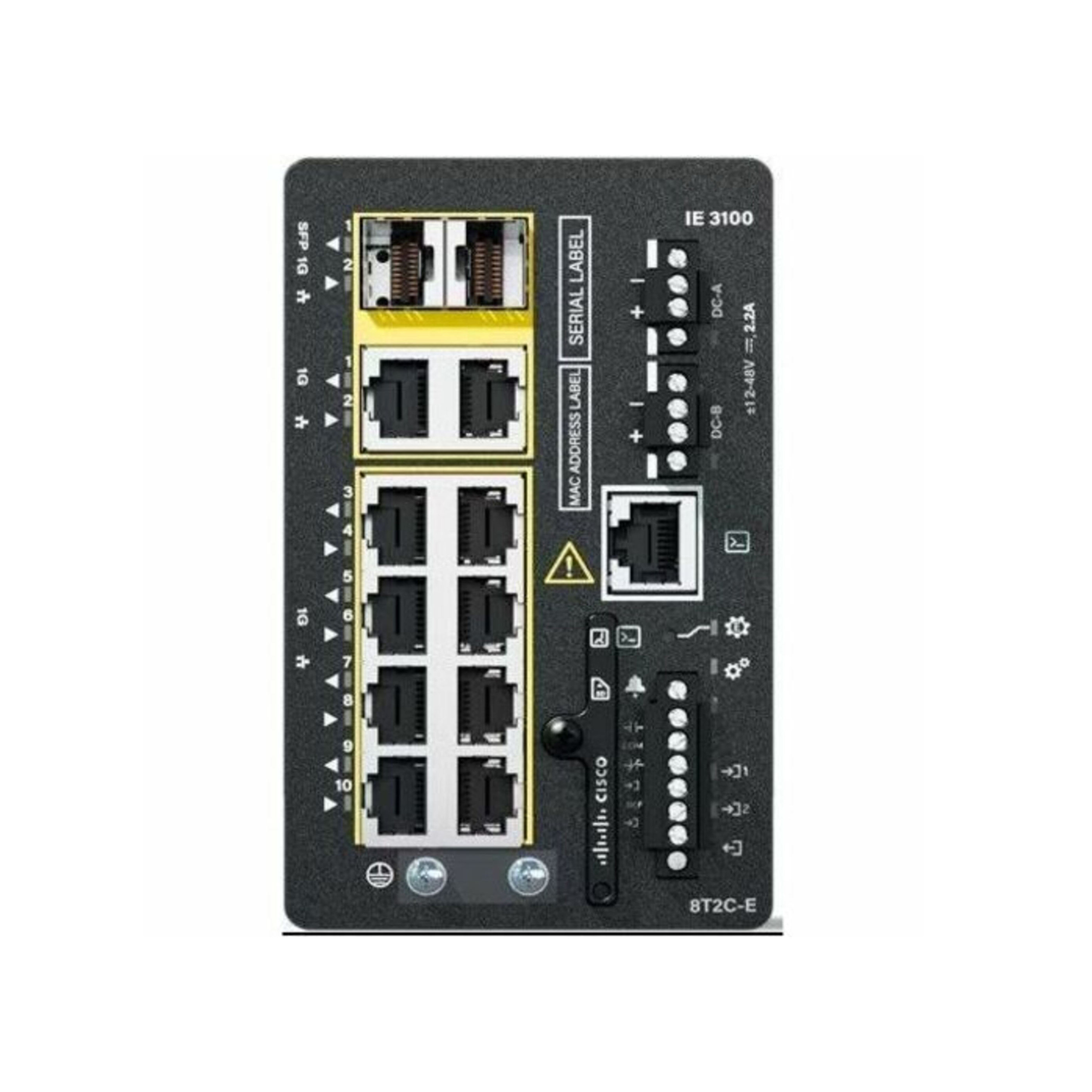

Downlink Ports | 8 × 10/100/1000BASE-T RJ45 (Non-PoE) |
Uplink Ports | 2 × 1G Combo Ports (10/100/1000M RJ45 + 1000BASE-X SFP shared) |
Management Interfaces | RJ45 Console, Micro USB Console, SD Card Slot, External Alarm I/O Terminal |
Management Tools | WebUI, CLI, Cisco Catalyst Center, Cisco Business Dashboard, RESTCONF/YANG APIs |
Switching Bandwidth | 20 Gbps |
Forwarding Rate (64-byte packets) | 14.88 Mpps |
MAC Address Table | 8,000 entries |
Packet Buffer Memory | 1 MB |
Jumbo Frame Support | Up to 9000 Bytes |
VLAN Capacity | 4094 VLANs, 802.1Q Tagging, Voice VLAN, Guest VLAN |
Redundancy Protocols | REP, MRP, STP/RSTP/MSTP, PVST+, RPVST+ |
Multicast Functions | IGMP Snooping v1/v2/v3, Multicast Filtering |
Link Aggregation | IEEE 802.3ad LACP, Static LAG |
QoS | 4 Hardware Queues per Port, Strict Priority + WRR Scheduling |
Industrial Timing | IEEE 1588v2 PTP Precision Time Protocol |
Security Features | 802.1X Authentication, Web Auth, RADIUS/TACACS+, Secure Boot, Image Signing, Trust Anchor Module, SSH/HTTPS, DoS Protection, Port Security, ARP Guard |
Power Supply | Dual Redundant DC Inputs |
Input Voltage Range | Nominal: 12–48 VDC; Absolute Max: 9.6–60 VDC |
Typical Power Consumption | 17.7 W |
Cooling System | Fanless Convection Cooling, Zero Noise |
Physical Dimensions (H × W × D) | 127 × 76.2 × 111 mm (5.00 × 3.00 × 4.37 in) |
Net Weight | 0.86 kg (1.9 lbs) |

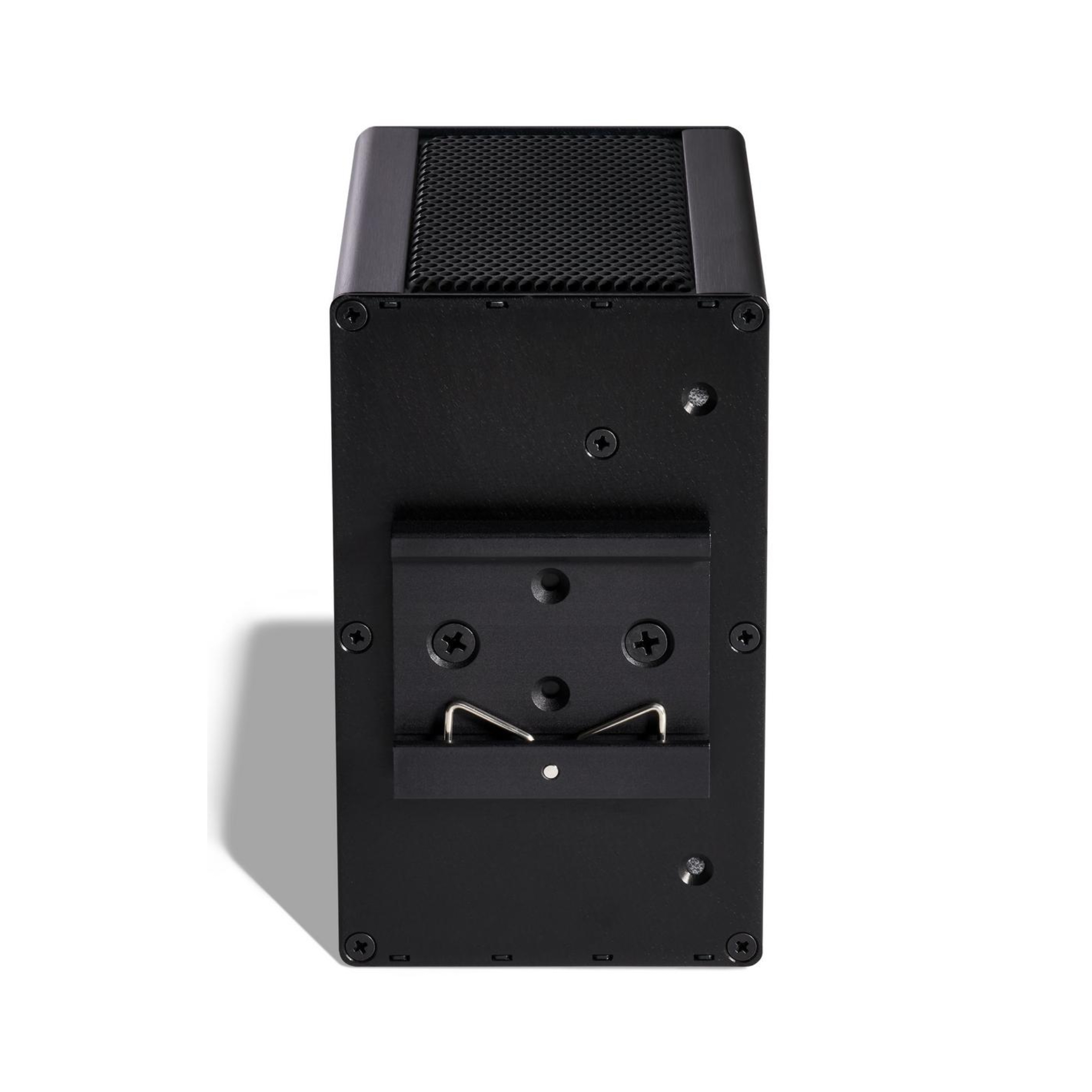

Mounting Options | DIN Rail Mount, Wall Mount, Optional Rack Mount Bracket |
Operating Temperature | -40°C ~ +75°C (-40°F ~ 167°F) |
Storage Temperature | -40°C ~ +85°C (-40°F ~ 185°F) |
Relative Humidity | 5% to 95% Non-Condensing |
Shock & Vibration Compliance | IEC 60068-2-27, IEC 60068-2-6 Industrial Ruggedization |
MTBF (25°C Ambient) | 1,450,000 Hours |
Certifications | CE, FCC Class A, UL 61010, IEC 61850, RoHS Compliant |
