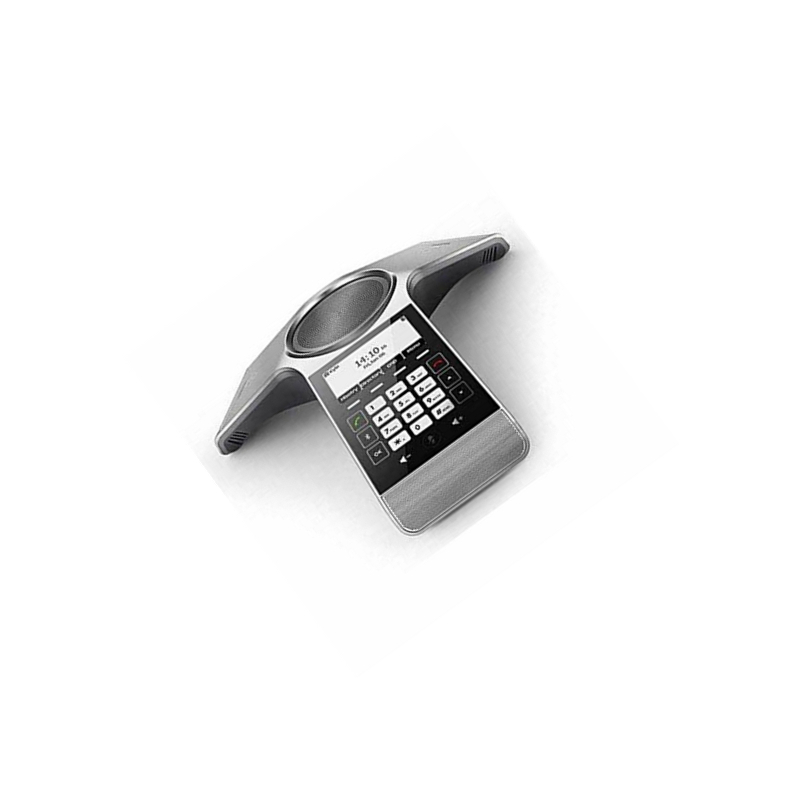

IP Phone Wireless DECT Conference Phone Cp930W-Base with Yealink W60b for Yealink

  • CP930W-Base

  • Yealink

  • original new

  • 1 year


Product Description

High-performance SIP Cordless Phone System

ξWireless DECT, well-suited for huddle room with up to 6 people
ξConnect with Yealink W60B base station, DECT radio coverage up to 50m indoors
• DECT technology
• Up to 8 concurrent calls
• Up to 8 DECT cordless handsets
• Up to 8 VoIP accounts
• Built-in battery
• Up to 24-hour talk time
• Up to 15-day standby time
• Less than 4 hours charging time
• Optima HD voice, full duplex technology
• 20-foot (6-meter) and 360-degree microphone pickup range
• 5-way conference call
• Upgrade over the air
downLoadImg(1)Key Features
1.Noise Proof Technology
Yealink Noise Proof Technology intelligently eliminates background noises. It automatically mutes the microphone when no human speech is detected. When speech is detected, it automatically minimizes background noise.
2.Voice Pickup
The Yealink CP930W is designed with 3 microphone arrays which supports 20-foot and 360-degree HD voice pickup. It provides the mobility for participants to walk around in the meeting room freely, and delivers the flexibility to meet the coverage needs of different meeting sizes.
3.Hybrid UC Meeting
The Yealink Hybrid UC Meeting is designed to bridge calls from different devices into one conference call. By pairing your device via USB or Bluetooth with your Yealink conference phone, the calls can be connected to the conference phone.
4.Touch Sensitive Keyboard
Incorporated with a 3.1" 248x120-pixel graphical LCD display for easy information browsing. A sensitive touch keypad which puts main conferencing function keys at the user's fingertips. Three one-touch mute buttons with LED indicators allow switch between mute and unmute with ease, and reduce accidental operations.
Phone Features
• Up to 8 simultaneous calls
• Up to 8 handset (CP930W works as a handset)
• Up to 8 SIP accounts (only one SIP account on CP930W)
• Up to 5 repeaters per base station (RT20/RT20U)
• Up to 6 repeaters per base station (RT30)
• Paging, intercom, dial plan
• Call hold, call transfer, 5-way conference (CP930W only)
• Switching between calls
• Call waiting, mute, silence, DND
• Caller ID with name and number
• Anonymous call, Anonymous call rejection
• Call forward (always/busy/no answer)
• Speed dial, voicemail, redial
• Message Waiting Indication (MWI)
• Music on hold (server-based)
• Local phonebook for up to 800 entries (store in the
base, 100 entries in each handset)
• Remote phonebook/LDAP
• Phonebook search/import/export
• Call history (all/missed/placed/received)
• Direct IP call without SIP proxy
• Reset to factory, reboot
• Keypad lock, emergency call
• Broadsoft directory, BroadSoft call log
• Broadworks feature key synchronization
• Shared Call Appearance (SCA)
• Auto-provision via TFTP/FTP/HTTP/HTTPS/RPS
• Auto-provision with PnP
• Handset upgrade: OTA (Over-The-Air)/USB port
• Configuration: browser/phone/auto-provision
• Trace package and system log export
Audio Features
• Full-duplex speakerphone
• Receiver volume control
• Ringer volume control
• Multiple advisory tones
• Acoustic warning for low battery status
• Wideband codec: Opus, AMR-WB (optional), G.722
• Narrowband codec: PCMU, PCMA, G.726, G.729, iLBC
• Support VQ-RTCPXR (RFC6035), RTCP-X
Network Features
• SIP v1 (RFC2543), v2 (RFC3261)
• VLAN (802.1Q and 802.1P)
• 802.1x, LLDP, PPPoE
• STUN Client (NAT Traversal)
• IP assignment: static/DHCP
• Support outbound proxy server backup
• Open VPN
• Transport Layer Security (TLS)
• HTTPS (server/client), SRTP (RFC3711)
• Digest authentication
• Secure configuration file via AES encryption
• Support SHA256/SHA512/SHA384
• Three-level configuration mode: Admin/Var/User
• Frequency bands: 1880 - 1900 MHz (Europe), 1920 - 1930 MHz (US)
• DECT Standards: CAT-iq2.0
• 1 x RJ45 10/100M Ethernet port ( W60B )
• Power over Ethernet (IEEE 802.3af), Class 1 (W60B)
Physical Features
• Indoor Range: 50m (in ideal conditions)
• Outdoor Range: 300m (in ideal conditions)
• Standby Time: 360 hours (in ideal conditions)
• Talk Time: 24 hours (in ideal conditions)
• 3.1" 248x120-pixel graphical LCD with backlight
• Sensitive touch keypad
• 25 total keys: 4 soft keys, off-hook key, on-hook key, 12-key numerical keypad, Bluetooth, mute, volume keys, 2 navigation keys, OK key
• Multilingual user interface
• Three LED indicators on W60B:
- 1 x Registration LED
- 1 x Network Status LED
- 1 x Power Indicator LED
• External Yealink AC adapter : AC 100-240V Input and DC 5V/600mA Output (W60B),  AC 100~240V input and DC 12V/1A output (CP930W)
• Color: CP930W:Space Silver; Base: Classic Grey
• Phone size: 307.8mm*298.5mm*66.9mm
• Base station size: 130mm x 100mm x 25.1mm
• Charging cradle size: 110mm*127mm*21.5mm
• Operating humidity: 10~90%
• Operating temperature: -0~+40°C (+32~104°F)
Package features
• Package content:
- Yealink CP930W DECT conference phone (built-in battery)
- Charger cradle
- W60B Base Station
- Base Stand
- Two Yealink Power Adapters
- Ethernet Cable
- Quick Start Guide
• Qty/CTN: 5 PCS
• N.W/CTN: 9.48 kg
• G.W/CTN: 10.51 kg
• Giftbox size: 336mm*364mm*112mm
• Carton Meas: 587mm*376mm*350mm
