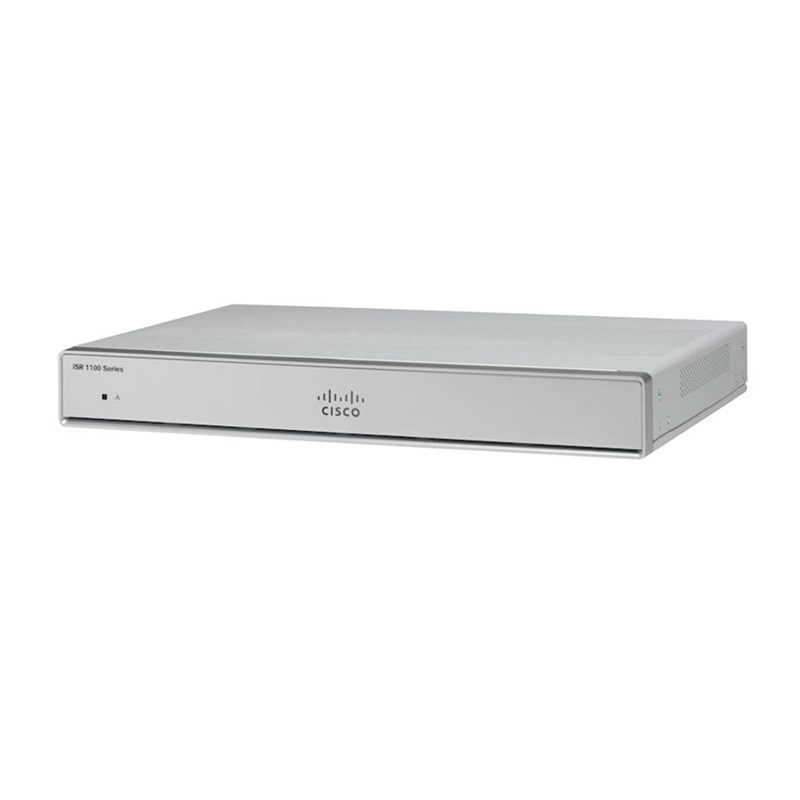

ISR1100-4G
Cisco
Original New
1 year
| Quantity: | |
|---|---|
| Operational phase | Application | Description |
| Networkwide deployment, configuration, monitoring, and troubleshooting | Cisco vManage | Cisco SD-WAN automates application flexibility over multiple connections, such as the Internet and MPLS Rich networking and security services are delivered with a few simple clicks. Deploy WAN optimization, cloud security, firewalling, IPS, and URL filtering across the SD-WAN fabric from a single location Extend and manage SD-WAN fabric across physical or virtual platforms for branch, campus, data center, and cloud |
| Feature | Description |
| Protocols | Open Shortest Path First (OSPF), Border Gateway Protocol (BGP), eBGP, iBGP, BGP Router Reflector, static, connected, OMP, 802.1Q, native VLAN, bridge domains, IRB, host-mode bridging, zero-trust, whitelisting, tamper-proof module, DTLS/TLS, IPSec, DDOS protection, control plane protection, classification, prioritization, low latency queuing, remarking, shaping, scheduling, policing, mirroring, IGMP v1/v2, PIM, Auto RP, scale-out traffic replication, service advertisement and insertion policy, IPv4, SNMP, NTP, DNS client, Dynamic Host Configuration Protocol (DHCP), DHCP client, DHCP server, DHCP relay, config archival, syslog, SSH, SCP, Cflowd v10 IPFIX export, IPv6 for transport-side, VRRP, MPLS, symmetric NAT, static NAT, NAT pools, NAT64, NAT/PAT, NAT traversal, split DNS, Access Control Lists (ACL) |
| Encapsulations | Generic Routing Encapsulation (GRE), IPSec, Ethernet, 802.1q VLAN, CHAP/PAP for PPP over Ethernet (PPPoE) |
| Traffic management | Quality of Service (QoS), COS marking, app-aware routing, Weighted Random Early Detection (WRED), loss/latency and jitter monitoring, route policies, app-aware routing, control policy, data policy, ACL policy, VPN membership policy, multi-VRF support, Performance Routing (PfR) Netconf over SSH, CLI, REST (vManage), Linux shell, ZBFs (Zone-Based Firewalls) |
| Cryptographic algorithms | Encryption: AES-256 (in CBC and GCM modes), Internet Key Exchange (IKE), Cisco PKI Authentication: Authentication, Authorization, and Accounting (AAA), RSA (2048 bit), Integrated QAT, ESP-256-CBC, Authentication Header, HMAC-SHA1, ECDSA (256/384 bit); Integrity: HMAC-MD5, SHA-1, SHA-2 |
| ISR1100-4G | |
| WAN | |
| GE (Copper) | 4 |
| SFP | - |
| LTE (CAT4) | - |
| LAN | |
| GE (Copper) | 4 |
| Integrated USB 3.0 AUX/console | Yes |
| Memory (default and maximum) | DRAM: 4 GB Flash: 8 GB (5.8 GB usable) |
| Console | Cisco RJ45 Console port |
| Authentication and security | TACACS+ RADIUS Local, role-based access control |
| External power supply | Product power specifications: External Adapter: 30W 341-100891-01 AC input voltage: Universal 100 to 240 VAC Frequency: 50 to 60 Hz Maximum output power: 30W Output voltage: +12VDC for system power |
| USB 3.0 | USB devices supported: USB flash memory |
| LEDs | System status: off = no power, green steady on = normal operation, amber steady on = system going down/fault, amber blink = boot up phase OMP Status: Green steady on = Connection is up, Off = Connection is down 1x green per Ethernet; off = no link, steady on = link connected, blink = traffic flowing SIM: green; off = no SIM, steady on = SIM present, blink: traffic flowing 1x green per SFP |
| Physical dimensions (W x D x H) | 10.2 x 7 x 1.1 in (259 x 178 x 28 mm) |
| Weight | 2.64 lbs (1.08 kg) |
| Standard safety certifications | UL 60950-1, second edition CAN/CSA C22.2 No. 60950-1, second edition EN 60950-1, second edition CB to IEC 60950-1, second edition with all group differences and national deviations AS/NZS 60950.1:2011 IEC-62368 (CB and UL/CSA) NOM-019-SCFI-1998 GB4943 |
| EMC emissions | EN55022/CISPR22, CFR 47 Part 15, ICES003, VCCI-V-3, AS/NZS CISPR22, CNS13438, EN300-386, EN61000-3-2, EN61000-3-3, KN22, TCVN 7189, and EN61000-6-1 |
| EMC immunity | EN55024/CISPR24, (EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000- 4-6, EN61000-4-11), EN61000-6-1, KN24, TCVN 7317, and EN300-386 |
| Environmental operating range | Operating temperature: 0 to 40°C (32 to 104°F) at sea level (temperature derating of 1.5°C per 1000 feet of altitude applicable up to max of 10,000 feet or 3000 m) Operating altitude: Maximum 10,000 ft (3000 m) with 1°C derating per 1000 ft Operating humidity: 0 to 95% relative humidity noncondensing |
