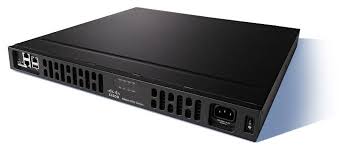

ISR4331-V/K9 100Mbps-300Mbps system throughput, 3 WAN/LAN ports, 2 SFP ports, multi-Core CPU,1 service module slots, Security, Voice,

Cisco Intergrated Service Router ISR4331-V/K9 Voice bundle is ideally designed for the small to mid-size enterprise branch environment, delivers advanced VOIP services and unprecdent level of WAN intelligence. Cisco ISR4331 combines 2 dual mode Gigabit Ethernet ports and PVDM4 DSP for voice and video services, two network modules, one integrated services card slot and one service module slots which you can add a Gigabit Ethernet switch or maybe a Cisco UCS e-series single blade server module to run virtualized applications.Fully support for the OnePK software development kits means mutual awareness between both network and applications. Application visibility and control are natively available on the router, so you can measure user experience without external probes.

Performance is the key to enabling advanced branch services or scaling across the enterprise. With IOS XE and dedicate control, data, and service CPUs, these platform is unmatched in the industry.ISR 4331 delivering 100Mbps-300Mbps performance on demand,with pay-as-you-grow performance, you can increase forwarding capacity when needed, so the platform performance growth with your business, you only pay for the performance you need. Secure communications are expected in ISR and you will have access to the most advanced encryption platform in the market, IPsec, SSL VPN and flex VPN with support for next-generation encryption standards as well.The Cisco 4331 is the ultimate application delivery platform to mid-size branch offices. This is literally routing redefined.
  • ISR4331-V/K9

  • cisco

  • factory new

  • 1 year

Availability:
Quantity:

ISR4331-V/K9 Specification

ISR4331-V/K9 Specification

Description

Cisco ISR4331-V/K9 (2GE,2NIM,1SM,4G FLASH,4G DRAM, Voice Bundle)

Aggregate Throughput

100 Mbps to 300 Mbps

Total onboard WAN or LAN 10/100/1000 ports

3

RJ-45-based ports

2

SFP-based ports

2

Enhanced service-module slots

1

Doublewide service-module slots

0

NIM slots

2

OIR (all I/O modules)

Yes

Onboard ISC slot

1

Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM

(Combined control/services/data planes)

4 GB

Maximum memory DDR3 ECC DRAM (Combined control/services/data planes)

16 GB

Default memory DDR3 ECC DRAM (data plane)

NA

Maximum memory DDR3 ECC DRAM (data plane)

NA

Default memory DDR3 ECC DRAM (control/services plane)

NA

Maximum memory DDR3 ECC DRAM (control/services plane)

NA

Default flash memory

4 GB

Maximum flash memory

16 GB

External USB 2.0 slots (type A)

1

USB console port -type B mini (up to 115.2 kbps)

1

Serial console port - RJ45 (up to 115.2 kbps)

1

Serial auxiliary port - RJ45

(up to 115.2 kbps)

1

Power-supply options

Internal: AC and PoE

Redundant power supply

N/A

AC input voltage

100 to 240 VAC autoranging

AC input frequency

47 to 63 Hz

AC input current range, AC power supply (maximum)

3 to 1.3A

AC input surge current

60 A peak and less than 5 Arms per half cycle

Typical power (no modules) (watts)

42

Maximum power with AC power supply (watts)

250

Maximum power with PoE power supply (platform only) (watts)

530

Maximum endpoint PoE power available from PoE power supply (watts)

250
