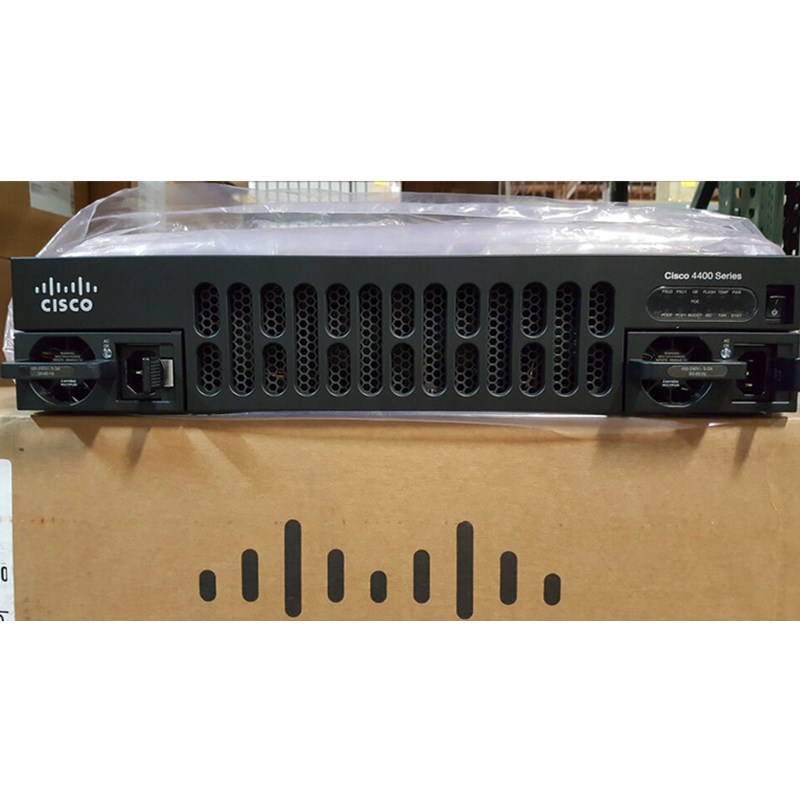

ISR4451-X/K9
Cisco
Original New
1 year
| Quantity: | |
|---|---|
| Aggregate Throughput | 1 Gbps to 2Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module (SM-X) slot | 2 |
| NIM (Network Interface Modules) slots | 3 |
| Onboard ISC slot | 1 |
| DDRM (data plane) | 2 GB (default) / 2 GB (maximum) |
| DDRM (control/services plane) | 4 GB (default) / 16 GB (maximum) |
| Flash Memory | 8 GB (default) / 32 GB (maximum) |
| Power-supply options | Internal: AC, DC (roadmap) and PoE |
| Rack height | 2 RU |
| Dimensions (H x W x D) | 88.9 x 438.15 x 469.9 mm |

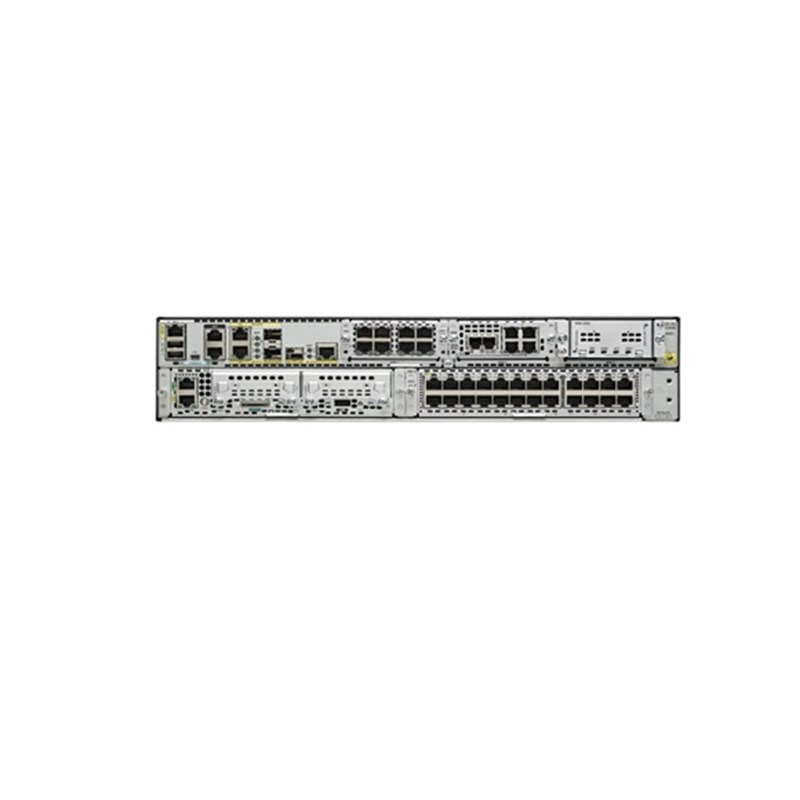

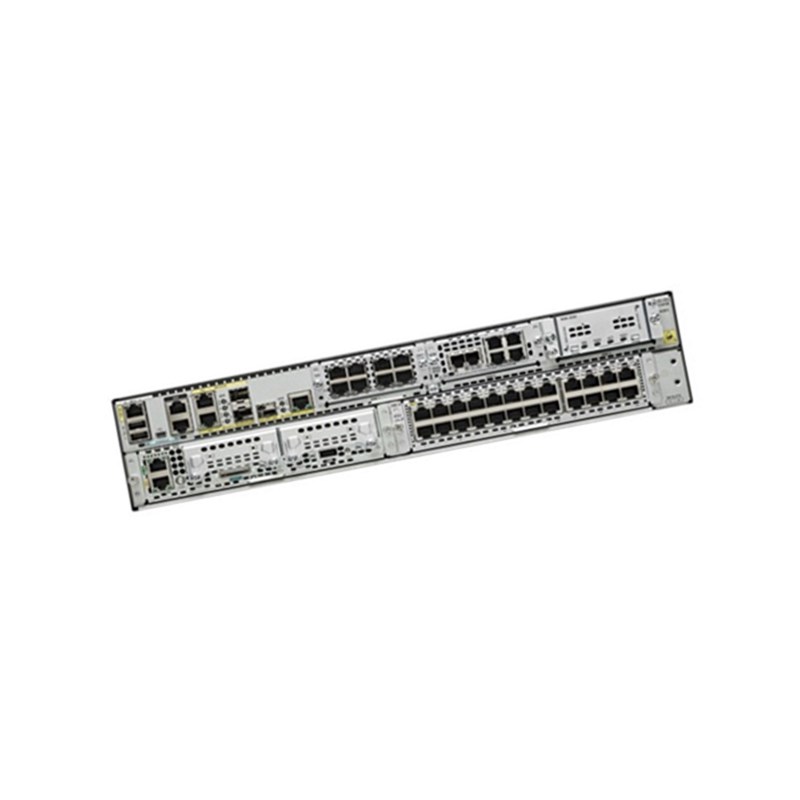

| (1) | USB Type A port |
| (2) | GE management port |
| (3) | USB Type B mini port |
| (4) | Console port |
| (5) | Auxiliary port |
| (6) | GE Ports |
| (7) | NIM Slots |
| (8) | SM-X Slot |
| Cisco ISR4451-X/K9 | |
| Aggregate Throughput | 1 Gbps to 2Gbps |
| Total onboard WAN or LAN 10/100/1000 ports | 4 |
| RJ-45-based ports | 4 |
| SFP-based ports | 4 |
| Enhanced service-module slots | 2 |
| Doublewide service-module slots | 1 (assumes no singlewide SM-X modules installed) |
| NIM slots | 3 |
| OIR (all I/O modules) | Yes |
| Onboard ISC slot | 1 |
| Default memory double-data-rate 3 (DDR3) error-correction-code (ECC) DRAM (Combined control/services/data planes) | NA |
| Maximum memory DDR3 ECC DRAM (Combined control/services/data planes) | NA |
| Default memory DDR3 ECC DRAM (data plane) | 2 GB |
| Maximum memory DDR3 ECC DRAM (data plane) | 2 GB |
| Default memory DDR3 ECC DRAM (control/services plane) | 4 GB |
| Maximum memory DDR3 ECC DRAM (control/services plane) | 16 GB |
| Default flash memory | 8 GB |
| Maximum flash memory | 32 GB |
| External USB 2.0 slots (type A) | 2 |
| USB console port -type B mini (up to 115.2 kbps) | 1 |
| Serial console port - RJ45 (up to 115.2 kbps) | 1 |
| Serial auxiliary port - RJ45 (up to 115.2 kbps) | 1 |
| Power-supply options | Internal: AC, DC, and PoE |
| Redundant power supply | Internal: AC, DC and PoE |
| AC input voltage | 100 to 240 VAC autoranging |
| AC input frequency | 47 to 63 Hz |
| AC input current range, AC power supply (maximum) | 7.1 to 3.0A |
| AC input surge current | <50 A |
| Typical power (no modules) (watts) | 158 |
| Maximum power with AC power supply (watts) | 450 (no PoE) |
| Maximum power with PoE power supply (platform only) (watts) | 1000 with PoE redundant 1450 with PoE boost no redundancy |
| Maximum endpoint PoE power available from PoE power supply (watts) | 500 W with optional redundancy |
| Maximum endpoint PoE power capacity with PoE boost (watts) | 950 W no redundancy |
| Items | Models | Descriptions |
| Console and Auxillary Cables | CAB-AUX-RJ45 | Cisco CAB-AUX-RJ45 Auxiliary Cable 8ft with RJ45 and DB25M |
| CAB-ETH-S-RJ45 | Cisco Router Cable CAB-ETH-S-RJ45 | |
| CAB-CONSOLE- RJ45 | Cisco CAB-CONSOLE-RJ45 Console Cable 6ft with RJ45 and DB9F | |
| CAB-CONSOLE-USB | Cisco CAB-CONSOLE-USB Console Cable 6 ft with USB Type A and mini-B | |
| Licenses | L-SL-4350-APP- K9= | Cisco AppX license L-SL-4350-APP-K9= with 1300 conns/ISRWAAS or vWAAS for ISR4351 |
| Network Interface Modules | NIM-1MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module |
| NIM-2CE1T1-PRI | Cisco Multiflex Trunk Voice and WAN network interface module | |
| NIM-4E/M | Analog voice network interface card (ear and mouth) | |
| NIM-2FXS | Cisco Analog voice network interface card NIM-2FXS | |
| NIM-2FXS/4FXO | Cisco Analog voice network interface card NIM-2FXS/4FXO | |
| NIM-8MFT-T1/E1 | Cisco Fourth-Generation Multiflex Trunk Voice and WAN network interface module | |
| SFPs for On-Board GE Ports | GLC-SX-MMD | Cisco GLC-SX-MMD 1000BASE-SX SFP transceiver module, MMF, 850nm, DOM |
| GLC-LH-SMD | Cisco GLC-LH-SMD 1000BASE-LX/LH SFP transceiver module, MMF/SMF, 1310nm, DOM | |
| GLC-ZX-SMD | Cisco GLC-ZX-SMD 1000BASE-ZX SFP transceiver module, SMF, 1550nm, DOM |
