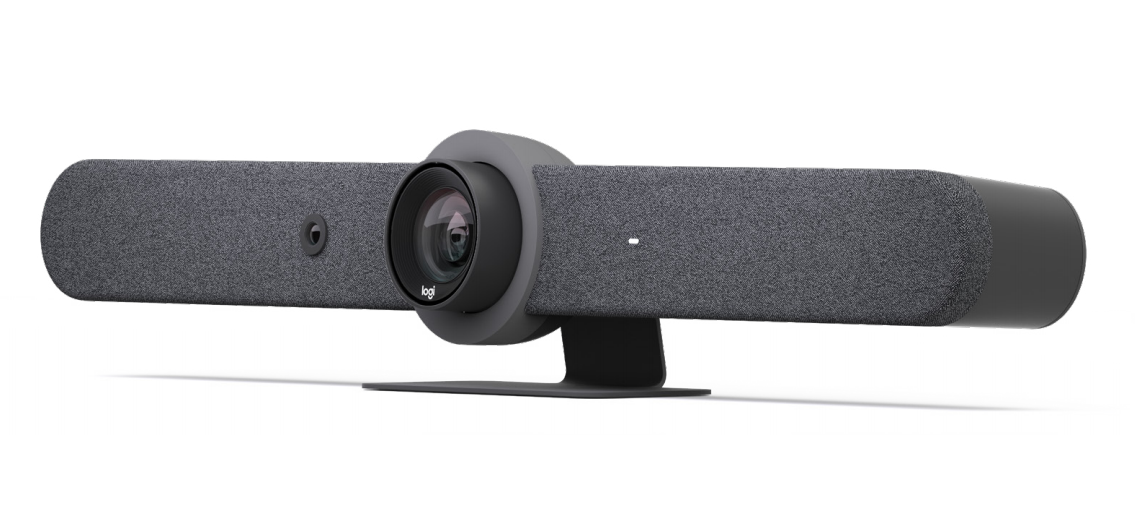

LOGITECH RALLY BAR
Rally Bar delivers a powerful all-in-one video conferencing experience, featuring brilliant optics, automated PTZ, and high performance audio for midsize meeting rooms. With Rally Bar, video meetings can be just as natural and productive as face-to-face collaboration.
ALL-IN-ONE VIDEO BAR FOR MEDIUM ROOMS
Logitech Rally Bar sets a new standard for video meetings in midsize rooms, with expansion options for larger groups and settings. It’s remarkably simple to use, manage, and deploy at scale, delivering cinema-quality video and audio in a sleek, all-in-one form factor. Plug and play Rally Bar with any PC or Mac, or leverage the built-in compute to run video conferencing applications directly on the device. Rally Bar features a multi-element lens assembly, powerful low distortion speakers, and an advanced mic system to create meeting experiences that sound as good as they look. A dedicated AI camera amplifies RightSight auto-framing and delivers insights about room usage directly to the Logitech Sync dashboard. Upgrade your video collaboration with Rally Bar.
LOGITECH RALLY BAR
|CERTIFICATIONS & COMPATIBILITY|| |
Certifications: Zoom™ Certified, Certified for Microsoft Teams as a USB device. Contact the manufacturer for additional information on pending and granted certifications.
Compatibility: Plug and play USB connectivity with virtually any video conferencing application
Appliance Mode: Supports compatible video conferencing software in appliance mode (no PC required), including Zoom Rooms Appliances. Certification pending for Microsoft Teams Rooms on Android and additional video conferencing platforms.
Built-in Components: 6 beamforming microphones, PTZ camera, 2 speakers, AI Viewfinder, cable management & retention system, table stand, Logitech CollabOS platfor
mEnclosure: All-in-one enclosure with integrated table stand and patented speaker suspension system to eliminate vibration-induced camera shake and audio interference Device Management: Logitech Sync Displays
Supported: 2 Display Resolution: Up to 4k
Resolution: 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps
Pan: Motorized ±25° Tilt: Motorized ±15°
Zoom: 15X HD zoom (5X optical, 3X digital available with upcoming software update)
Diagonal Field of View: 90° Horizontal Field of View: 82.1°
Vertical Field of View: 52.2° Total Room Coverage: 132.1° Horizontal x 82.2° Vertical
Height: 164 mm / 6.46 in
Width: 910 mm / 2.99 ft
Depth: 130.5 mm / 5.14 in
Lens Depth: 28.8 mm / 1.13 in
Weight: 7.08 kg / 15.6 lbs
Drivers: 2x 70mm / 2.7 in
Output: 90dB SPL @1W, 99dB SPL @8.0W, both +/-2dB at ½ meter
Sensitivity: 90+/-3dB SPL at 1W, ½ meter
THD: 1kHz < 2% Speaker Sampling Rate: 48 kHz
|RIGHTSENSE TECHNOLOGIES|| |
RightLight: Renders natural skin tones for each participant
.RightSight: Maintains persistent room awareness and detects human figures to auto-frame participants.
RightSound: Distinguishes speech from other sounds to auto-level voices while suppressing background noise and echo.
