Rally
Logitech
Original New
1 year
| Quantity: | |
|---|---|
Logitech Rally
| Logitech Rally | ||||
| DIMENSIONS | Rally Camera * Height x Width x Depth: * 7.19 in (182.5 mm) x 5.88 in (152 mm) x 5.88 in (152 mm) Rally Speaker * Height x Width x Depth: * 4.05 in (103 mm) x 17.67 in (449 mm) x 3.15 in (80 mm) Rally Mic Pod * Height x Width x Depth: * 0.83 in (21 mm) x 4.01 in (102 mm) x 4.01 in (102 mm) Rally Display Hub * Height x Width x Depth: * 1.57 in (40 mm) x 8.11 in (206mm) x 7.05 in (179 mm) Rally Table Hub * 1.57 in (40 mm) x 6.93 in (176mm) x 5.43 in (138 mm) | |||
| SYSTEM REQUIREMENTS | * Operating Systems * Windows® 7, Windows 8.1 or Windows 10 * macOS®: 10.10 or higher * Resolutions higher than 1080p * Windows 8.1 or higher or macOS 10.10 or higher * USB 3.0 port and Type C cable * Compatible software | |||
| RIGHTSENSE TECHNOLOGIES | RightLight with WDR * Low-light compensation Video noise reduction Low-light saturation optimization Renders natural skin tones for each participant on camera Reduces backlighting and glare without darkening the entire image. RightSight * Human figure detection Auto-frame participants at meeting start Auto-frame participants on-demand Auto-reframe participants during meetings RightSound * Machine learning AI trained to distinguish human speech from other sounds AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector) Background noise suppression Auto-level loud and soft voices RightSound Mic Matrix * Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction * Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker * Beam focus refresh rate: 8ms (125 times/second) | |||
| Anti-Vibration Suspension: | * A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in. * Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion | |||
| TECHNICAL SPECIFICATIONS | ||||

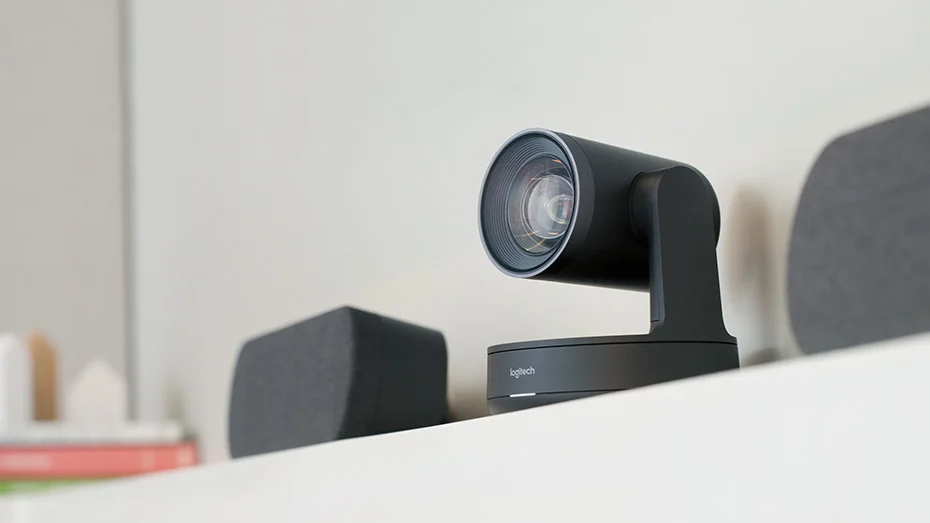

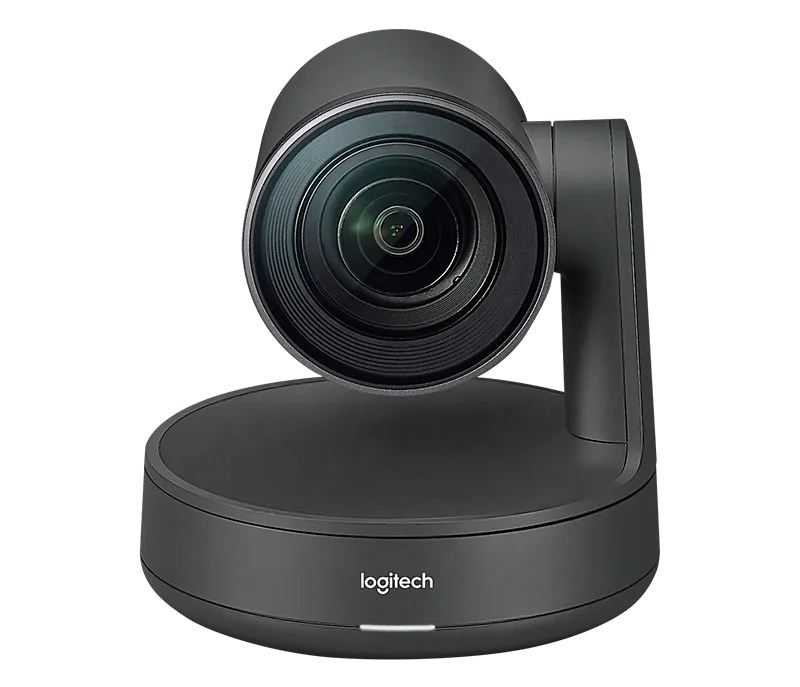

| RALLY CAMERA | * Ultra-HD imaging system supports: * 4K, 1440p, 1080p, 900p, 720p, and SD at 30fps * 1080p, 720p at 30fps and 60 fps * Smooth motorized pan, tilt and zoom * Pan: ±90° * Tilt: +50° / -90° * 15x HD zoom * Field of View: * Diagonal: 90° * Horizontal: 82.1° * Vertical: 52.2 * Autofocus * 3 camera presets * Kensington security slot * Video mute/unmute LED indicator * Standard tripod thread * Lens parks at -90° in sleep mode for assured privacy | |||
| RALLY MIC POD | * Pickup range: 15 ft / 4.5m diameter Four omnidirectional microphones forming eight acoustic beams AEC (Acoustic Echo Cancellation) VAD (Voice Activity Detector) Background noise suppression Mute button with LED status indicator Captive 9.6 ft (2.95m) 12-pin cable Daisy chain up to 7 Rally Mic Pods Frequency response: 90Hz – 16kHz Sensitivity: >-27dB +/-1dB @ 1Pa Microphone data rate: 48 kHz Recommended # of participants: Rally (one Mic Pod): 10 Rally Plus (two Mic Pods): 16 Additional participants per Mic Pod: 6 Recommended participants for Rally with 7 Mic Pods: 46 | |||
| RALLY SPEAKER | High-performance 3”" (76mm) driver with rare-earth magnet Patent-pending suspension system eliminates vibration-induced camera shake and audio interference Mini XLR cable connects to Rally Display Hub for both signal and power Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter Sensitivity: 95+/-2dB SPL at ½ meter Distortion: 200Hz–300Hz < 2.5%, 300Hz–10kHz < 1%@7.5W Speaker sampling rate: 48 kHz | |||
| RALLY TABLE HUB | * Single CAT6A cable connection to Rally Display Hub (16.4 ft / 5m cable included, supports customer-supplied cables up to 164 ft (50 m) Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms 12 Pin connector for Rally Mic Pod HDMI Type A passthrough to Display Hub (x2) USB Type C USB Type A (reserved for future capability) USB Type B (connects to meeting room computer) RJ45 (reserved for future capability) Power input | |||
| RALLY DISPLAY HUB | * HDMI Type A (x2) (connects to displays) USB C (connects to Rally Camera) USB Type B (connects to meeting room computer) RJ45 (connects to Table Hub) Mini XLR (x2) Powers one or two Rally Speakers Power input | |||

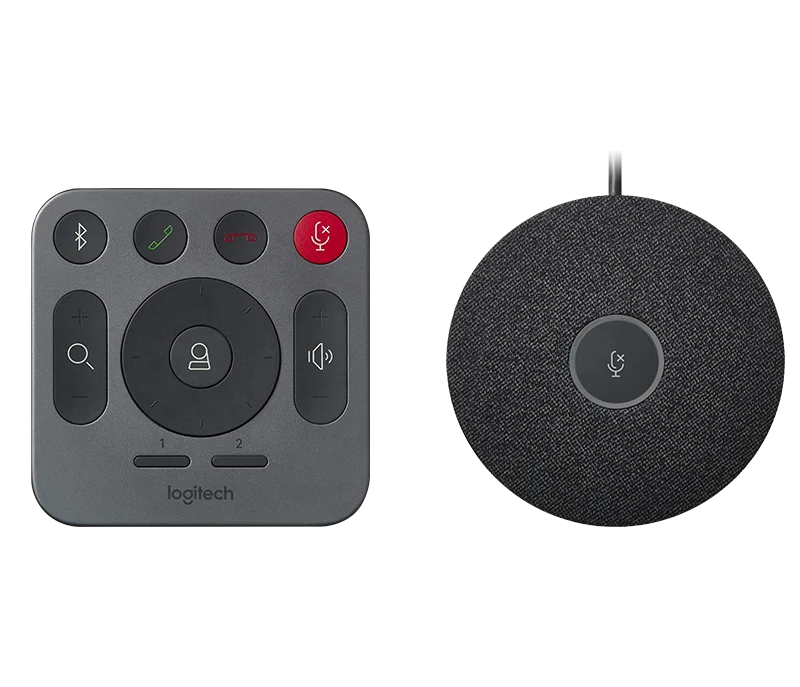

| REMOTE CONTROL | * RF remote control (line of sight not required) * CR2032 batteries (included) | |||
| CABLES / POWER | * Camera to Display Hub 6.5 ft (2m) USB 3.1 Type C to USB Type C 3.1 Conference Room Computer to Display or Table Hub 6.5 ft (2m) USB 3.1 Type A to USB Type B Display Hub to Table Hub 16.4 ft (5m) CAT6A Ethernet cable (supports customer-supplied cables up to 164 ft (50 m) Display Hub to Speaker (x2) 9.6 ft (2.95m) Mini XLR (supports customer-supplied extension cables up to 9.8 ft (3m) Conference Room Computer to Displays (x2) 6.5 ft (2m) HDMI A Mic Pod 9.6 ft (2.95m): Hardwired with 12 pin connector Power Outlets to Power Supplies (x2) 3.2 ft (1m) Power Supplies to Table Hub / Display Hub (x2) 4.9 ft (1.5m) | |||
