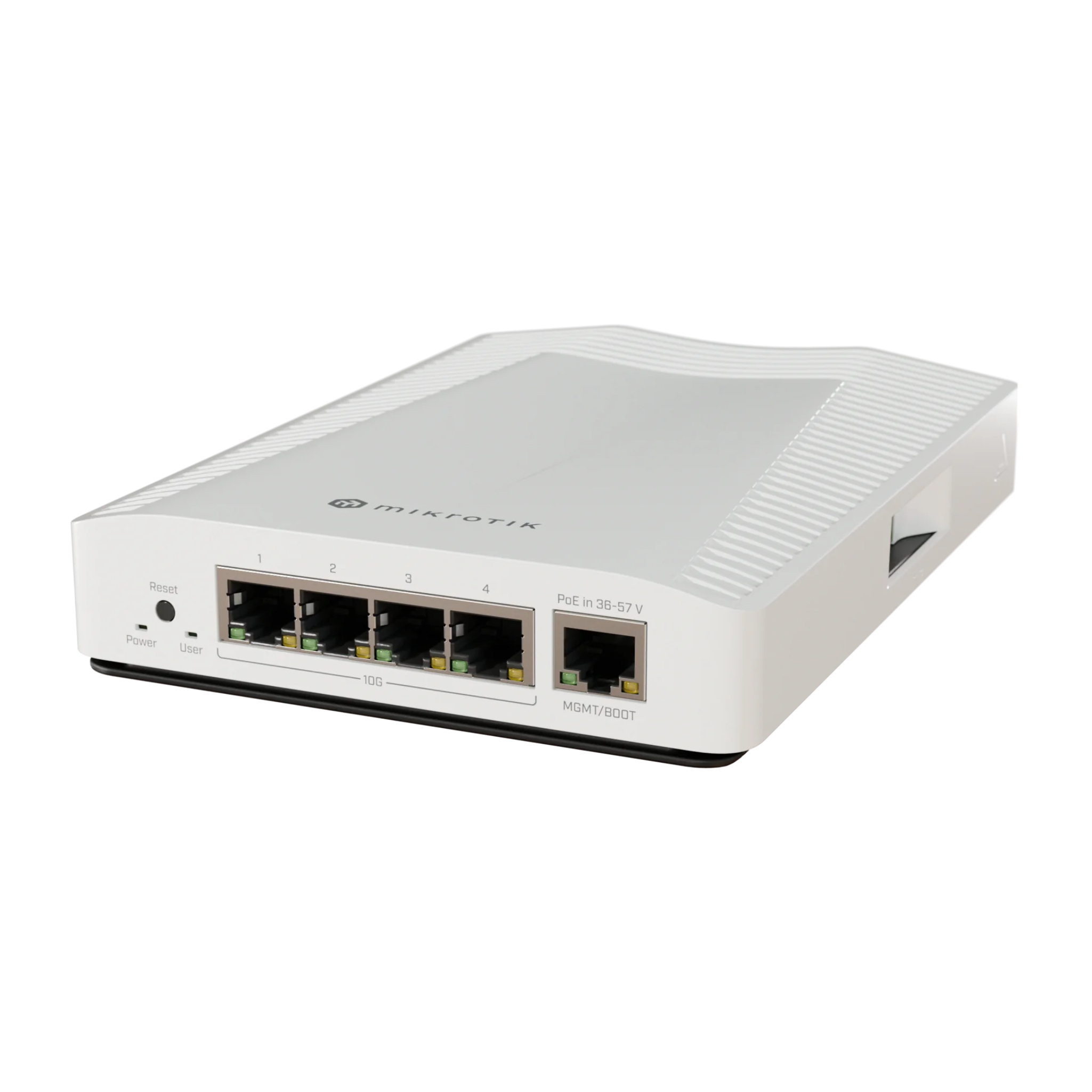

MikroTik CRS304-4XG-IN is a compact and high-performance managed Ethernet switch designed to provide reliable 10 Gigabit connectivity for modern enterprise networks, small businesses, data centers, and advanced home or office environments. Featuring four 10G Ethernet ports, this switch delivers ultra-fast data transmission speeds and efficient network expansion, making it an ideal solution for bandwidth-intensive applications such as server connections, virtualization environments, network storage, video production, and high-speed backbone links. Powered by the robust MikroTik SwOS operating system, the CRS304-4XG-IN offers easy-to-use Layer 2 management features, including VLAN configuration, port isolation, bandwidth control, link aggregation, traffic monitoring, and various switching options to help administrators optimize network performance and security. Its fanless design ensures silent operation with low power consumption, making it suitable for environments where reliability and quiet performance are essential. The compact desktop form factor allows flexible deployment in offices, laboratories, retail stores, and edge network locations without requiring a rack installation. With its powerful 10GbE switching capability, stable performance, and cost-effective design, the MikroTik CRS304-4XG-IN provides an excellent choice for businesses and professionals looking to upgrade their network infrastructure with high-speed connectivity and future-ready scalability. As a professional network equipment supplier, we provide original brand-new MikroTik products with reliable supply, competitive pricing, and global shipping support for distributors, system integrators, and end customers worldwide.
CRS304-4XG-IN
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Product Information | Model Name | CRS304-4XG-IN |
Product Series | MikroTik CRS300 Series | |
Device Type | Compact 10G Multi-Gigabit Managed Switch | |
Architecture | ARM 64-bit | |
Operating System | RouterOS v7 (only), SwOS dual-boot supported | |
RouterOS License Level | License 5 | |
Hardware Core Specifications | CPU Model | Marvell 98DX2528 |
CPU Cores | 2 cores | |
CPU Nominal Frequency | 1200 MHz | |
RAM Size & Type | 512 MB DDR4 | |
Storage Size & Type | 32 MB FLASH | |
Switch Chip Model | Marvell Prestera 98DX2528 | |
MTBF | Approximately 200,000 hours at 25°C | |

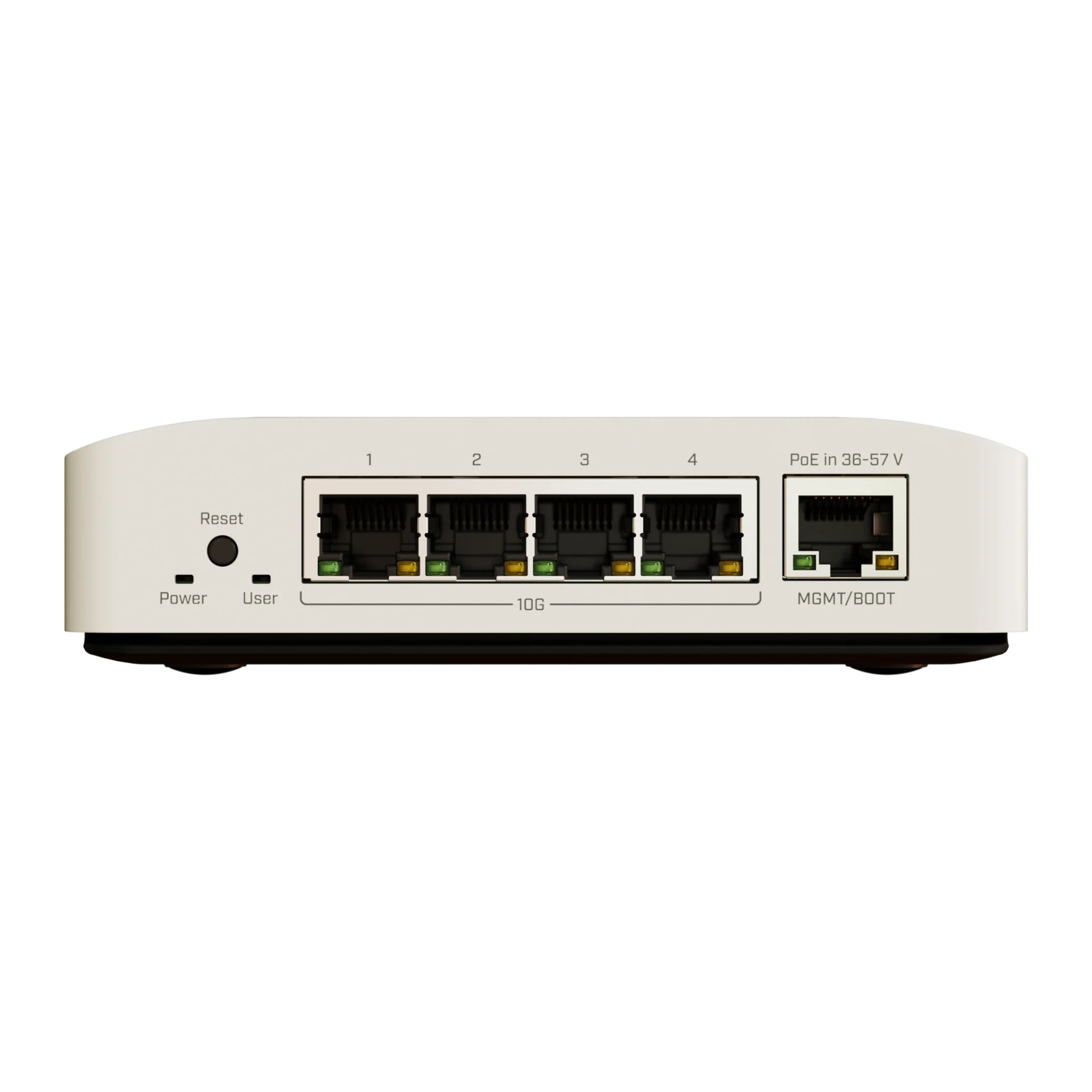

Port Configuration | Multi-Gigabit Ethernet Ports | 4 x 1G/2.5G/5G/10G RJ45 Ethernet ports (auto-negotiation) |
Management Ethernet Port | 1 x 10/100/1000 Mbps RJ45 port (for management/boot recovery) | |
Reset Button | Yes (for configuration reset, Netinstall boot) | |
Performance Parameters | Switching Capacity | 80 Gbps non-blocking Layer 1 capacity |
Forwarding Rate | 39.48 Mpps (1518-byte packets, non-blocking Layer 2 throughput) | |
MAC Address Table Size | 16,000 entries (typical for Marvell Prestera chip) | |
Jumbo Frame Support | Up to 10,000 bytes | |
VLAN Support | Up to 4094 active VLANs (IEEE 802.1Q compliant) | |

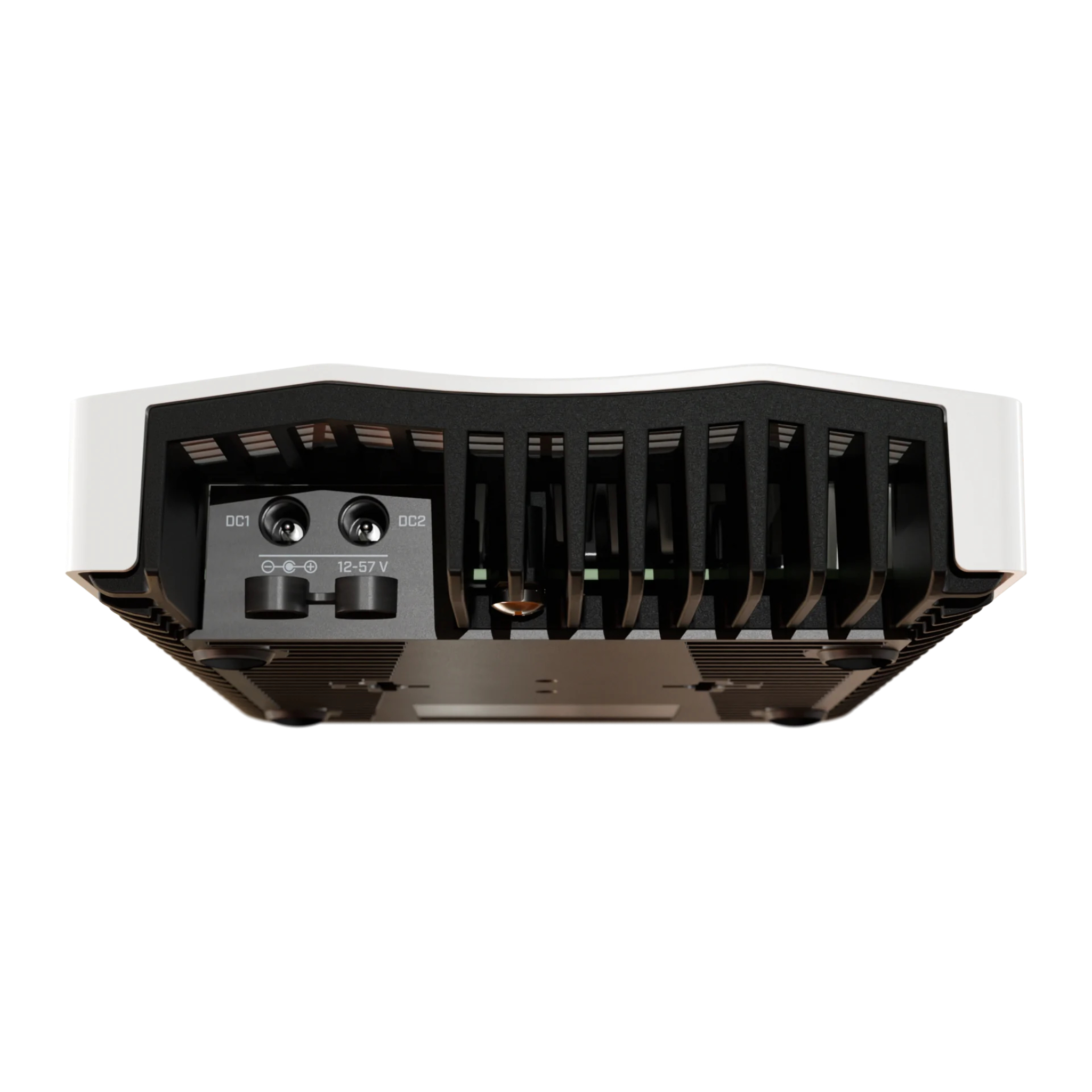

Power Supply Specifications | Power Input Options | 4 inputs: 2 x DC jack, 1 x 2-pin terminal, 1 x PoE-IN |
DC Input Voltage Range | 12 - 57 V DC | |
PoE-IN Input Voltage Range | 36 - 57 V DC | |
Max Power Consumption | 21 W (with attachments) | |
Max Power Consumption (Idle) | 15 W (without attachments) | |
PoE Support | IEEE 802.3af/at compliant PoE-IN | |
Mechanical & Environmental Specifications | Cooling Type | Passive cooling (fanless, silent operation) |

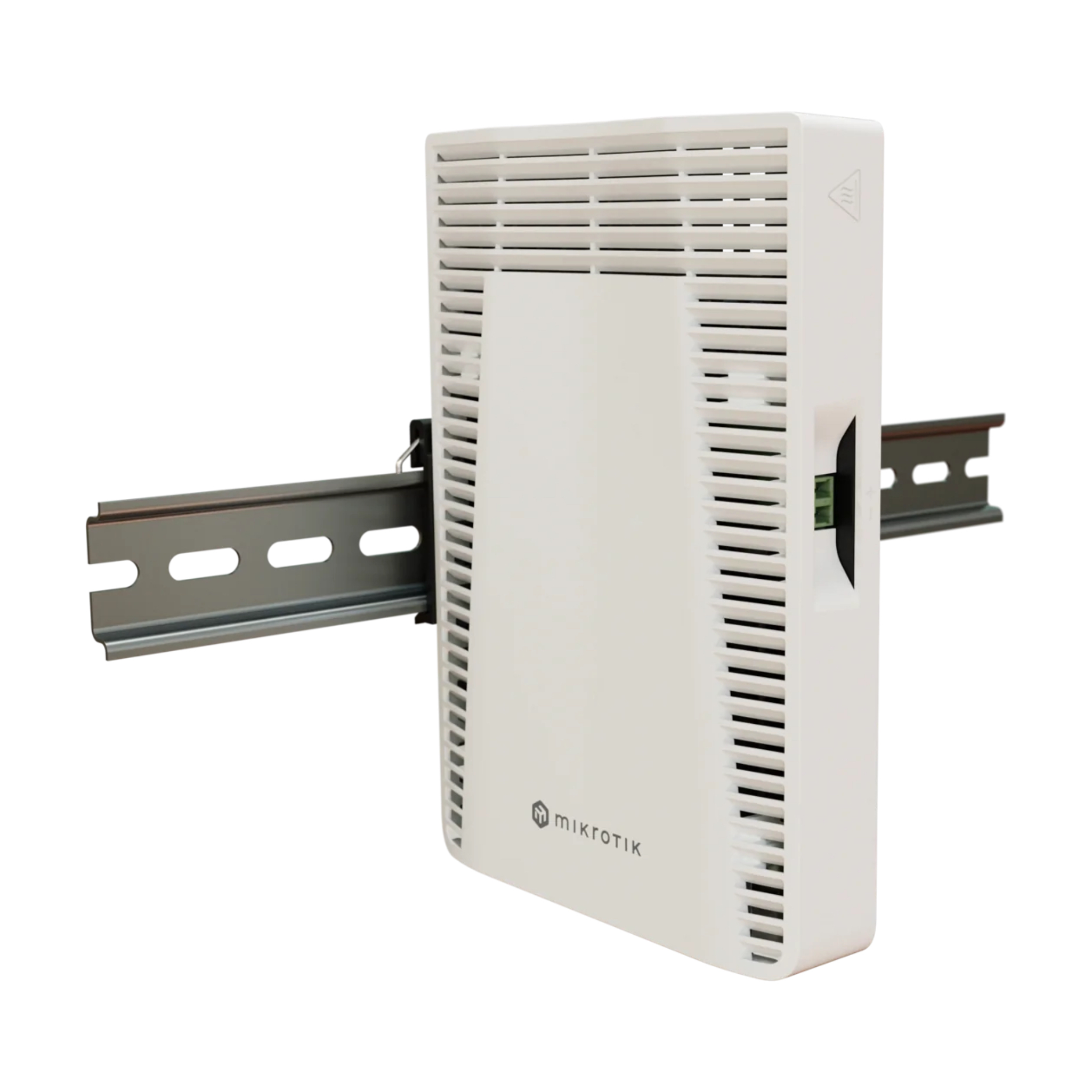

Mounting Options | DIN rail mount (side/back movable), standard screw mount points | |
Enclosure IP Rating | IP20 | |
Operating Temperature Range | -40°C to +70°C | |
Storage Temperature Range | -40°C to +70°C | |
Operating Humidity | 10% - 90% non-condensing | |
Operating Altitude | Up to 2,000 meters above sea level | |
Network & Management Features | Layer 2 Features | 802.1Q VLAN, STP/RSTP/MSTP, Link Aggregation (LACP 802.3ad), IGMP Snooping, Port Mirroring, MAC Filtering, Broadcast Storm Control |
Layer 3 Features | Hardware-offloaded static routing, Inter-VLAN routing, DHCP Server/Snooping, IPv4/IPv6 ACL | |
QoS Features | 8 hardware priority queues per port, 802.1p CoS/DSCP mapping, traffic shaping/policing, SP/SDWRR queuing | |
Management Methods | WebFig (web-based GUI), WinBox, CLI, SNMP v1/v2c/v3, Netinstall | |
Certification & Compliance | Safety Certifications | CE, FCC Class A, UL, RoHS |
Industry Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3an, 802.3af/at, 802.1Q, 802.1p, 802.1X, 802.3ad |
