CRS305-1G-4S+OUT
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|

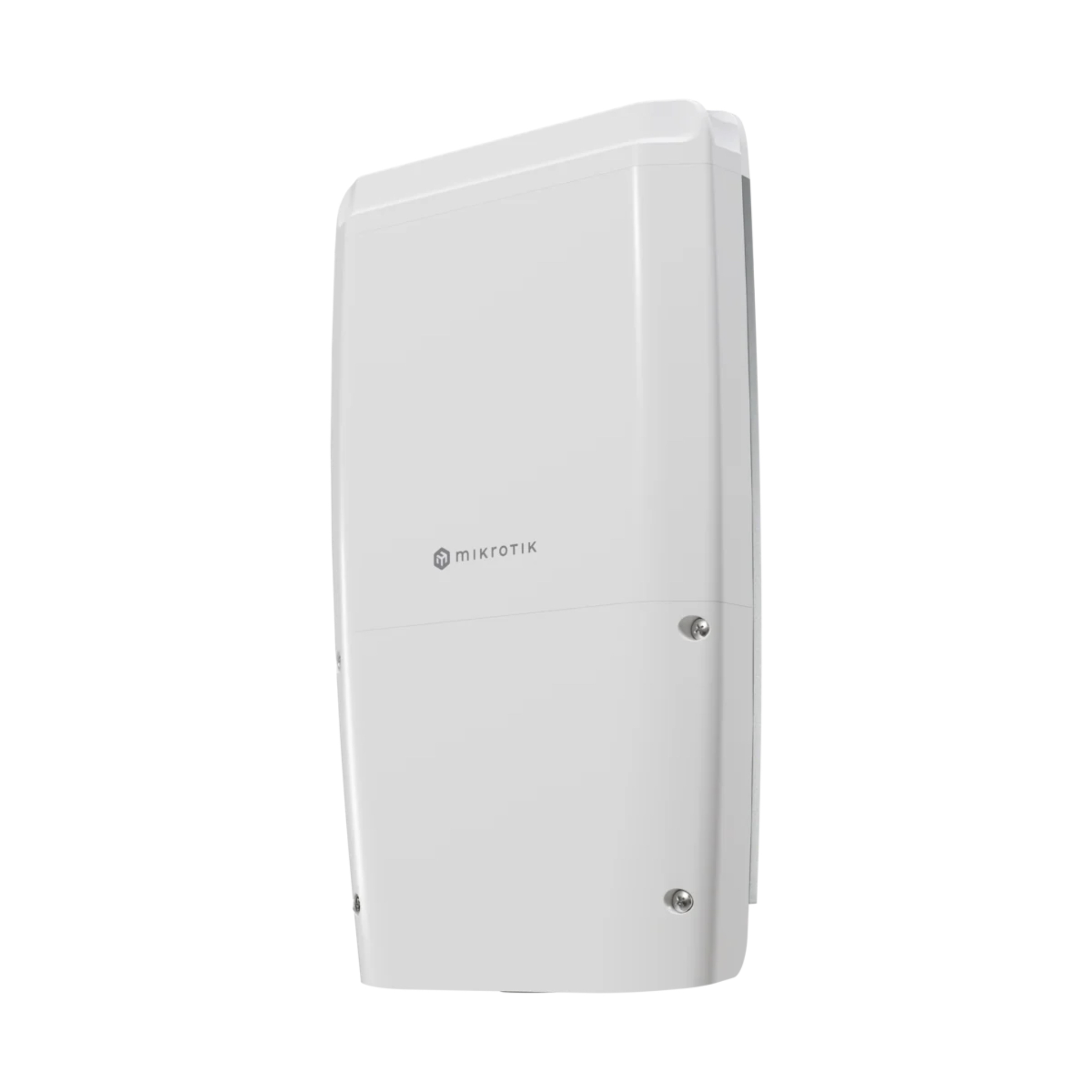

Basic Information | Model Name | CRS305-1G-4S+OUT (FiberBox Plus) |
Product Series | MikroTik CRS300 Series Managed Switch/Router | |
Device Type | Outdoor 10G SFP+ Managed Switch with PoE Input | |

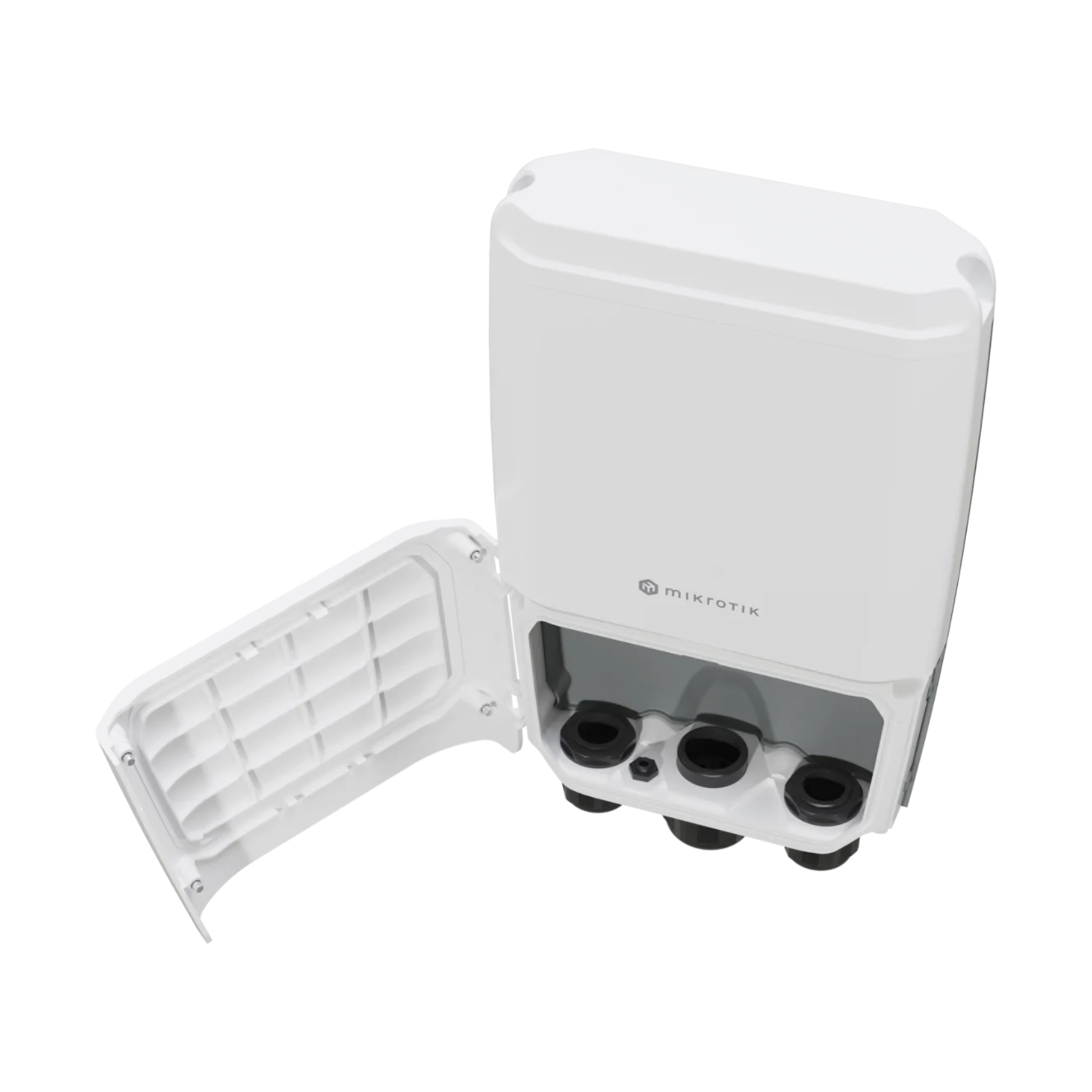

Enclosure Rating | IP66-Rated Weatherproof Outdoor Enclosure | |
Target Application | Outdoor fiber network deployment, FTTH, campus networking, IP camera systems, wireless backhaul | |
Hardware Specifications | CPU | 800 MHz Dual-Core ARM CPU (Marvell 98DX226S) |
RAM | 256 MB | |
Flash Storage | 16 MB | |
Switch Chip | Marvell 98DX226S | |
Operating System | Pre-installed RouterOS v7 / SwOS (dual-bootable) | |
RouterOS License | Level 5 | |
Architecture | 32-bit ARM | |

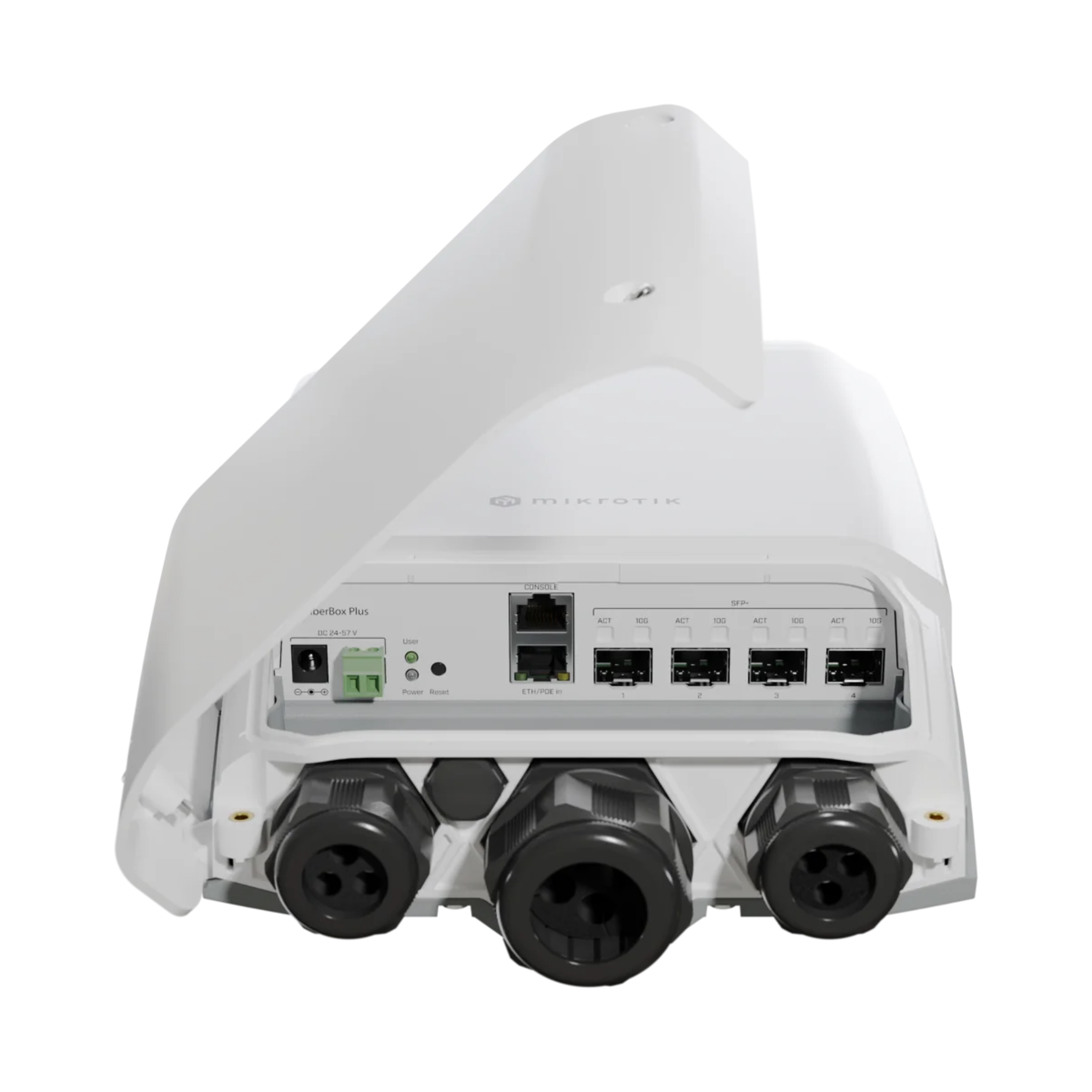

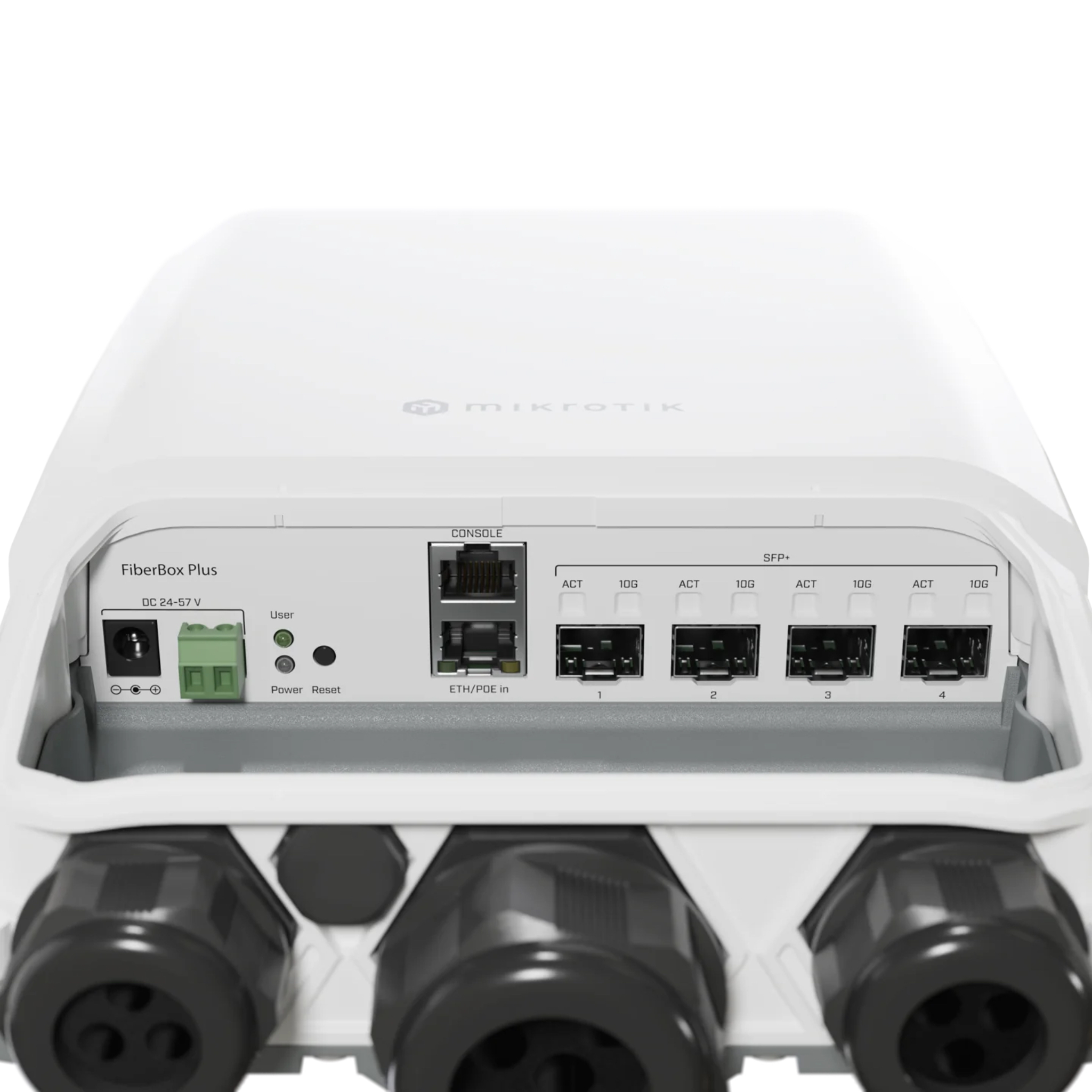

Port Configuration | 10/100/1000BASE-T Ethernet Port | 1 x RJ45 port (supports PoE-IN, auto MDI/X) |
SFP+ Ports | 4 x SFP+ cages (compatible with 10G SFP+ / 1.25G SFP modules) | |
Serial Console Port | 1 x RJ45 serial console port | |
Power Input Interfaces | 1 x PoE-IN port, 1 x DC power jack, 1 x 2-pin terminal block | |
Performance Parameters | Switching Capacity | 20 Gbps |
Forwarding Rate (64-byte packets) | 14.88 Mpps | |
MAC Address Table Size | 16,000 entries | |
Jumbo Frame Support | Up to 10,218 bytes | |
VLAN Support | Up to 4,094 802.1Q tagged VLANs | |
Power Specifications | PoE Input Standard | IEEE 802.3af / 802.3at |
PoE Input Voltage | 42-57 V DC | |
DC Jack Input Voltage | 12-57 V DC | |
2-Pin Terminal Input Voltage | 24-57 V DC | |
Max Power Consumption | 17 W (with SFP modules) / 7 W (no attachments) | |

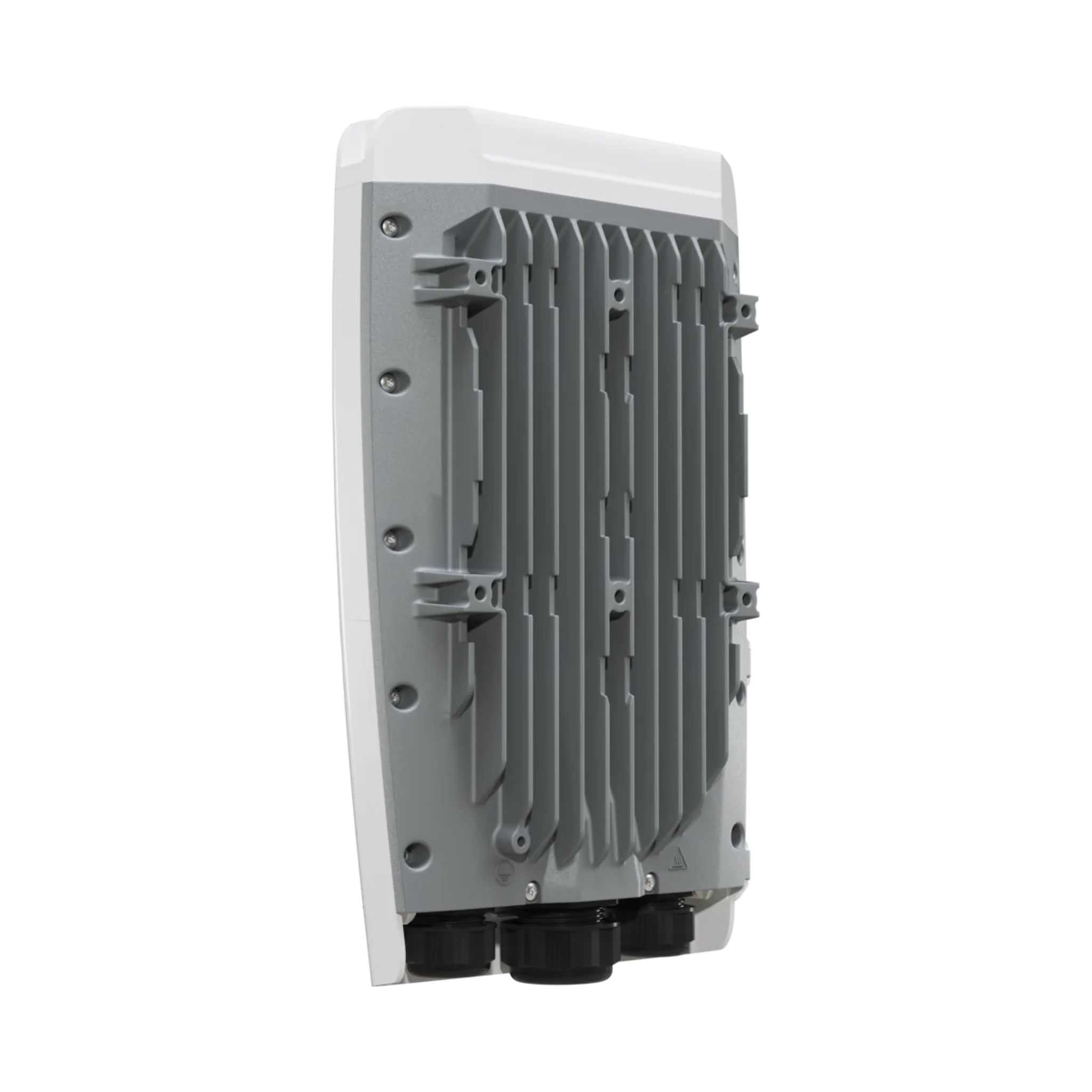

Cooling Type | Passive fanless cooling | |
Core Network Features | Layer 2 Functions | 802.1Q VLAN, Voice VLAN, STP/RSTP/MSTP, Link Aggregation (LACP 802.3ad), IGMP Snooping v1/v2/v3, Port Security, 802.1X Authentication, Storm Control, Port Mirroring |
Layer 3 Functions | Static IPv4/IPv6 Routing, Inter-VLAN Routing, DHCP Server/Snooping, IPv4/IPv6 ACLs, Static default route | |
QoS | 8 hardware priority queues per port, 802.1p CoS/DSCP mapping, traffic shaping & policing | |
Management | Winbox, Web UI, CLI (SSH/Telnet), SNMP v1/v2c/v3, Netinstall, RouterBOOT recovery | |
Security | SSH, HTTPS, RADIUS/TACACS+ authentication, DoS attack protection, port isolation, configuration encryption | |
Physical & Environmental Specs | Dimension (W × D × H) | 141 mm × 115 mm × 28 mm |
Weight | 0.45 kg | |
Mounting | Wall-mountable, pole-mountable (clamps included) | |
Operating Temperature | -20°C to +60°C (-4°F to 140°F) | |
Storage Temperature | -40°C to +70°C (-40°F to 158°F) | |
Operating Humidity | 10%–90% non-condensing | |
MTBF | Approximately 200,000 hours at 25°C | |
Compliance & Certifications | Industry Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3af/at, 802.1Q, 802.1p, 802.1X, 802.3ad |
Certifications | CE, FCC Class A, RoHS, UL, EAC | |
Package Contents | Included Accessories | MikroTik CRS305-1G-4S+OUT switch, Gigabit PoE injector, power adapter, 2 x pole mount clamps, K-41 fastening kit, K-72 fastening set |
Warranty | 1-year manufacturer limited warranty |
