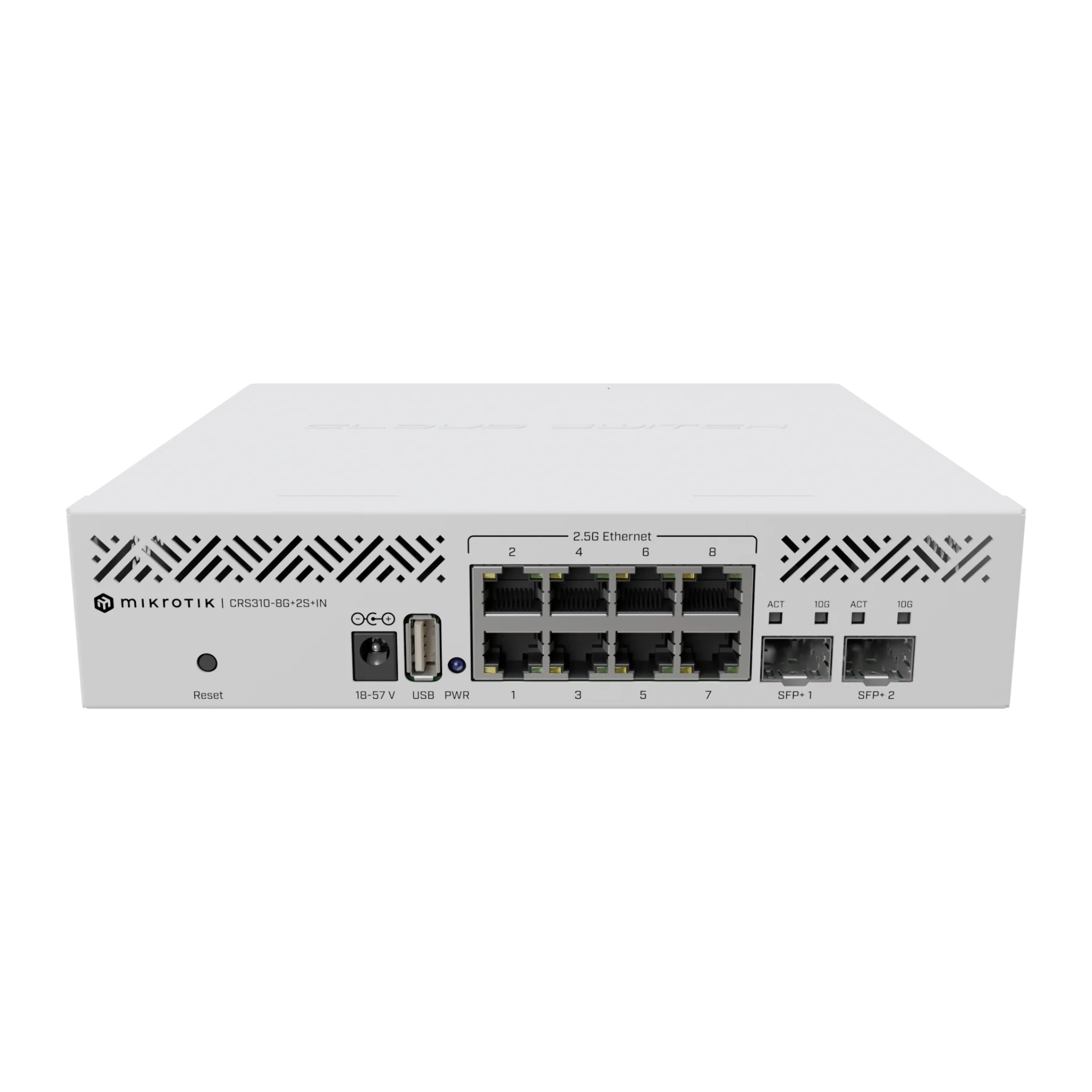

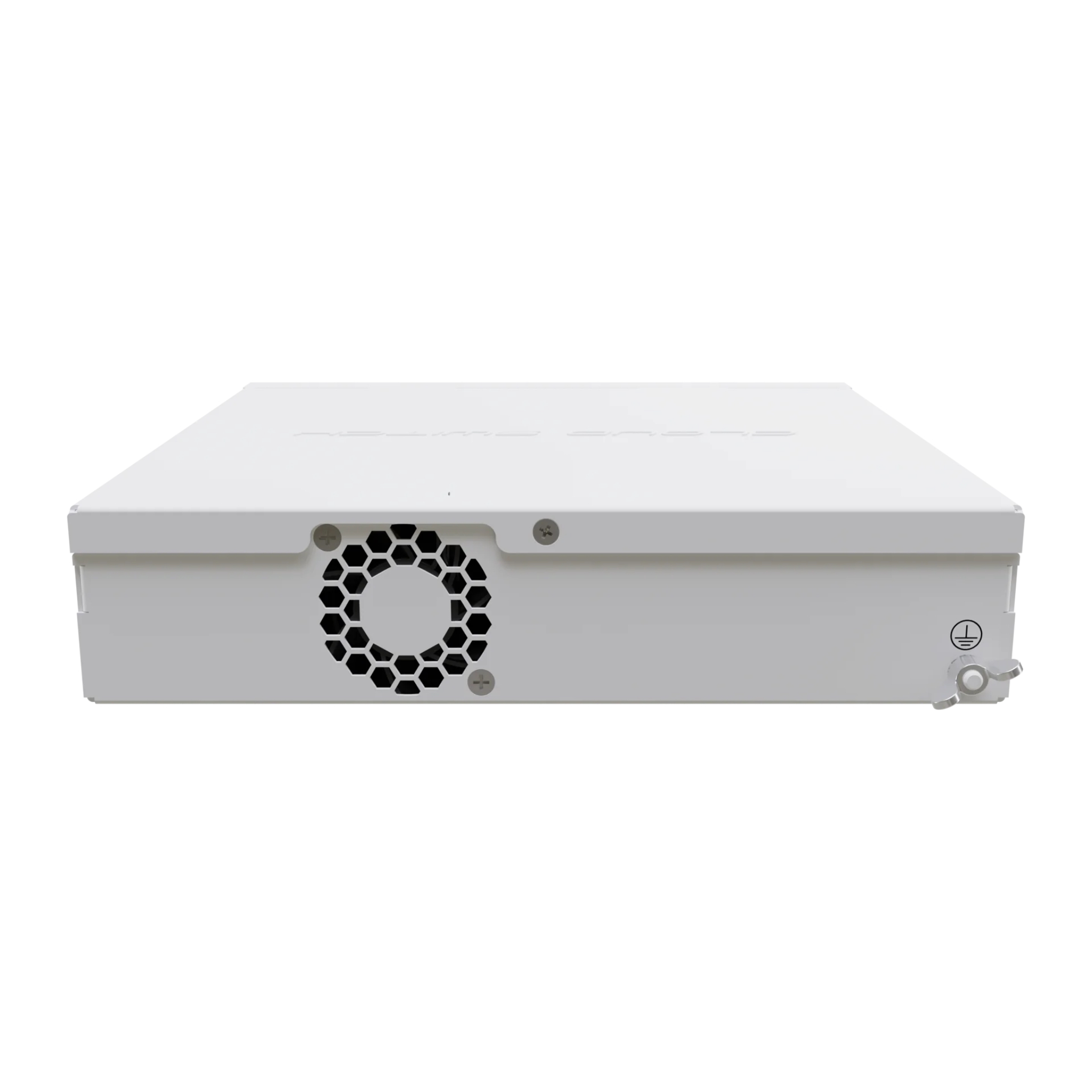

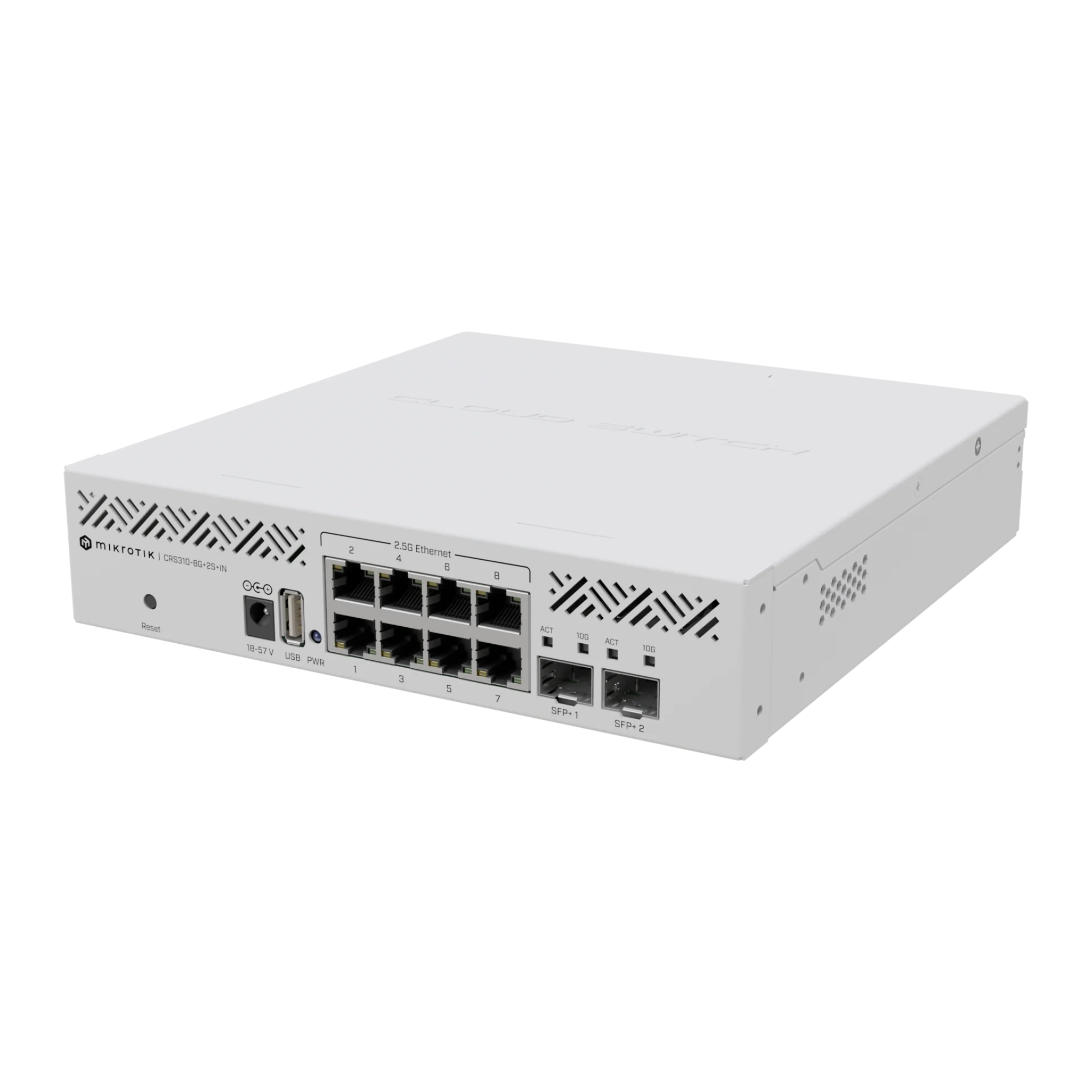

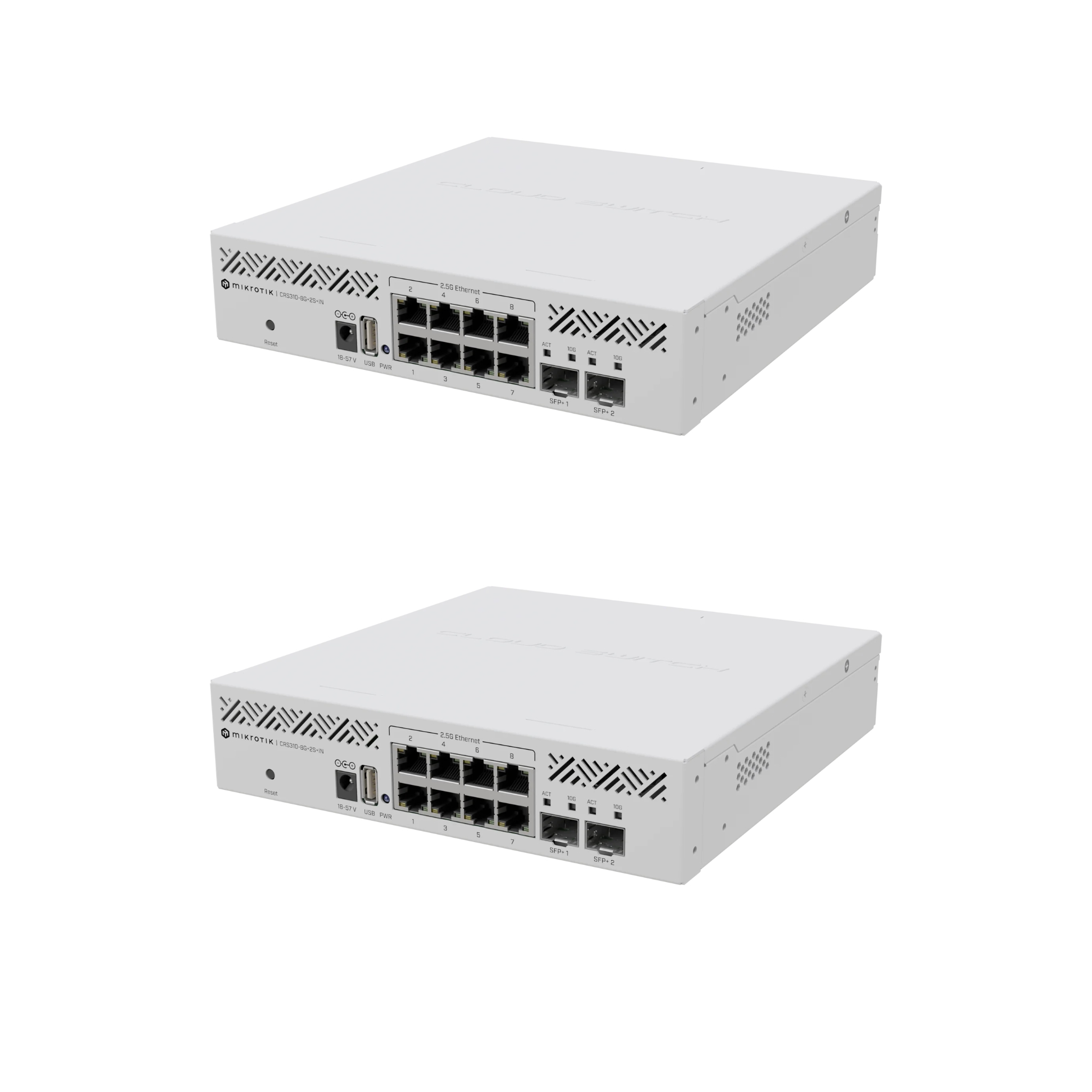

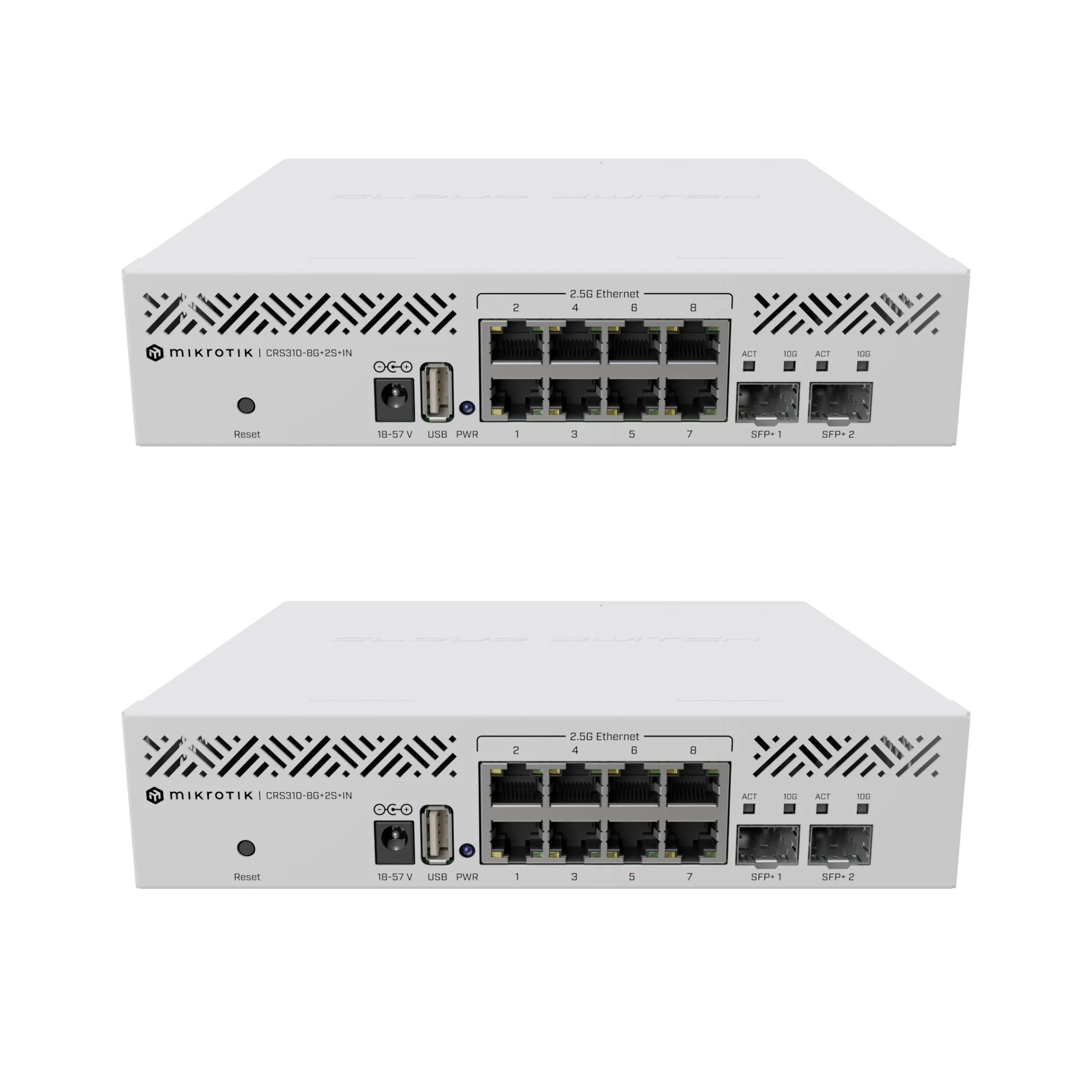

CRS310-8G+2S+IN
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Product Model | CRS310-8G+2S+IN |
Product Series | MikroTik Cloud Router Switch (CRS) Series | |
Device Type | Layer 3 Managed Switch / RouterOS Router | |
Pre-installed OS | RouterOS v7 | |
License Level | License Level 5 | |
Application Scenarios | SMB networks, enterprise branch offices, high-speed wired network deployment, Wi-Fi 6/6E AP uplink, NAS server connection | |
Port Configuration | 2.5G Ethernet Ports (RJ45) | 8 x 10/100/1000/2500BASE-T, auto-sensing, half/full duplex |
10G SFP+ Uplink Ports | 2 x SFP+ slots, multi-rate support (1G/2.5G/10G SFP/SFP+ modules compatible) | |
USB Port | 1 x USB 2.0 Type-A port | |
Management Interfaces | CLI (via serial console), WebFig (web-based GUI), SNMP, SSH, Telnet | |
Performance Specifications | Switching Capacity | 78.96 Gbps (Non-blocking Layer 2 full-duplex) |
Forwarding Rate (64-byte packets) | 59.52 Mpps | |
MAC Address Table Size | 16,000 entries | |
VLAN Support | Up to 4,094 active VLANs (IEEE 802.1Q, 802.1ad compliant) | |
Jumbo Frame Support | Up to 9,216 bytes | |
Switching Architecture | Non-blocking, wire-speed forwarding across all ports | |
Hardware Specifications | CPU Model | Marvell 98DX226S (Dual-Core ARM 32bit) |
CPU Frequency | 800 MHz | |
RAM | 256 MB DDR3 | |
Flash Storage | 32 MB | |
Switch Chip | Integrated Marvell 98DX226S (hardware offload for L2/L3 functions) | |
Power Specifications | DC Input Voltage | 18-57 V DC |
Included Power Adapter | 24V 1.5A AC/DC adapter | |
Max Power Consumption (no load) | 21 W | |
Max Power Consumption (full load) | 34 W | |
Core Network Features | Layer 2 Functions | 802.1Q VLAN, Voice VLAN, VLAN filtering/translation; STP/RSTP/MSTP loop prevention; Link Aggregation (LACP 802.3ad, up to 8 ports per group); IGMP Snooping v1/v2/v3; Port Mirroring (SPAN/RSPAN); MAC-based port security |
Layer 3 Functions (Hardware Offloaded) | IPv4/IPv6 unicast routing; Inter-VLAN routing; Static routing; ECMP; DHCP Server/Client/Snooping; IPv4/IPv6 ACL access control lists | |
QoS Features | 8 hardware priority queues per port; 802.1p CoS, DSCP mapping; Traffic shaping & policing; Voice/video/data traffic priority scheduling | |
Security Features | RouterOS firewall (NAT, filter, mangle); DoS attack protection; RADIUS/TACACS+ authentication; SSH/HTTPS secure management; Port isolation; BPDU Guard, Root Guard | |
Physical & Environmental | Dimensions (W × D × H) | 200 mm × 206.1 mm × 44 mm |
Mounting Options | 19-inch rack mount (included brackets); 10-inch rack mount (with optional RMK-2/10 kit) | |
Operating Temperature | -40°C to +60°C | |
Storage Temperature | -40°C to +70°C | |
Operating Humidity | 10%–90% non-condensing | |
Cooling Design | Fanless silent design | |
Compliance & Certifications | Industry Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3bz (2.5G Ethernet); IEEE 802.1Q, 802.1p, 802.1X, 802.3ad LACP |
Regulatory Certifications | CE, FCC Class A, RoHS, UL, EAC | |
Included Accessories | Standard Package | 1 x CRS310-8G+2S+IN switch; 1 x 24V 1.5A power adapter; 1 x rackmount bracket; 1 x fastening set |
