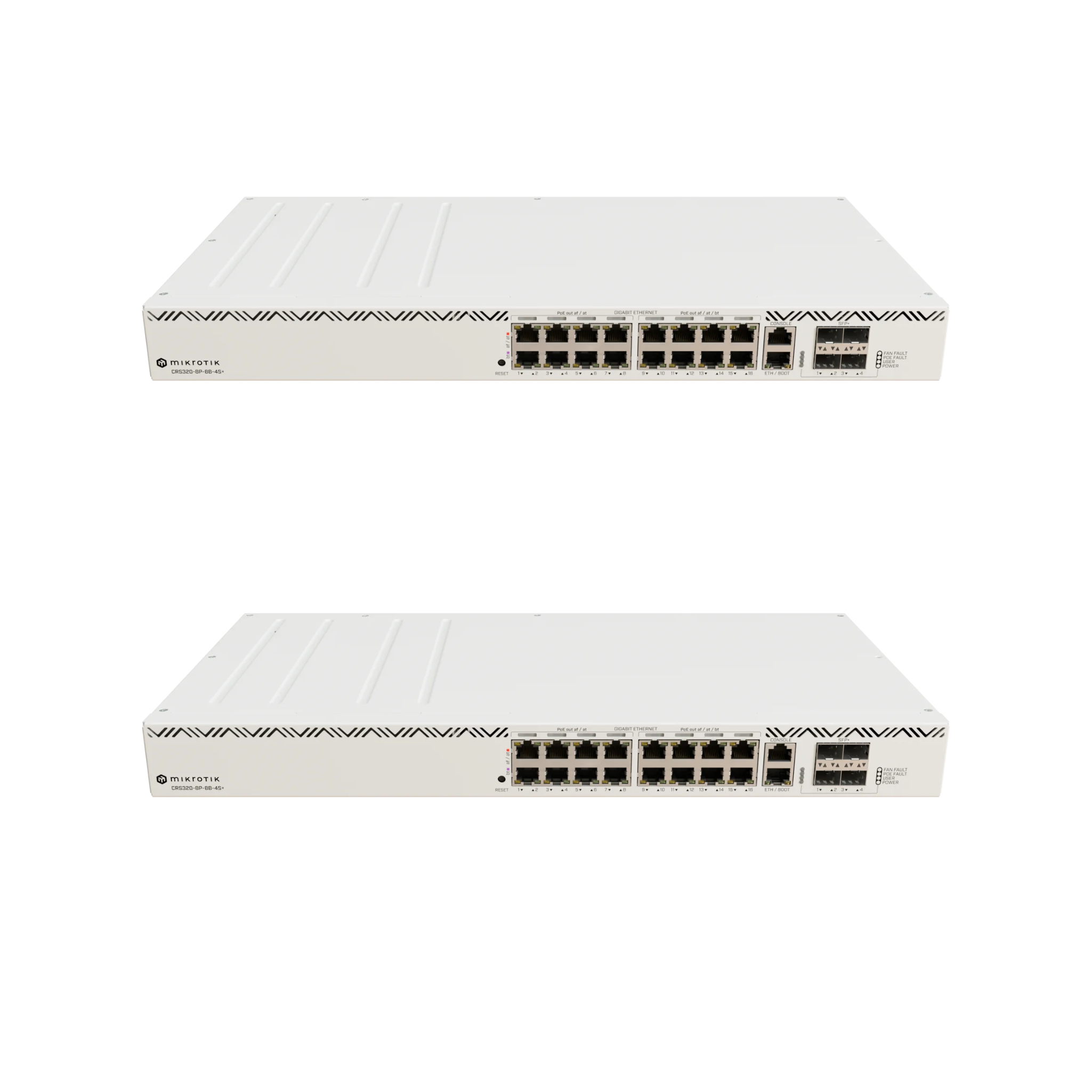

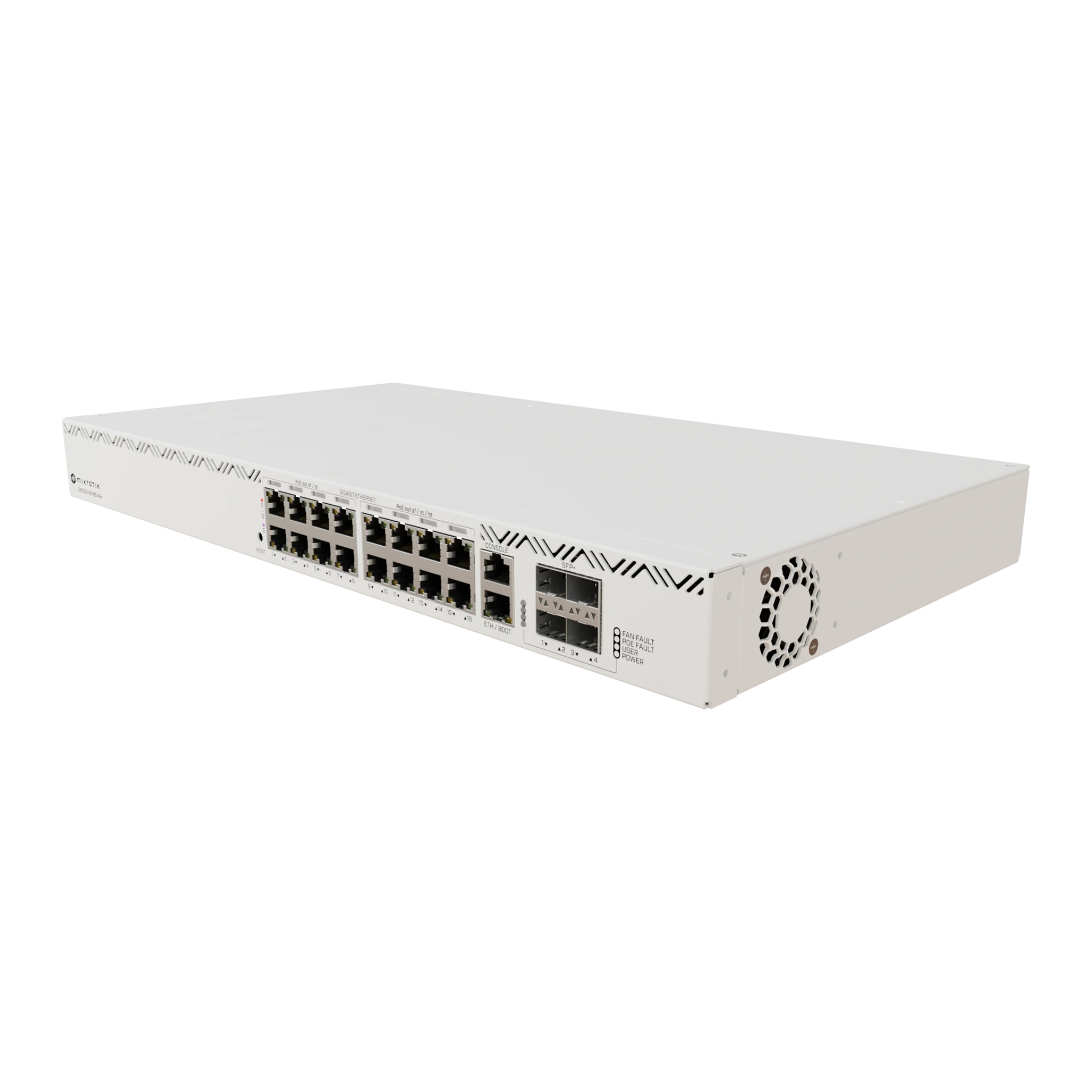

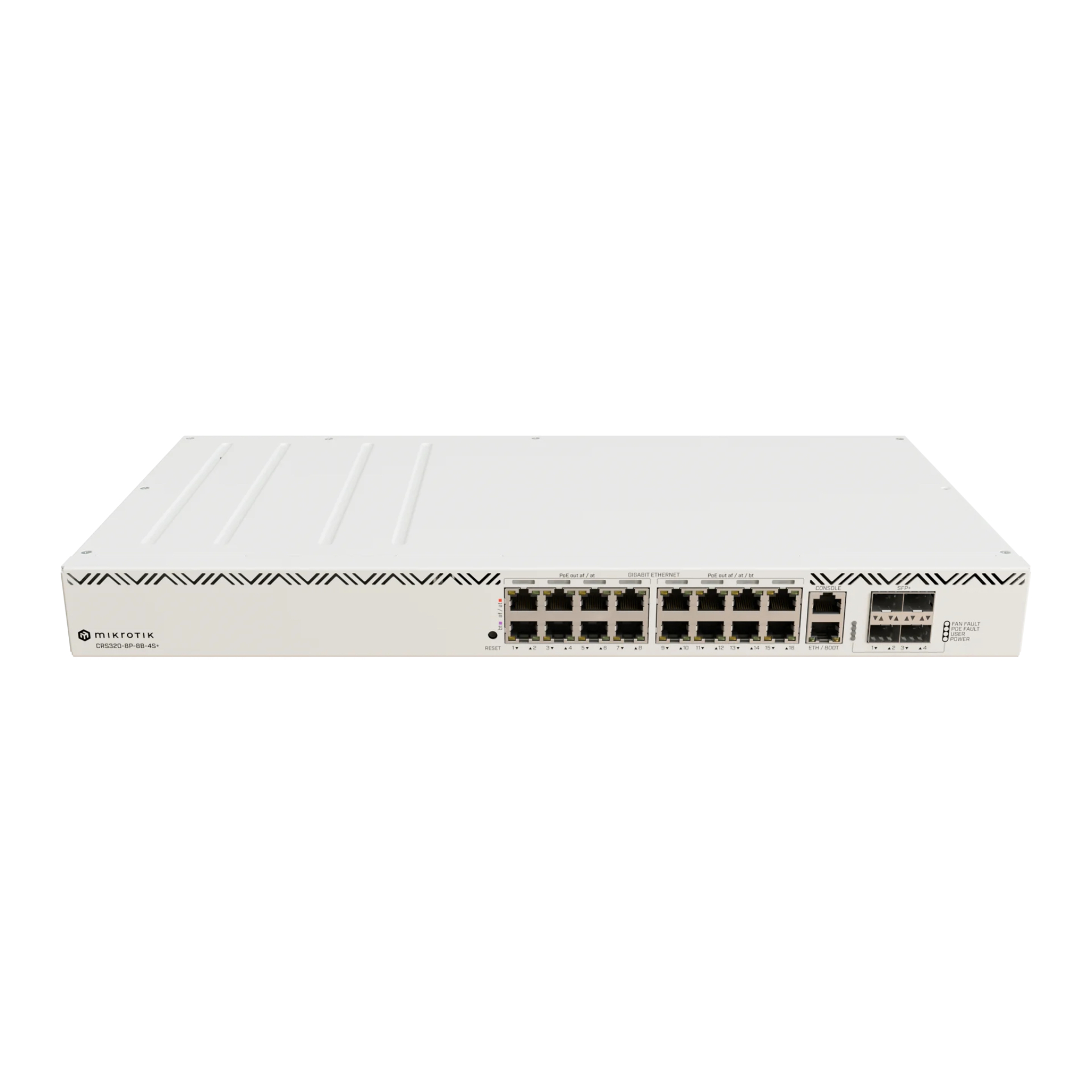

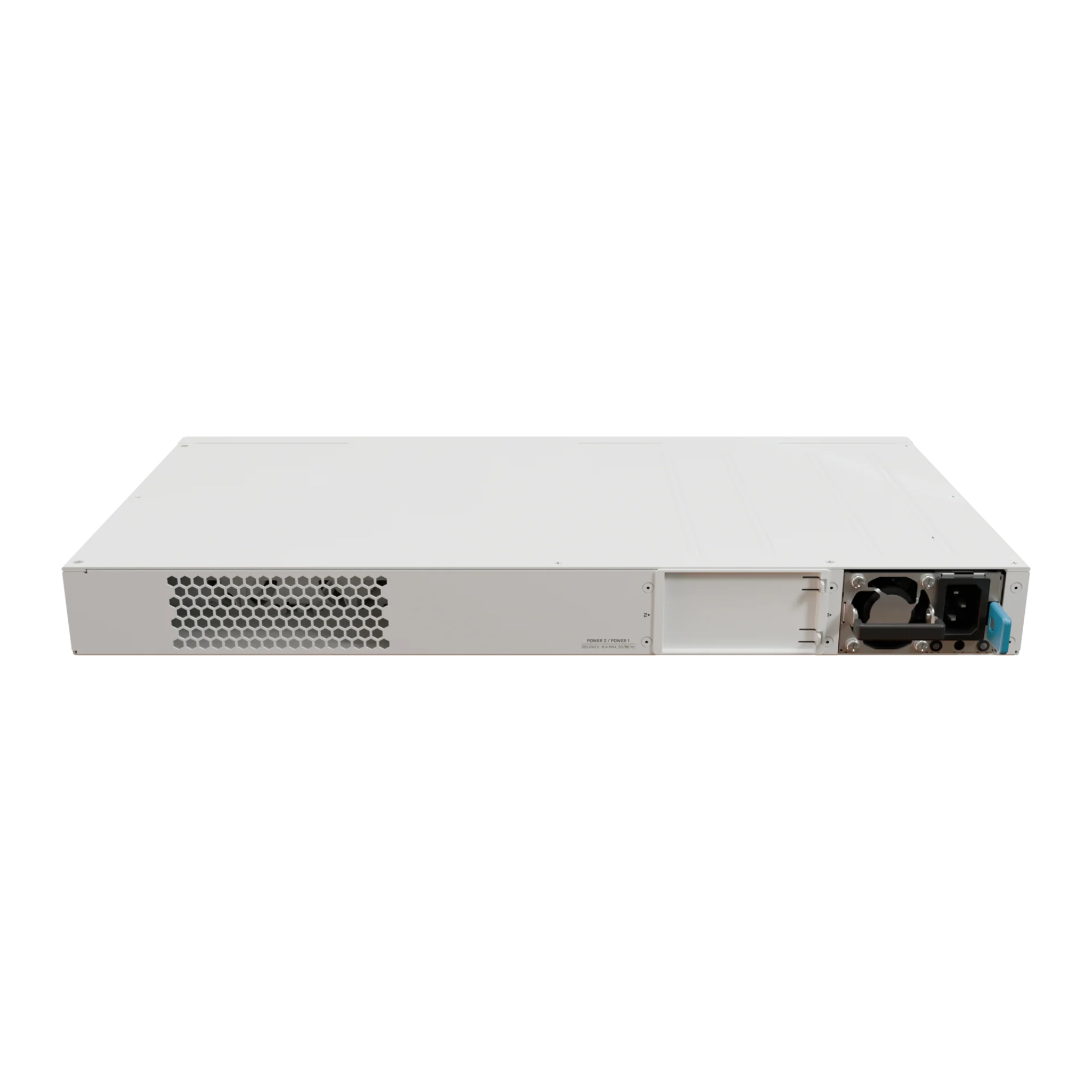

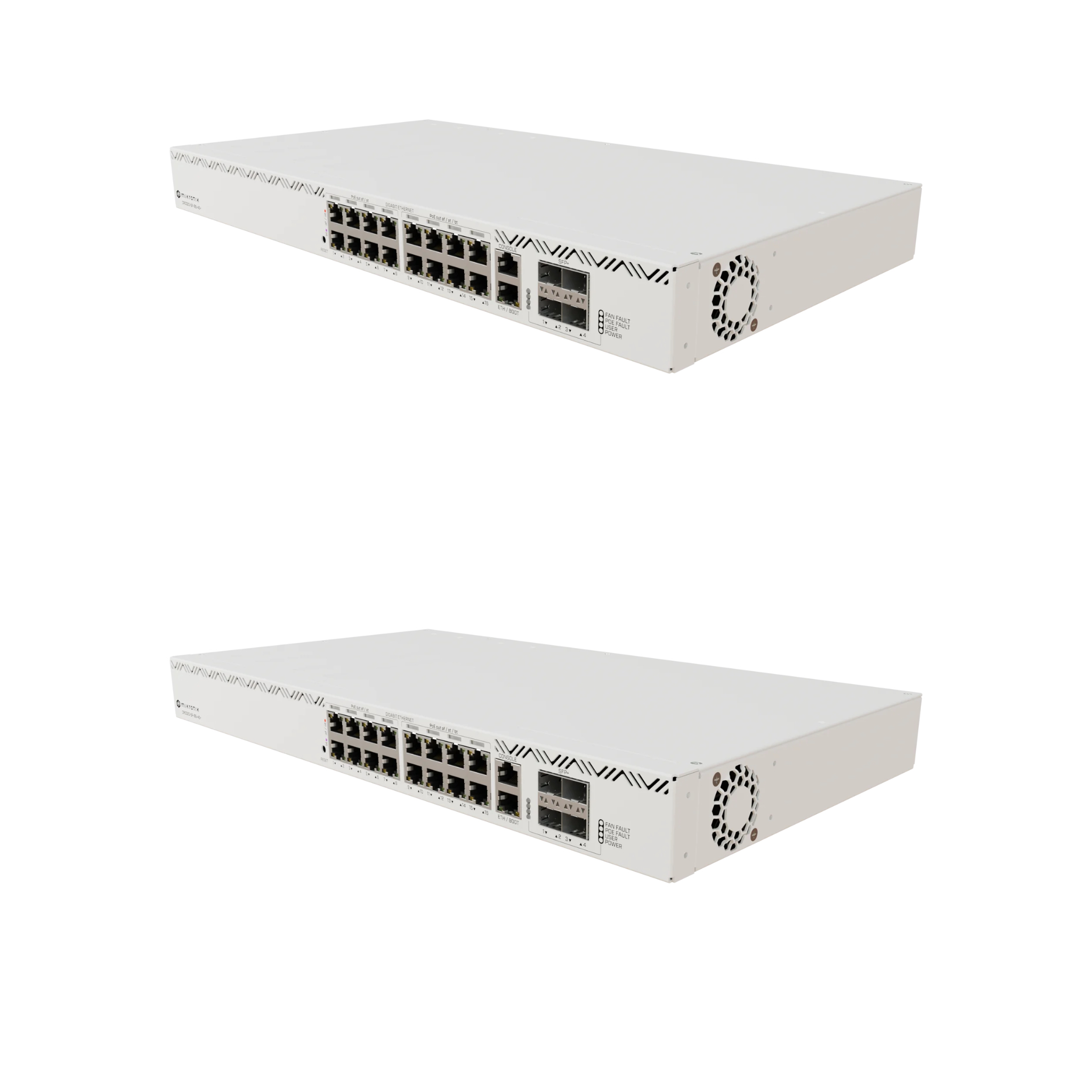

MikroTik CRS320-8P-8B-4S+RM 17-Port PoE++ Gigabit Switch – 8x 90W 802.3bt PoE++, 8x PoE+, 4x 10G SFP+, 963W Total PoE Output

Share to:

MikroTik CRS320-8P-8B-4S+RM 17-Port PoE++ Gigabit Switch – 8x 90W 802.3bt PoE++, 8x PoE+, 4x 10G SFP+, 963W Total PoE Output

The MikroTik CRS320-8P-8B-4S+RM is a powerful and flexible managed Ethernet switch designed for modern enterprise networks, surveillance systems, wireless deployments, and other demanding PoE applications. It features 8 Gigabit Ethernet PoE-out ports, 8 Gigabit Ethernet ports, and 4 high-speed SFP+ ports, providing a practical combination of copper connectivity and 10G fiber uplinks for network expansion. With its rack-mount design, the CRS320-8P-8B-4S+RM is well suited for server rooms, network cabinets, SMB environments, campus networks, and professional infrastructure deployments. The PoE-out functionality allows compatible devices such as IP cameras, wireless access points, VoIP phones, and other powered network equipment to receive both data and power through a single Ethernet cable, helping simplify installation and reduce cabling requirements. The four SFP+ ports provide high-bandwidth uplink and aggregation capabilities, making it easier to connect the switch to core switches, routers, servers, or other 10G network devices. As part of the MikroTik Cloud Router Switch family, the CRS320-8P-8B-4S+RM supports advanced switching and network management features through MikroTik RouterOS, offering administrators greater flexibility for VLAN configuration, traffic management, network monitoring, and other professional networking tasks. Its combination of PoE connectivity, Gigabit Ethernet ports, 10G SFP+ uplinks, rack-mount form factor, and comprehensive management capabilities makes the CRS320-8P-8B-4S+RM an excellent choice for businesses, system integrators, resellers, and network professionals looking for a reliable and scalable managed PoE switch for modern network infrastructure.

Model:
CRS320-8P-8B-4S+RM
Brand:
Mikrotik
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Category	Parameter	Specification
Basic Information	Model Name	CRS320-8P-8B-4S+RM
	Product Series	MikroTik Cloud Router Switch (CRS) Series
	Device Type	Layer 3 Managed Gigabit Ethernet PoE++ Switch
	Form Factor	1U Rack-mountable Chassis
Port Configuration	10/100/1000BASE-T RJ45 Ethernet Ports	17 ports (16 PoE-out ports + 1 management port), 10M/100M/1G speed support
	PoE Out Ports	8 x 802.3af/at PoE+ ports (Ether1-Ether8); 8 x 802.3bt PoE++ ports (Ether9-Ether16)
	10G SFP+ Uplink Slots	4 x SFP+ slots (support 1G/2.5G/10G fiber/copper transceivers)
	Management Interfaces	1 x RJ45 Console Port, 1 x Management Ethernet Port
Performance Specifications	Switch Chip Model	Marvell 98DX226S
	Switching Capacity	56 Gbps
	Forwarding Rate (64-byte packets)	41.6 Mpps
	MAC Address Table Size	32,768 entries
	VLAN Support	Up to 4,094 VLANs (802.1Q tagged)
	Jumbo Frame Support	Up to 10,000 bytes
	Layer 3 Features	Hardware-offloaded Layer 3 routing, static routing, inter-VLAN routing
PoE Power Specifications	PoE Standards	IEEE 802.3af, 802.3at (PoE+), 802.3bt (PoE++)
	Per-port Max Output	30W (af/at ports); 90W (bt PoE++ ports)
	Total PoE Power Budget	963 W (with standard 600W PSU; expandable to 1150W with additional PSU)
	PoE Management	Smart PoE Controller, PoE scheduling, priority power allocation, per-port power monitoring, PoE fault protection
Hardware & System	CPU	Dual-Core 800 MHz ARM 32bit processor
	RAM	256 MB DDR3
	Storage	32 MB FLASH memory
	Operating System	RouterOS v7 only
	License Level	RouterOS License Level 5
Physical & Mechanical Specifications	Dimensions (W × D × H)	444 mm × 235 mm × 44 mm (1U rack height)
	Weight	4.2 kg
	Cooling Design	Fanless silent design
	Mounting	Standard 19-inch rack mount brackets included
Power Supply	AC Input Range	100–240V AC
	Frequency	50/60 Hz
	Max Power Consumption	36 W (idle, no PoE load); 1150 W (full PoE load)
	Included PSU	600W hot-swappable AC power supply unit
Environmental Requirements	Operating Temperature	-10°C to +50°C (14°F to 122°F)
	Storage Temperature	-40°C to +70°C (-40°F to 158°F)
	Operating Humidity	10%–90% non-condensing
	MTBF	Approximately 200,000 hours at 25°C
Compliance & Standards	Industry Standards	IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.3bt, 802.1Q, 802.1p, 802.1X
	Certifications	CE, FCC, RoHS, UL, EAC safety & compliance certifications
Management Features	Supported Management	Web-based GUI (HTTP/HTTPS), Command Line Interface (CLI), SNMP v1/v2c/v3, MikroTik Cloud Management, TFTP firmware upgrade, configuration backup/restore
