MikroTik CRS326-24S+2Q+RM 24-Port 10G SFP+ Managed Switch with 2x 40G QSFP+ Ports, Dual Power Supplies, 1U Rackmount

Share to:

MikroTik CRS326-24S+2Q+RM 24-Port 10G SFP+ Managed Switch with 2x 40G QSFP+ Ports, Dual Power Supplies, 1U Rackmount

The MikroTik CRS326-24S+2Q+RM is a high-performance managed network switch designed for modern enterprise networks, data centers, service providers, and demanding aggregation applications. It features 24 SFP+ ports supporting 10 Gigabit Ethernet connectivity, along with 2 high-speed QSFP+ ports that provide up to 40 Gbps connectivity, making it an excellent choice for high-bandwidth network aggregation and backbone deployments. Powered by a dual-core 800 MHz processor and equipped with 2 GB of RAM, the CRS326-24S+2Q+RM delivers reliable switching performance while supporting advanced network management functions. The switch runs MikroTik RouterOS and provides comprehensive Layer 2 and Layer 3 features, including VLAN support, link aggregation, spanning tree protocols, port isolation, traffic management, and IP routing capabilities. Its 24 SFP+ ports allow flexible fiber connectivity for servers, switches, storage systems, and other network devices, while the QSFP+ uplink ports can be used to build high-speed connections between core and aggregation layers. The 1U rack-mount design makes the CRS326-24S+2Q+RM easy to integrate into standard network cabinets and data center environments. With its combination of 10G SFP+ access ports, 40G QSFP+ uplinks, advanced RouterOS management, and compact rack-mount form factor, the MikroTik CRS326-24S+2Q+RM is a cost-effective solution for businesses, system integrators, network operators, and IT professionals looking to build scalable, high-speed, and reliable network infrastructure.

Model:
CRS326-24S+2Q+RM
Brand:
Mikrotik
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Item	Specification
Model	CRS326-24S+2Q+RM
Brand	MikroTik
Product Type	Cloud Router Switch
Form Factor	1U Rack-mountable
CPU	QCA9531, 650 MHz Single-core (MIPSBE)
Switch Chip	98DX8332
RAM	64 MB
Flash Storage	16 MB
Ports	24 × 10G SFP+ ports 2 × 40G QSFP+ ports 1 × 10/100M RJ45 Management Port 1 × RJ45 Serial Console Port 1 × USB Type-A Port
Switching Capacity	640 Gbps
Non-blocking Throughput	320 Gbps
Forwarding Rate	252 Mpps
Operating System	Dual boot: RouterOS v7 (License Level 5) / SwOS
Power Supply	Dual Redundant AC Power Input Input: 100–240V AC, 50/60Hz
Max Power Consumption	69 W
Cooling	3 × Auto-speed controlled fans
Dimensions (W×D×H)	443 × 200 × 44 mm
Operating Temperature	-20 ℃ ~ +60 ℃
MTBF	Approx. 200,000 hours @ 25℃

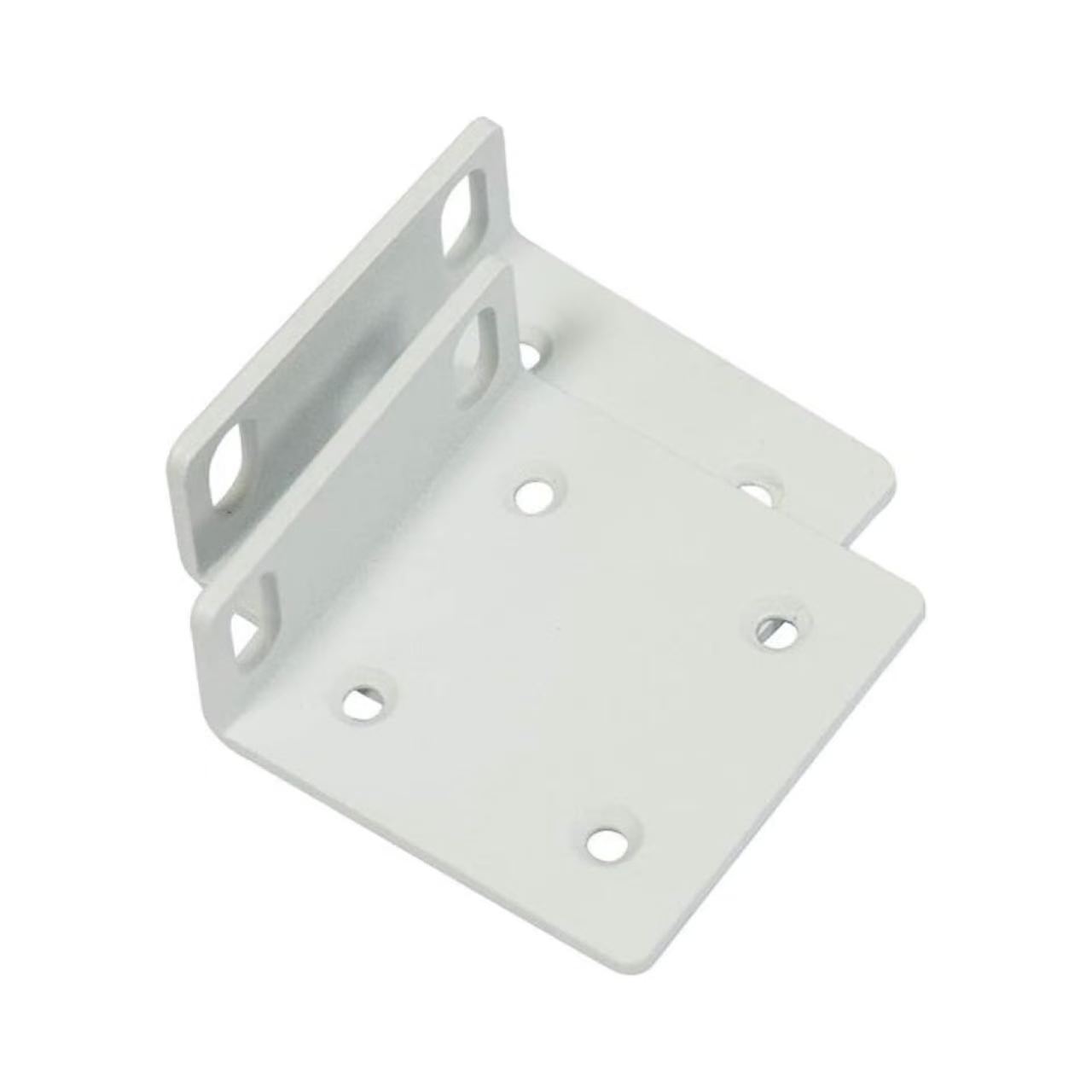

Package Includes	Main unit, Rack mounting ears, Power cords, Rubber feet set
Application Scenarios	Data center aggregation, ISP backbone, Enterprise high-speed fiber network
