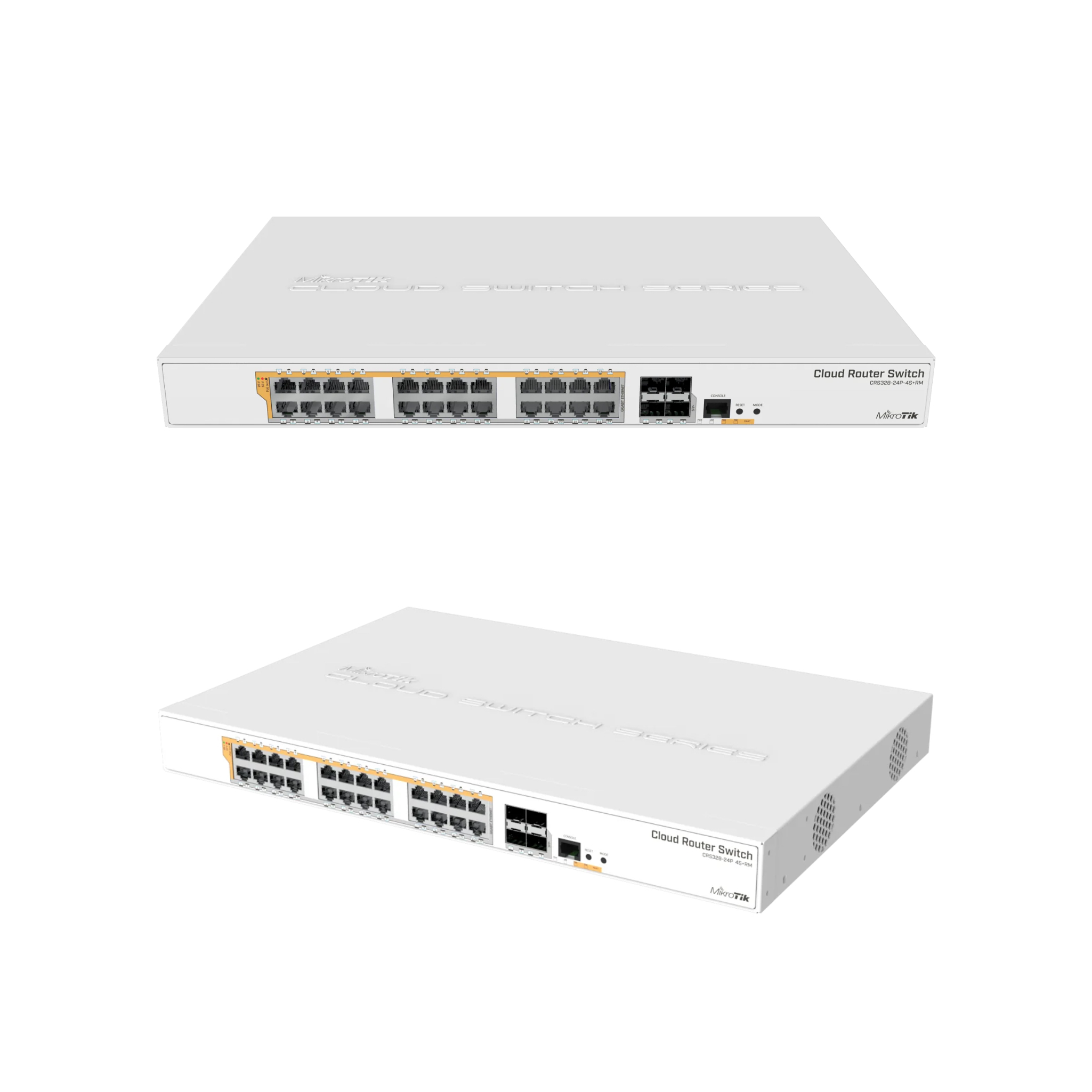

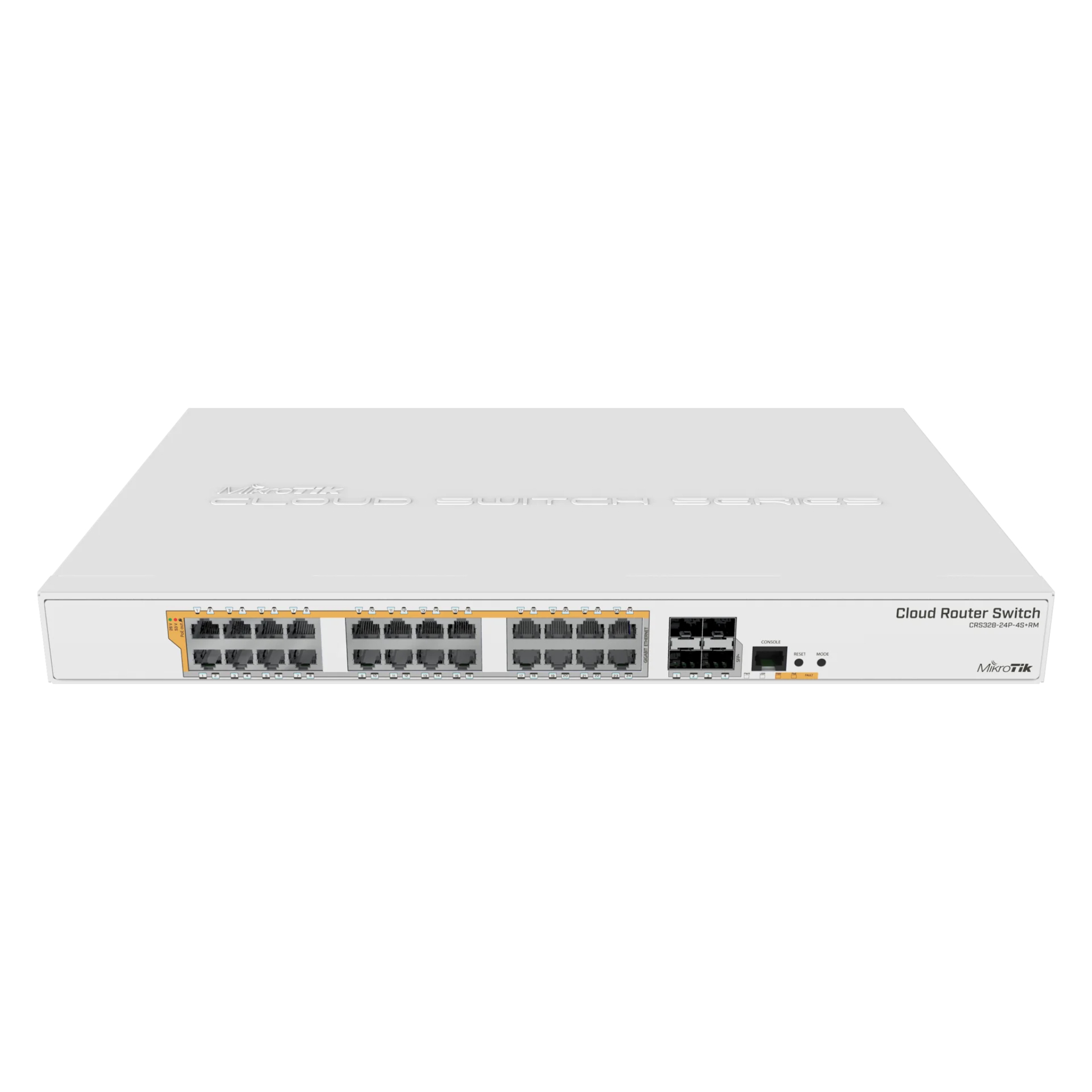

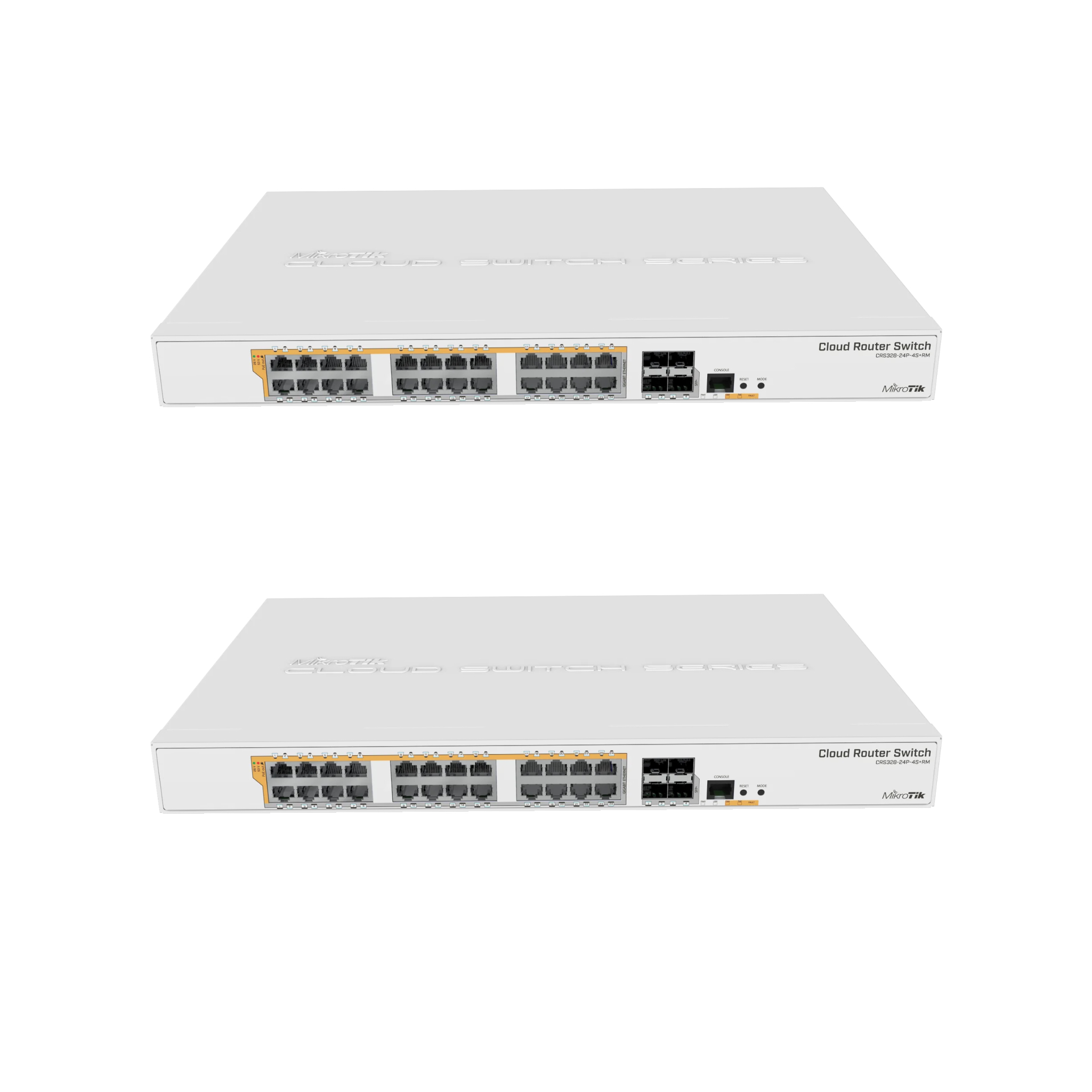

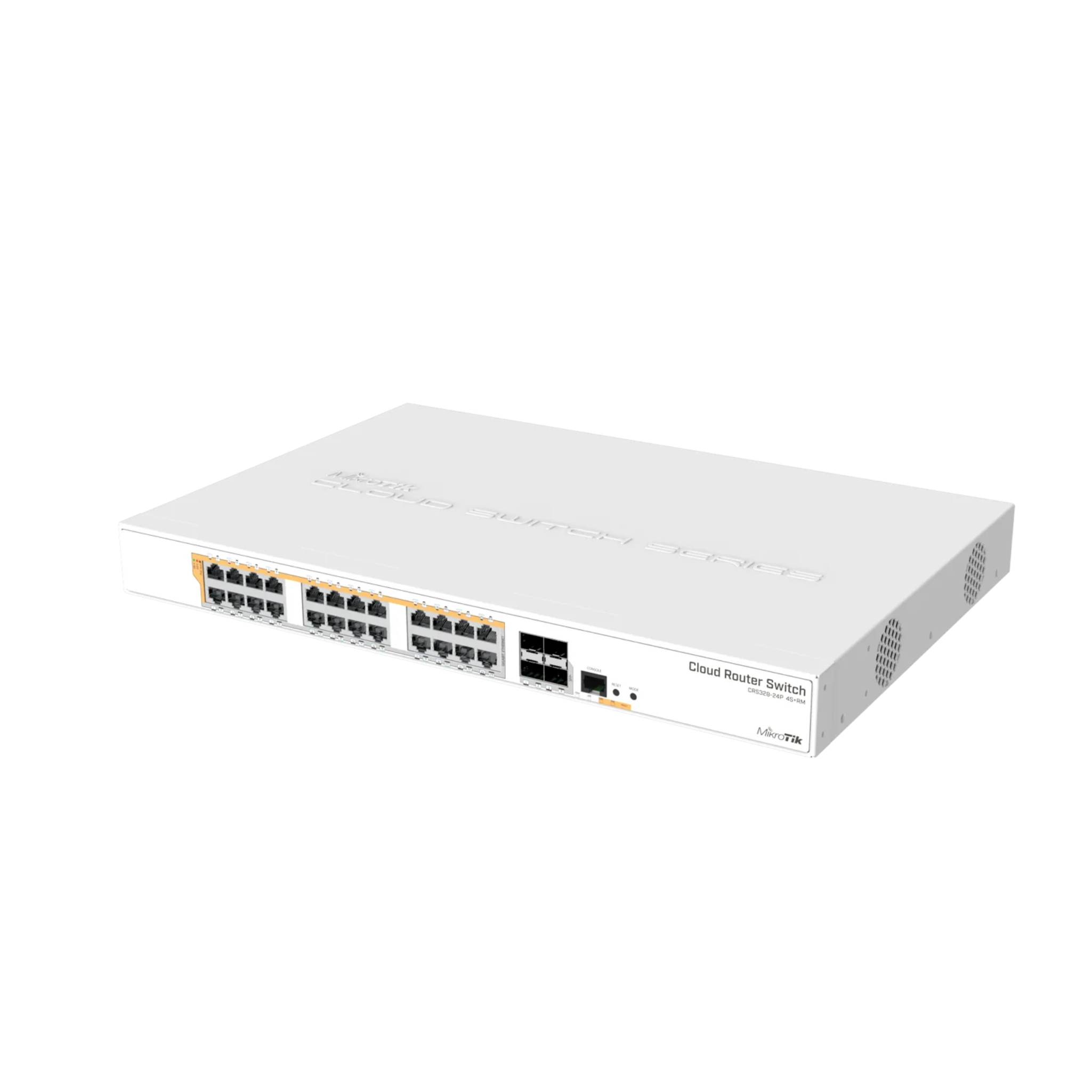

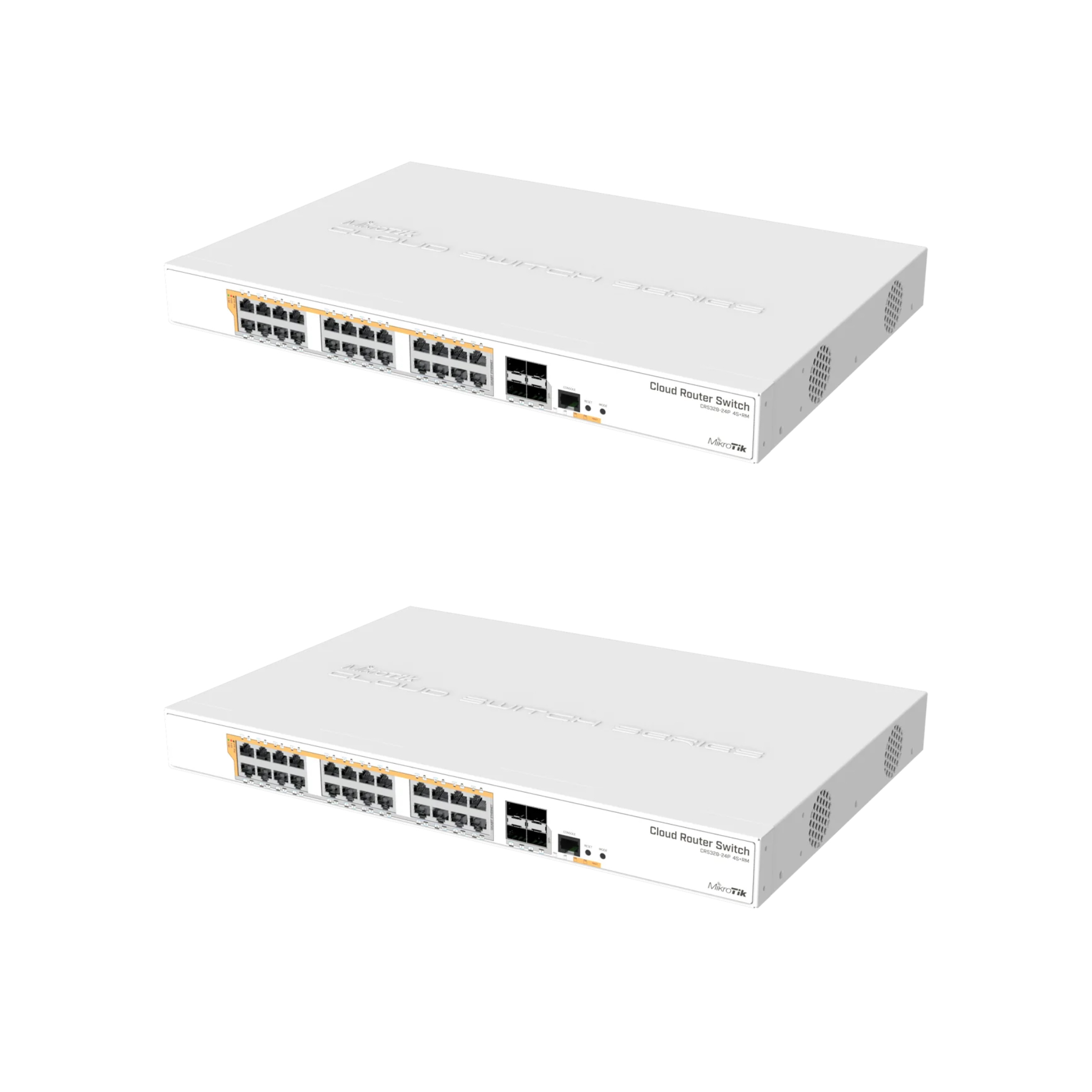

CRS328-24P-4S+RM
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Product Information | Model Name | CRS328-24P-4S+RM |
Product Series | MikroTik Cloud Router Switch (CRS) Series | |
Device Type | Layer 3 Managed Gigabit Ethernet PoE+ Switch | |
Form Factor | 1U Rack-mountable Chassis | |
Target Application | Enterprise Network, SMB, IP Camera, Wireless AP, VoIP Deployment, Data Center Uplink | |
Port Configuration | 10/100/1000BASE-T RJ45 PoE+ Ports | 24 ports, IEEE 802.3af/at PoE+ compliant, auto-sensing PoE modes |
10G SFP+ Uplink Slots | 4 x SFP+ slots (support 10Gbps fiber/copper SFP+ transceivers) | |
Management Interfaces | 1 x RJ45 Serial Console Port, 1 x Mode Button | |
Hardware Specifications | CPU Model | 98DX3236A1, 800 MHz Single-Core ARM 32bit |
RAM | 512 MB DDR3 | |
Storage | 16 MB Flash Memory | |
Switch Chip Model | 98DX3236A1 | |
Operating System | Dual Boot: RouterOS (Layer 3 routing) / SwOS (simplified switch OS) | |
RouterOS License Level | Level 5 | |
PoE Power Specifications | Total PoE Power Budget | 450 W (guaranteed, with 44 W system power consumption reserved) |
PoE Standards | IEEE 802.3af (Type 1 PoE, 15.4W) / IEEE 802.3at (Type 2 PoE+, 30W) / Passive PoE / Low Voltage PoE | |
Per-port Max Output Power | 30 W | |
PoE Power Allocation | 3 x 150 W power groups (per 8 Ethernet ports) | |
PoE Mode | PoE-Out over mode B pins (4,5+)(7,8-) | |
Performance Specifications | Switching Capacity | 128 Gbps |
Forwarding Rate (64-byte packets) | 95.2 Mpps | |
MAC Address Table Size | 32,768 entries | |
VLAN Support | Up to 4,094 VLANs (802.1Q tagged) | |
Jumbo Frame Support | Up to 10,218 bytes | |
Link Aggregation | IEEE 802.3ad LACP, up to 8 ports per LAG group | |
Core Network Features | Layer 2 Functions | STP/RSTP/MSTP loop prevention, IGMP Snooping v1/v2/v3, VLAN trunking, Port Security, MAC filtering, Storm Control, Port Mirroring |
Layer 3 Functions (RouterOS) | Static IPv4/IPv6 routing, Inter-VLAN routing, DHCP Server/Client/Snooping, IPv4/IPv6 ACLs, OSPF, RIP, BGP routing protocols | |
QoS Features | 8 hardware priority queues per port, 802.1p CoS/DSCP mapping, traffic shaping, policing, WRED congestion control | |
Security Features | SSH, HTTPS, SNMPv3, RADIUS/TACACS+ authentication, DoS attack protection, port isolation, encrypted configuration files | |
Physical & Mechanical Specifications | Dimensions (W × D × H) | 443 mm × 300 mm × 44 mm (1U rack height) |
Weight | 4.6 kg (10.15 lbs) | |
Cooling System | Dual cooling fans | |
Mounting | Standard 19-inch rack mount brackets included | |
Power Supply Specifications | Input Power | AC 100–240V, 50/60Hz, internal power supply |
Max Total Power Consumption | 44 W (system only, excludes PoE load) | |
Max PoE Load Power | 450 W | |
Environmental Specifications | Operating Temperature | -20°C to +60°C (-4°F to 140°F) |
Storage Temperature | -40°C to +70°C (-40°F to 158°F) | |
Operating Humidity | 10%–90% non-condensing | |
Operating Altitude | Up to 2,000 meters above sea level | |
Compliance & Certifications | Industry Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.1Q, 802.1p, 802.1X, 802.3ad |
Regulatory Certifications | CE, EAC, RoHS, UL safety certification | |
Management Methods | Supported Management | Web-based GUI (HTTP/HTTPS), Command Line Interface (CLI via console port), SNMP v1/v2c/v3, MikroTik Neighbor Discovery Protocol, TFTP firmware upgrade & config backup/restore |
