MikroTik CRS504-4XQ-OUT 4-Port 100G QSFP28 Outdoor Switch, IP66 Weatherproof, PoE-in, 25G Breakout Support

Share to:

MikroTik CRS504-4XQ-OUT 4-Port 100G QSFP28 Outdoor Switch, IP66 Weatherproof, PoE-in, 25G Breakout Support

The MikroTik CRS504-4XQ-OUT is a high-performance outdoor 100 Gigabit Ethernet switch designed for demanding network environments that require extremely high bandwidth, reliable connectivity, and flexible deployment options. Featuring four 100G QSFP28 ports, the CRS504-4XQ-OUT provides powerful switching capacity for data centers, backbone networks, ISP infrastructure, enterprise networks, and high-speed outdoor deployments. Its 100G interfaces can support high-throughput network connections while also providing flexibility for different fiber and transceiver configurations, making it an excellent choice for network aggregation, backbone links, and data-intensive applications. The switch is powered by MikroTik RouterOS, offering advanced network management, monitoring, VLAN configuration, routing capabilities, traffic management, and security features for professional network administrators. The CRS504-4XQ-OUT is built for reliable operation in challenging environments, making it suitable for outdoor network cabinets, ISP access points, campus backbones, industrial sites, and other locations where robust and high-speed networking equipment is required. With its compact design, high-density 100G connectivity, advanced software capabilities, and MikroTik’s strong reputation for cost-effective networking solutions, the CRS504-4XQ-OUT is an ideal option for organizations looking to upgrade their network infrastructure to 100 Gigabit performance while maintaining scalability and operational flexibility.

Model:
CRS504-4XQ-OUT
Brand:
Mikrotik
Condition:
Original New
Warranty:
1 year

Availability:

Quantity:



Inquire Add to Basket

Item	Specification
Model	CRS504-4XQ-OUT
Brand	MikroTik
Product Type	Outdoor Managed Cloud Router Switch
CPU	QCA9531, MIPSBE, 1-core, 650 MHz
RAM	128 MB
Storage	32 MB Flash
Switch Chip	Marvell 98DX4310 Prestera
Operating System	RouterOS v7, License Level 5

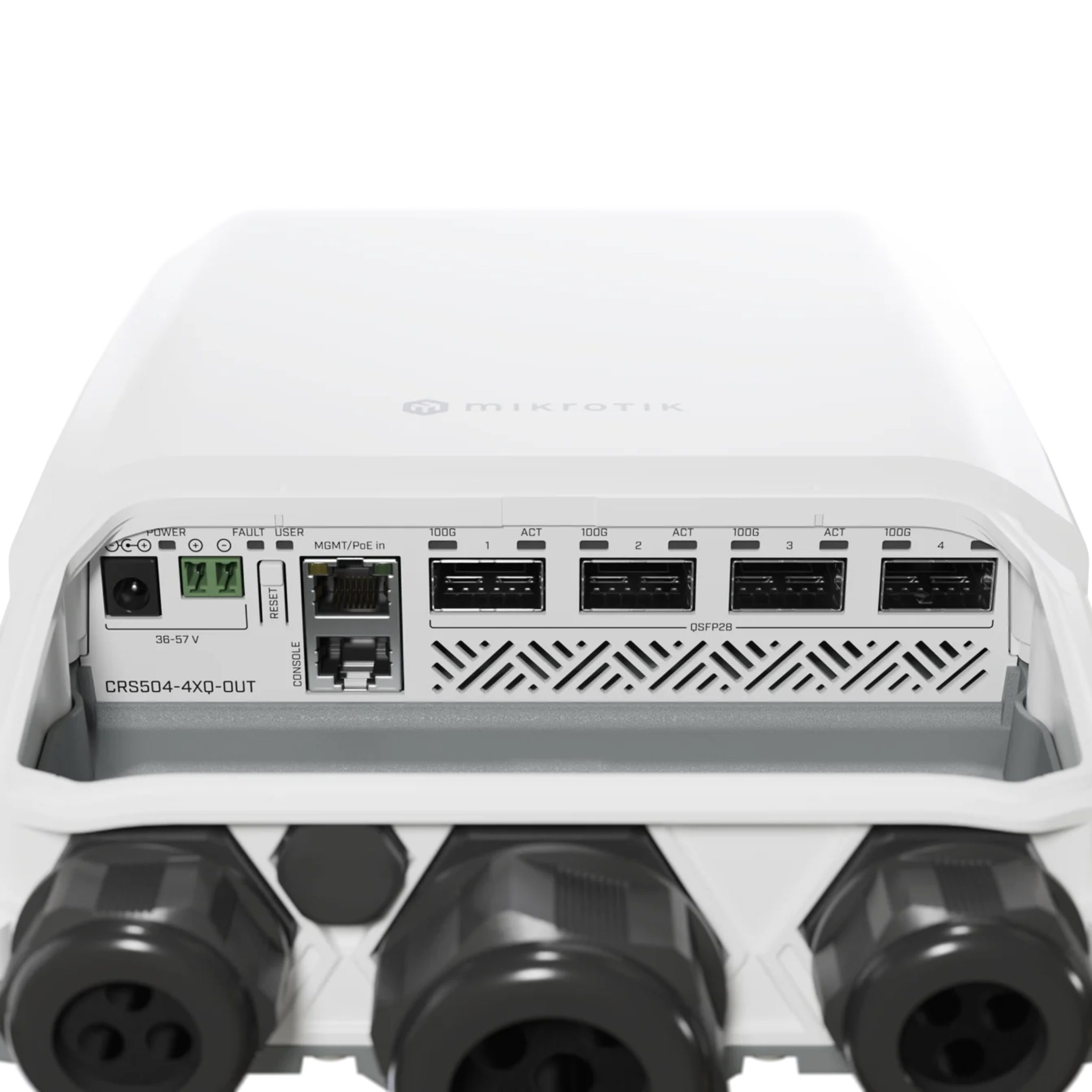

Fiber Ports	4 × QSFP28 100G ports Backward compatible: 100G / 40G / 4×25G breakout / 4×10G breakout
Management Port	1 × 10/100 Mbps RJ45 (PoE-In support)
Console Port	1 × RJ45 Serial Console
Power Input Options	3 independent DC inputs 1. DC Jack: 36–57 V DC 2. 2-pin Terminal Block: 36–57 V DC 3. PoE-In (802.3bt Class 6): 43–57 V DC
Max Power Consumption	25 W (without transceivers); up to 41 W full load

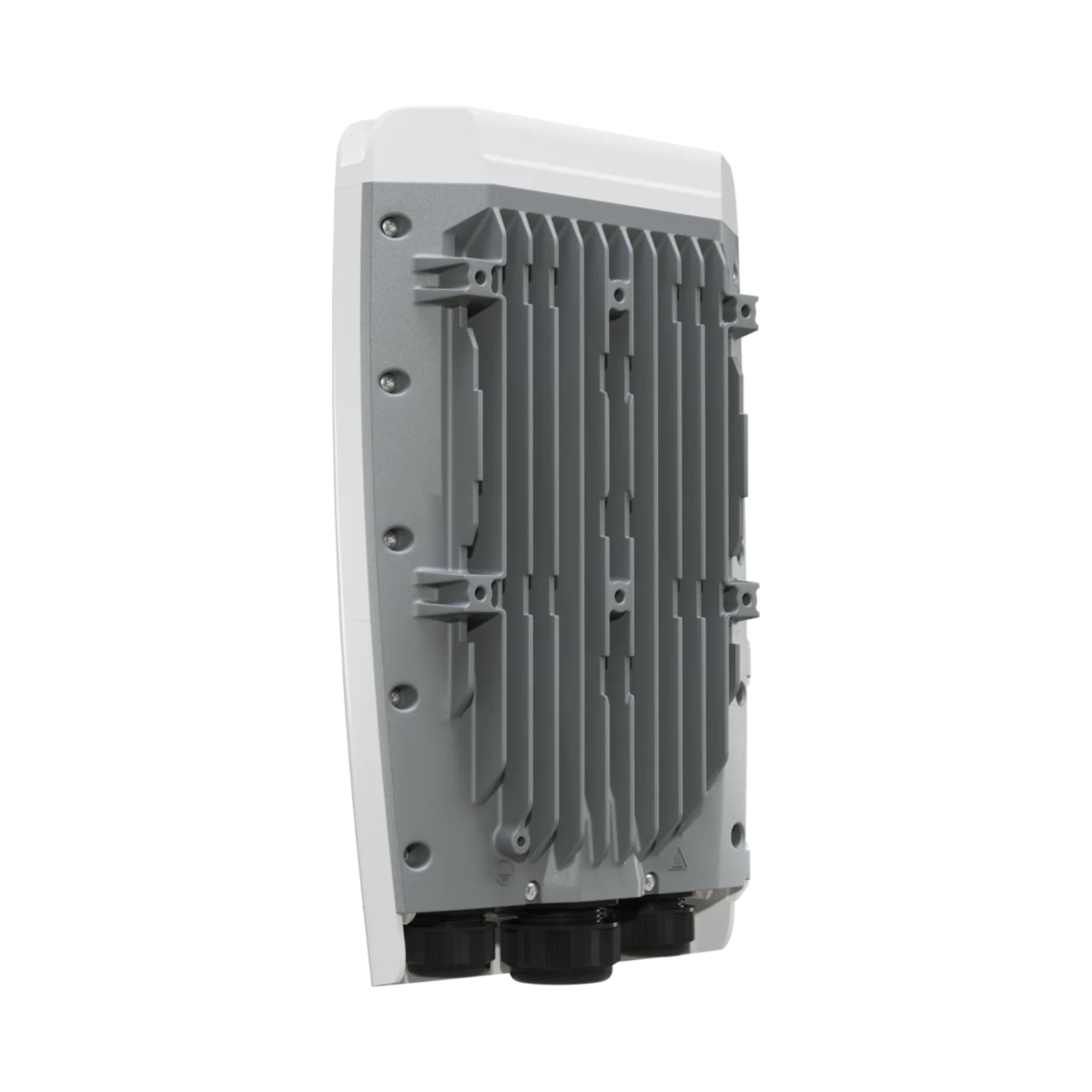

Cooling	Passive heat sink, fanless
Enclosure Rating	IP66 Weatherproof Outdoor Housing
Operating Temperature	-40 ℃ ~ +70 ℃
Dimensions	320 × 185 × 44 mm

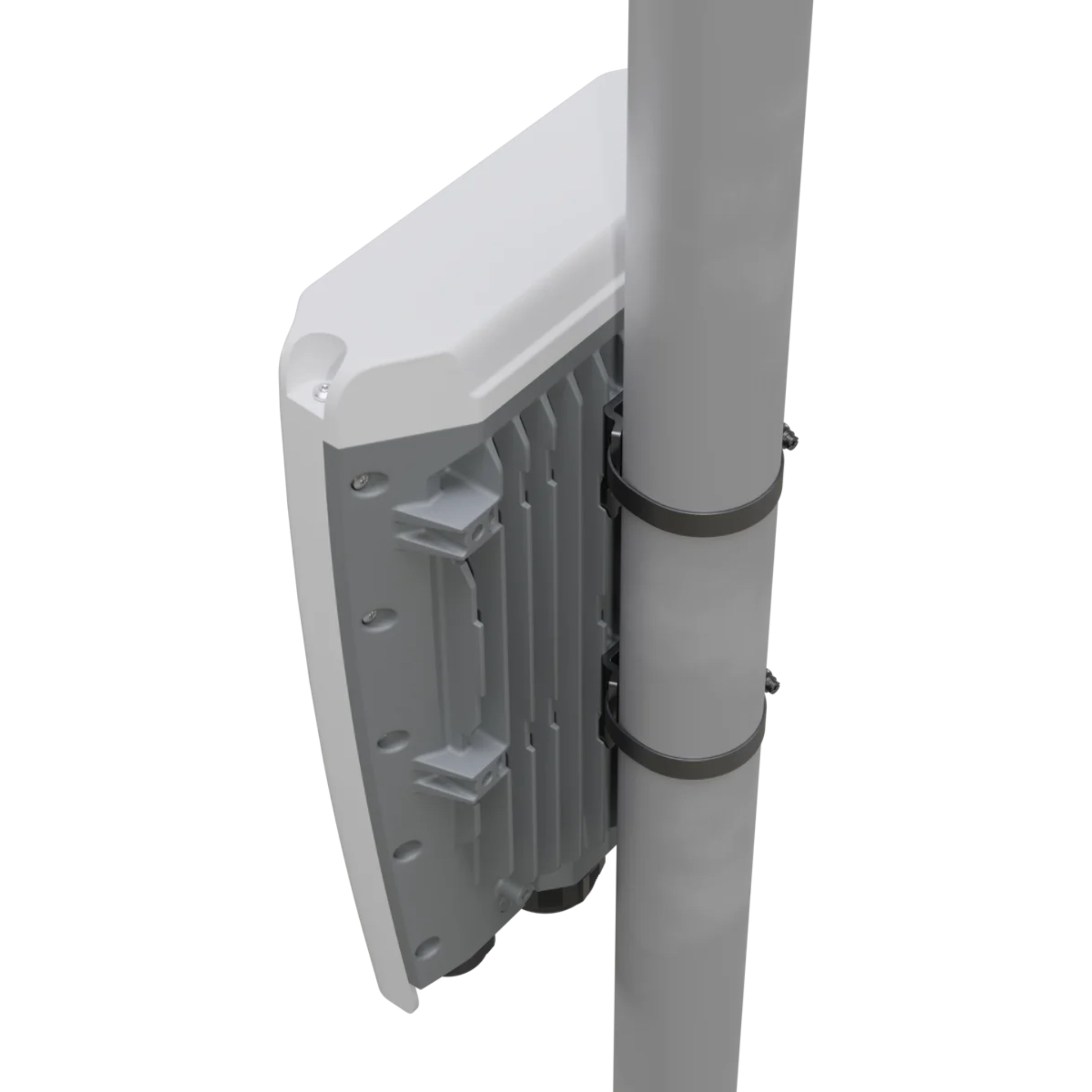

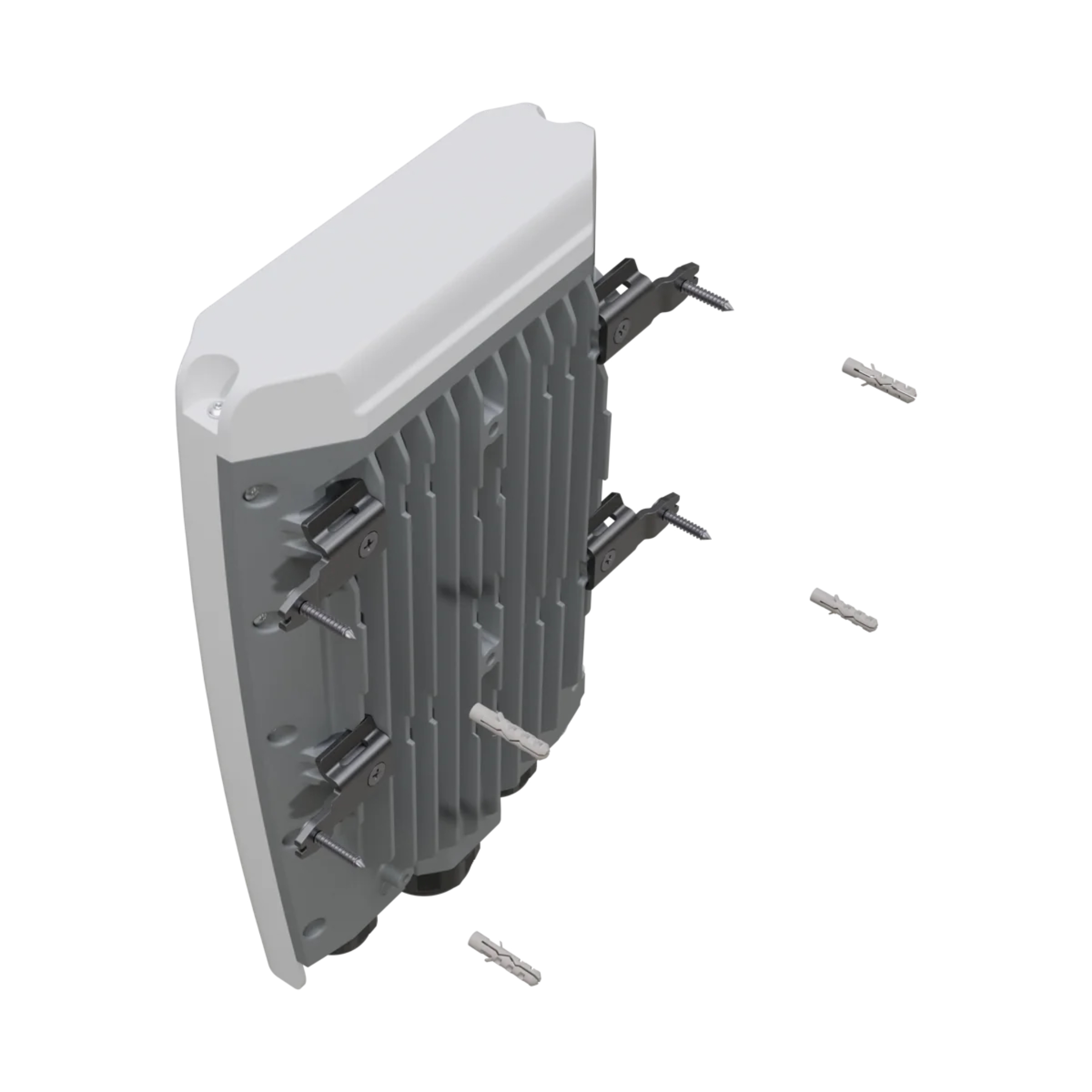

Mounting	Wall mount / Pole mount (hose clamps included)
Monitoring	PCB temperature sensor, voltage monitor
MTBF	~200,000 hours @ 25℃
Supported Functions	VLAN, ACL, MLAG, Jumbo Frame, L3 hardware offloading
Certifications	CE, EAC, RoHS
Package Includes	CRS504-4XQ-OUT unit, 48V power supply, PoE injector, pole mount clamps, screw & fastening set
