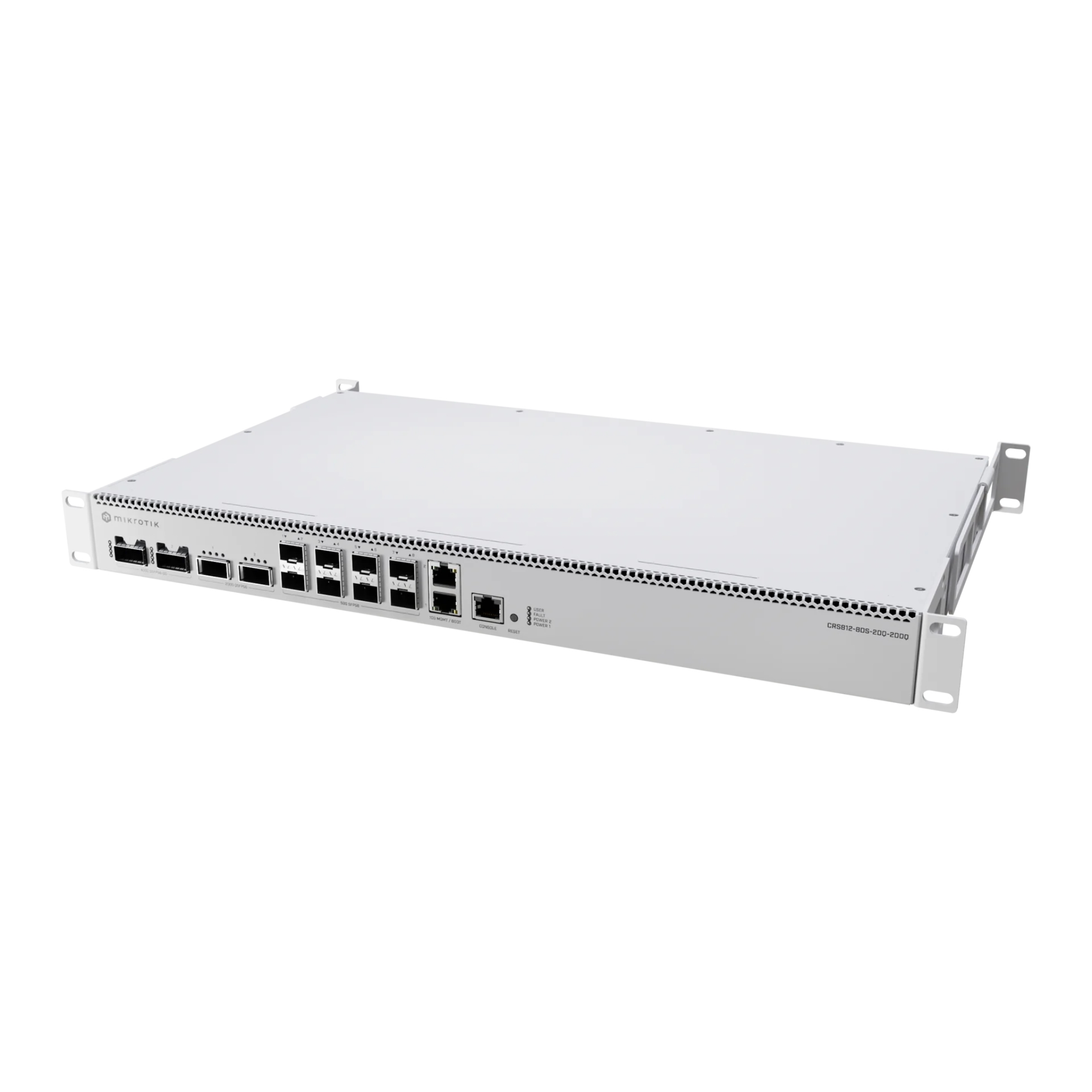

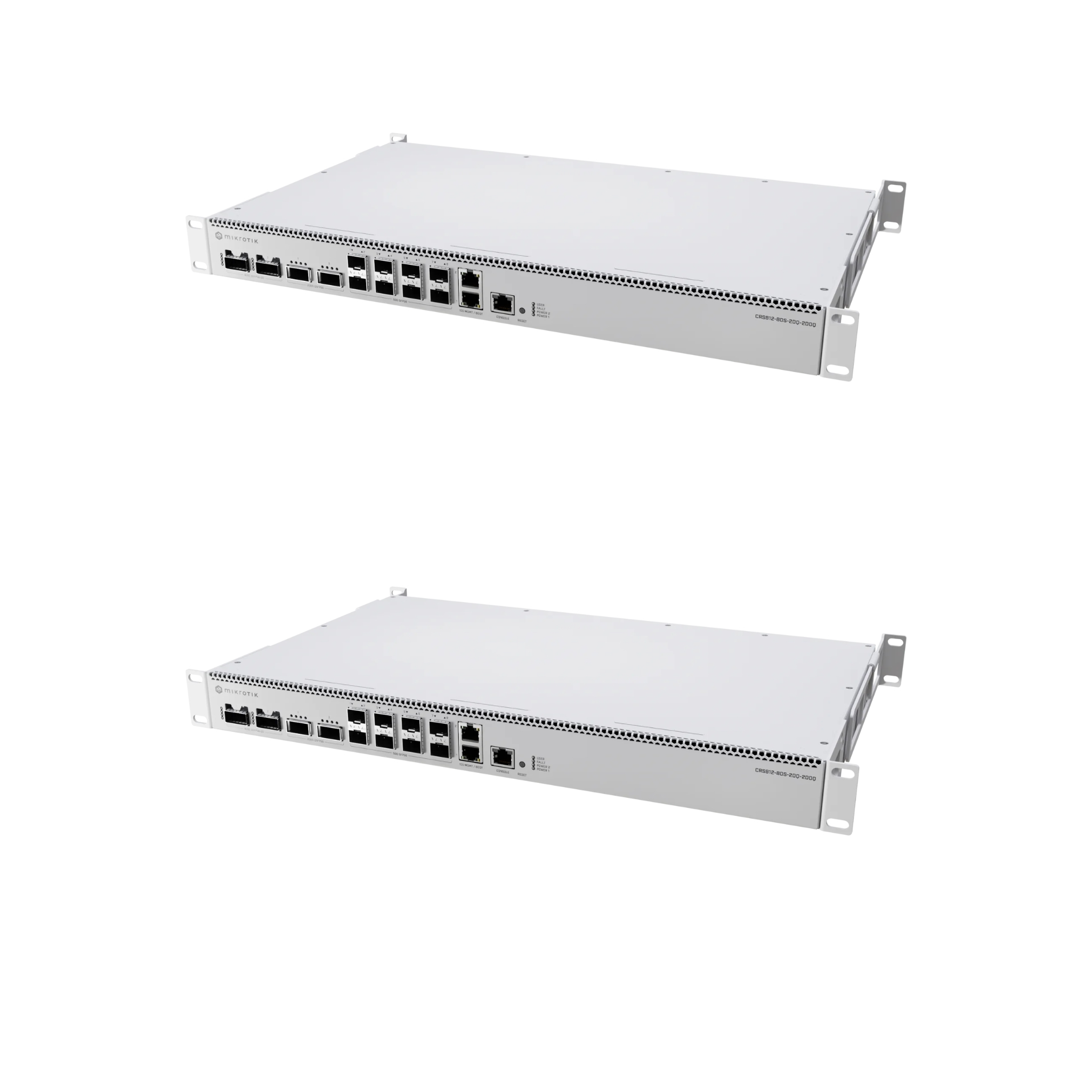

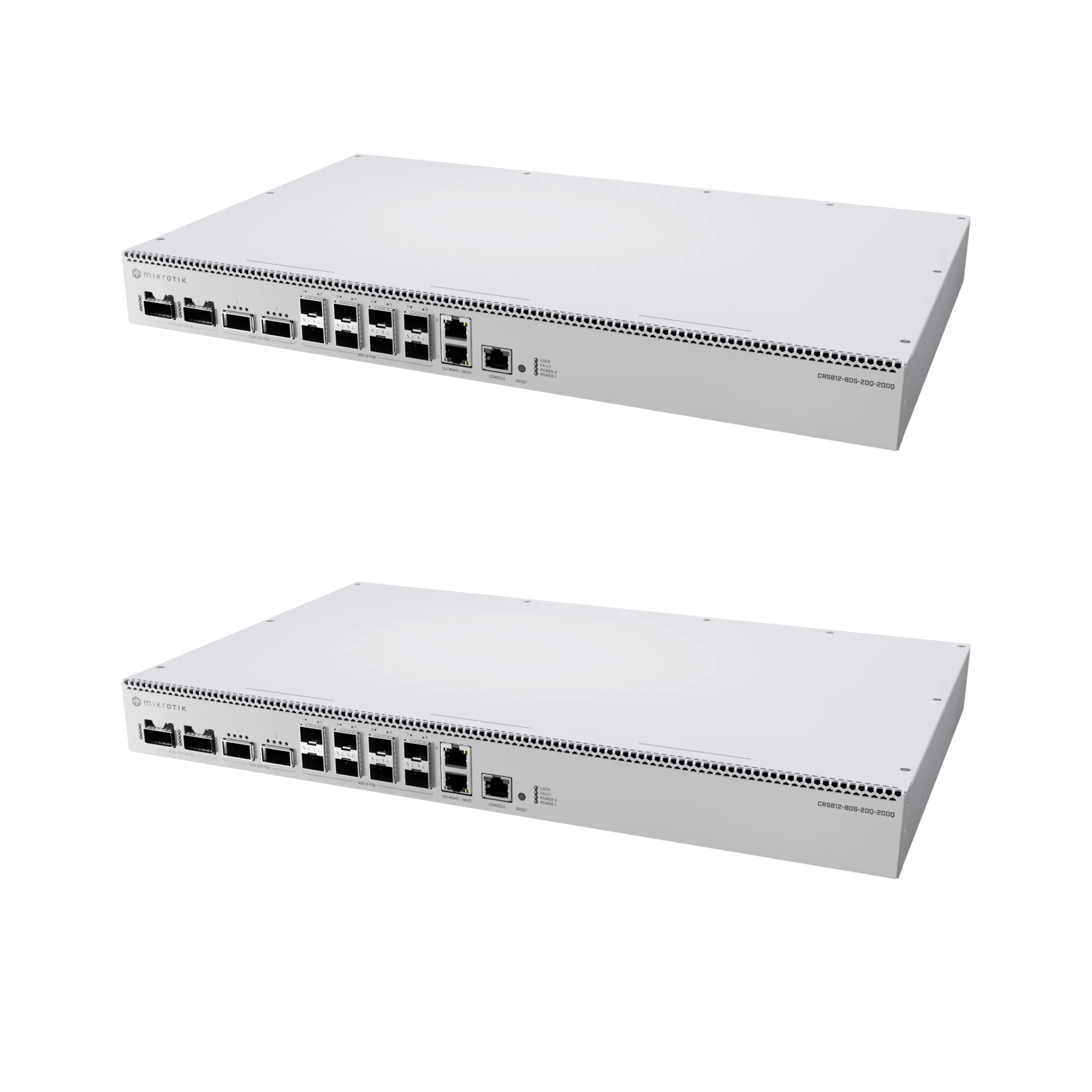

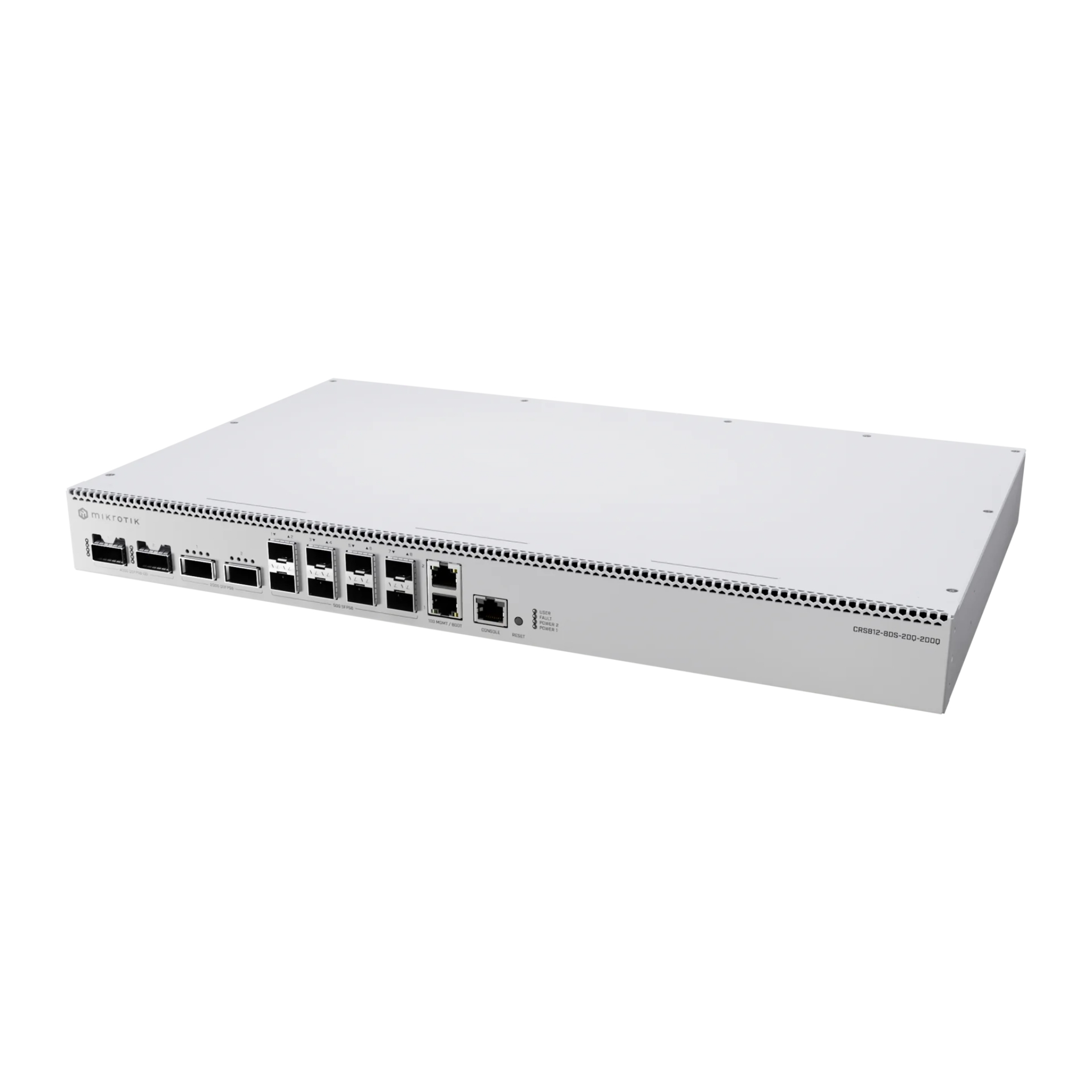

The MikroTik CRS812-8DS-2DQ-2DDQ-RM is a high-performance managed switch designed for modern data centers, enterprise networks, service providers, and high-bandwidth aggregation environments where compact size, flexible connectivity, and reliable switching performance are essential. Featuring a combination of high-speed SFP/SFP+ interfaces and high-capacity QSFP/QSFP28 connectivity, this rack-mountable switch provides an efficient solution for connecting servers, network devices, storage systems, and high-speed uplinks within demanding network infrastructures. The CRS812-8DS-2DQ-2DDQ-RM is powered by MikroTik’s RouterOS, offering advanced Layer 2 and Layer 3 networking capabilities, VLAN configuration, link aggregation, traffic management, routing, monitoring, and other professional network management functions. Its flexible port configuration makes it suitable for building scalable aggregation networks, data center top-of-rack deployments, backbone connections, and high-speed network interconnections while helping simplify network architecture and reduce equipment requirements. The rack-mount design allows convenient installation in standard network cabinets, making it a practical choice for professional IT environments where space efficiency and centralized management are important. With MikroTik’s strong reputation for feature-rich networking equipment and cost-effective solutions, the CRS812-8DS-2DQ-2DDQ-RM is an excellent option for distributors, system integrators, network engineers, and businesses looking for a reliable high-speed switching platform for current and future network expansion.
CRS812-8DS-2DQ-2DDQ-RM
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Item | Specification |
|---|---|
Product Model | CRS812-8DS-2DQ-2DDQ-RM |
Brand | MikroTik |
Product Type | Cloud Router Switch |
CPU | Quad-Core AL52400, 2000 MHz, ARM 64bit |
RAM | 4 GB DDR4 |
Storage | 512 MB NAND Flash |
Switch Chip | 98DX7335 |
Operating System | RouterOS v7, License Level 6 |
RJ45 Multi-Gig Ports | 2 pcs (10M/100M/1G/2.5G/5G/10G) |
SFP56 Ports | 8 pcs (50G) |
QSFP56 Ports | 2 pcs (200G) |
QSFP56-DD Ports | 2 pcs (400G) |
Console Port | 1 x RJ45 Serial Console |
Form Factor | 1U Rackmount |
Dimension | 443 x 156 x 44 mm |
Cooling | 4 x Hot-swap Fans |

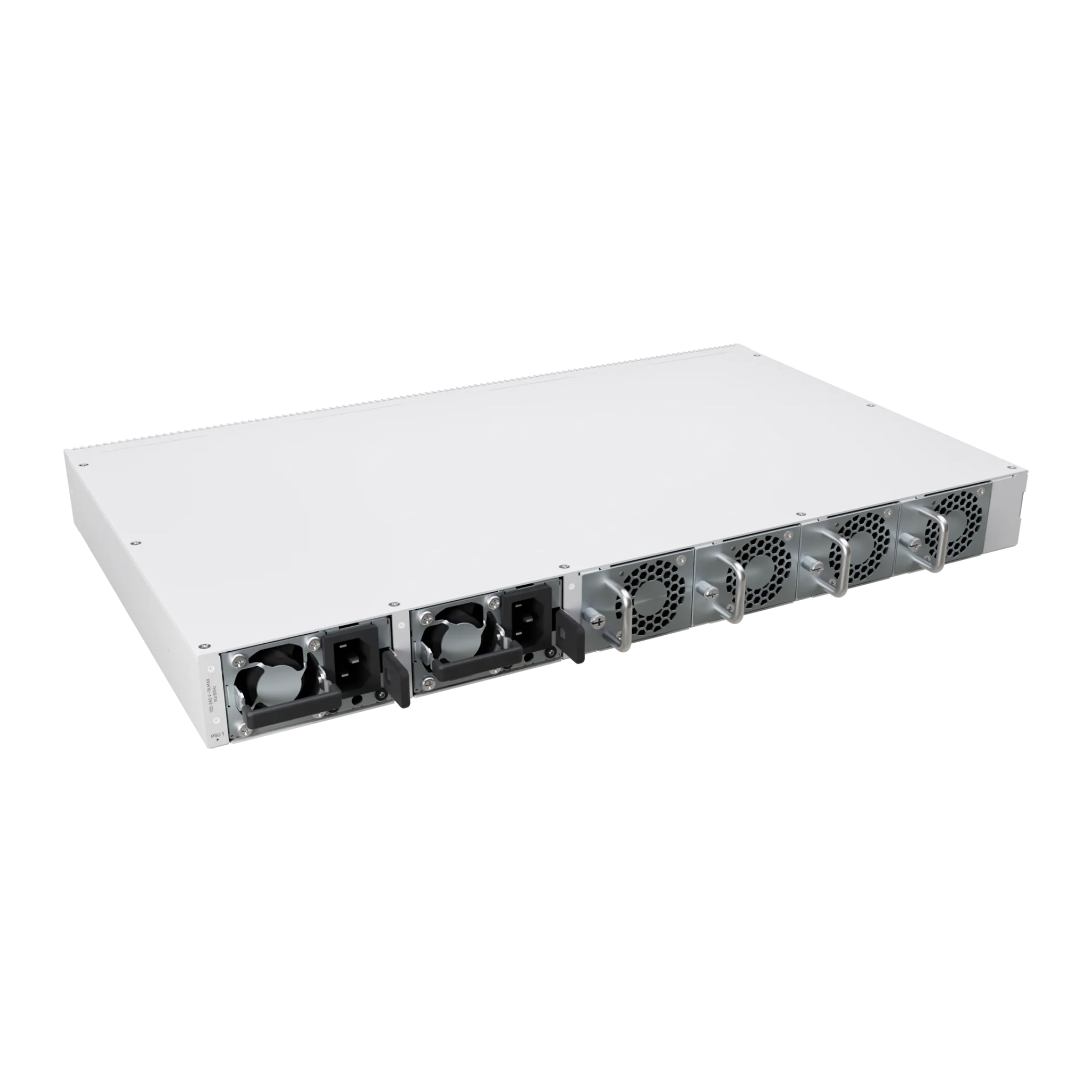

Power Supply | Dual Hot-swap AC PSU, 100-240V AC, 50/60Hz |
Max Power Consumption | 134 W |
Max Power (without attachments) | 81 W |
Operating Temperature | -10°C ~ +50°C |
Protection Grade | IP20 |
MTBF | Approx. 200,000 hours @ 25°C |
Certifications | CE, EAC, RoHS |
