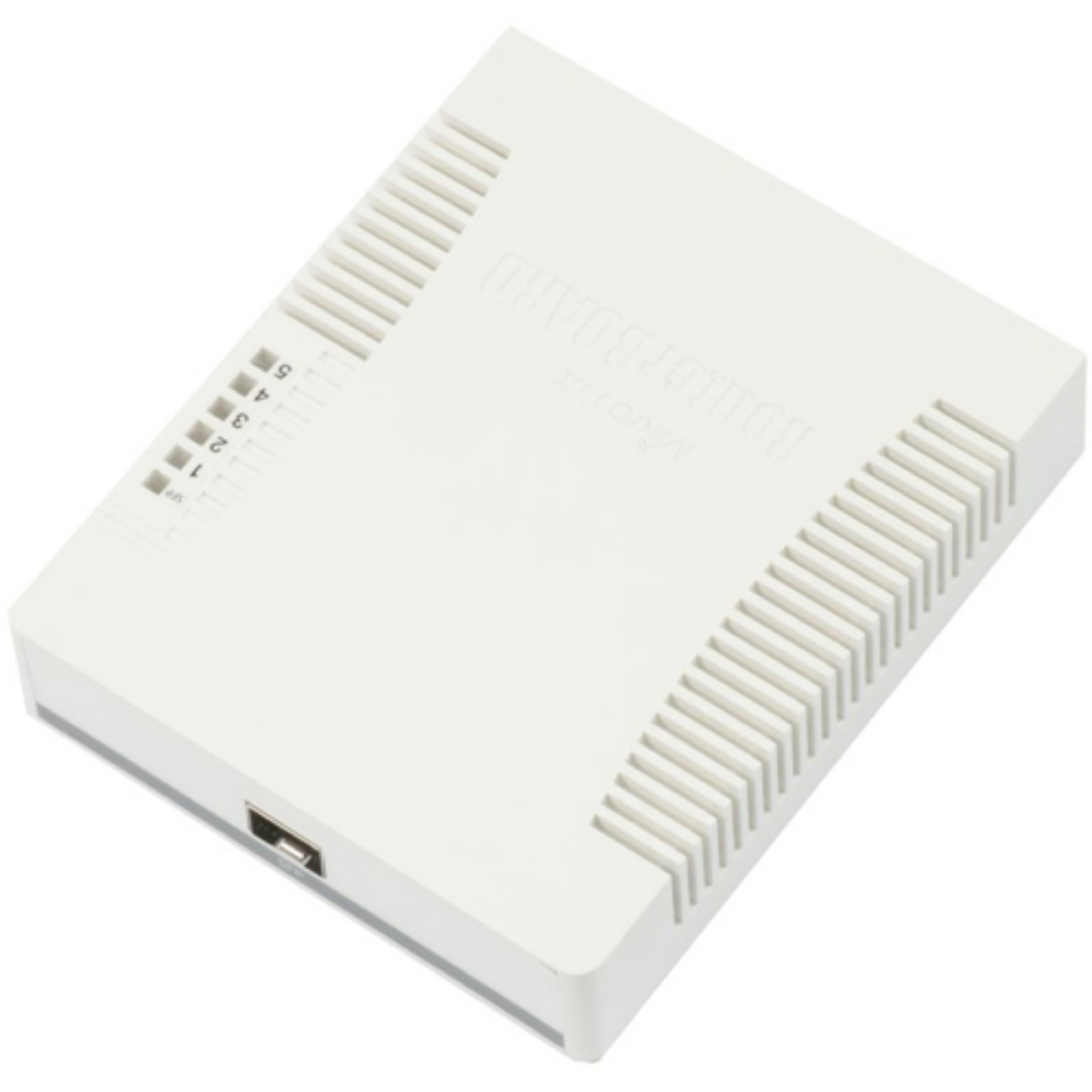

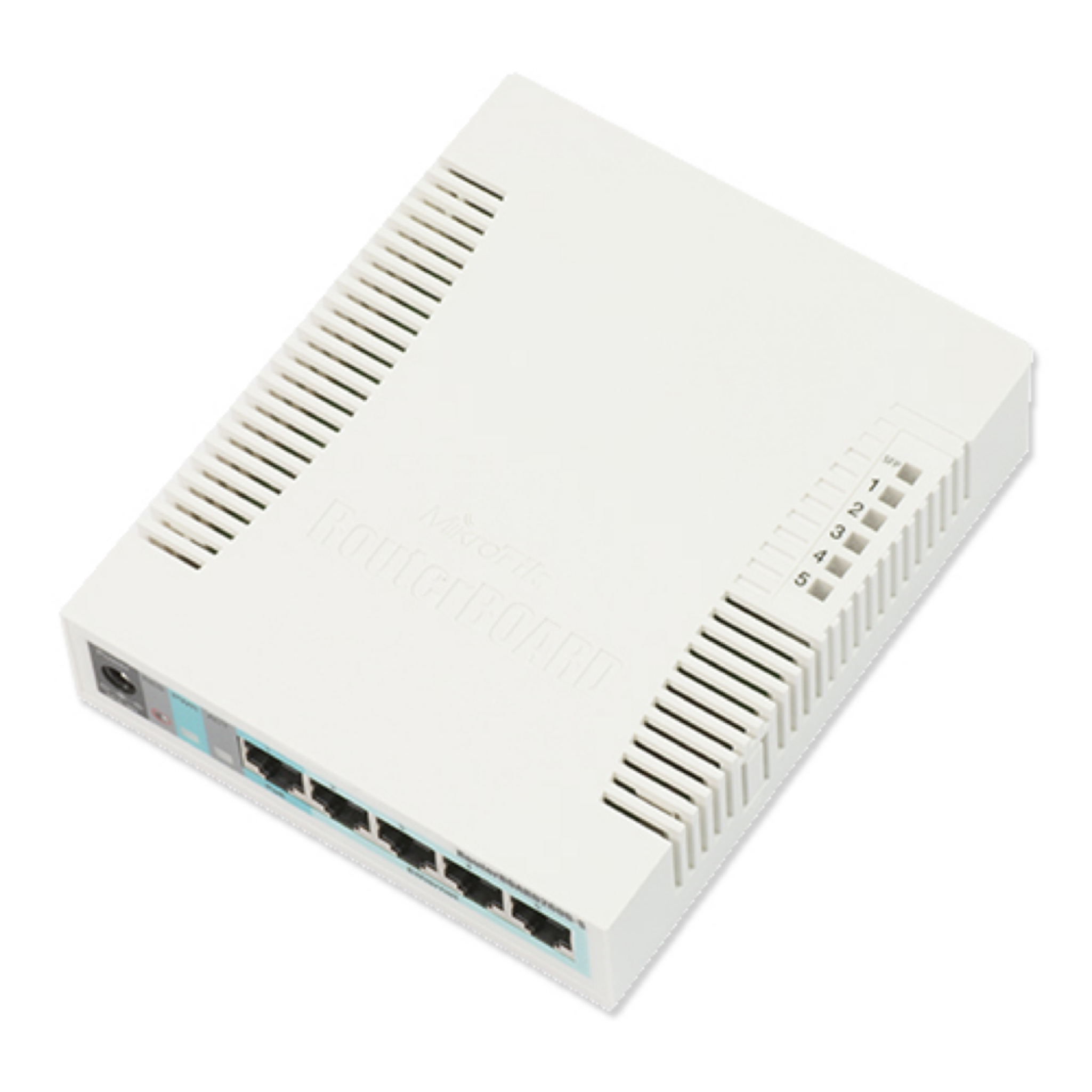

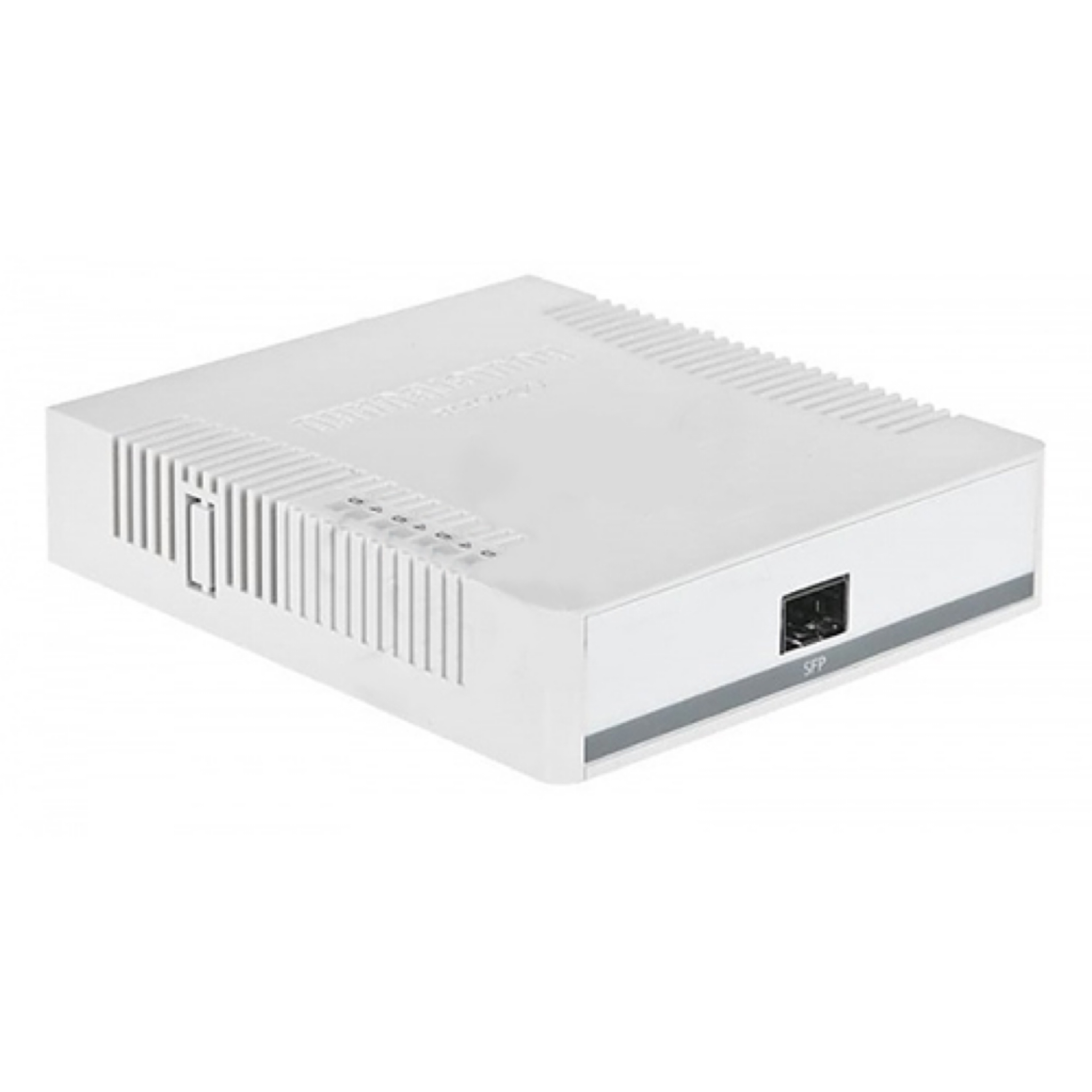

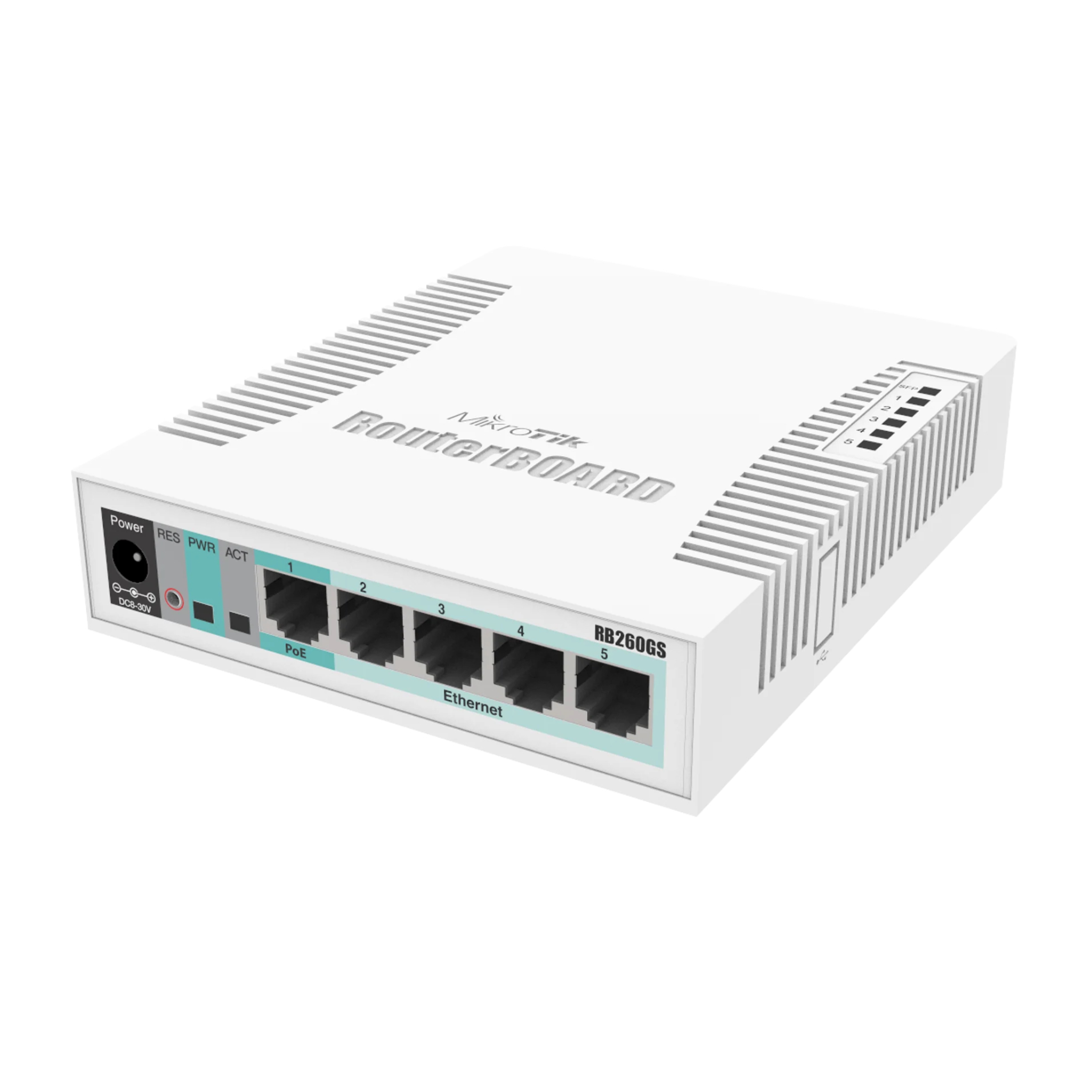

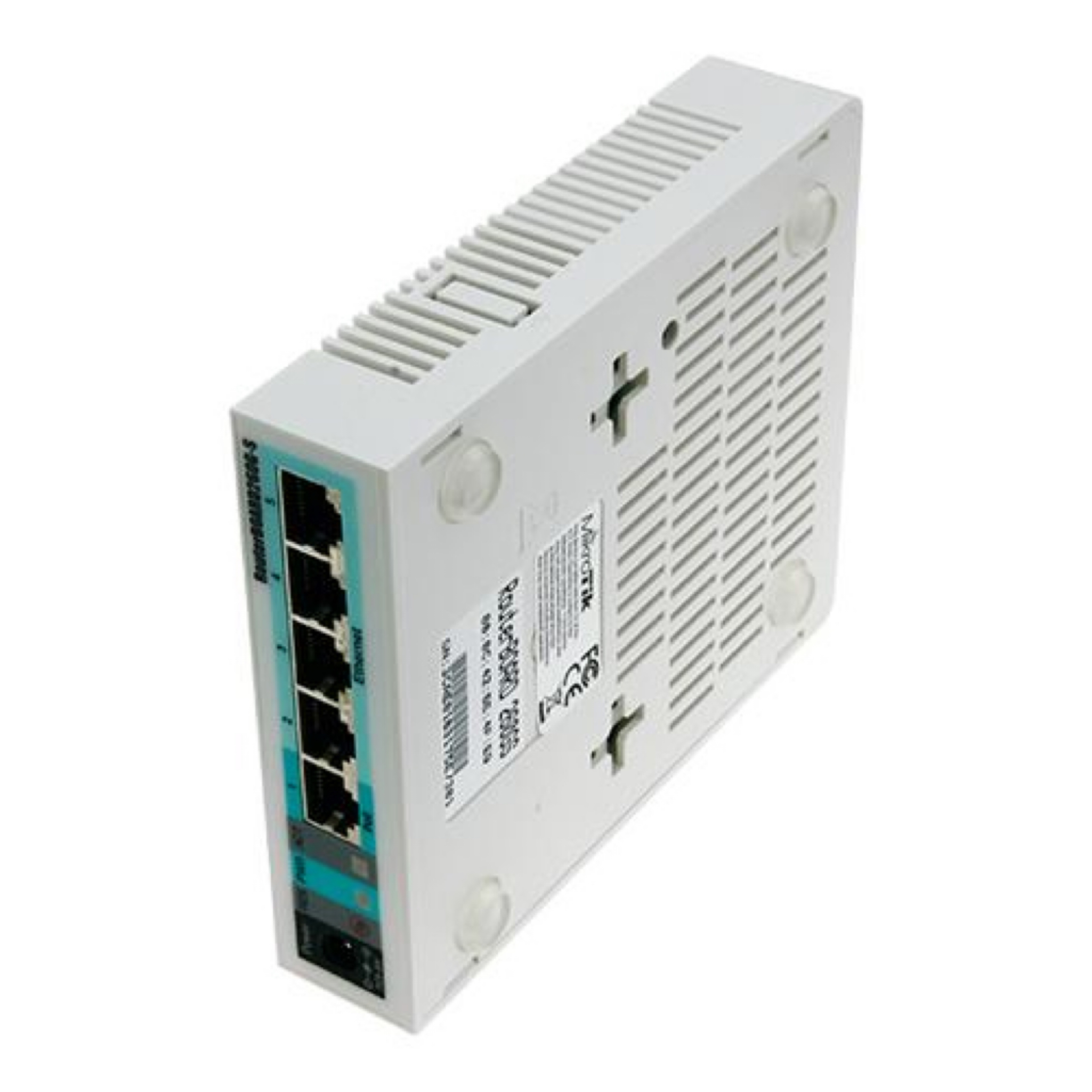

MikroTik CSS106-5G-1S is a compact and cost-effective managed Ethernet switch designed for small office, home network, and professional networking environments that require reliable wired connectivity in a simple and efficient design. Equipped with five Gigabit Ethernet ports and one SFP port, the CSS106-5G-1S provides flexible network expansion options, allowing users to connect multiple devices while supporting fiber uplink connections for longer-distance and high-speed data transmission. Powered by MikroTik’s SwOS operating system, this switch offers easy-to-use web-based management features, including port configuration, VLAN support, bandwidth control, port monitoring, and traffic management, making it suitable for users who need basic network control without complex configuration. Its fanless and compact desktop design ensures silent operation and low power consumption, making it an excellent choice for small businesses, SOHO networks, surveillance systems, and edge networking applications. With Gigabit Ethernet performance, stable switching capacity, and MikroTik’s proven reliability, the CSS106-5G-1S delivers an affordable solution for improving network performance, optimizing connectivity, and building efficient wired infrastructure for various business and residential scenarios. As an original MikroTik network equipment supplier, we provide brand-new CSS106-5G-1S switches with reliable supply, competitive pricing, and professional support for global distributors, system integrators, and end customers.
CSS106-5G-1S
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Brand | MikroTik |
Model | CSS106-5G-1S (also known as RB260GS) | |
Product Series | CSS106 Series Managed Switch | |
Device Type | Layer 2 Gigabit Ethernet Managed Switch | |
Typical Application | SOHO, Small Office, Home Network, IP Camera, Wireless AP Deployment | |
Port Configuration | 10/100/1000BASE-T RJ45 Ports | 5 x Gigabit Ethernet ports (auto-sensing, full/half duplex support) |
SFP Expansion Slot | 1 x Gigabit SFP cage (compatible with MikroTik 1G SFP transceivers: S-85DLC05D, S-31DLC20D, S-35/53LC20D) | |
Power Input Interfaces | 1 x DC power jack + 1 x Passive PoE-IN port (Port 1) | |
Performance Specifications | Switching Capacity | 10 Gbps (non-blocking wire-speed) |
Forwarding Rate | 7.4 Mpps (64-byte packets) | |
MAC Address Table Size | Up to 2,000 entries | |
Jumbo Frame Support | Up to 9198 bytes | |
Switch Chip Model | QCA8337 | |
System & Storage | Operating System | MikroTik SwOS (Switch OS) |
Flash Storage | 128 KB | |
Embedded SRAM | 96 KB | |
Core Switching Features | VLAN | IEEE 802.1Q compliant, port-based VLAN, VLAN filtering, up to 4096 VLANs |
Loop Prevention | RSTP (Rapid Spanning Tree Protocol) support | |
Multicast | IGMP Snooping v1/v2/v3 support | |
Link Aggregation | LACP (802.3ad) support | |
Traffic Management | Port-based mirroring (SPAN), port isolation, port lock | |
QoS | Ingress/egress traffic limiting, 802.1p CoS priority marking, traffic shaping | |
Access Control | Ingress ACL, up to 32 ACL rules, MAC address filtering | |
Power Specifications | DC Input Voltage | 11-30 V DC (both DC jack and PoE-IN port) |
Passive PoE | Supports Passive PoE input (11-30 V) on Port 1 | |
Max Power Consumption | 5 W | |
Power Supply | 1 x 24V 1A power adapter (included) | |
Physical Specifications | Dimensions (W × D × H) | 113 mm × 139 mm × 28 mm |
Weight | 0.3 kg | |
Cooling Type | Passive cooling (fanless, silent operation) | |
Mounting | Desktop placement, wall-mountable (mounting holes included) | |
Environmental Conditions | Operating Temperature | -20°C to +70°C |
Storage Temperature | -40°C to +85°C | |
Operating Humidity | 10%–90% non-condensing | |
MTBF | Approximately 100,000 hours at 25°C | |
Compliance & Certifications | Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1X, IEEE 802.3ad |
Regulatory Certifications | CE, FCC Class B, RoHS, ISO, GS | |
Management Methods | Configuration Interface | Web-based GUI (HTTP/HTTPS), default IP: 192.168.88.1 |
Management Protocols | SNMP v1/v2c, MikroTik SwOS API | |
Firmware Upgrade | TFTP, web-based firmware upgrade |
