MikroTik CSS606-1G-2Gi-3S+OUT is a compact and powerful outdoor Ethernet switch designed for reliable high-speed network expansion in demanding environments. Featuring 1 Gigabit Ethernet port, 2 Gigabit Ethernet ports with outdoor protection, and 3 SFP+ ports supporting 10G fiber connectivity, this switch provides an ideal solution for building flexible and scalable outdoor network infrastructures. Powered by the efficient SwOS operating system, the CSS606-1G-2Gi-3S+OUT offers easy web-based management with essential Layer 2 switching features, including VLAN support, port isolation, link monitoring, bandwidth control, and traffic management. Its rugged outdoor enclosure with IP-rated protection ensures stable operation in harsh conditions, making it suitable for outdoor wireless networks, surveillance systems, industrial applications, smart city projects, and long-distance fiber deployments. The three SFP+ ports enable high-speed fiber uplinks and backbone connections, while the Gigabit Ethernet ports provide convenient access for network devices such as wireless access points, IP cameras, and other Ethernet-enabled equipment. With its compact design, low power consumption, reliable performance, and versatile connectivity options, MikroTik CSS606-1G-2Gi-3S+OUT is an excellent choice for businesses, system integrators, and network professionals looking for an affordable and durable outdoor managed switch for modern high-performance networks.
CSS606-1G-2Gi-3S+OUT
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Brand | MikroTik |
Model / Product Code | CSS606-1G-2Gi-3S+OUT | |
Product Type | Outdoor Smart Managed Switch | |
Typical Application | Wireless ISP Tower Deployments, Outdoor Fiber Distribution, IP Camera Networks, Remote Site Networking | |
Enclosure Type | IP66 Rated Weatherproof Outdoor Enclosure | |
Port Configuration | 10/100/1000BASE-T Ethernet Ports | 3 ports (1x IEEE 802.3bt PoE-In port, 2x Passive PoE-Out ports) |
10G SFP+ Fiber Ports | 3 x 10G SFP+ slots (support 10G fiber transceivers) | |
DC Input Interfaces | 2 inputs (2-pin screw terminal, PoE-In) | |
DC Output Ports | 3 ports (DC1-DC3) | |
Performance Specifications | Switch Chip Model | Marvell 88E6193X |
Switching Capacity | 60 Gbps | |
Forwarding Rate (64-byte packets) | 44.6 Mpps | |
MAC Address Table Size | 16,000 entries | |
VLAN Support | Up to 4,094 802.1Q tagged VLANs | |
Jumbo Frame Support | Up to 10,240 bytes | |
MTBF | Approximately 200,000 hours at 25°C | |
PoE & Power Specifications | PoE-In Standard | IEEE 802.3bt |
PoE-In Voltage Range | 42–57V DC | |
2-Pin Screw Terminal Input Voltage | 12–57V DC | |
PoE-Out Type | Passive PoE up to 57V (on Ether2-Ether3 ports) | |
Max Per-Port PoE Output | 1.2A (when input voltage <30V); 0.625A (when input voltage >30V) | |
Max Total PoE Output | 2.4A | |
Max Total DC-Out | 3.6A | |
Max Power Consumption (no attachments) | 6W | |
Max Power Consumption (full load) | 160W | |
Hardware & Environmental Specifications | Dimensions (W × D × H) | 406 x 116 x 76 mm |
Ingress Protection Rating | IP66 (Dustproof, Weatherproof) | |
Cooling Design | Passive Cooling (Fanless, Silent operation) | |
Operating Temperature Range | -40°C to +70°C | |
Storage Temperature Range | -40°C to +70°C | |
Operating Humidity | 10%–90% non-condensing | |
Management & Core Features | Operating System | SwOS (MikroTik SwitchOS) |
Management Methods | Web-based Graphical User Interface (GUI), Command Line Interface (CLI) | |
Layer 2 Features | 802.1Q VLAN, Port Isolation, Port Mirroring (SPAN), IGMP Snooping v1/v2/v3, Link Aggregation (LACP 802.3ad), Storm Control | |
Security Features | MAC Filtering, 802.1X Port Authentication, DoS Attack Protection, Password Encryption | |
QoS Features | 8 hardware priority queues per port, 802.1p CoS/DSCP mapping, traffic shaping & policing | |
Compliance & Certifications | Industry Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3bt, 802.1Q, 802.1p, 802.1X, 802.3ad |
Regulatory Certifications | CE, FCC Class A, RoHS, IP66 Environmental Certification | |

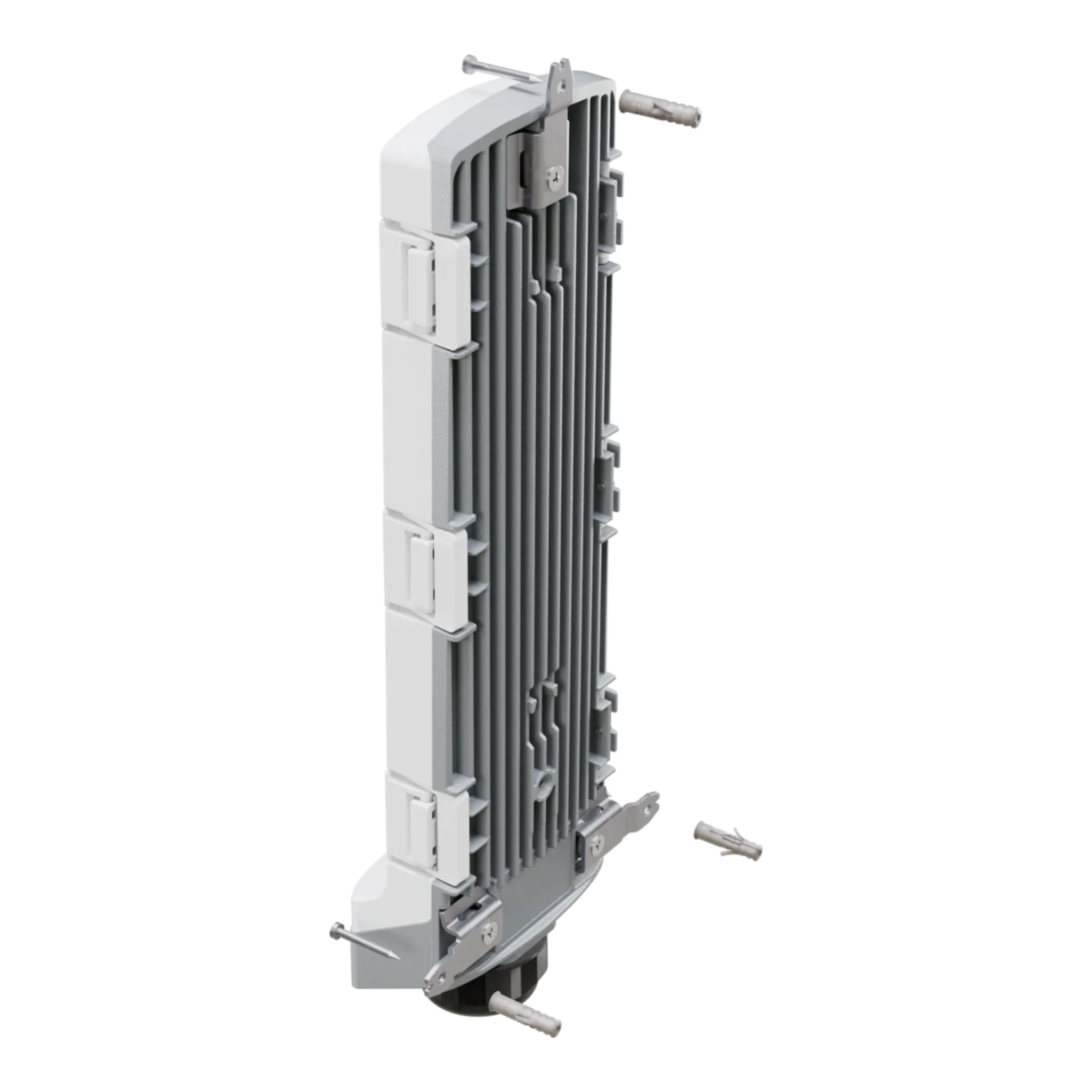

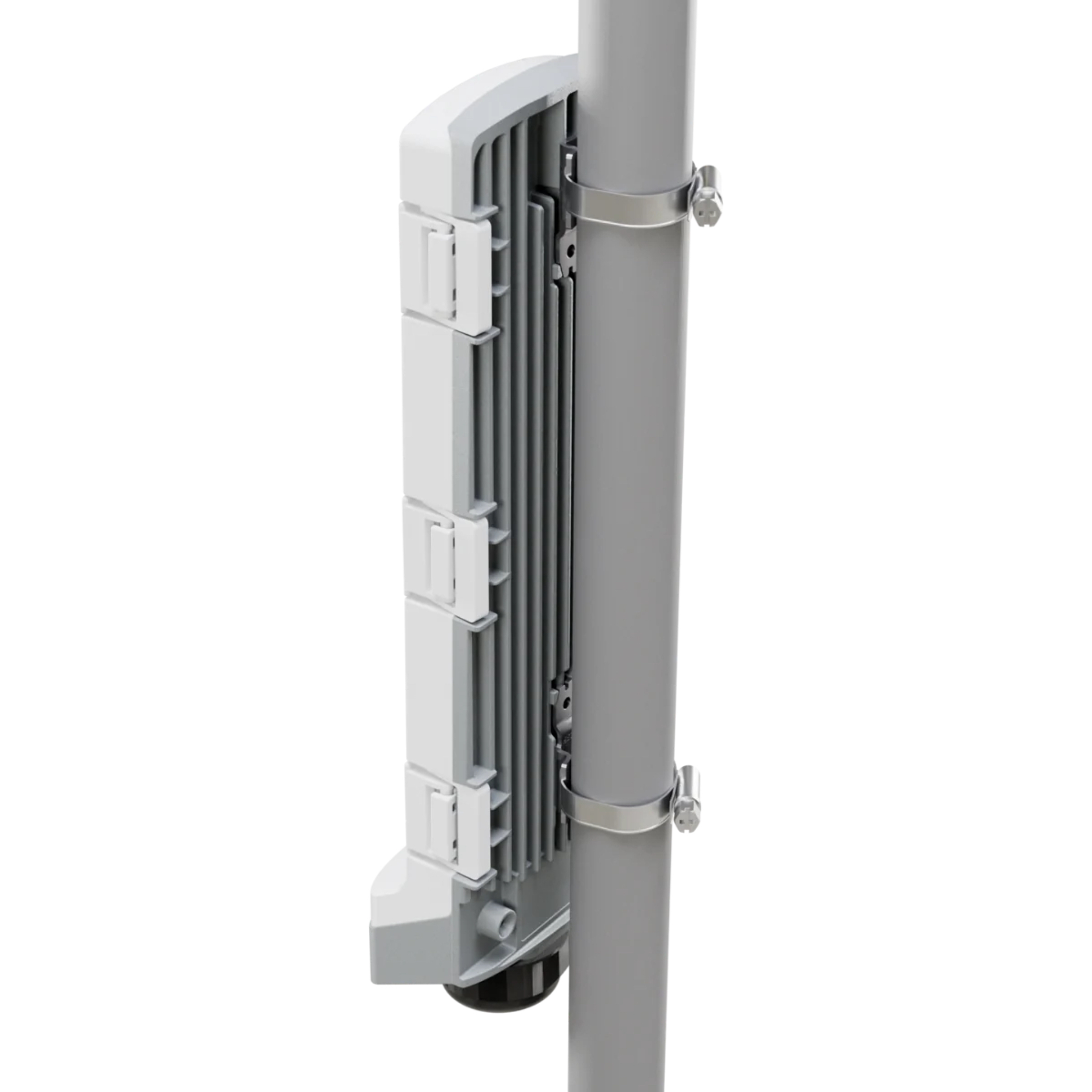

Included Accessories | Package Contents | 1x CSS606-1G-2Gi-3S+OUT Main Unit, 1x Fastening Set, 2x Hose Clamps |
