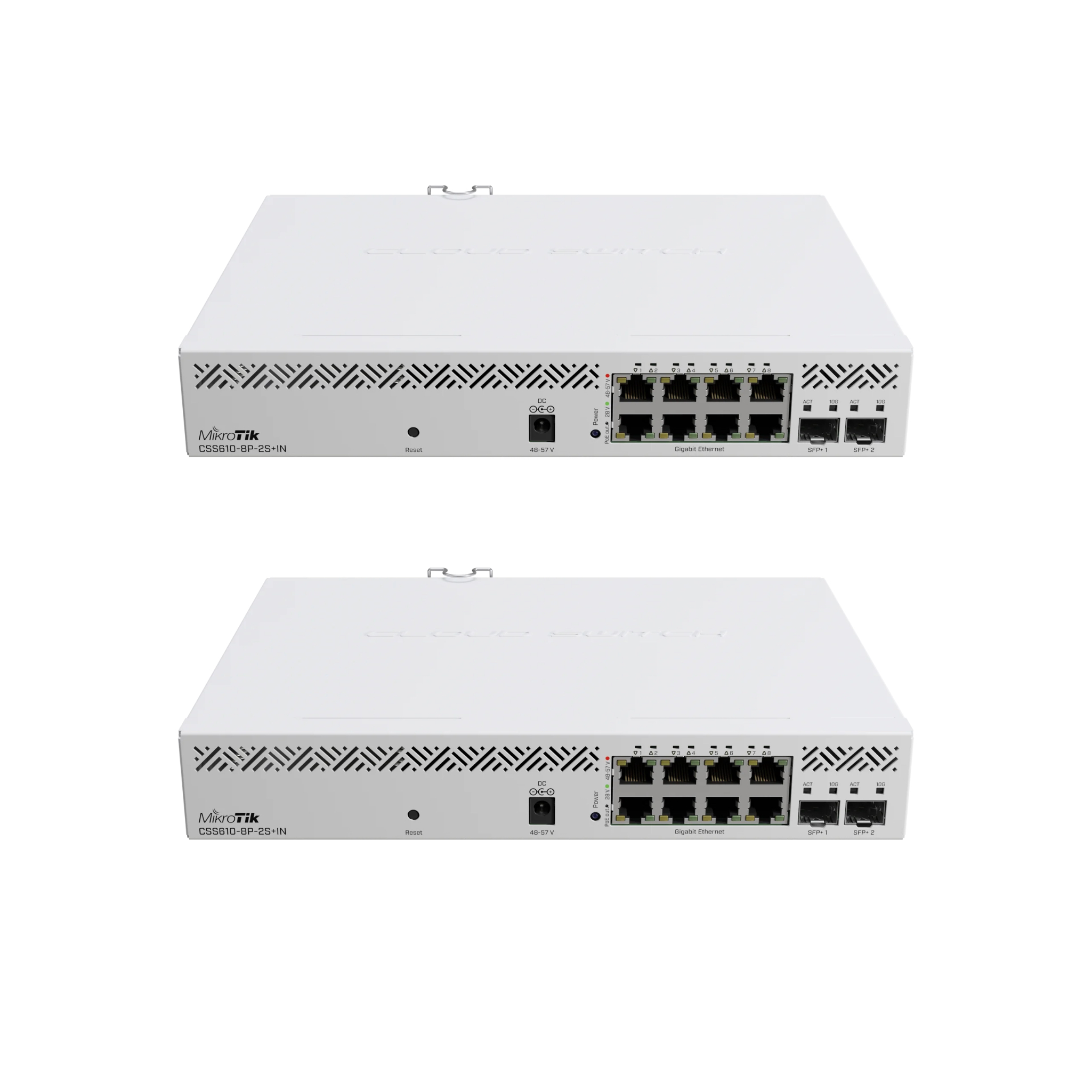

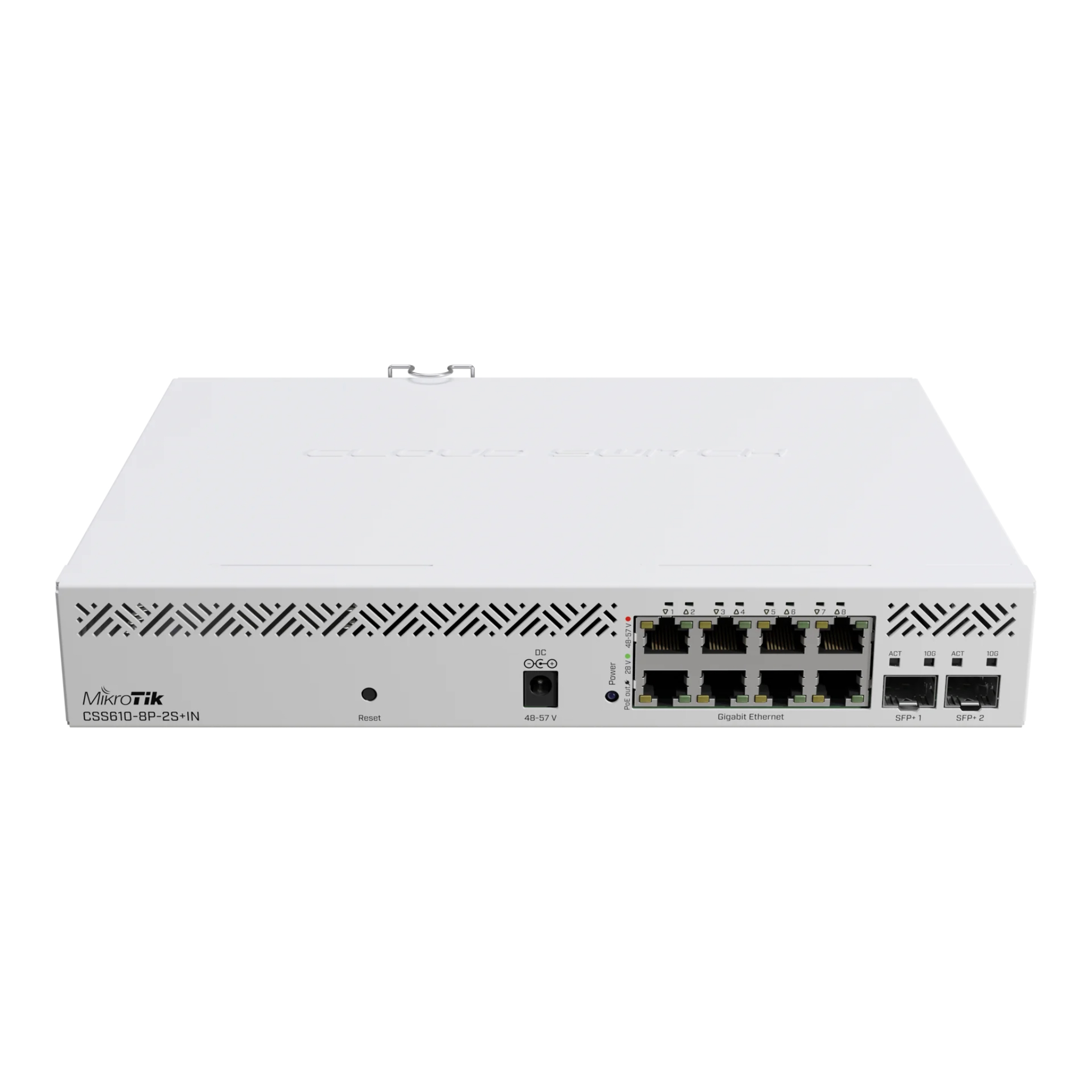

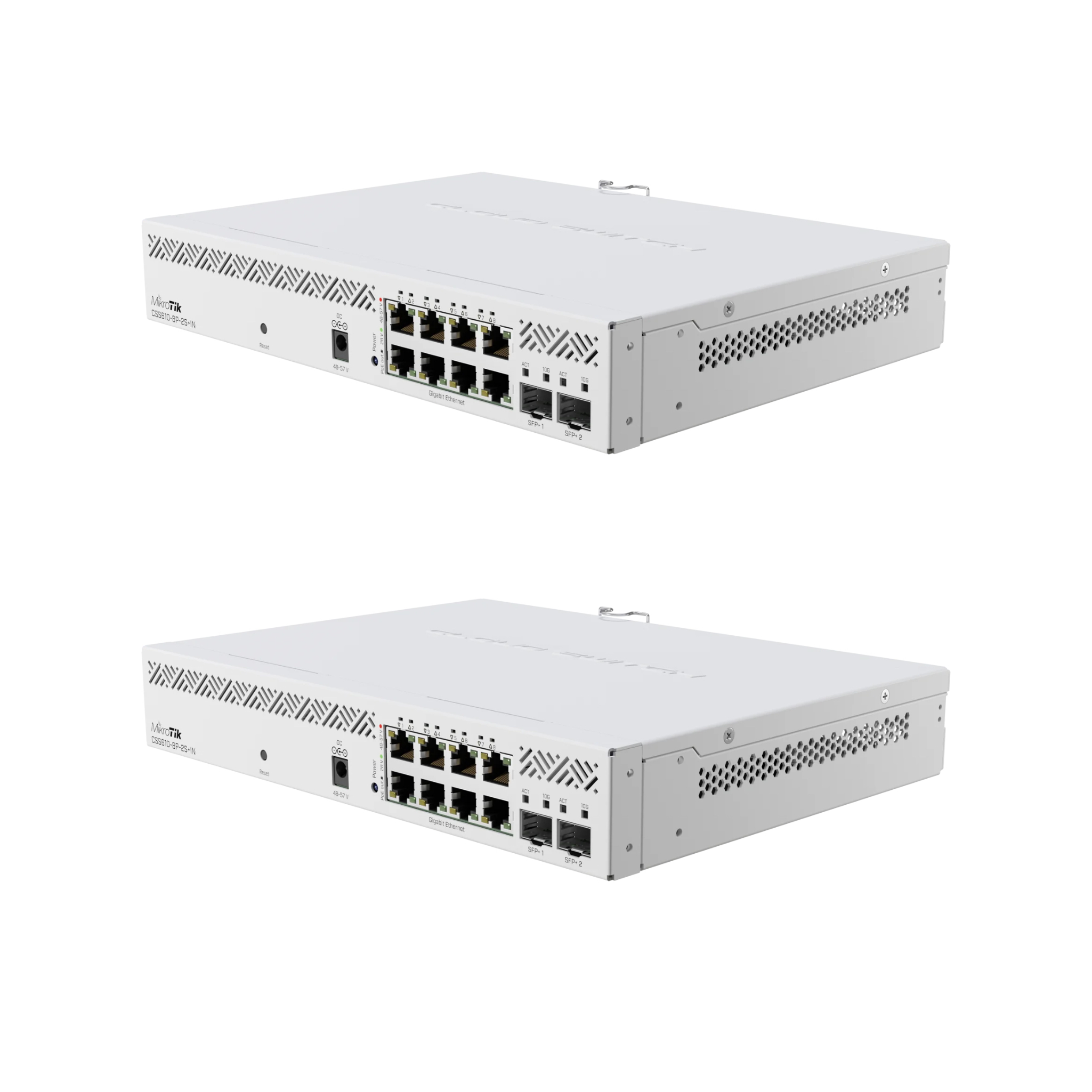

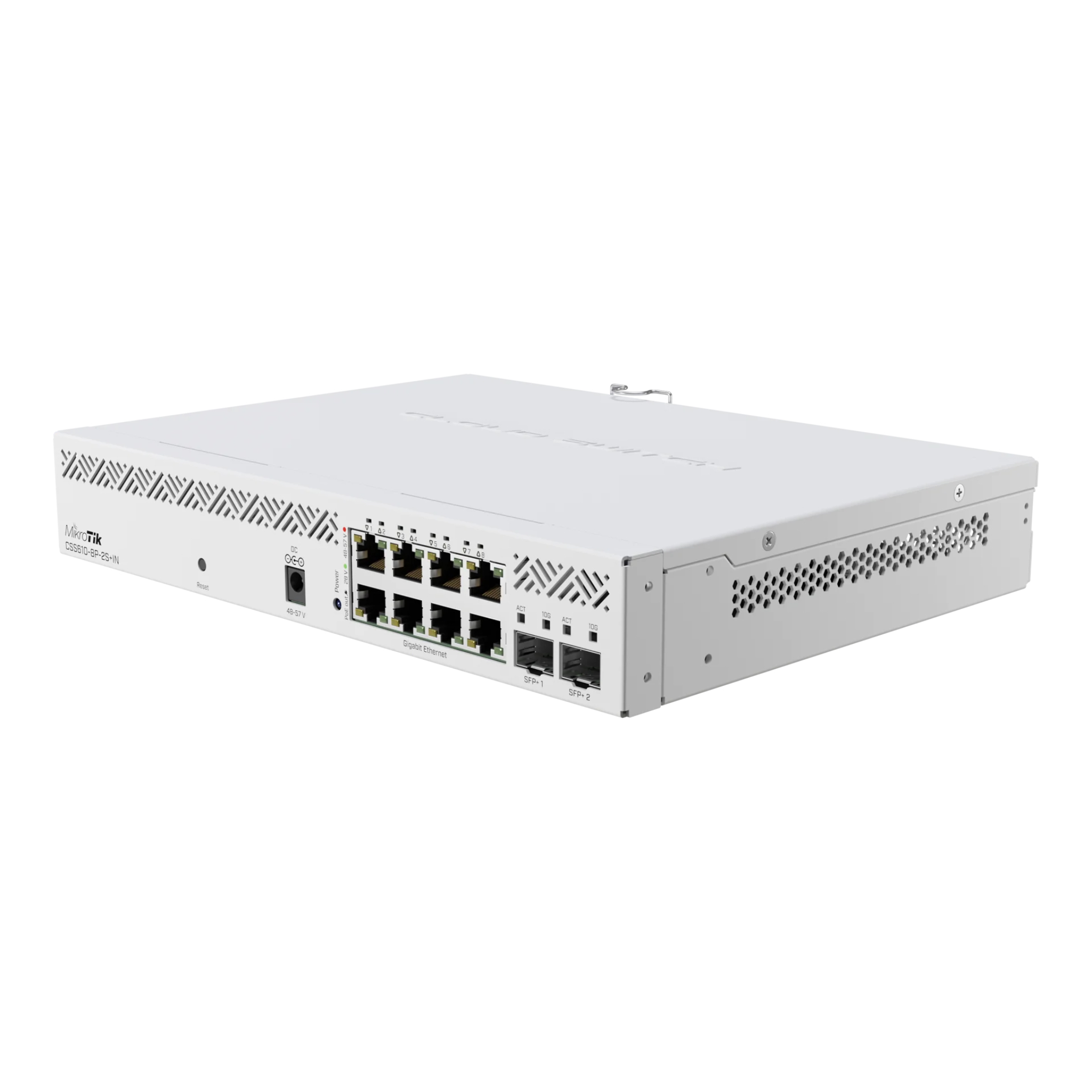

The MikroTik CSS610-8P-2S+IN is a compact and versatile managed Ethernet switch designed for small and medium-sized business networks, security systems, wireless deployments, and other applications that require reliable Gigabit connectivity with PoE support. Equipped with 8 Gigabit Ethernet ports featuring PoE-out and 2 SFP+ ports for high-speed 10Gbps fiber or direct-attach connections, the CSS610-8P-2S+IN provides an efficient combination of access and uplink capabilities in a space-saving desktop or rack-mountable design. The PoE-enabled Gigabit ports allow compatible devices such as wireless access points, IP cameras, VoIP phones, and other network equipment to receive both data and power through a single Ethernet cable, helping simplify installation and reduce cabling requirements. The two SFP+ ports provide 10Gbps uplink capacity, making the switch suitable for connecting to high-performance aggregation switches, servers, storage systems, or fiber-optic networks while minimizing potential network bottlenecks. Powered by MikroTik's SwOS Lite operating system, the CSS610-8P-2S+IN offers an intuitive web-based management interface with useful switching and monitoring features, including VLAN configuration, port isolation, traffic monitoring, link management, and basic network security controls. Its fanless design helps provide quiet operation, making it suitable for offices, retail environments, surveillance installations, and other locations where low noise is important. With its combination of 8 PoE Gigabit ports, 10Gbps SFP+ uplinks, compact form factor, and easy-to-use management capabilities, the MikroTik CSS610-8P-2S+IN is a practical and cost-effective choice for businesses, system integrators, network installers, and resellers looking to build reliable and flexible wired networks with high-speed uplink performance.
CSS610-8P-2S+IN
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Model Name | CSS610-8P-2S+IN |
Product Series | MikroTik Cloud Smart Switch 610 Series | |
Device Type | Layer 2 Managed Gigabit PoE+ Switch with 10G Uplink | |
Switch Chip Model | Marvell 88E6193X | |
Pre-installed OS | SwOS Lite (free lifetime software updates included) | |
Port Configuration | 10/100/1000BASE-T RJ45 PoE+ Ports | 8 ports, IEEE 802.3af/at compliant |
10G SFP+ Uplink Slots | 2 x 10G SFP+ slots (compatible with 10G/5G/2.5G/1G SFP+ transceivers) | |

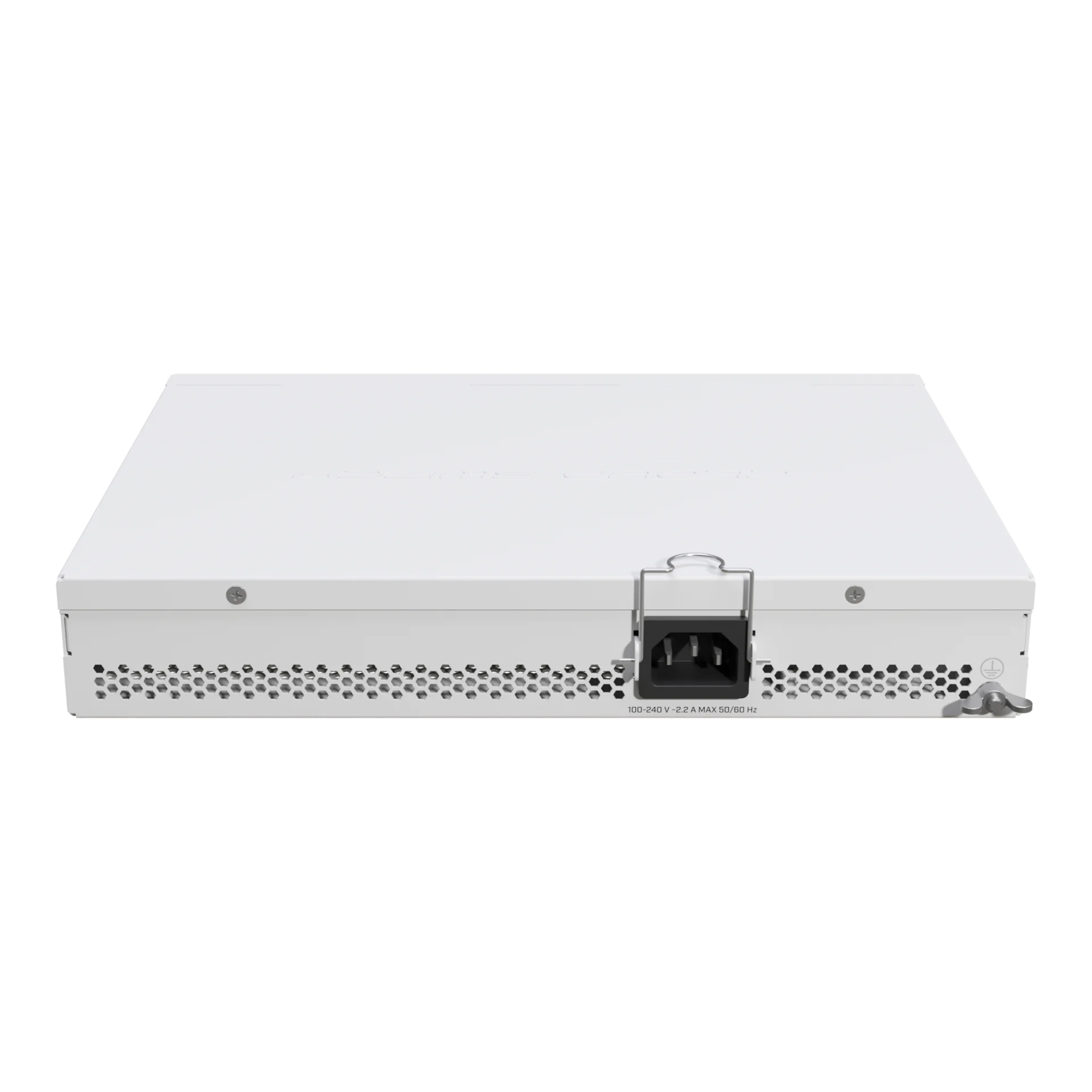

Power Input Interfaces | 1 x AC power input (100-240V) + 1 x DC jack input (48-57V DC) | |
Performance Specifications | Switching Capacity | 56 Gbps |
Forwarding Rate (64-byte packets) | 41.7 Mpps | |
Switching Architecture | Non-blocking, Wire-speed forwarding | |
MAC Address Table Size | 16,000 entries | |
Jumbo Frame Support | Up to 10,000 bytes | |
MTBF | 200,000 hours (at 25°C ambient temperature) | |
PoE Power Specifications | PoE Standards | IEEE 802.3af (15.4W) / IEEE 802.3at (30W) / Passive PoE |
Total PoE Output Power Budget | 140 W | |
Per-port Max PoE Output | 30 W | |
PoE Output Voltage | High voltage: ~54V (AC input) / 48-57V (DC input); Low voltage: ~28V | |
PoE Management | Smart PoE Controller, per-port power monitoring, priority power allocation | |
Core Network Features | Layer 2 Functions | 802.1Q VLAN, Voice VLAN, Port-based VLAN; STP/RSTP loop prevention; Link Aggregation (LACP); IGMP Snooping v1/v2/v3; Port Security, MAC filtering; Broadcast storm control; Port Mirroring (SPAN) |
Traffic Management | Bandwidth limitation, traffic shaping, MAC/IP header field adjustment | |
Hardware & System | Flash Storage | 64 KB |
Cooling Design | Passive cooling (fanless, silent operation) | |
Form Factor | Rack-mountable (1U) | |
Physical Specifications | Dimensions (W × D × H) | 272 mm × 216 mm × 50 mm |
Weight | 1.6 kg | |
Power Supply | AC Input Range | 100–240 V AC, 50/60 Hz |
DC Jack Input Voltage | 48–57 V DC | |
Max Power Consumption (no load) | 12 W | |
Max Total Power Consumption (full PoE load) | 162 W | |
Environmental Operating Conditions | Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
Storage Temperature | -40°C to +70°C (-40°F to 158°F) | |
Operating Humidity | 10%–90% non-condensing | |
Compliance & Certifications | Industry Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.1Q, 802.1p, 802.1X, 802.3ad |
Regulatory Certifications | CE, FCC, IC, RoHS | |
Management Methods | Supported Management | Web-based graphical user interface (HTTP/HTTPS); No CLI required (simplified SwOS management); MikroTik mobile app support for quick configuration |
Package Content | Included Accessories | 1 x CSS610-8P-2S+IN switch, 1 x IEC power cord, 1 x K-48 fastening set |
