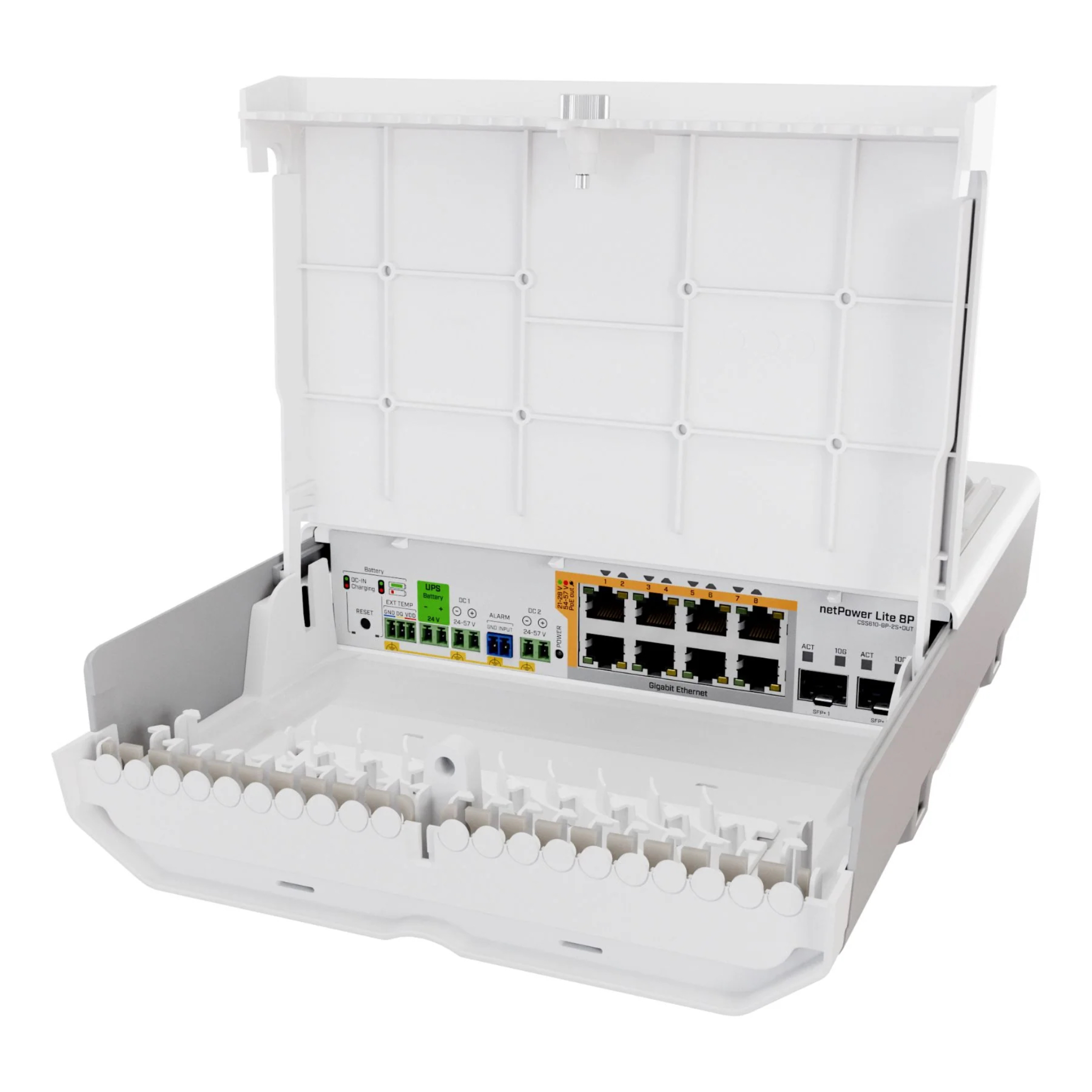

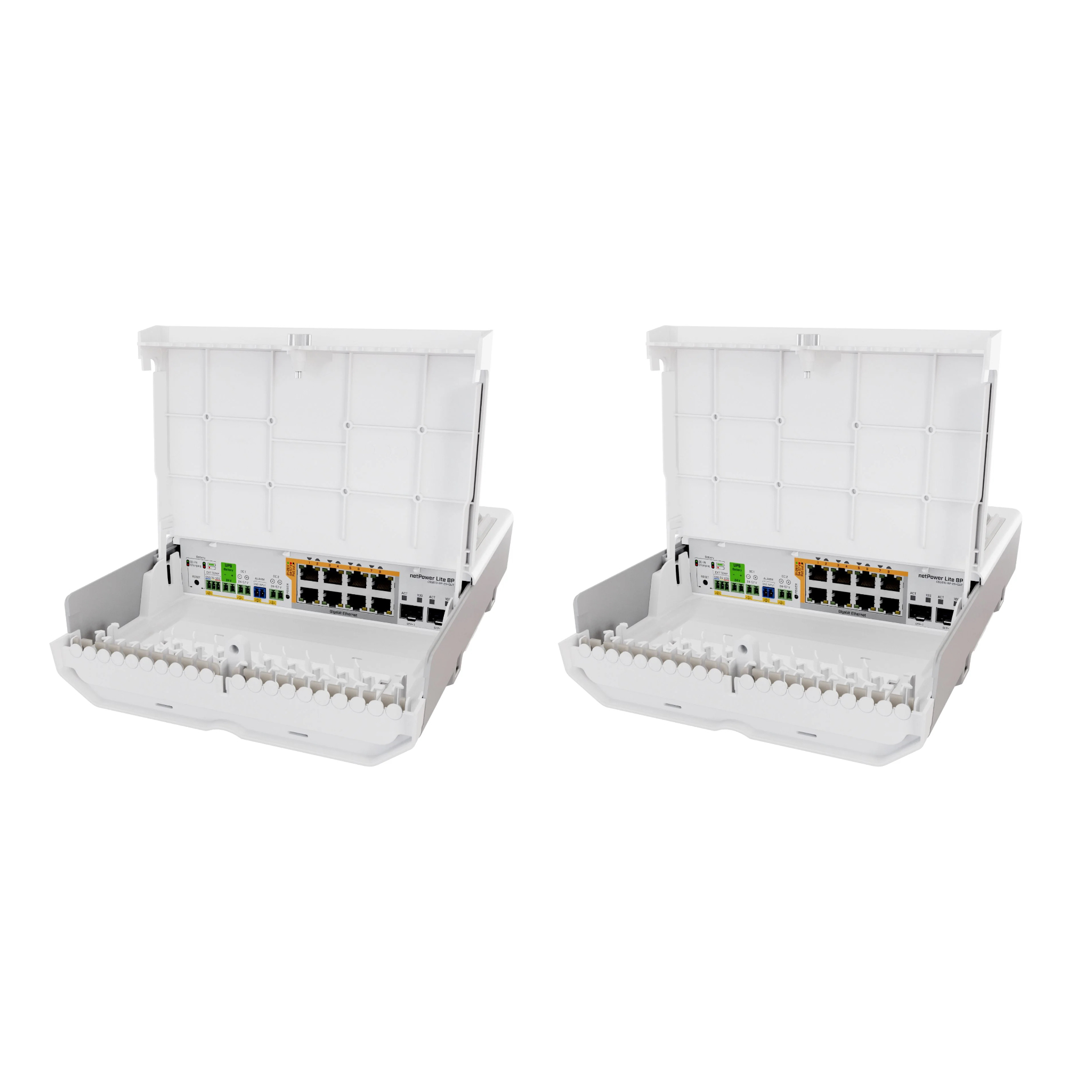

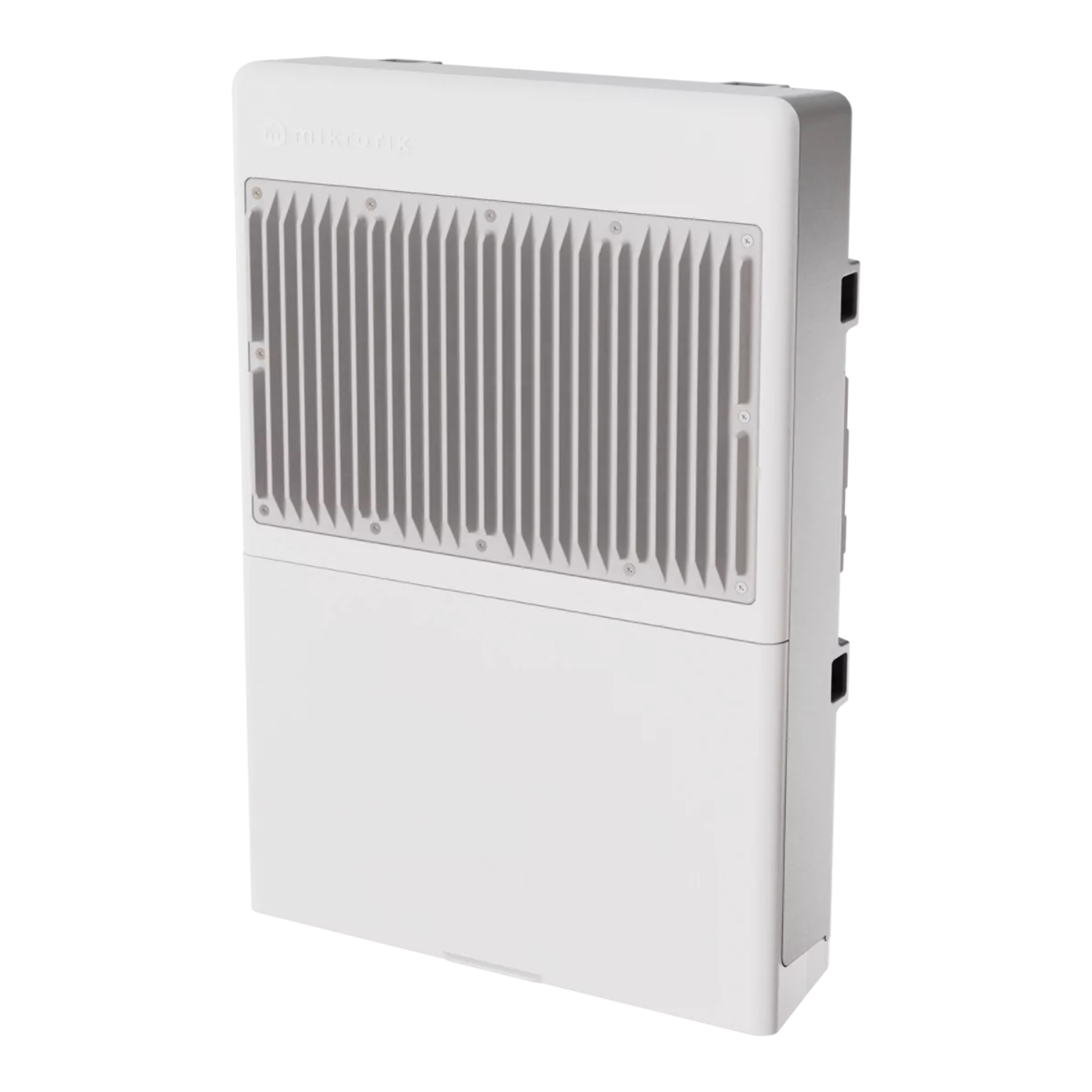

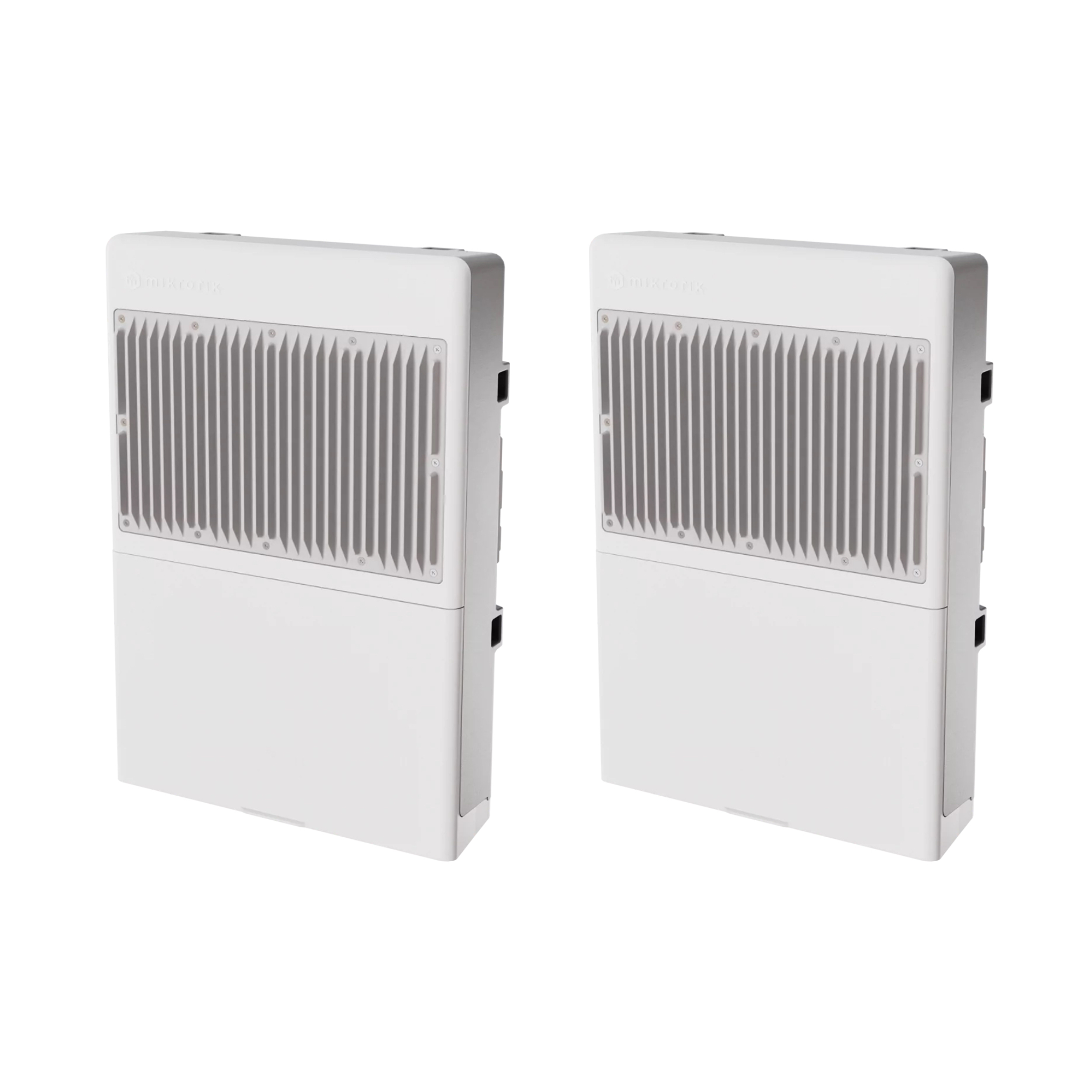

The MikroTik CSS610-8P-2S+OUT is a compact and versatile outdoor managed Ethernet switch designed to provide reliable network connectivity and Power over Ethernet (PoE) deployment in demanding environments. It features 8 Gigabit Ethernet ports with PoE-out support, allowing compatible network devices such as wireless access points, IP cameras, and other PoE-enabled equipment to receive both data and power through a single Ethernet cable, helping simplify installation and reduce the need for additional power infrastructure. The switch also includes 2 SFP+ ports for high-speed 10G fiber uplinks, making it suitable for connecting outdoor network segments to aggregation switches, core networks, or other high-performance infrastructure. Designed with an outdoor-ready enclosure, the CSS610-8P-2S+OUT is well suited for applications where equipment may be exposed to variable weather and environmental conditions. Its compact design makes it an excellent choice for outdoor wireless networks, surveillance systems, industrial sites, smart building deployments, campuses, and remote network installations. The switch runs MikroTik SwOS, providing an intuitive web-based management interface with useful Layer 2 switching features, VLAN support, port monitoring, traffic management, and other configuration options for efficient network administration. With Gigabit PoE connectivity, dual 10G SFP+ uplinks, flexible management capabilities, and a durable outdoor-oriented design, the MikroTik CSS610-8P-2S+OUT offers an efficient and cost-effective solution for expanding modern Ethernet networks while maintaining high-speed uplink performance and simplified device deployment.
CSS610-8P-2S+OUT
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Product Information | Model Name | CSS610-8P-2S+IN |
Product Series | MikroTik CSS610 Series Managed Switch | |
Device Type | Gigabit Ethernet PoE+ Managed Switch with 10G SFP+ Uplinks | |
Operating System | SwitchOS Lite (pre-installed, licensed, free lifetime updates) | |
Target Application | SMB, Home Networks, Hotels, Call Centers, IP Camera Deployments, Wireless AP Deployments | |
Port Configuration | 10/100/1000BASE-T RJ45 PoE-Out Ports | 8 ports (Ether1-Ether8), compliant with IEEE 802.3af/at and Passive PoE |
10G SFP+ Uplink Slots | 2 x SFP+ slots (support 10G fiber/copper SFP+ transceivers, also compatible with S+RJ10 modules) | |
Power Input Interfaces | 1 x DC jack (5.5mm outer/2mm inner, female, pin positive) + 1 x AC power input | |
Performance Specifications | Switching Chip Model | Marvell 88E6193X |
Switching Capacity | 56 Gbps | |
Forwarding Rate | 41.6 Mpps (64-byte packets, full non-blocking wirespeed) | |
MAC Address Table Size | Up to 16,000 entries | |
Jumbo Frame Support | Up to 10,218 bytes | |
VLAN Support | 802.1Q tagged VLANs, Port-based VLANs, VLAN trunking | |
PoE Power Specifications | Total PoE-Out Power Budget | 140 W |
PoE Standards | IEEE 802.3af (15.4W), IEEE 802.3at (30W), Passive PoE | |
Per-Port PoE Output | Low voltage (28V): max 1000 mA per port; High voltage (48-57V): max 625 mA per port | |
PoE Features | Smart PoE Controller, PoE priority management, per-port PoE power monitoring | |
Hardware & Physical Specifications | Dimensions (W × D × H) | 272 mm × 208 mm × 44 mm |
Weight | 1.2 kg | |
Cooling Type | Passive cooling (fanless, silent operation) | |
Storage | 64 KB FLASH | |
Monitoring | CPU temperature monitor, voltage monitor | |
Ingress Protection | IP20 | |
Power Supply Specifications | AC Input Range | 100–240 V AC, 50/60 Hz |
DC Jack Input Voltage | 48–57 V DC | |
Nominal Voltage/Current | 54 V, 2.8 A | |
Max Power Consumption (full load) | 162 W | |
Max Power Consumption (no PoE attachments) | 12 W | |
Environmental Specifications | Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
Storage Temperature | -40°C to +70°C (-40°F to 158°F) | |
Operating Humidity | 10%–90% non-condensing | |
MTBF | Approximately 200,000 hours at 25°C | |
Key Management & Network Features | Management | Web-based GUI (HTTP/HTTPS), no separate CPU required |
Link Aggregation | 802.3ad LACP support, static link aggregation, up to 16 groups, 8 member ports per group | |
Loop Prevention | RSTP (Rapid Spanning Tree Protocol) support | |
Multicast | IGMP Snooping v1/v2/v3 | |
Traffic Management | Broadcast storm control, port bandwidth limiting, traffic mirroring (SPAN) | |
Security | Port isolation, MAC filtering, 802.1X port authentication, DoS attack protection | |
Other Features | Port Egress Rate limiting, MAC/IP header field adjustment | |
Compliance & Certifications | Industry Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at, 802.1Q, 802.1p, 802.1X, 802.3ad |
Certifications | CE, EAC, RoHS | |
Included Accessories | Standard Package | Rack ears, K-48 fastening set, IEC power cord |
