MikroTik CRS106-1C-5S is a compact and cost-effective Cloud Router Switch designed for small and medium-sized network deployments that require flexible fiber connectivity and reliable Layer 2 switching performance. Equipped with 1 Gigabit Ethernet combo port and 5 SFP ports, the CRS106-1C-5S provides excellent flexibility for connecting copper and fiber-based network devices, making it an ideal choice for fiber backbone connections, ISP networks, enterprise offices, and small data center environments. Powered by the advanced RouterOS operating system, this switch supports a wide range of professional networking features, including VLAN configuration, port isolation, link aggregation, traffic monitoring, and advanced switching functions. The device is built with a powerful switch chip architecture to ensure efficient data forwarding and stable network performance while maintaining low power consumption. With its compact design, silent operation, and easy management through WinBox, WebFig, or command-line interface, the CRS106-1C-5S is suitable for network engineers, system integrators, and businesses looking for a reliable fiber switch solution without unnecessary complexity. Whether used as an aggregation switch, fiber distribution device, or a flexible network expansion solution, the MikroTik CRS106-1C-5S delivers professional-grade performance, high scalability, and excellent value for modern networking applications. ImportGM provides original brand-new MikroTik networking products with stable supply channels, competitive pricing, and professional global shipping support for distributors, resellers, and enterprise customers worldwide.
CRS106-1C-5S
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Model Name | CRS106-1C-5S |
Product Series | MikroTik Cloud Router Switch (CRS) Series | |
Device Type | Desktop Smart Managed Switch | |
Target Application | Small Business, Home Office, Fiber Network Deployment, SFP Device Connectivity | |
Port Configuration | SFP Cages | 5 x 1.25Gbps Ethernet SFP cages (Mini-GBIC), with DDMI support |
Combo Port | 1 x Gigabit Ethernet / SFP combo port (supports 10/100/1000M RJ45 or SFP module) | |
Power Input Interfaces | 1 x DC jack + 1 x PoE-IN (passive PoE) | |
Serial Port | 1 x RJ45 serial port | |
LED Indicators | 9 x LEDs (including 1 x user LED) | |
Hardware Specifications | CPU Model | QCA8511 |
CPU Frequency | 400 MHz (1 core, MIPSBE architecture) | |
RAM Size | 128 MB | |
Storage | 16 MB FLASH memory | |
Switch Chip Model | QCA8511 | |
MTBF | Approximately 100,000 hours at 25°C | |
Performance & Switching Features | Switching Capacity | 12.5 Gbps (full wire-speed for all ports) |
Forwarding Rate | 9.3 Mpps | |
VLAN Support | Up to 4094 VLANs (802.1Q tagged) | |
Core Switching Features | L2 switching, VLAN, QoS, ACL, Link Aggregation, Port Mirroring, IGMP Snooping | |
Management Methods | RouterOS CLI, WebFig, MikroTik Mobile App, SNMP | |
Power Supply | Input Voltage Range | 11-30 V DC (supports passive PoE) |
DC Jack Input | 11-30 V DC | |
Max Power Consumption | 11 W | |

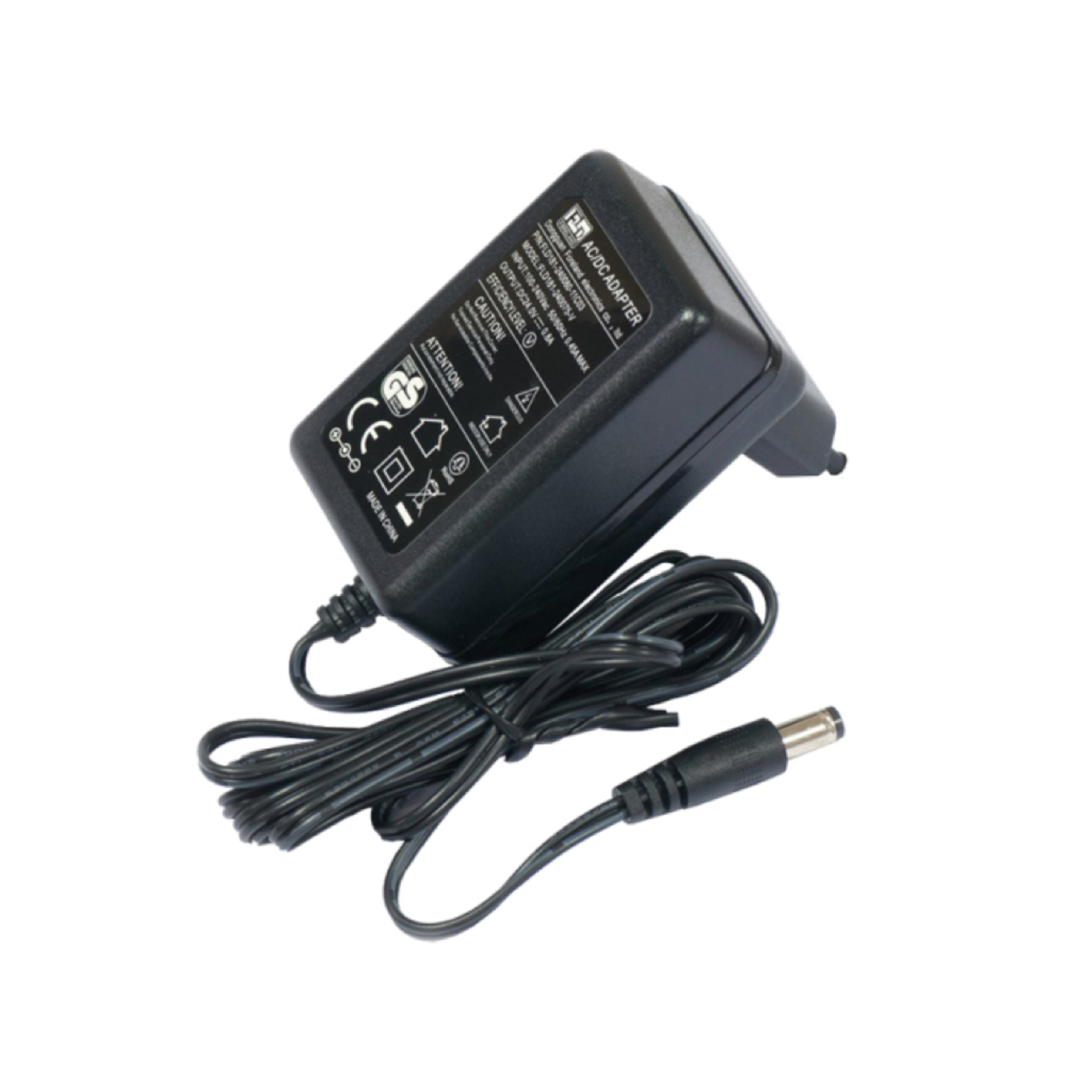

Included Power Adapter | 24V 0.8A power adapter (US plug) | |
Physical & Mechanical | Dimensions (W × D × H) | 114 mm × 137 mm × 29 mm |
Form Factor | Desktop form factor | |
Cooling Design | Fanless, silent operation | |
Environmental Requirements | Operating Temperature | -20°C to 70°C (-4°F to 158°F) |
Storage Temperature | -40°C to 85°C (-40°F to 185°F) | |
Operating Humidity | 5% to 90% non-condensing | |
Altitude Limit | Up to 2000 meters above sea level | |
System & Licensing | Operating System | RouterOS (factory installed, upgradable) |
RouterOS License Level | Level 5 | |
Supported RouterOS Versions | v6 and v7 (latest stable version recommended) | |
Compliance Standards | Regulatory Certifications | CE, FCC, RoHS, WEEE |
Industry Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1Q, IEEE 802.1p |
