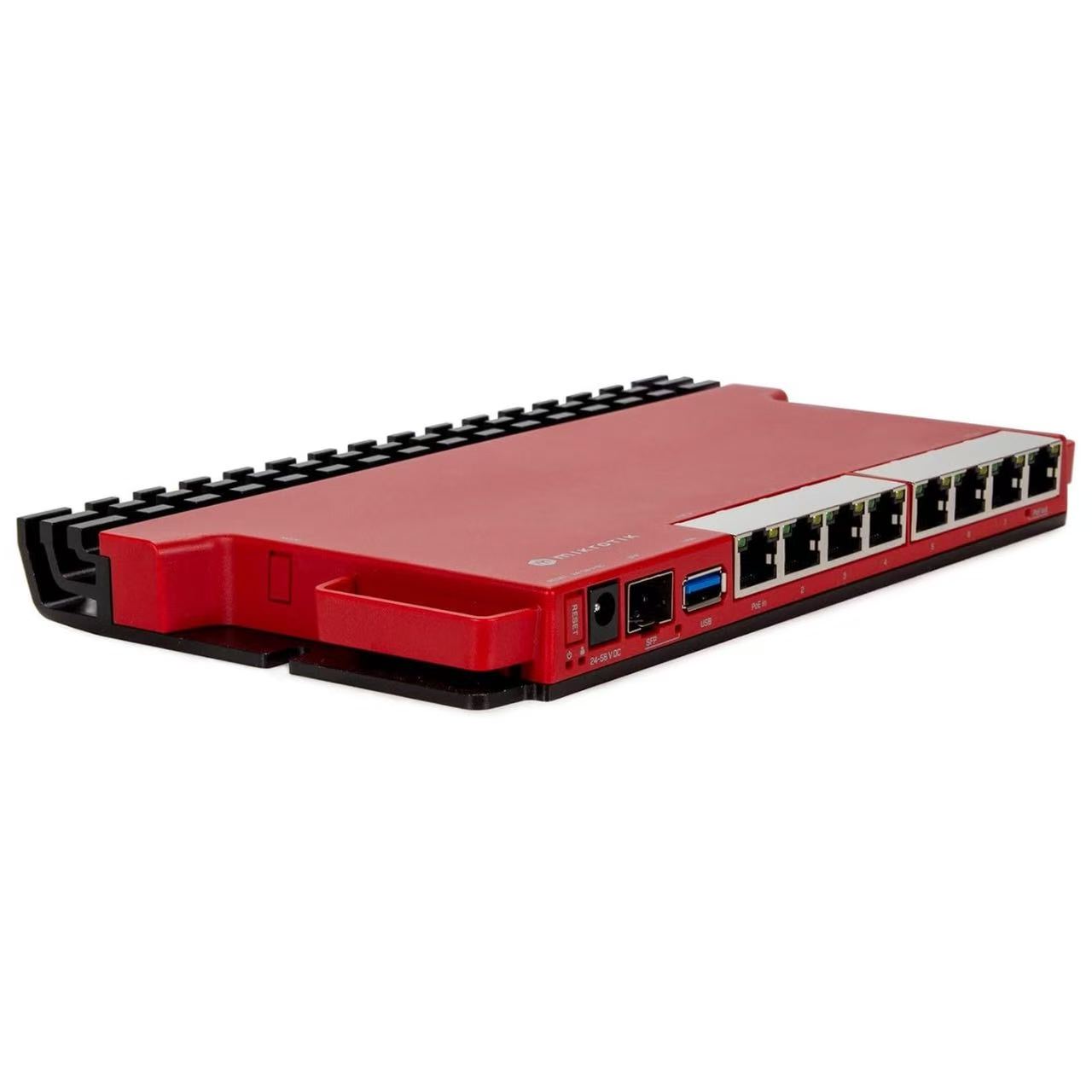

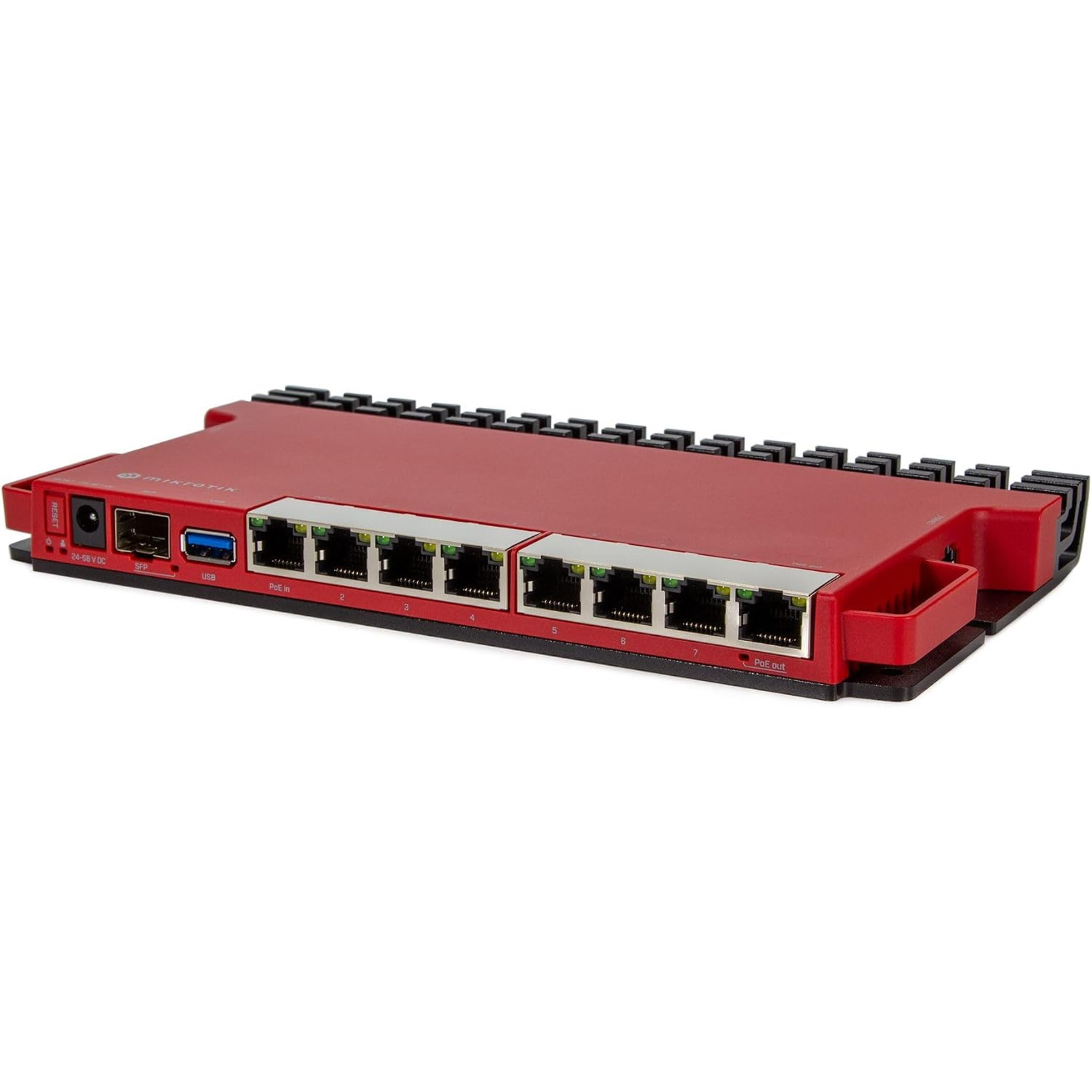

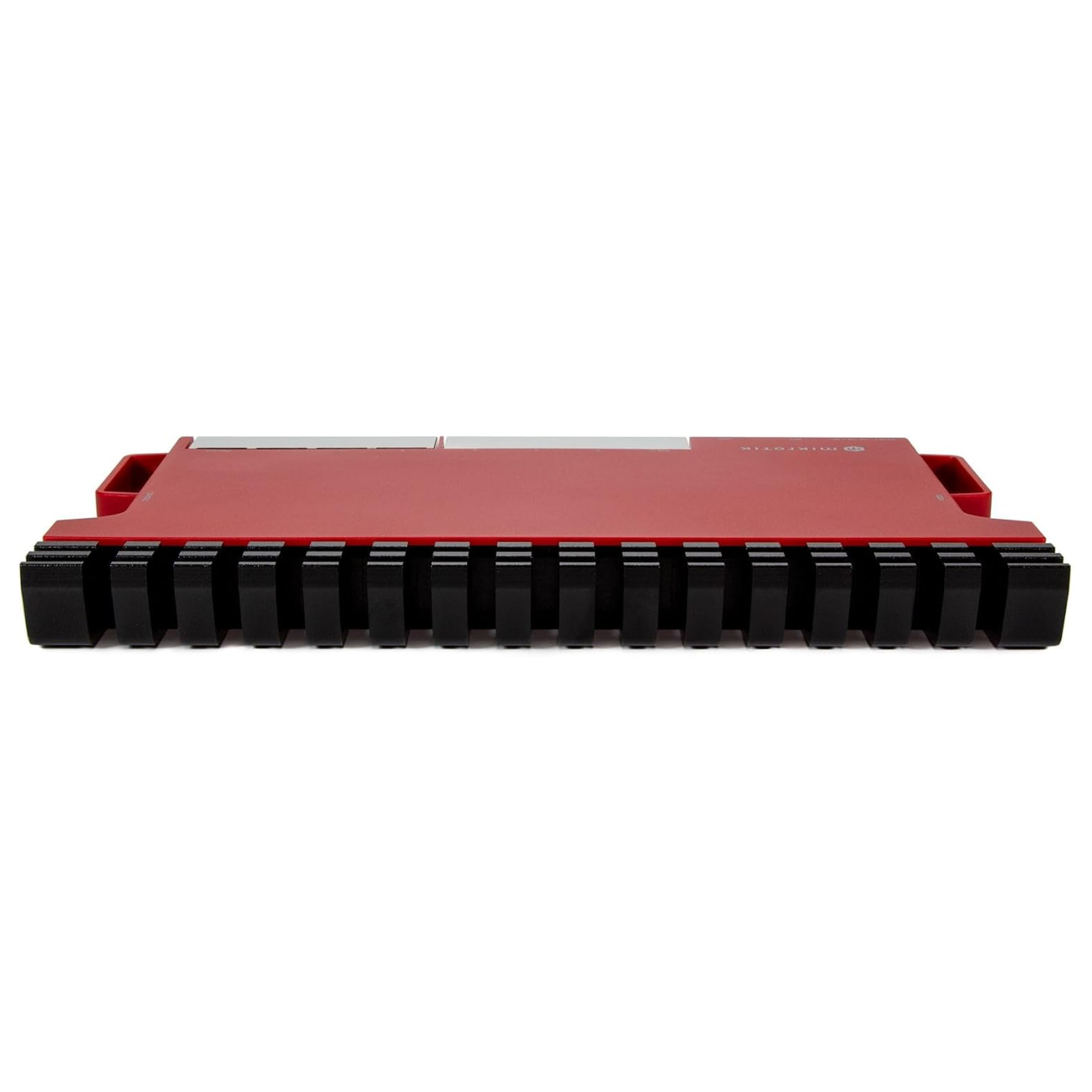

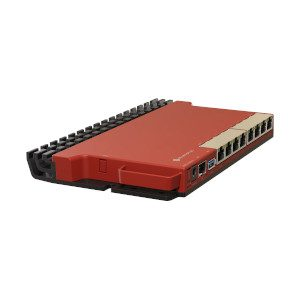

MikroTik L009UiGS-RM is a powerful and compact rack-mountable Gigabit Ethernet router designed for small and medium-sized businesses, professional networks, and advanced home or office deployments. Powered by the modern ARM-based Marvell 88F7040 CPU with improved performance compared with previous-generation models, the L009UiGS-RM delivers reliable routing, switching, firewall, VPN, and network management capabilities through the feature-rich RouterOS platform. The device comes with 8 Gigabit Ethernet ports, one SFP port supporting high-speed fiber connectivity, and a USB 3.0 port for additional storage or external applications. With its built-in 1U rackmount design, the L009UiGS-RM can be easily installed in standard network cabinets, making it an ideal choice for professional IT environments where space efficiency and centralized management are required. The router supports advanced MikroTik RouterOS features including VLAN configuration, advanced firewall rules, bandwidth management, load balancing, VPN services, routing protocols, and network monitoring tools, providing flexible solutions for various networking scenarios. In addition, the L009UiGS-RM features PoE output on the last Ethernet port, allowing users to power compatible devices such as access points, IP cameras, or other network equipment directly through the router. Its high-performance hardware, versatile interfaces, and enterprise-level software functions make it suitable for branch offices, ISP networks, security monitoring systems, and business infrastructure upgrades. As an upgraded solution in the MikroTik router lineup, the L009UiGS-RM combines affordability, reliability, and professional networking features, helping customers build stable, scalable, and efficient wired network solutions. ImportGm supplies original brand-new MikroTik products with competitive pricing, stable inventory, and professional global shipping services for distributors, resellers, system integrators, and business customers worldwide.
L009UiGS-RM
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Product Model | L009UiGS-RM |
Product Series | MikroTik L009 Series | |
Device Type | Rackmount Gigabit Router with SFP Uplink | |
Application Scenarios | SMB Networking, Branch Office Gateway, Fiber Broadband Access, Managed Network Infrastructure | |
Form Factor | 1U Rack-mountable Chassis | |
Hardware Core Specifications | CPU Model | IPQ-5018 |
CPU Architecture | ARM | |
CPU Core Count | 2 Cores | |
CPU Frequency | 800 MHz | |
RAM Size | 512 MB DDR3L | |
Storage | 128 MB NAND Flash | |
Switch Chip Model | 88E6190 | |
MTBF | Approx. 200,000 hours at 25°C | |

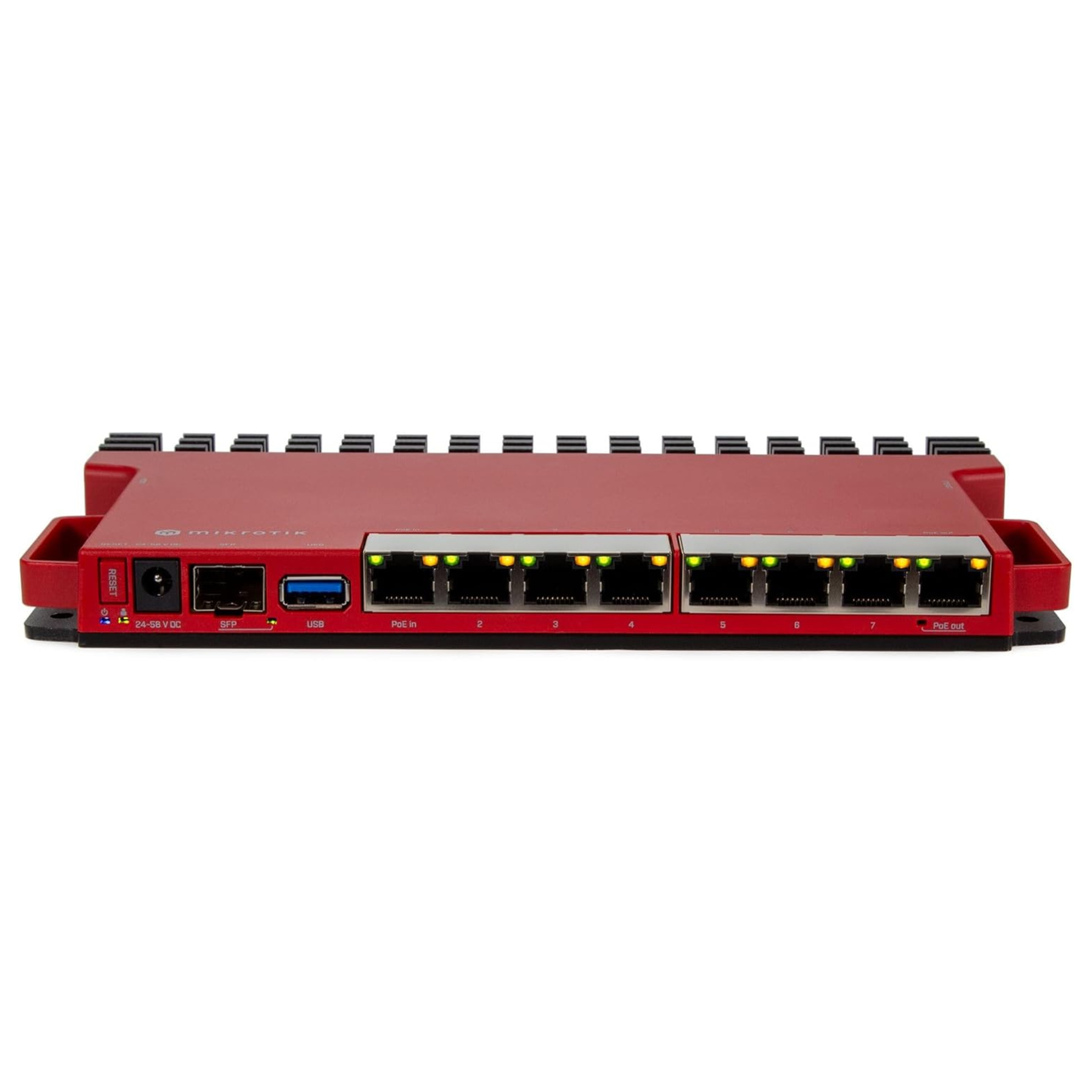

Port Configuration | 10/100/1000BASE-T Ethernet Ports | 8 x Gigabit Ethernet RJ45 Ports |
SFP Uplink Port | 1 x 2.5G SFP Slot (supports 1G/2.5G fiber/copper SFP transceivers) | |
USB Port | 1 x USB 3.0 Type-A Port | |
Serial Console Port | 1 x RJ45 Serial Console Port | |
PoE-In Port | Ether1 port (802.3af/at compliant) | |
PoE-Out Port | Ether8 port (Passive PoE output) | |
Power & PoE Specifications | Power Input Interfaces | 2 x DC Inputs (DC Jack + PoE-IN) |
DC Jack Input Voltage | 24 – 56 V DC | |
PoE-In Standard | IEEE 802.3af / 802.3at | |
PoE-In Input Voltage | 24 – 56 V DC | |
PoE-Out Type | Passive PoE | |
PoE-Out Current Limit | 1 A (24-30V DC input) / 450 mA (30-56V DC input) | |
Total PoE-Out Max Current | 1 A | |
Max Power Consumption | 40 W (with attachments) / 8 W (base unit only) | |
Cooling Type | Passive Cooling (Fanless) | |
USB Port Max Current | 1.5 A | |
Physical & Environmental Specifications | Dimensions (W × D × H) | 220 mm × 125 mm × 22 mm |
Weight | 1.6 kg | |
Operating Temperature | -40°C to +70°C | |
Storage Temperature | -40°C to +70°C | |
Operating Humidity | 10% – 90% Non-condensing | |
Ingress Protection | IP20 | |
Software & Management | Operating System | RouterOS v7 |
RouterOS License Level | Level 5 | |
Management Methods | Web-based GUI (Winbox), CLI, SSH, Telnet, SNMP | |
Reset Button | Yes (RouterBOOT reset button for configuration recovery) | |
Compliance & Certifications | Industry Certifications | CE, EAC, RoHS |
Supported Standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3at | |
Included Accessories | Standard Package Contents | 24V 1.5A Power Adapter, Fastening Set, Rackmount Kit K-79 |
