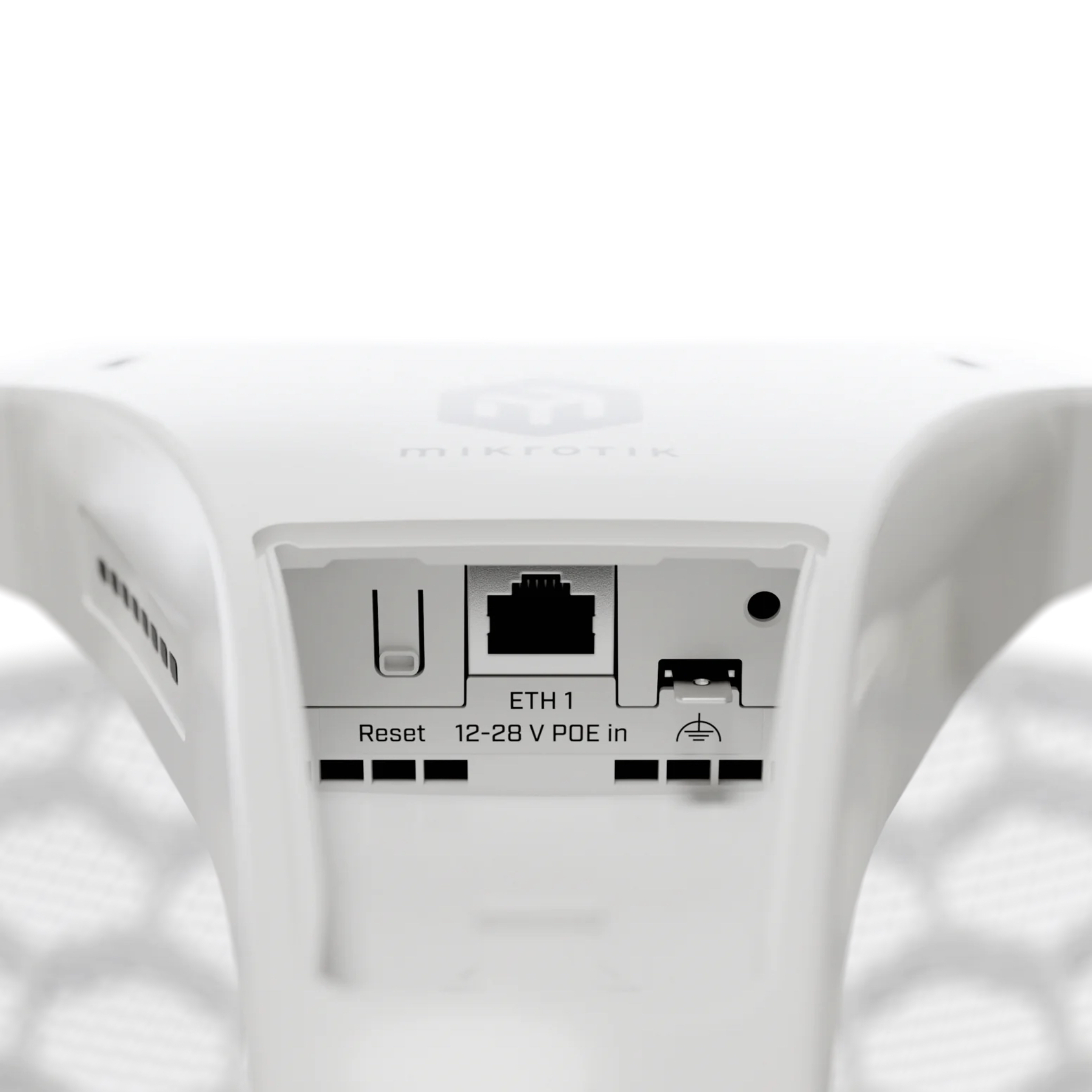

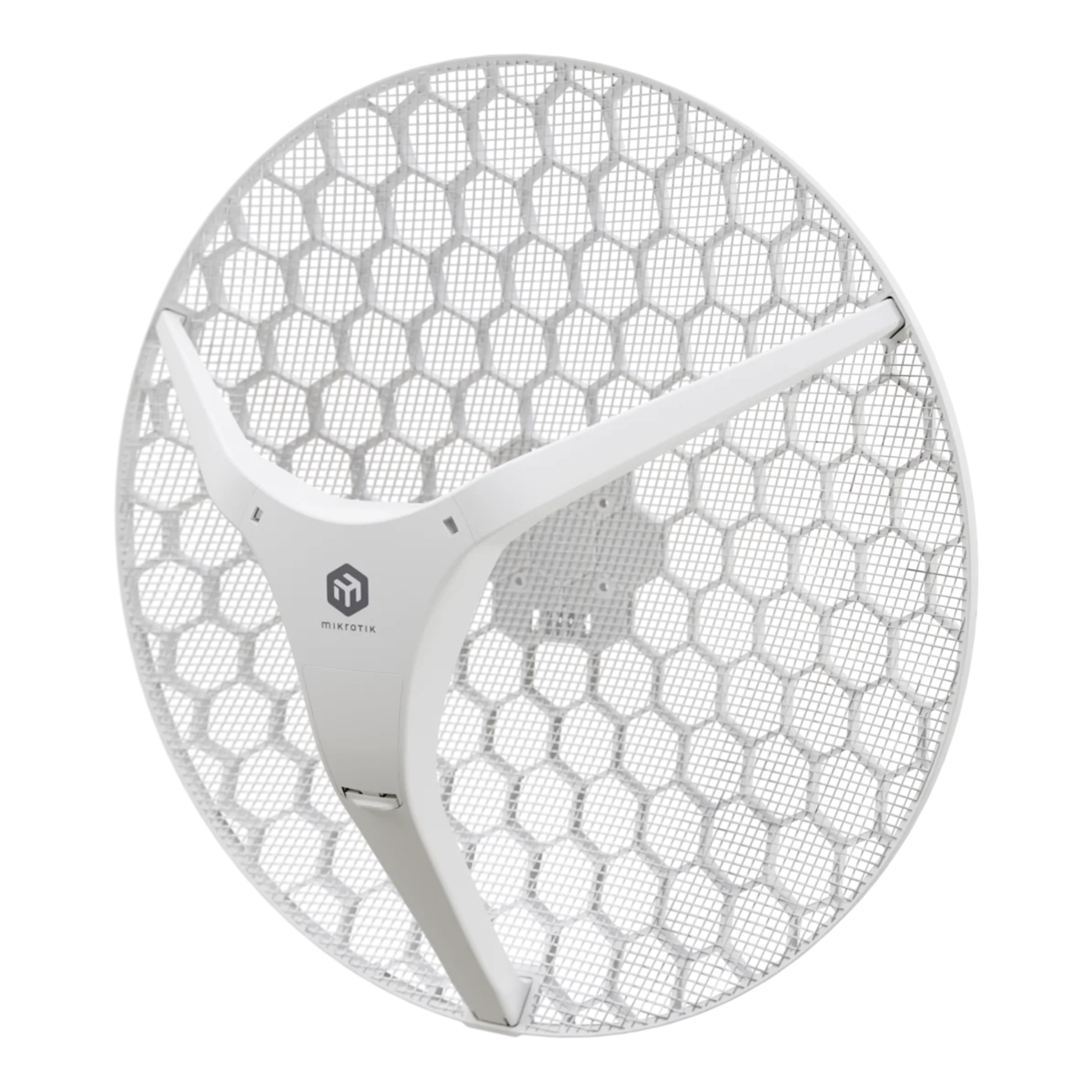

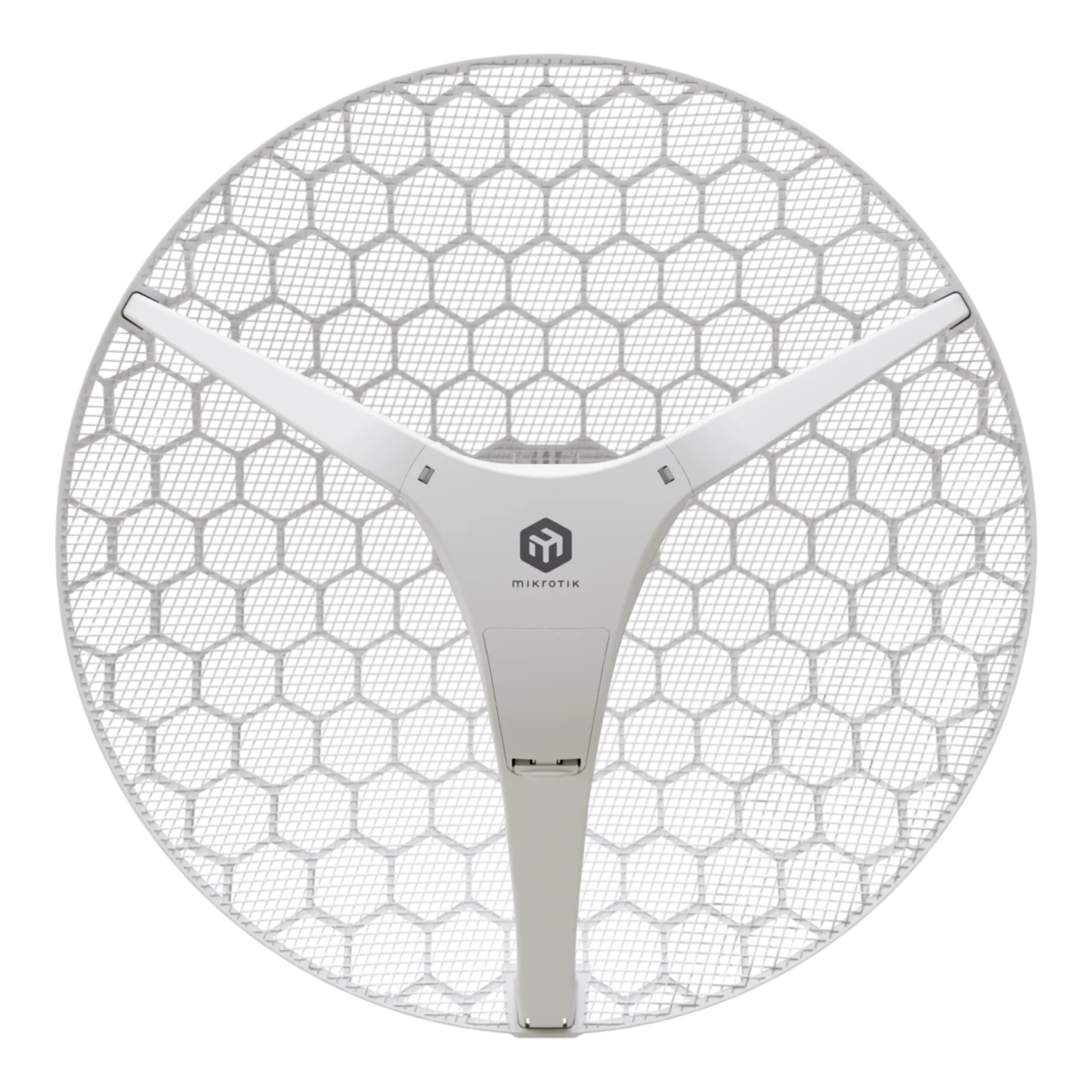

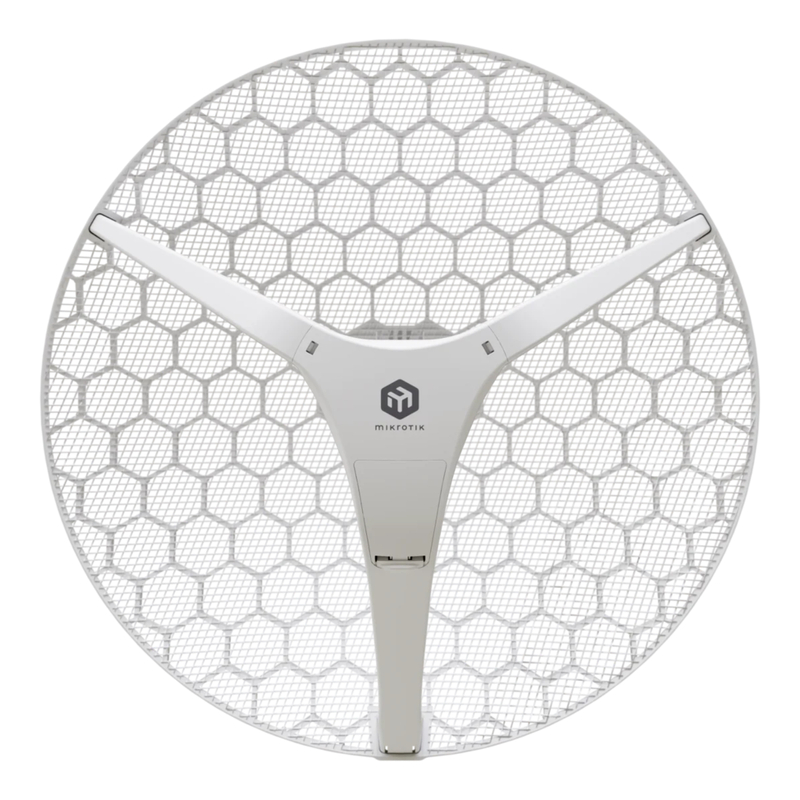

MikroTik LHG XL 5 ax LHG-5axD-XL Long-Range Outdoor Wi-Fi 6 CPE – 27 dBi Antenna, Up to 30 km PtP, 5 GHz 1200 Mbps, Gigabit PoE, IP54, RouterOS v7
The MikroTik LHG-5axD-XL is a high-performance outdoor 5 GHz Wi-Fi 6 wireless CPE designed for long-range point-to-point links, reliable wireless backhaul, and broadband connectivity in challenging outdoor environments. Equipped with a large 27 dBi high-gain grid antenna and 802.11a/n/ac/ax wireless technology, the LHG-5axD-XL delivers improved throughput, lower latency, and better interference handling compared with previous-generation wireless solutions, making it an excellent choice for extending network connectivity over long distances. The device is powered by a dual-core 800 MHz IPQ-5010 processor with 256 MB RAM and 128 MB NAND storage, while RouterOS v7 provides advanced routing, traffic management, firewall, wireless configuration, and network monitoring capabilities without requiring additional software licensing fees. Its integrated 1 Gigabit Ethernet port supports high-speed wired connectivity and passive PoE input from 12–28 V, allowing both power and data to be delivered through a single Ethernet cable for a clean and convenient outdoor installation. The aerodynamic grid antenna design helps reduce wind resistance while maintaining directional signal performance, and the rugged outdoor construction allows the device to operate reliably in temperatures from -40°C to +70°C. With its high-gain 27 dBi antenna, Wi-Fi 6 support, compact power requirements, and flexible RouterOS features, the MikroTik LHG-5axD-XL is well suited for ISP deployments, wireless broadband access, rural connectivity, building-to-building networking, remote offices, surveillance backhaul, and other long-distance wireless applications. The package includes the required mounting hardware, Gigabit PoE injector, power adapter, and hose clamps, enabling convenient deployment on poles or rooftops. For network integrators, ISPs, distributors, and professional wireless installers looking for a cost-effective long-range Wi-Fi 6 solution, the LHG-5axD-XL combines strong directional coverage, reliable outdoor performance, and MikroTik’s powerful networking platform in a single purpose-built device.
27 dBi Grid Parabolic Antenna, 2×2 MIMO Dual‑Chainmikrotik-s...
Frequency Band
5150‑5875 MHz (5 GHz)cdn.mikrot...
Power Supply
Passive PoE IN 12‑28 V DC
Max Power Consumption
5 W
Cooling
Passive Cooling, no fan
Ingress Protection
IP54 Rated for Outdoor Usemikrotik-s...
Operating Temperature
-40 °C ~ +70 °C
Dimensions
550 × 245 mm
Mounting Kit
Included for pole mounting
Security Support
WPA3, WPA2, WPA, 802.1X, Firewall
Certifications
CE, FCC, IC, EAC, RoHSmikrotik-s...
Shenzhen Importgm Technology Co., Ltd.
Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.
Q: What are the application scenarios for the MikroTik LHG-5axD-XL?
A: The LHG-5axD-XL is ideal for long-distance wireless links, rural connectivity, WISP networks, and point-to-point network connections.
Q: How to install the MikroTik LHG-5axD-XL?
A: The LHG-5axD-XL can be mounted on a pole or other suitable outdoor structure. Follow the included installation guide for proper mounting and connection.
Q: Does the MikroTik LHG-5axD-XL need upgrades?
A: Regular RouterOS updates are recommended for the LHG-5axD-XL to maintain performance, security, and access to the latest features.
Q: Are there alternative products to the MikroTik LHG-5axD-XL?
A: Alternatives to the LHG-5axD-XL include other MikroTik wireless products, such as the LHG 5 and LHG XL 52 ac, offering different wireless standards and performance.
Q: What are common troubleshooting tips for the MikroTik LHG-5axD-XL?
A: For common issues, check the power and Ethernet connections, verify wireless settings, and ensure the device is running the latest RouterOS version.
