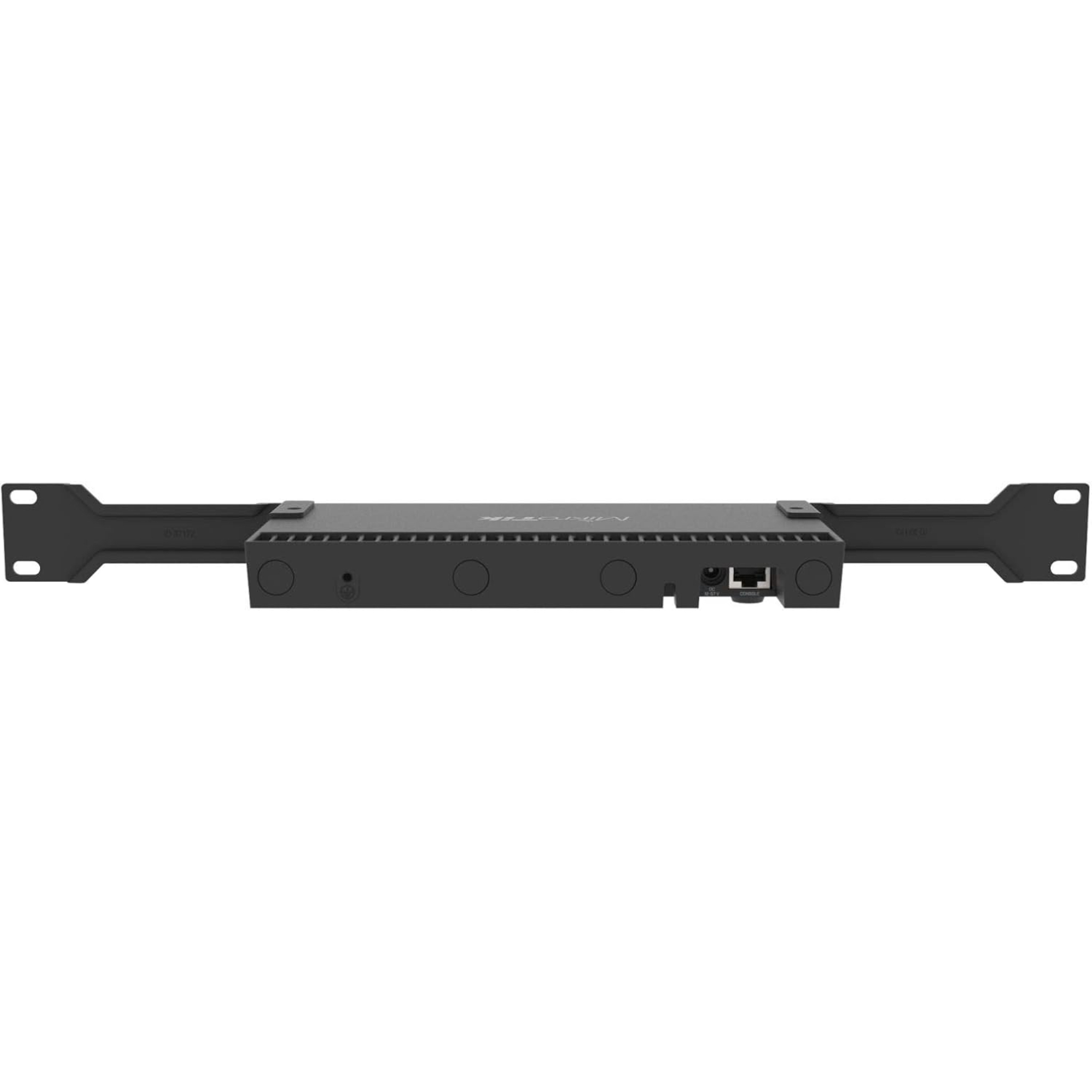

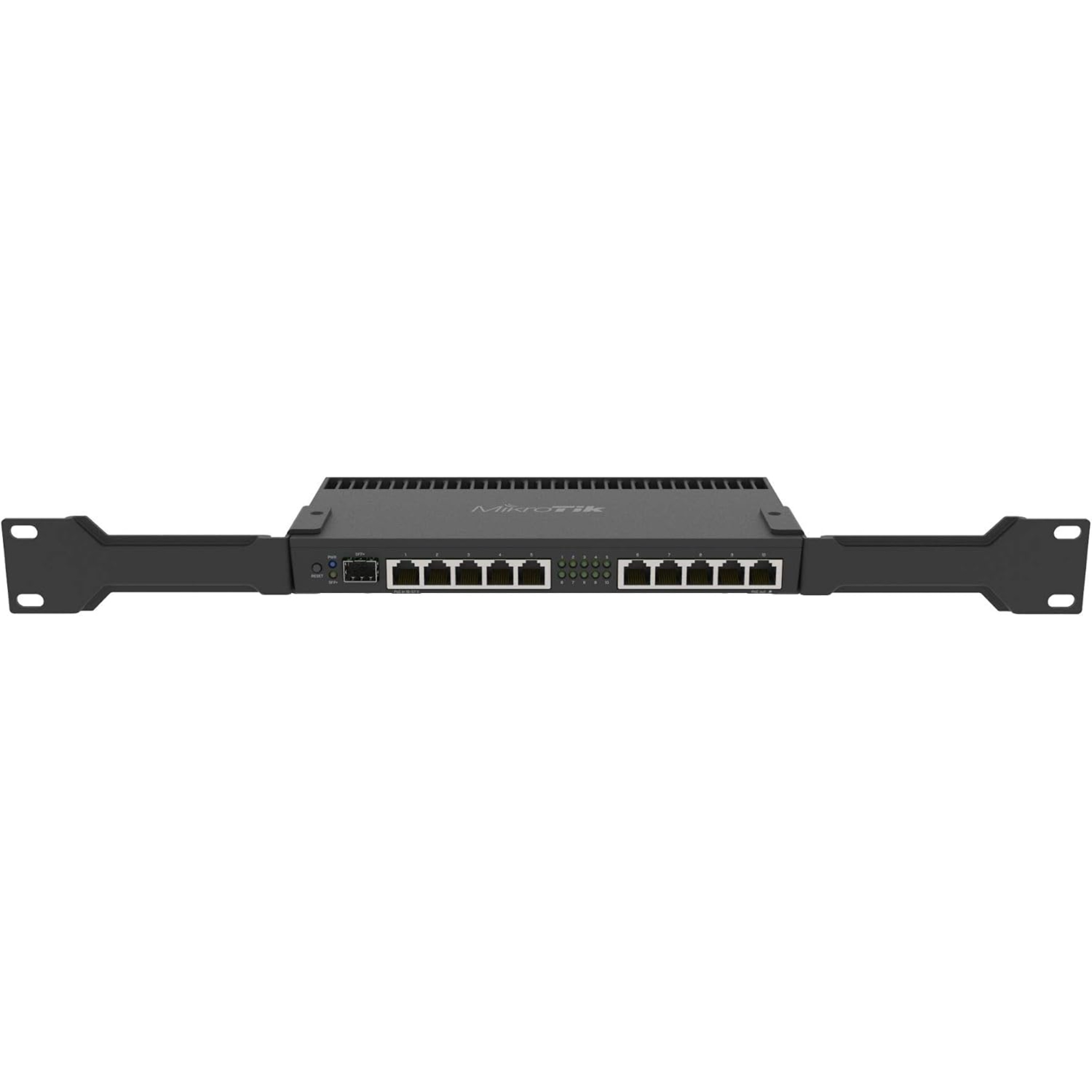

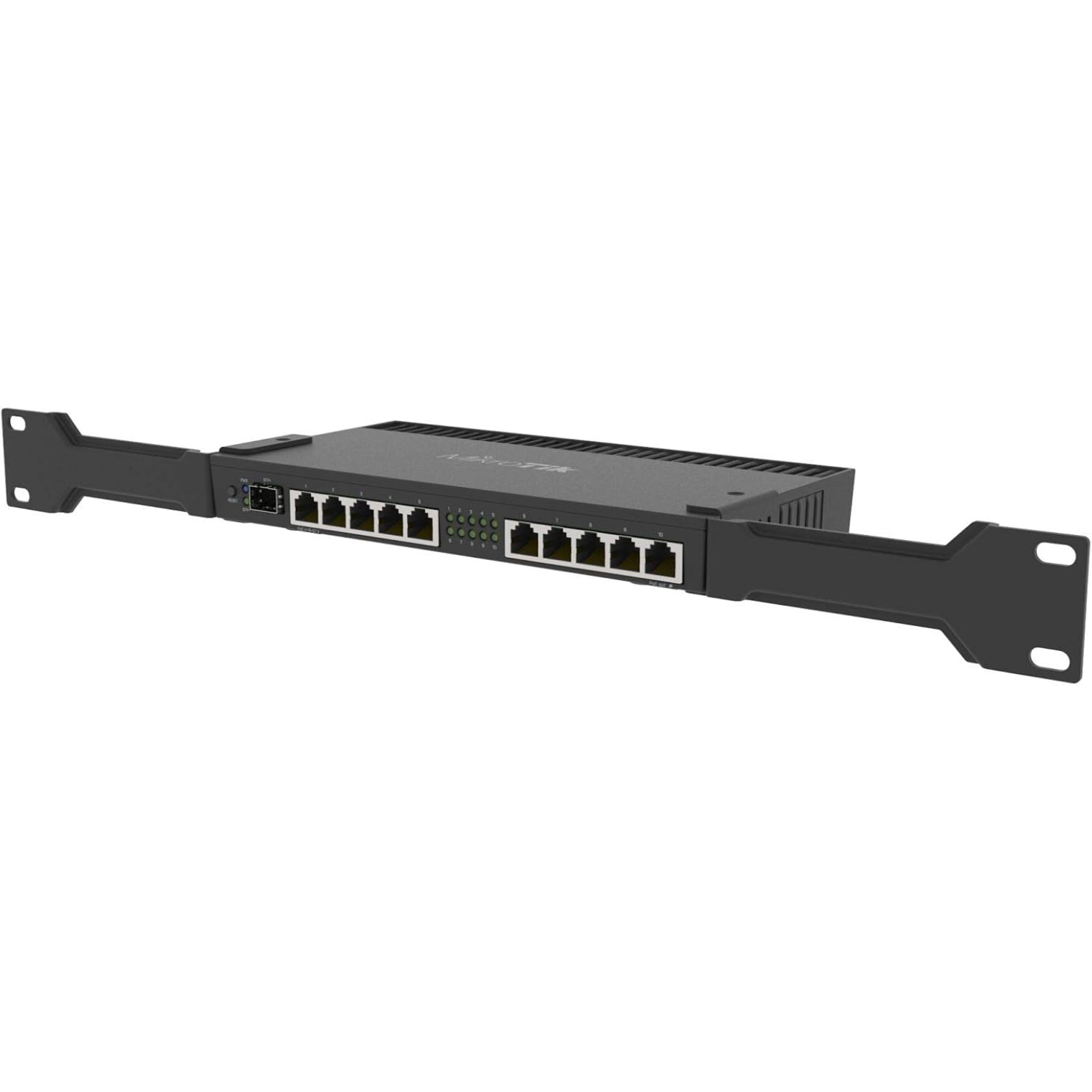

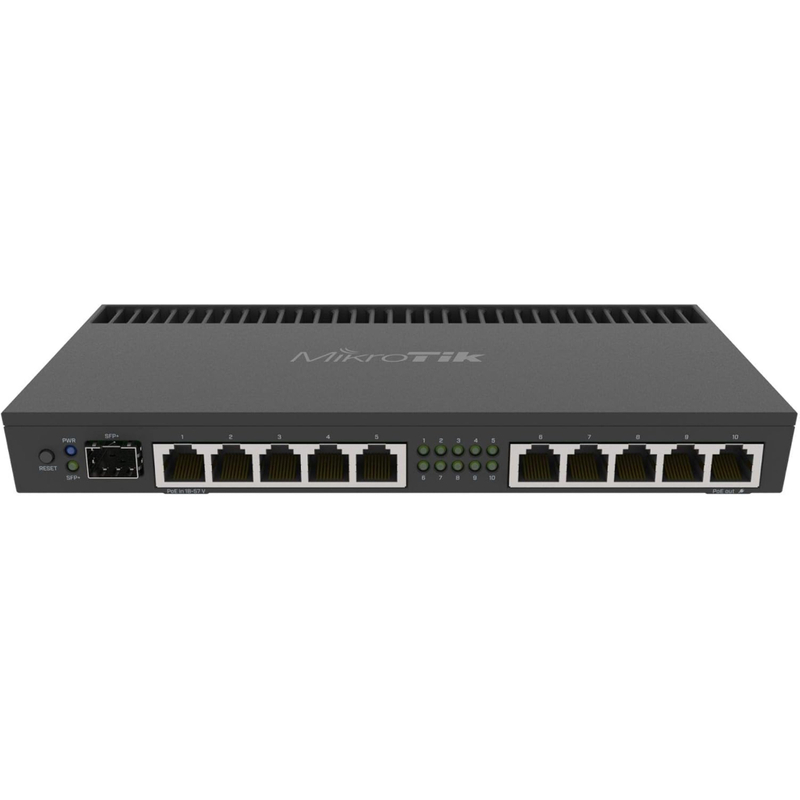

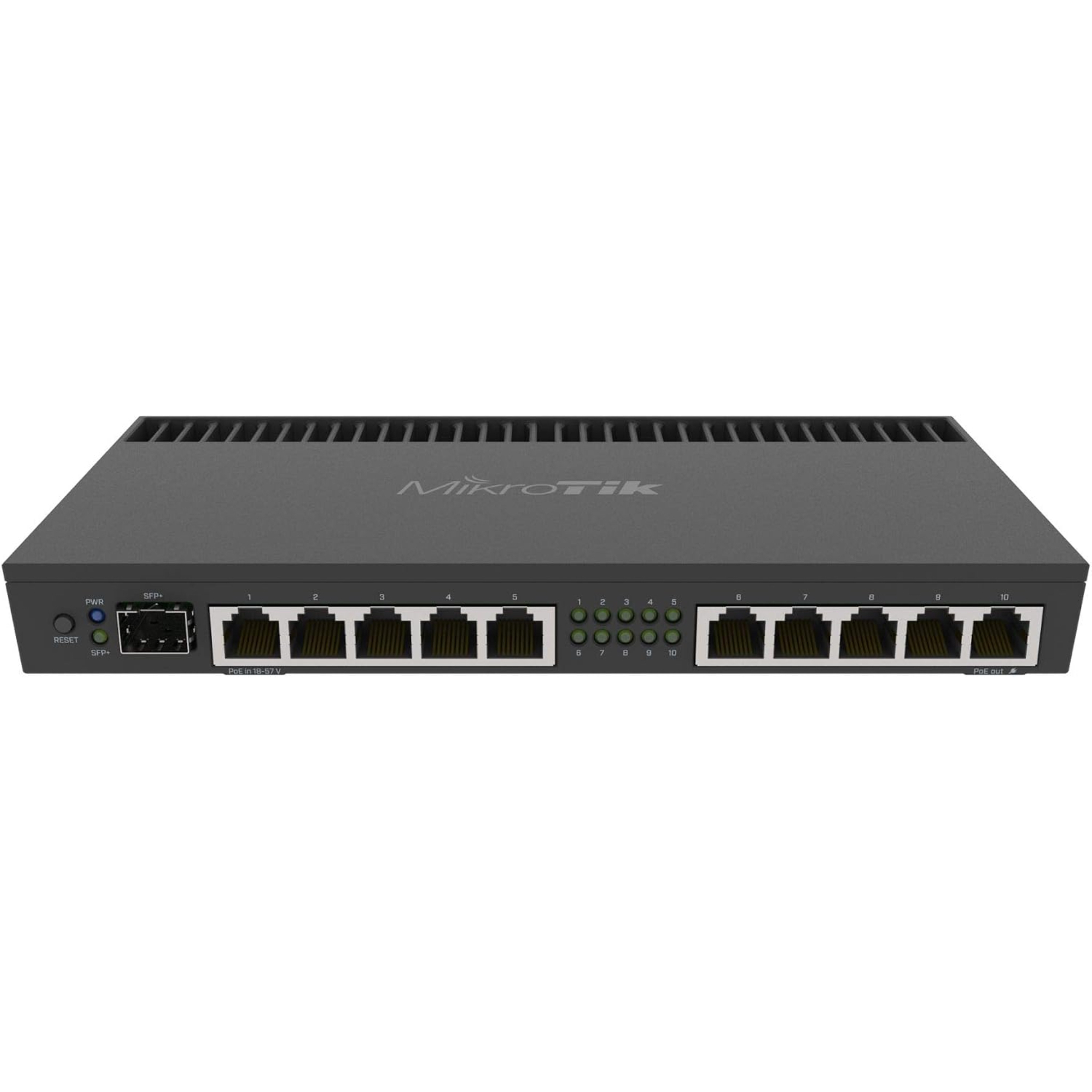

MikroTik RB4011iGS+RM is a powerful and reliable rackmount router designed for professional network environments that require high performance, advanced routing capabilities, and flexible connectivity. Powered by a quad-core 1.4 GHz Cortex A15 CPU and equipped with 1GB RAM, the RB4011iGS+RM delivers excellent processing performance for handling complex network tasks, multiple users, high-speed data transmission, and demanding enterprise applications. This model features 10 Gigabit Ethernet connectivity through one SFP+ port, along with ten Gigabit Ethernet ports for fast and stable wired connections, making it an ideal solution for businesses, ISPs, system integrators, and professional network deployments. Running on the powerful MikroTik RouterOS operating system, the RB4011iGS+RM supports a wide range of advanced networking features including firewall, VPN, VLAN, load balancing, routing protocols, bandwidth management, hotspot gateway, and network monitoring functions. Its compact 1U rackmount design allows easy installation in standard server racks, providing a neat and professional deployment option for data centers, enterprise offices, and communication rooms. With its combination of high-speed interfaces, robust hardware performance, flexible configuration options, and cost-effective design, the MikroTik RB4011iGS+RM is an excellent choice for organizations looking for a powerful Gigabit router capable of supporting modern network requirements. Whether used as an enterprise edge router, core network device, VPN gateway, or high-performance office router, the RB4011iGS+RM provides reliable connectivity and efficient network management for various professional applications. As an original MikroTik network equipment supplier, we provide brand-new genuine RB4011iGS+RM products with competitive pricing, stable supply, and professional support for global distributors, resellers, and business customers.
RB4011iGS+RM
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Product Model | RB4011iGS+RM |
Product Type | Wired Gigabit Router / 1U Rackmount Network Appliance | |
Brand | MikroTik | |
Operating System | RouterOS v7 | |
RouterOS License | Level 5 | |
Architecture | ARM 32-bit | |
Hardware Core Specifications | CPU Model | AL21400 |
CPU Cores | 4-Core | |
CPU Frequency | Auto-adjustable 533 MHz – 1900 MHz | |
RAM Size | 1 GB | |
Storage | 512 MB NAND Flash | |
Switch Chip | RTL8367SB | |
IPsec Acceleration | Hardware-based IPsec acceleration supported | |
MTBF | Approximately 200,000 hours at 25°C | |
Port Configuration | Ethernet Ports | 10 x 10/100/1000BASE-T RJ45 Gigabit Ethernet Ports |
SFP+ Port | 1 x 10 Gbps SFP+ Slot (for fiber/copper SFP+ transceivers) | |
Serial Console Port | 1 x RJ45 Serial Port | |
PoE-IN Port | Port 1 (Passive PoE, 18-57V DC) | |
PoE-OUT Port | Port 10 (Passive PoE, up to 57V DC) | |
Performance Specifications | Routing Throughput (1518-byte packets) | Up to 593.7 Mbps |
Routing Throughput (64-byte packets) | Up to 289.1 Mpps | |
Max Concurrent Connections | 100,000+ | |
Firewall Rules | Supports up to 7,209.9 kpps (512-byte packets) | |
Network & Security Features | Network Protocols | IPv4/IPv6 dual stack, BGP, OSPF, RIP, VLAN (802.1Q), LACP, DHCP Server/Client, NAT |
Security Features | IPsec VPN, SSL VPN, SSH, HTTPS, RADIUS/TACACS+ authentication, DoS attack protection, MAC filtering, Port Security | |
QoS | Traffic shaping, queue management, 802.1p CoS/DSCP priority mapping | |
Management | Winbox, WebFig, CLI, SNMP v1/v2c/v3, API | |
Power Specifications | Power Input Options | 2 x DC Inputs (5.5mm DC Jack + PoE-IN on Port 1) |
DC Jack Input Voltage | 12V – 57V DC | |
PoE-IN Input Voltage | 18V – 57V DC (Passive PoE) | |
PoE-OUT Output | Passive PoE on Port 10, up to 57V DC | |
Max Power Consumption | 33 W (with PoE-OUT enabled) | |
Max Power Consumption (Idle) | 18 W (without PoE-OUT or attachments) | |
Cooling Type | Passive Cooling (Fanless, silent operation) | |
Physical & Environmental Specifications | Dimensions (W × D × H) | 228 mm × 120 mm × 30 mm |
Form Factor | 1U Rackmount (standard 19-inch rack compatible) | |
Operating Temperature | -40°C to +70°C | |
Storage Temperature | -40°C to +70°C | |
Operating Humidity | 10% – 90% non-condensing | |
Environmental Rating | IP20 (Indoor use only) | |

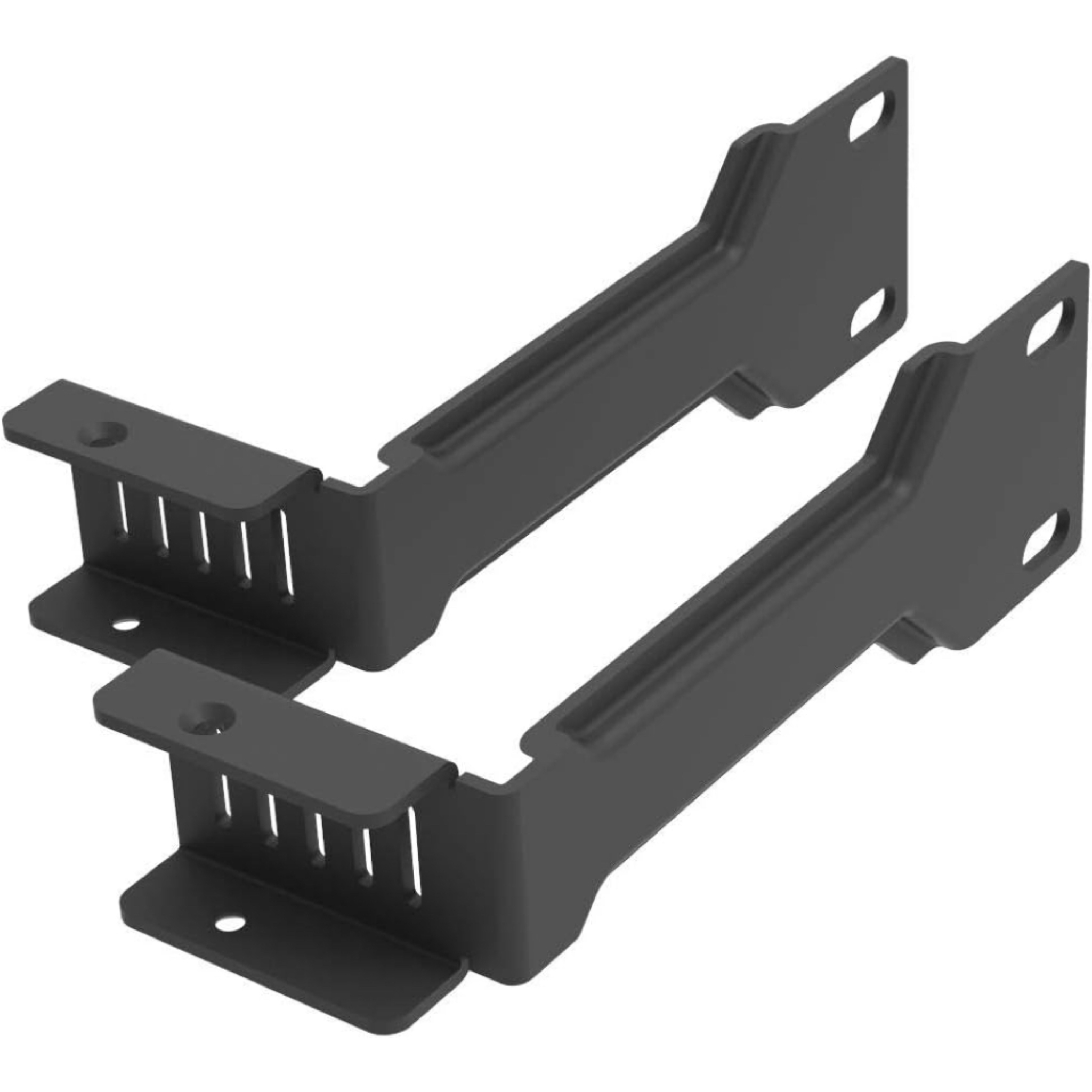

Included Accessories | Standard Package Contents | 24V 1.5A Power Adapter, Rackmount Ears, Screw Set |
