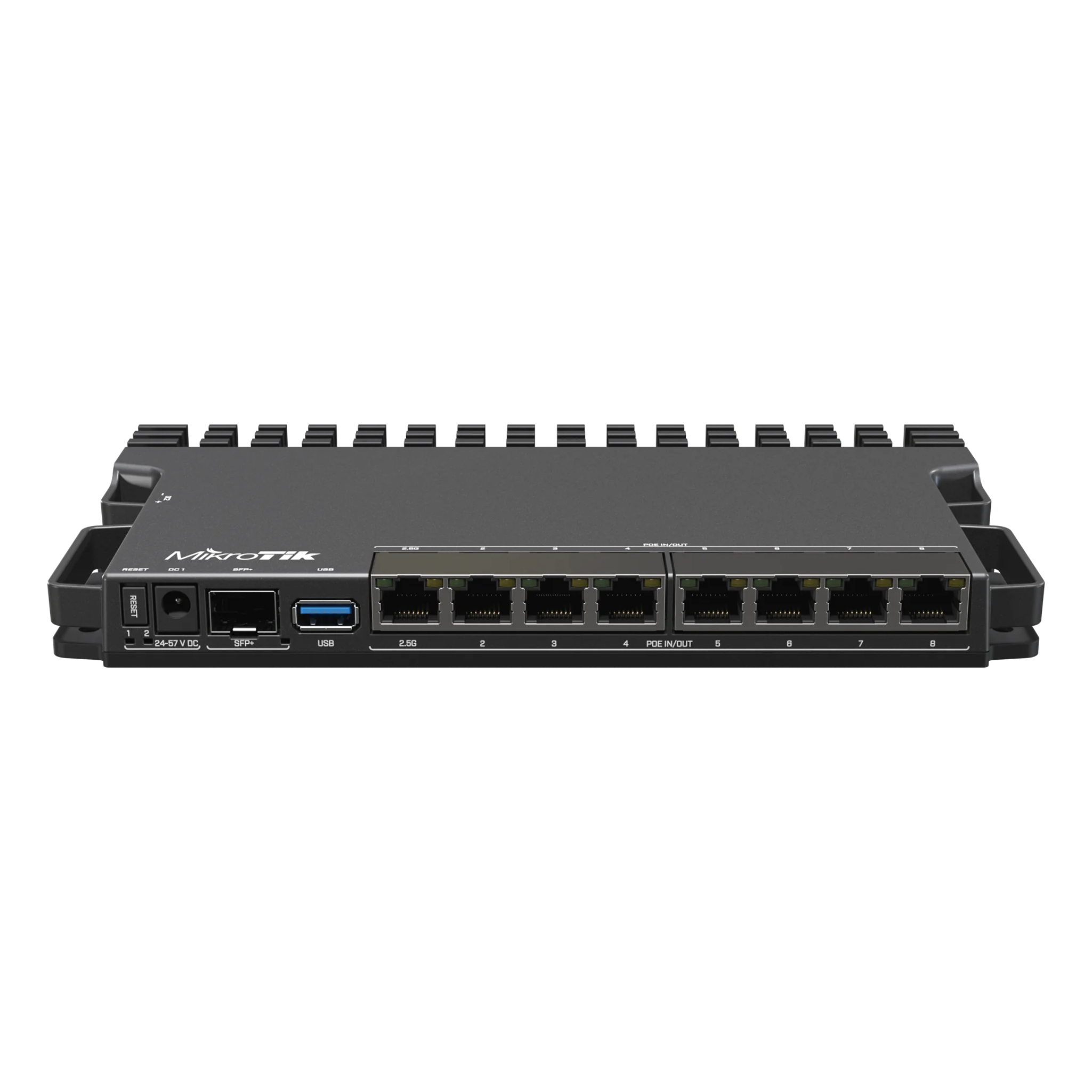

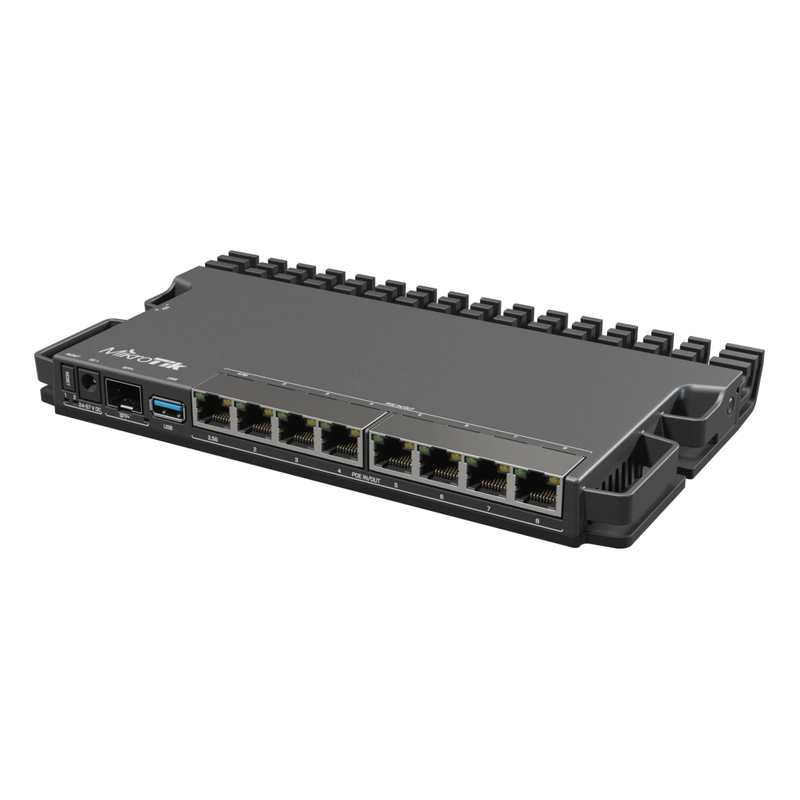

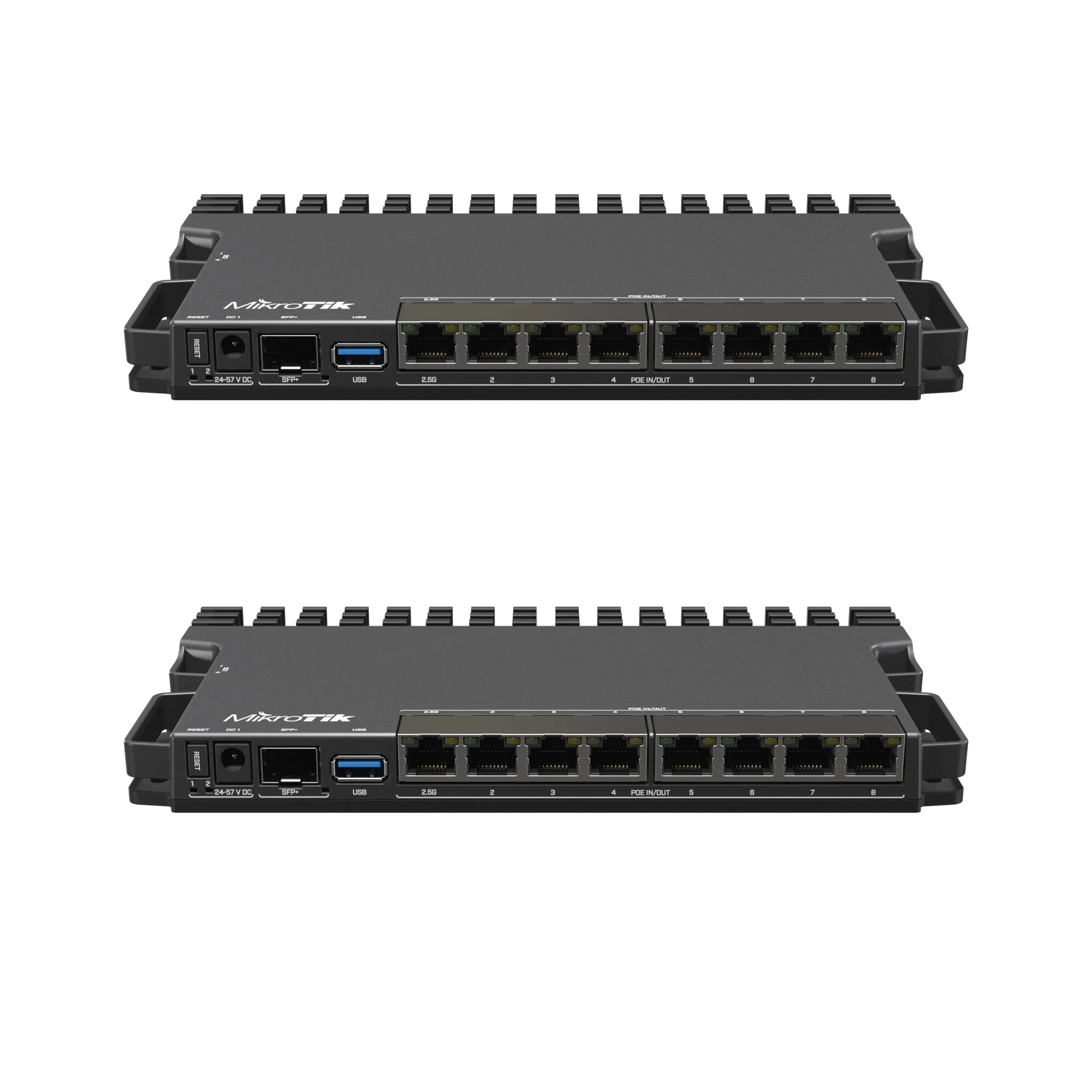

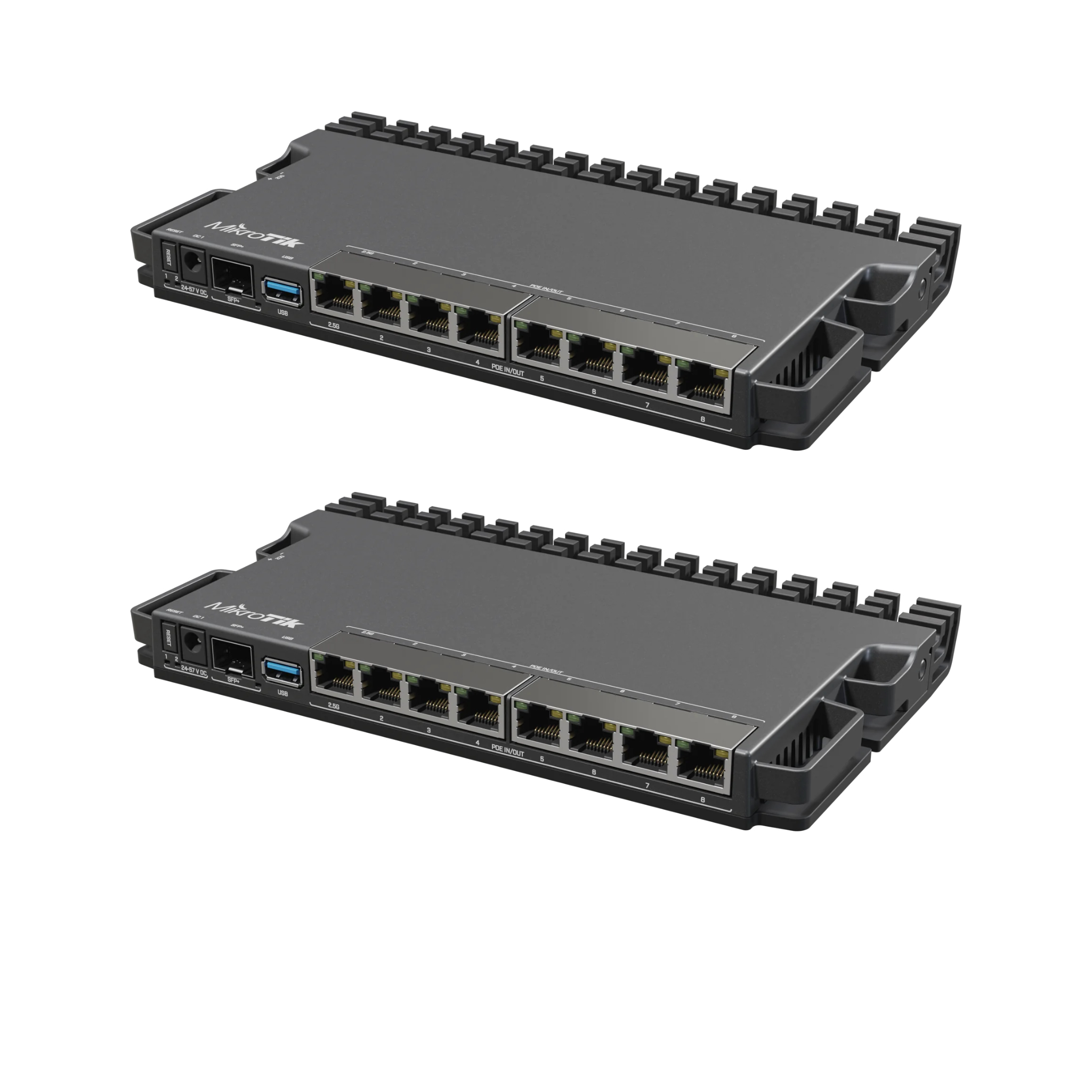

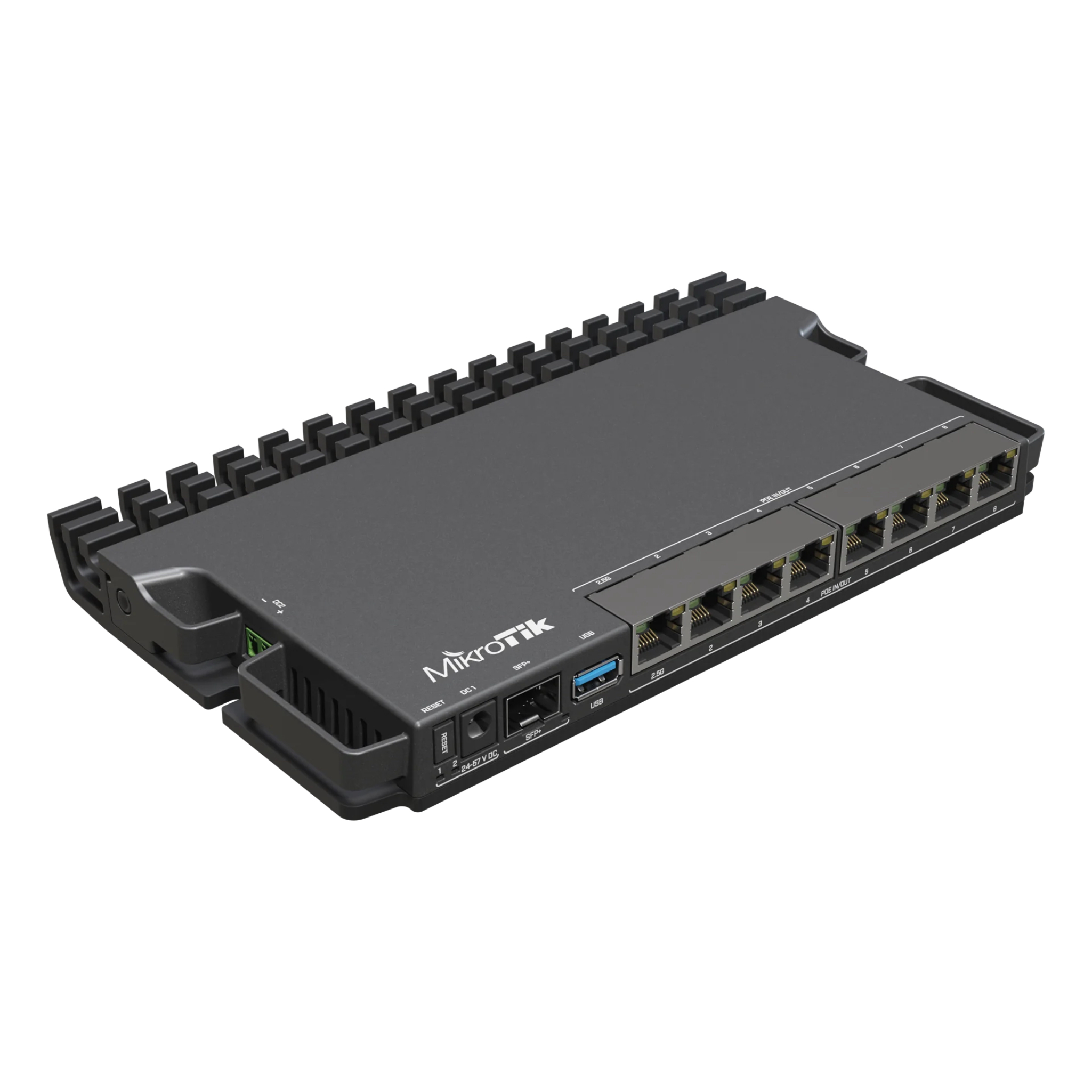

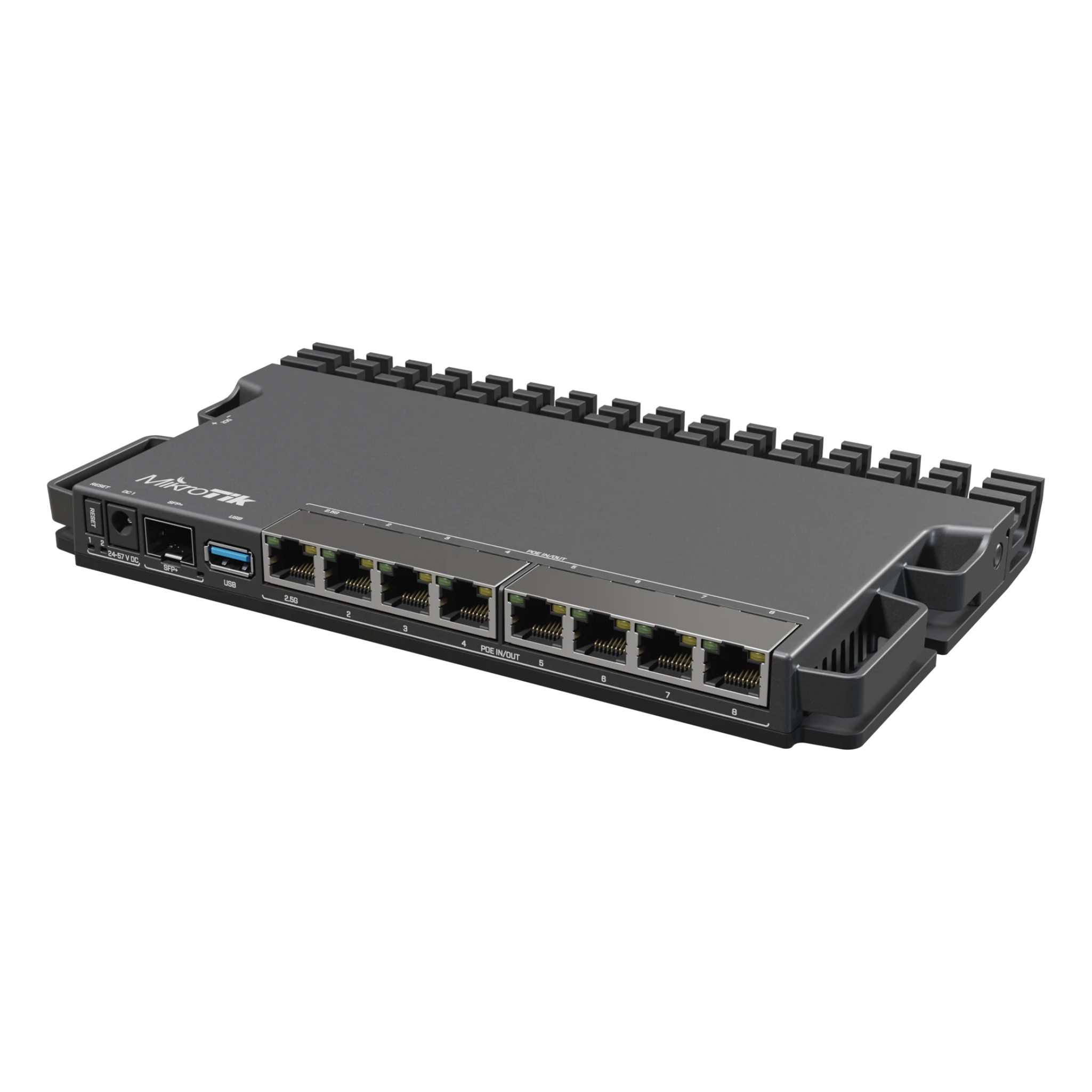

MikroTik RB5009UPr+S+IN is a high-performance compact router designed for professional networking environments, combining powerful routing capabilities, flexible connectivity, and advanced power management features in a space-saving desktop form factor. Powered by a quad-core ARM processor and equipped with 1GB RAM, this router delivers excellent performance for bandwidth-intensive applications such as enterprise networks, ISP deployments, office environments, and advanced home or SOHO networks. The RB5009UPr+S+IN features a rich selection of interfaces, including seven Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, and one 10G SFP+ port, providing high-speed wired connectivity and flexible fiber uplink options for modern network infrastructures. With its integrated PoE-in and PoE-out support, the device can power and connect multiple PoE-enabled devices such as access points, IP cameras, and other network equipment, simplifying installation and reducing the need for additional power solutions. Running on MikroTik RouterOS, the RB5009UPr+S+IN offers a comprehensive set of professional networking functions, including advanced routing, firewall, VPN, VLAN, bandwidth management, load balancing, and network monitoring features. Its robust hardware architecture, efficient cooling design, and reliable performance make it an ideal choice for businesses, system integrators, and network professionals seeking a powerful yet cost-effective router solution. Whether used as a core router, gateway device, or network management platform, the MikroTik RB5009UPr+S+IN provides exceptional performance, scalability, and flexibility to meet the demands of modern high-speed networks.
RB5009UPr+S+IN
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Product Model | RB5009UPr+S+IN |
Brand | MikroTik | |
Product Type | Professional Gigabit/2.5G/10G PoE Router Board | |
Application Scenarios | SMB Networking, Enterprise Gateway, PoE Device Powering, ISP Customer Premises Equipment (CPE), Industrial Networking | |
Core Hardware Specifications | CPU Model | 88F7040 1.4 GHz |
CPU Architecture | ARM 64-bit | |
CPU Core Count | 4 Cores | |
RAM | 1 GB DDR4 | |
Storage | 1 GB NAND Flash | |
Switch Chip Model | Marvell 88E6393 | |
Port Configuration | 10/100/1000BASE-T Ethernet Ports | 7 x RJ45 ports (Ether2-Ether8) |
2.5G Ethernet Port | 1 x RJ45 port (Ether1, 802.3af/at PoE-in supported) | |
10G SFP+ Fiber Port | 1 x SFP+ slot (supports 10G/5G/2.5G/1G SFP+ transceivers) | |
USB Port | 1 x USB 3.0 Type-A port | |
Console Port | 1 x RJ45 Serial Console Port | |
PoE Specifications (UPr Version Core) | PoE-in Standard | IEEE 802.3af/at (Ether1 port), Mode B (Ether2-Ether8) |
PoE-in Input Voltage | 24-57 V DC | |
PoE-out Standard | IEEE 802.3af/at compliant | |
PoE-out Ports | Ether1 - Ether8 (all 8 Ethernet ports) | |
Low Voltage PoE-out Current Limit | 900 mA per port (input < 30 V) | |
High Voltage PoE-out Current Limit | 440 mA per port (input > 30 V) | |
Total PoE-out Power | 130 W | |
Total PoE-out Current | 2.59 A | |
PoE Management | Smart PoE Controller, per-port current limiting, thermal protection | |
Power Supply Parameters | Supported Input Voltage | 24-57 V DC (PoE-in / DC input) |
Number of DC Inputs | 3 | |
Total Output Current | 2.28 A | |
USB Port Max Output Current | 1.5 A | |
Physical & Environmental Specifications | Dimensions (W × D × H) | 220 mm × 125 mm × 22 mm |
Cooling Type | Passive (Fanless) | |
Operating Temperature | -40°C to +60°C (-40°F to 140°F) | |
Storage Temperature | -40°C to +70°C (-40°F to 158°F) | |
Operating Humidity | 10%–90% non-condensing | |
IP Protection Rating | IP20 | |
Monitoring Features | CPU temperature monitor, PCB temperature monitor, voltage monitor, current monitor | |
Software & Management | Operating System | RouterOS v7 (only v7 supported) |
Management Methods | Web-based GUI (Winbox), CLI, SSH, Telnet, SNMP, Netinstall | |
Reset Function | RouterBOOT reset button (config reset, Netinstall mode, backup loader) | |
Certification & Compliance | Regulatory Certifications | CE, EAC, RoHS |
Compliance Standards | IEEE 802.3af/at, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz |
