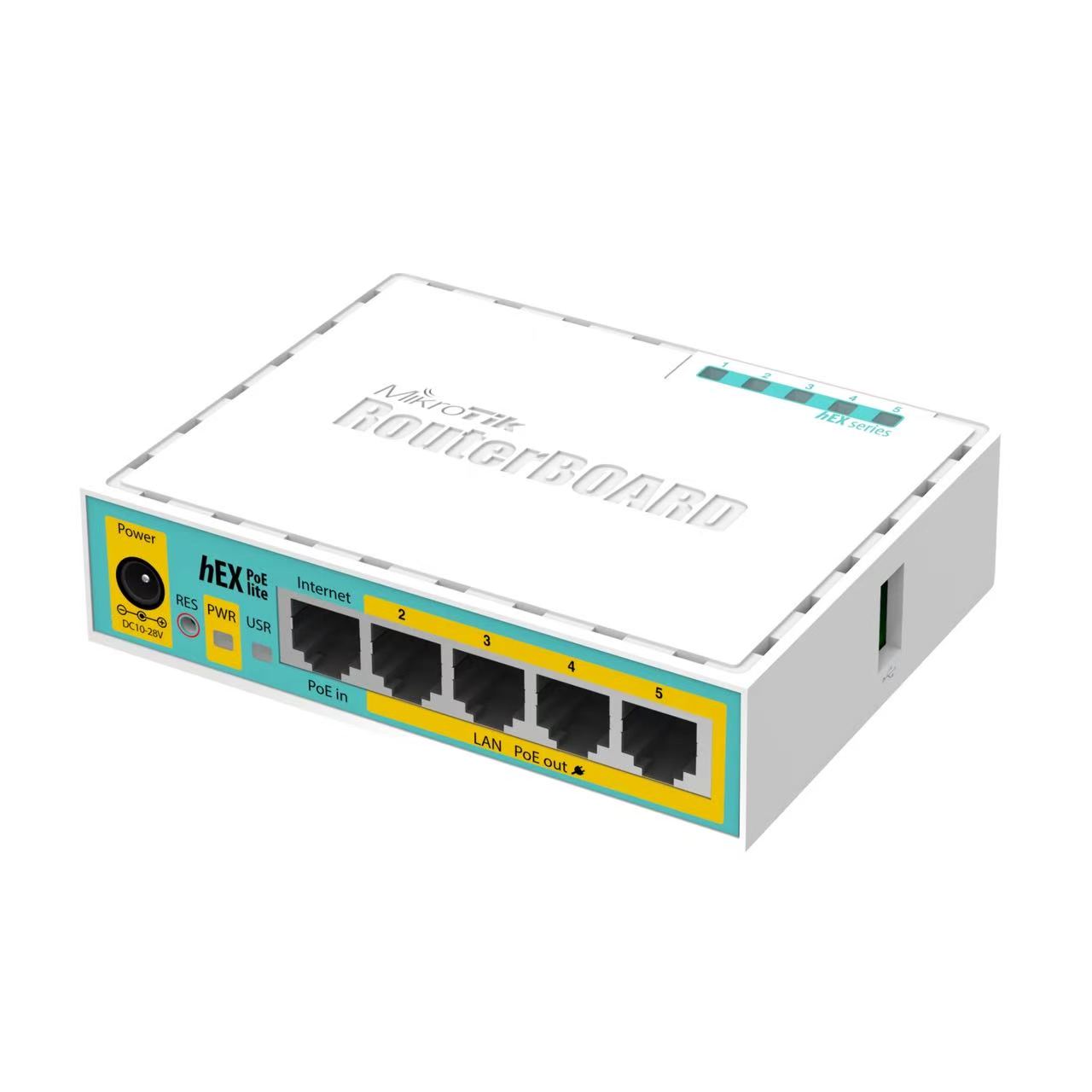

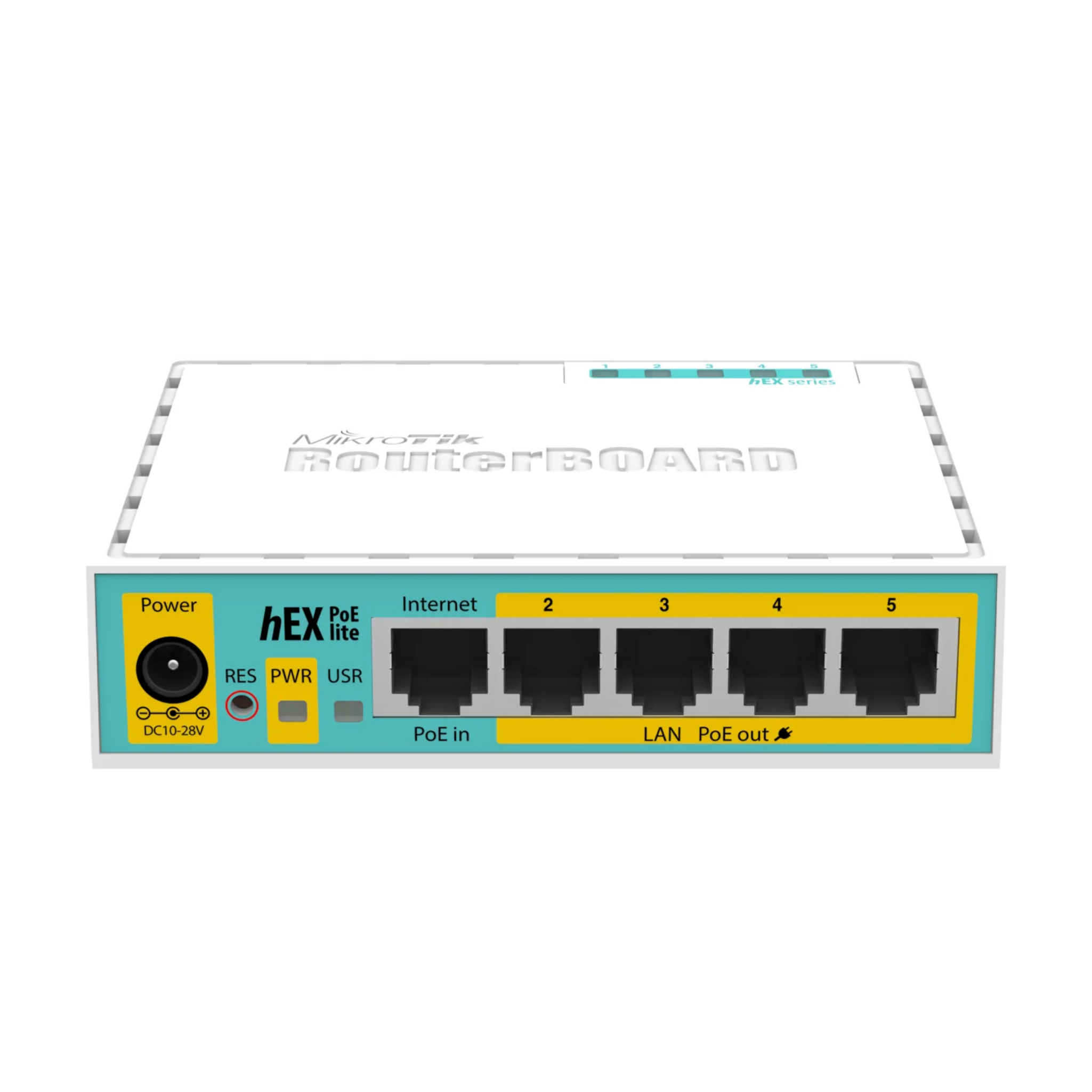

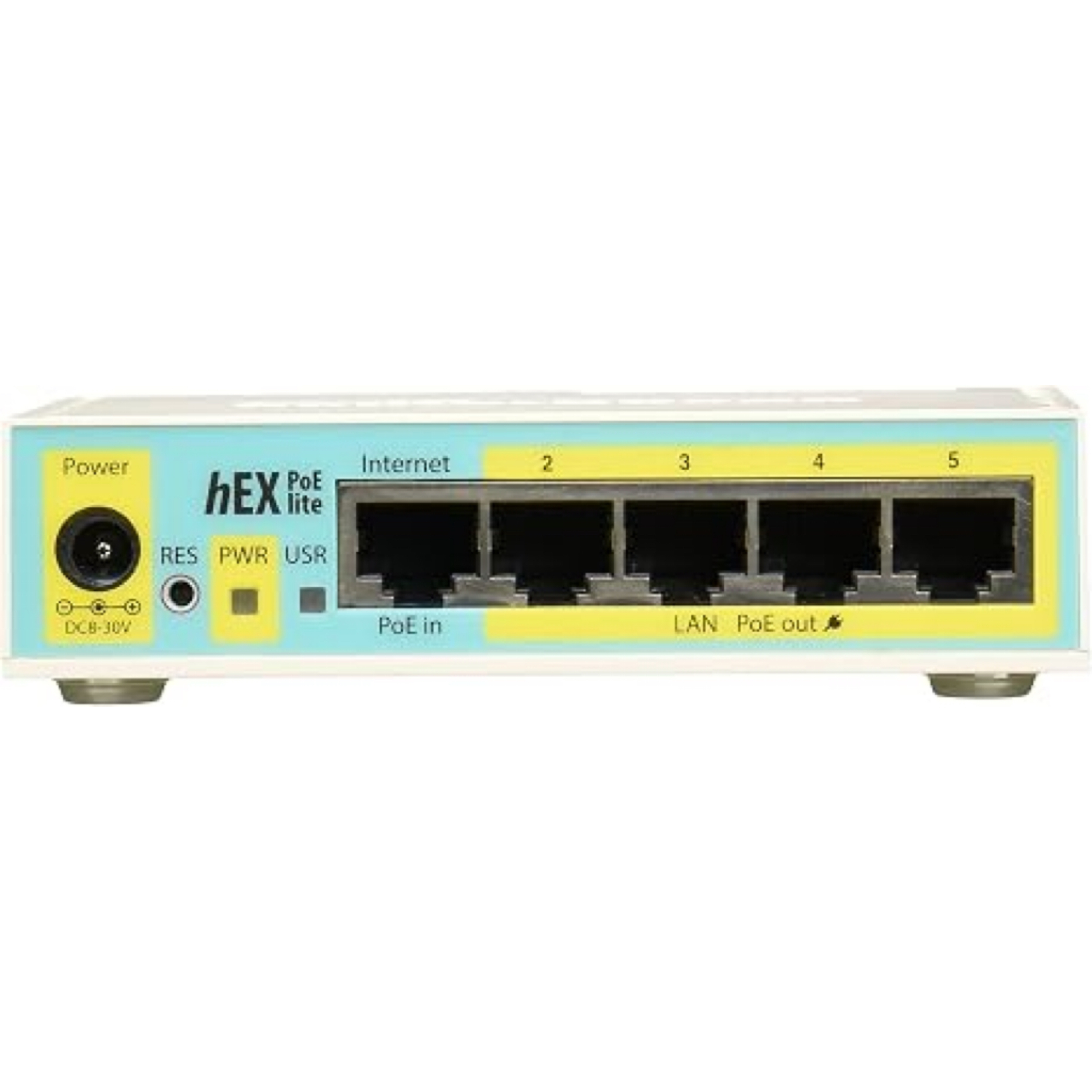

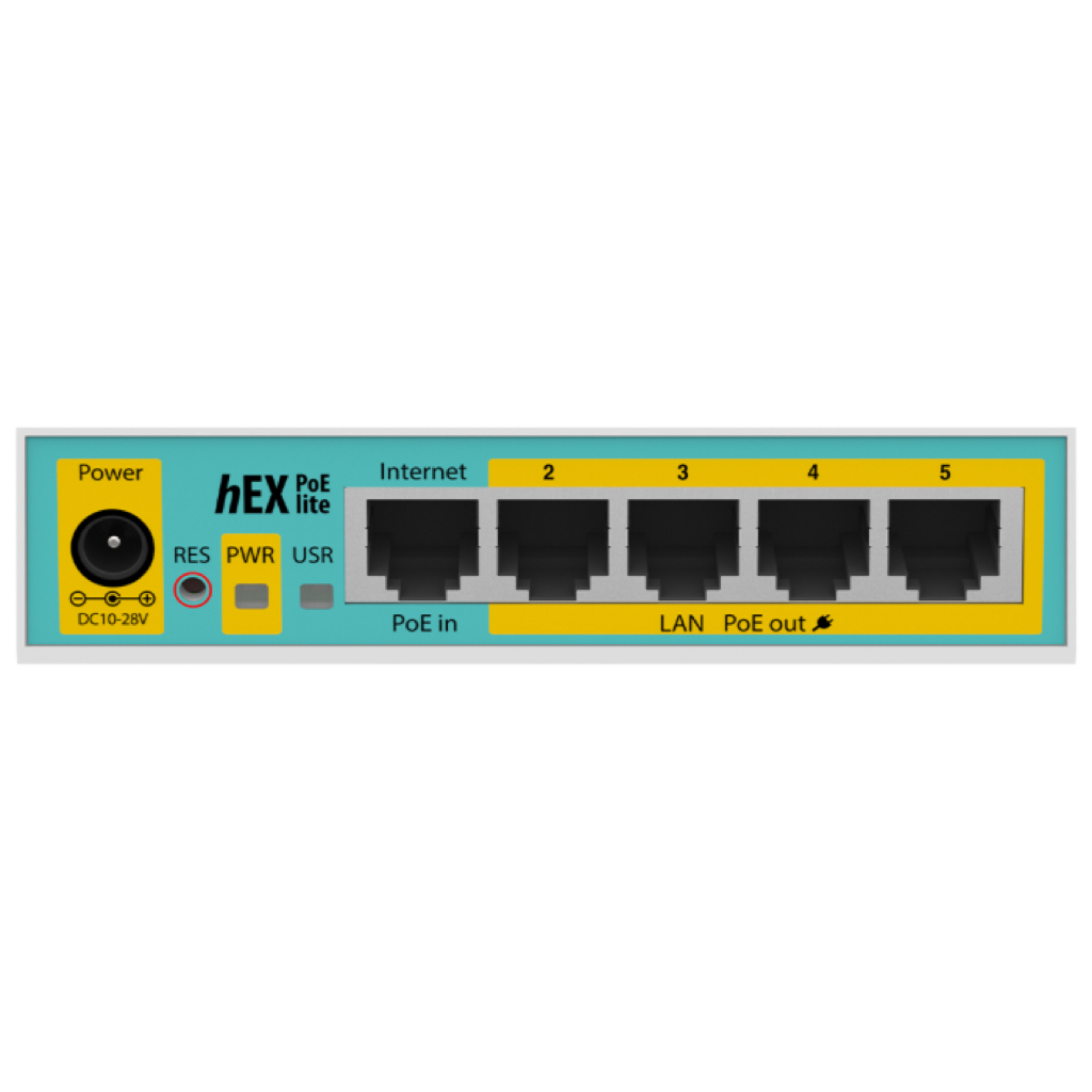

The MikroTik RB750UPr2 is a compact yet powerful 5-port Ethernet router designed for small to medium-sized business networks, remote offices, wireless ISP deployments, and surveillance systems that require reliable routing and Power over Ethernet (PoE) functionality. Featuring five Fast Ethernet ports, the RB750UPr2 supports passive PoE output on ports 2–5, allowing it to power compatible devices such as wireless access points, IP cameras, and other MikroTik equipment directly through the Ethernet cable, simplifying installations and reducing the need for additional power adapters. Powered by a high-performance Atheros CPU and equipped with 64MB of RAM, the router delivers stable routing performance for bandwidth management, firewall protection, VPN connectivity, NAT, VLAN configuration, QoS, and advanced traffic control. A built-in USB 2.0 port provides additional flexibility for connecting 3G/4G LTE modems or external storage devices, making it suitable for backup WAN connectivity and other network applications. Running the advanced MikroTik RouterOS operating system with a Level 4 license, the RB750UPr2 offers enterprise-grade networking features including dynamic routing protocols, hotspot gateway, load balancing, failover, DHCP server, IPv6 support, secure remote management, and comprehensive network monitoring. Its fanless, energy-efficient design ensures quiet and reliable operation while the durable compact enclosure allows convenient desktop or wall-mounted installation. The RB750UPr2 is an ideal networking solution for retail stores, offices, hotels, educational institutions, branch networks, and industrial environments seeking a cost-effective, feature-rich router with integrated PoE capabilities. With MikroTik's renowned reliability, flexible configuration options, and professional-grade RouterOS software, the RB750UPr2 delivers excellent network stability, simplified device deployment, and outstanding value for businesses looking to build secure, scalable, and easy-to-manage network infrastructures.
RB750UPr2
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Product Model | RB750UPr2 |
Product Series | MikroTik hEX PoE lite | |
Device Type | Wired Router with Passive PoE Output | |
Core Application | SOHO Networks, IP Camera Systems, Wireless AP Powering, VoIP Phone Deployments, ISP CPE | |
Hardware Core Specs | Architecture | MIPSBE |
CPU Model | QCA9531 | |
CPU Frequency | 650 MHz | |
CPU Cores | 1 | |
RAM | 64 MB | |
Storage | 16 MB FLASH | |
Port Configuration | Ethernet Ports | 5 x 10/100 Mbps Shielded Ethernet Ports (Auto-MDI/X) |
PoE Input Port | 1 x PoE-IN (Port 1, 8-30V DC Passive PoE) | |
PoE Output Ports | 4 x PoE-OUT (Ports 2-5, Passive PoE) | |
USB Port | 1 x USB 2.0 Type A Port | |
Power Input Interface | 1 x DC Power Jack (5.5mm x 2mm, 8-30V DC) | |
PoE Power Specifications | PoE Type | Passive PoE (802.3af/at not supported) |
PoE Input Voltage | 8-30V DC (both DC jack and PoE-IN port) | |
PoE Output Voltage | Same as input voltage (8-30V DC) | |
Per-port PoE Output Current | Max 1A | |
Total PoE Output Current | Max 2A | |
PoE Control | Enable/Disable via RouterOS software | |
Performance Specifications | Fast Path Throughput | Up to 493 Mbps |
64-byte Packet Forwarding Rate | Up to 40.6 Mpps | |
Hardware Switch | Yes, with port mirror support | |
Max Simple Queues | 25 | |
Max IP Filter Rules | 25 | |
System & Software Features | Operating System | MikroTik RouterOS |
License Level | Level 4 (full feature set) | |
Management Methods | WebFig, CLI, Telnet, SSH, SNMP | |
Built-in Monitoring | PCB Temperature Monitor, Voltage Monitor, Current Monitor | |
Supported Functions | DHCP Server/Client, NAT Firewall, QoS Traffic Shaping, Static/Dynamic Routing, VPN (PPTP/L2TP/OpenVPN/IPSec) | |
Physical & Environmental Specs | Dimensions (W × D × H) | 113 × 89 × 28 mm |
Weight | 130g (without packaging and cables) | |
Operating Temperature | -30°C to +70°C (-22°F to 158°F) | |
Storage Temperature | -40°C to +70°C (-40°F to 158°F) | |
Operating Humidity | 10% – 90% non-condensing | |
Power Consumption | Typical Power Consumption | 2.4 W |
Max Power Consumption (no PoE load) | 3.6 W | |
Max Power Consumption (full PoE load) | 51 W | |

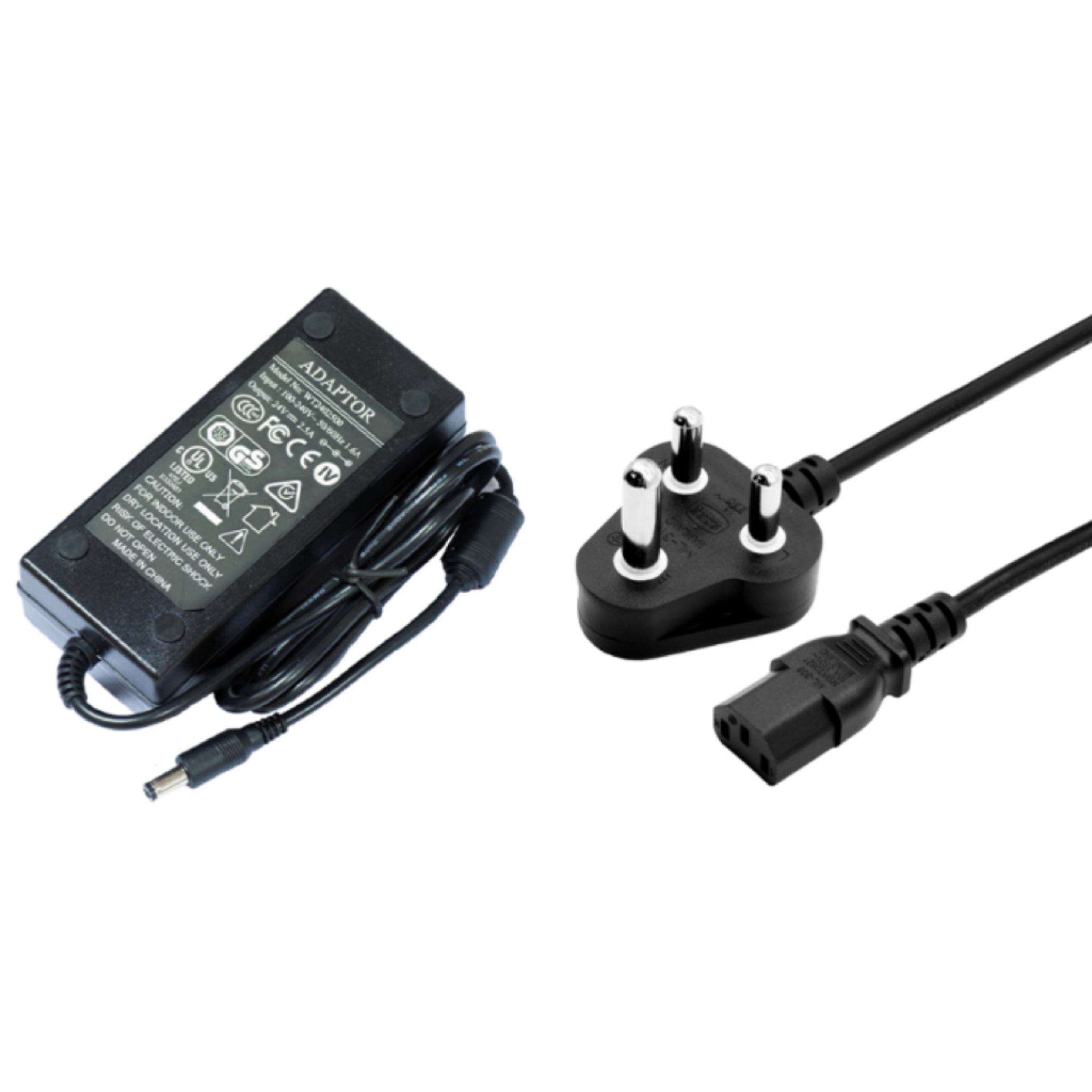

Included Accessory | 24V 2.5A Power Adapter | |
Compliance & Certifications | Regulatory Certifications | CE, FCC, IC, RoHS |
Supported Standards | IEEE 802.3, IEEE 802.3u |
