The MikroTik RB1100Dx4 is a high-performance rackmount Ethernet router designed to deliver reliable, powerful, and cost-effective networking solutions for enterprise networks, ISPs, and professional IT environments. Powered by a quad-core Annapurna Alpine AL21400 CPU running at 1.4 GHz and equipped with 1GB RAM, the RB1100Dx4 provides excellent processing capability for advanced routing, firewall management, VPN connections, bandwidth control, and other network-intensive applications. This router features 13 Gigabit Ethernet ports, including 12 independent Gigabit Ethernet interfaces and one Gigabit Ethernet/SFP combo port, allowing flexible network expansion and high-speed connectivity for multiple devices, switches, servers, and WAN links. Running on the powerful MikroTik RouterOS operating system, the RB1100Dx4 supports a wide range of professional networking functions, including advanced firewall rules, NAT, VLAN, IPsec VPN, OSPF, BGP, MPLS, QoS, hotspot gateway, and traffic monitoring, making it suitable for complex network infrastructures. With its compact 1U rackmount design, low power consumption, and reliable hardware architecture, the MikroTik RB1100Dx4 is an ideal choice for businesses, data centers, service providers, and system integrators looking for a stable and scalable router solution. As an original MikroTik network equipment supplier, we provide brand-new RB1100Dx4 routers with competitive pricing, reliable supply channels, and professional support for global customers, distributors, and resellers.
RB1100Dx4
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Model Name | RB1100Dx4 (Dude Edition) |
Brand | MikroTik | |
Product Type | 1U Rackmount Gigabit Ethernet Router | |
Target Application | Enterprise Network Management, ISP Backbone, Network Monitoring (The Dude), Edge Routing, Data Center Deployment | |
Form Factor | 1U Rack-mountable Chassis | |
Core Hardware | CPU Architecture | ARM 32bit |
CPU Model | AL21400 | |
CPU Cores/Threads | 4 cores / 4 threads | |
CPU Frequency | 1.4 GHz nominal | |
RAM Size | 1 GB | |
Onboard Storage | 128 MB NAND Flash | |
Pre-installed Storage | 60 GB M.2 SATA SSD (included) | |
Hardware Acceleration | IPsec hardware acceleration supported | |
MTBF | Approximately 200,000 hours at 25°C | |

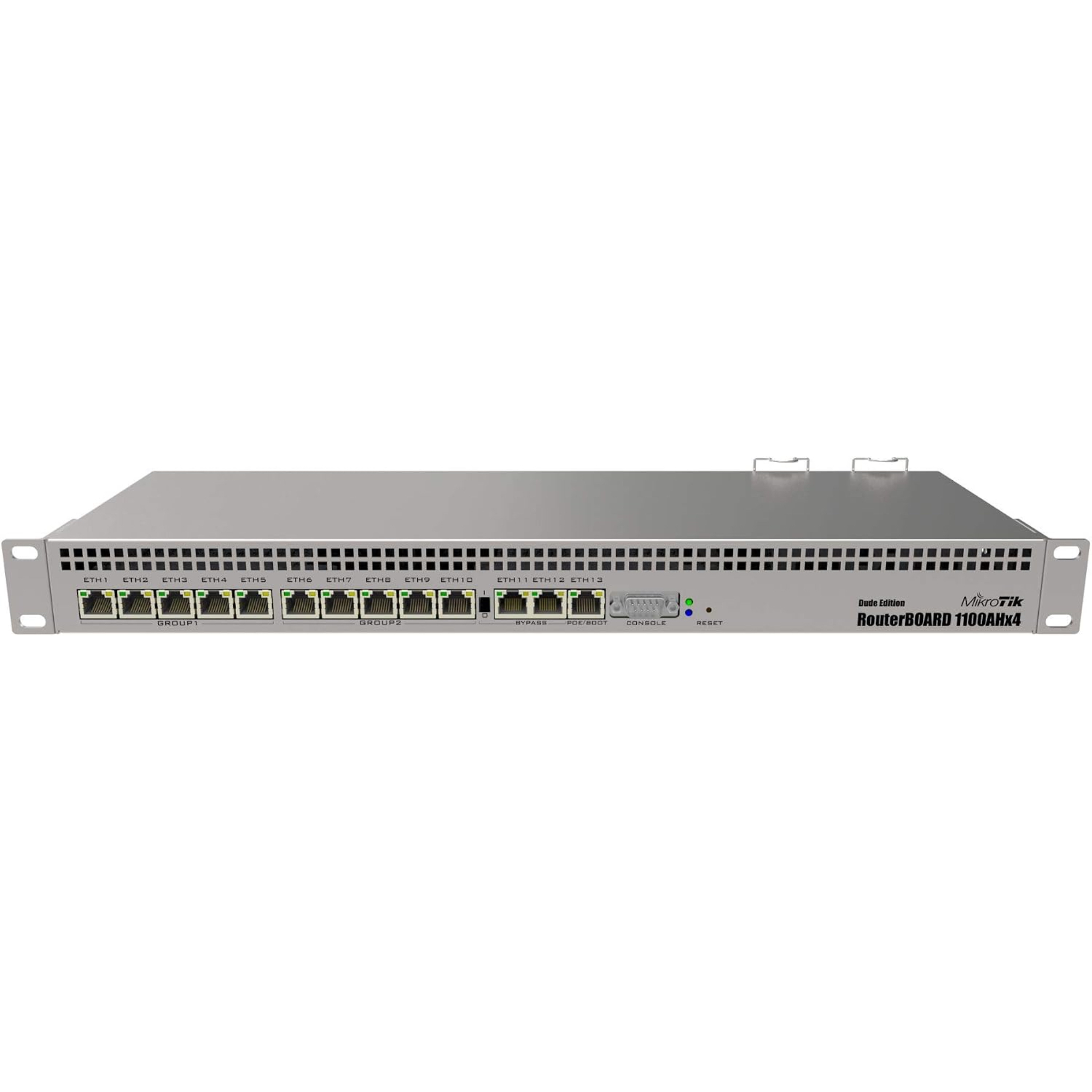

Ethernet Port Configuration | 10/100/1000BASE-T RJ45 Ports | 13 ports (Auto-MDI/X compliant) |
Bypass Function | 2 ports (ports 11 & 12) with hardware bypass switch | |
PoE Support | Port 13 supports 802.3af/at PoE-IN (20-57V input) | |
Storage & Peripheral Interfaces | M.2 Slots | 2 x SATA 3 compatible M.2 slots (supports 2242, 2260, 2280 sizes, M-key) |
SATA Ports | 2 x SATA 3 connectors (for 2.5" SATA HDD/SSD) | |
Memory Card Slot | 1 x microSD card slot | |
Serial Console Port | 1 x RS232 (DB9) serial port | |
Other Interfaces | Reset button, beeper, voltage & temperature sensors | |

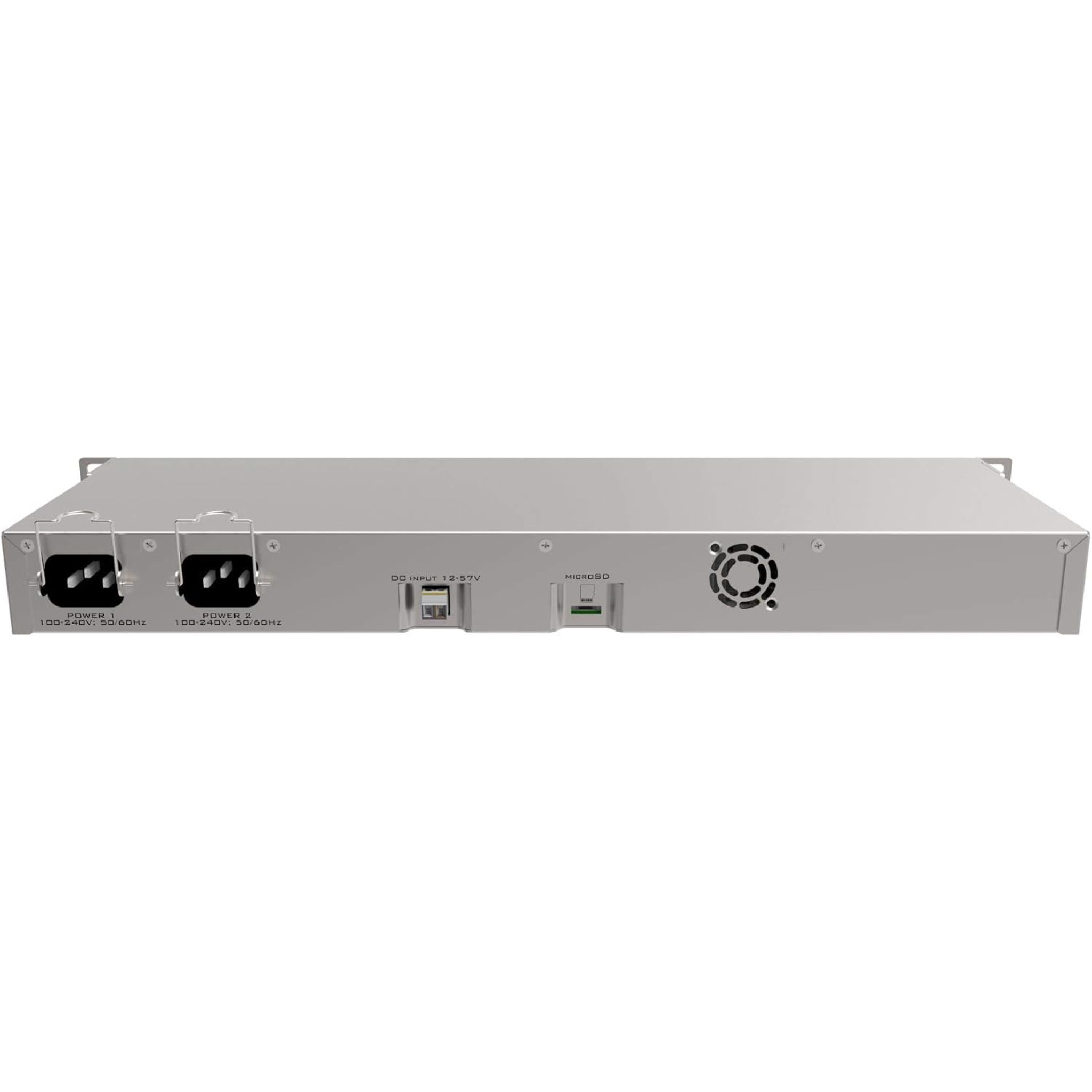

Power Supply Specifications | AC Input | 2 x IEC C14 redundant AC power inputs (100-240V AC, 50/60Hz) |
DC Input | 2-pin terminal block for -48V DC telecom power (20-57V DC range) | |
PoE-IN Input | 802.3af/at compliant, 20-57V DC | |
Max Power Consumption | 25 W | |
Physical & Mechanical Specs | Dimensions (W × D × H) | 443 mm × 148 mm × 44 mm (1U rack height) |
Cooling Design | Passive cooling (fanless, silent operation) | |
Mounting | Standard 19-inch rack mount brackets included | |
Environmental Conditions | Operating Temperature | -40°C to +70°C (tested) |
Storage Temperature | -40°C to +70°C | |
Operating Humidity | 10%–90% non-condensing | |
System & License | Operating System | MikroTik RouterOS |
RouterOS License | Level 6 | |
Management | CLI, WebFig, WinBox, SNMP, API, The Dude (pre-configured for network monitoring) | |
Compliance & Standards | Industry Standards | IEEE 802.3, 802.3u, 802.3ab (Gigabit Ethernet); 802.3af/at PoE |
Certifications | CE, FCC, RoHS, UL safety certified | |

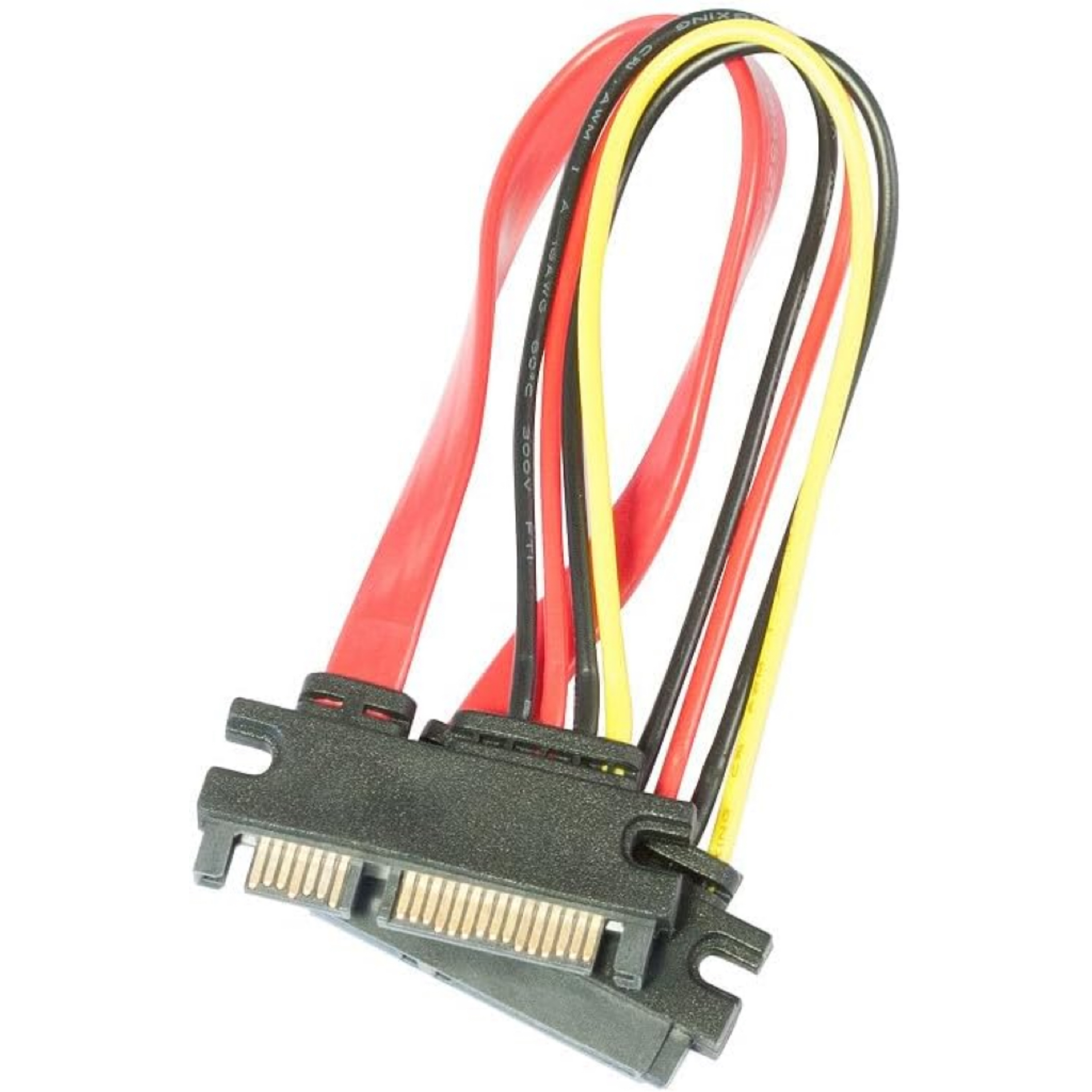

Package Contents | RB1100Dx4 router, 2 x IEC power cords, 60GB M.2 SSD, SATA cables, screw kit, rack ears |
