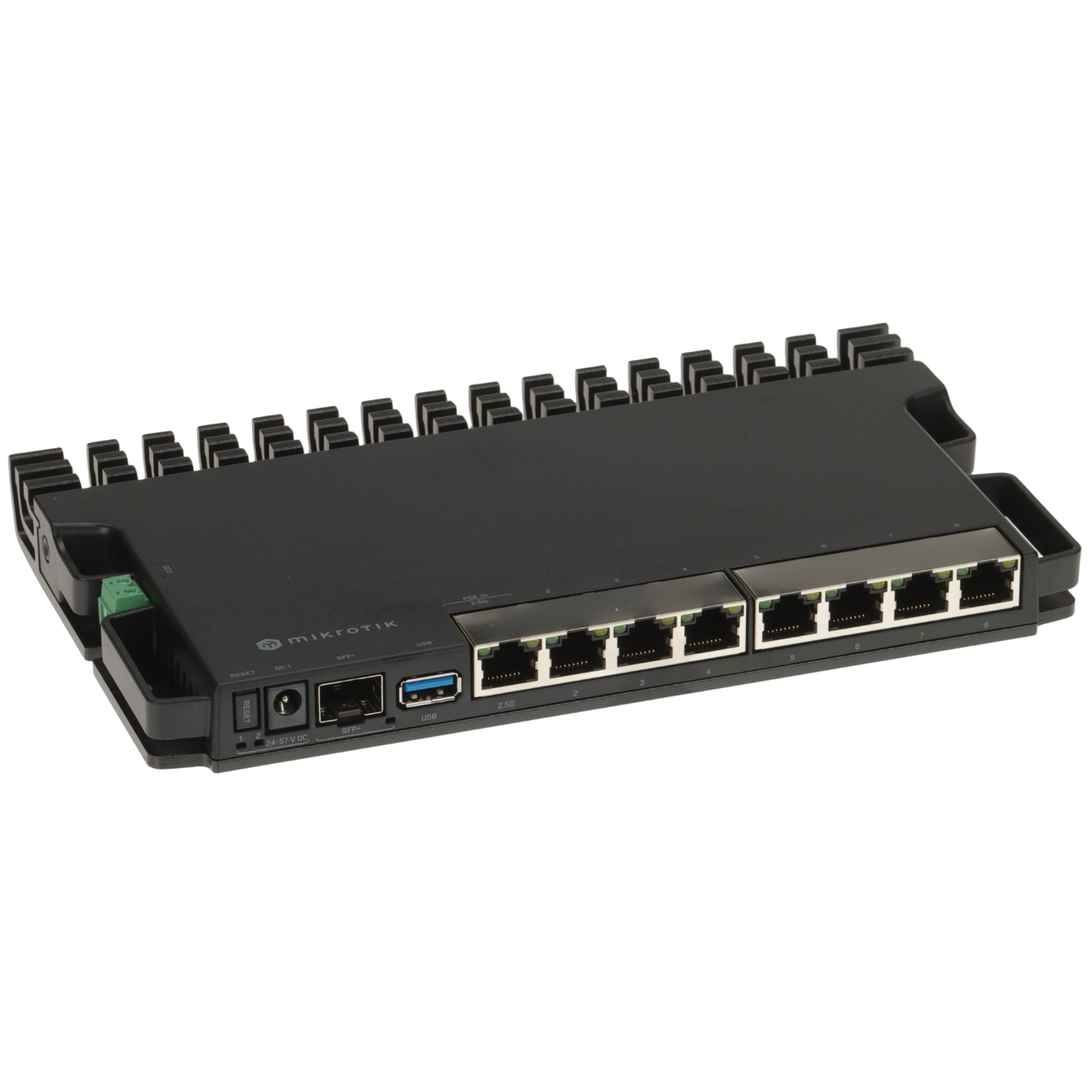

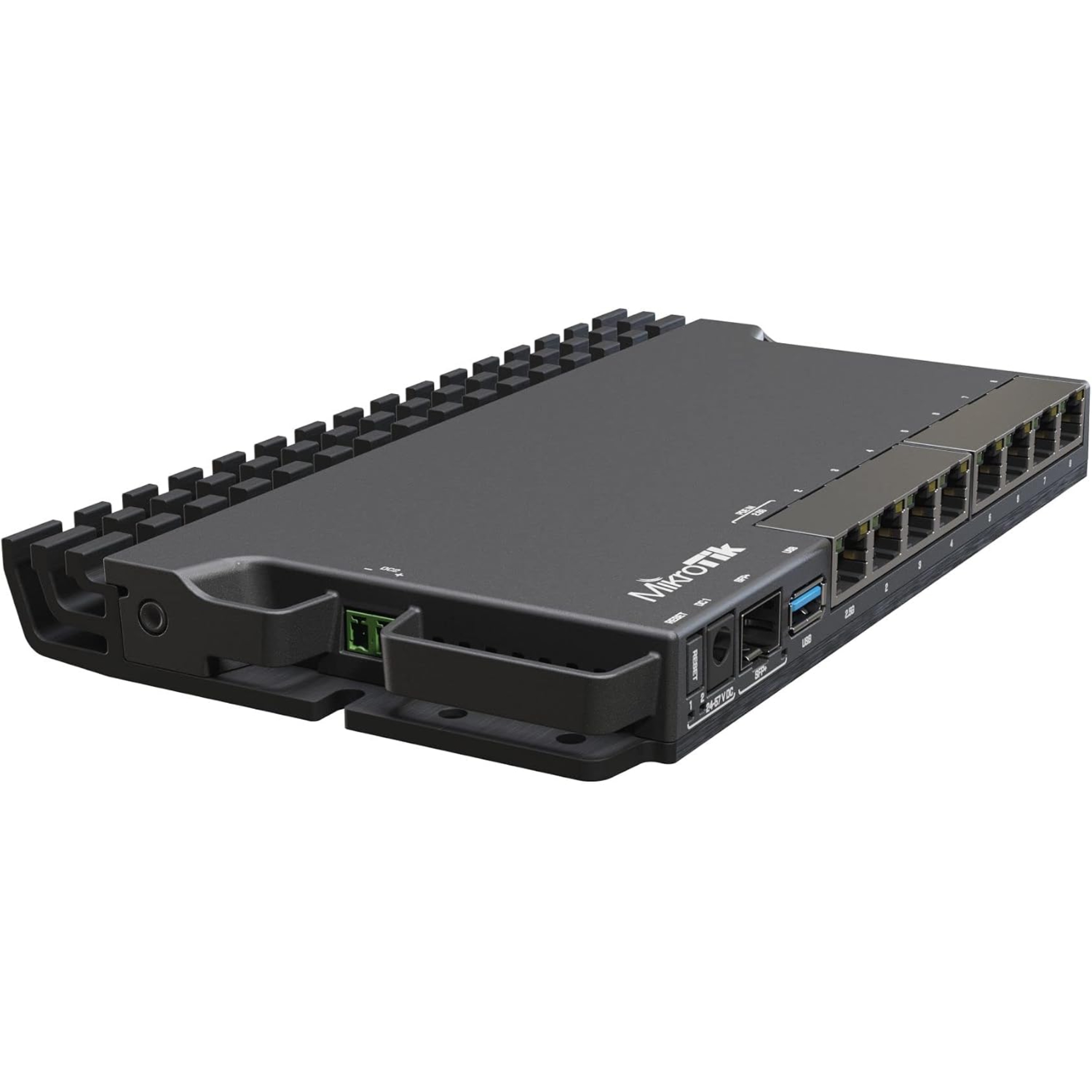

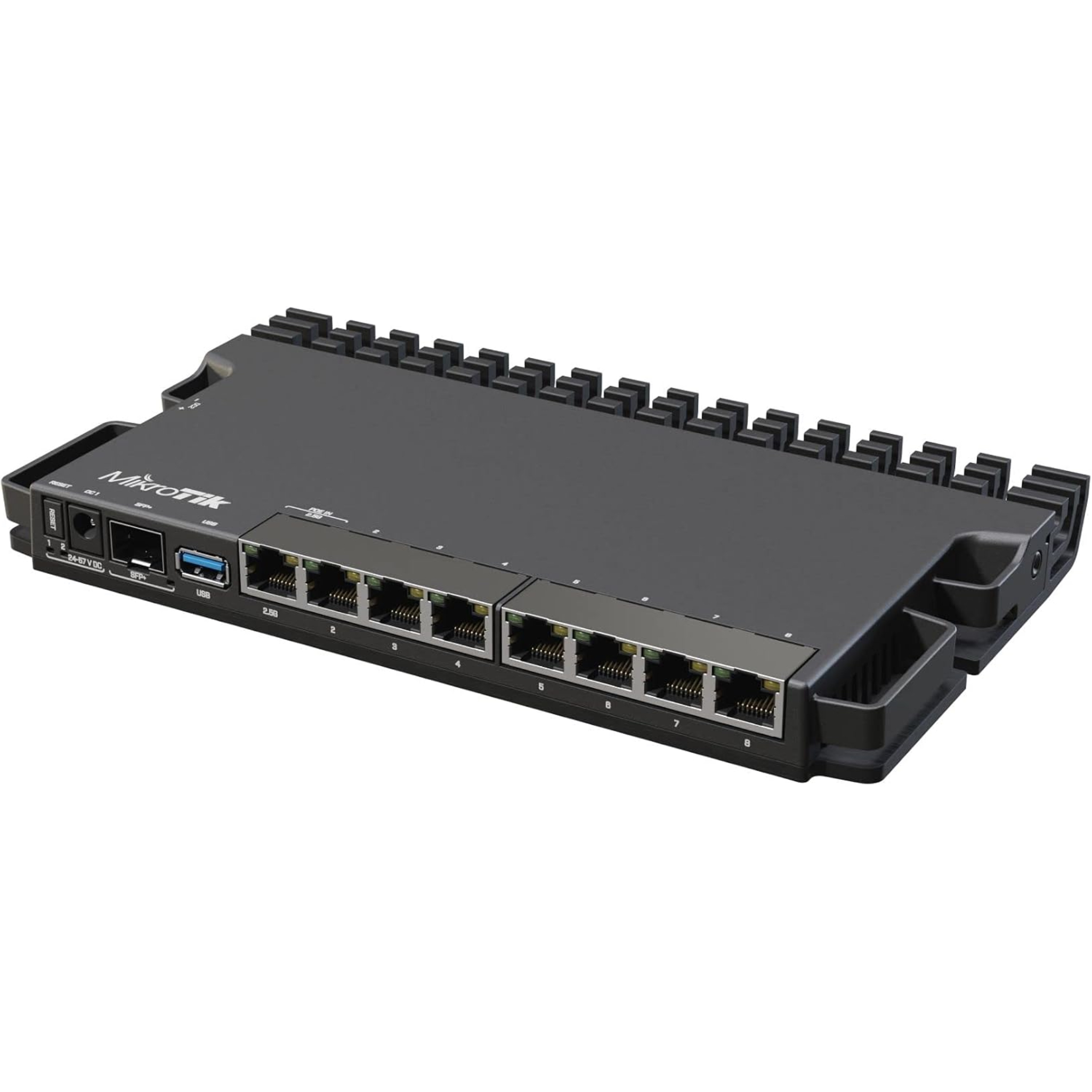

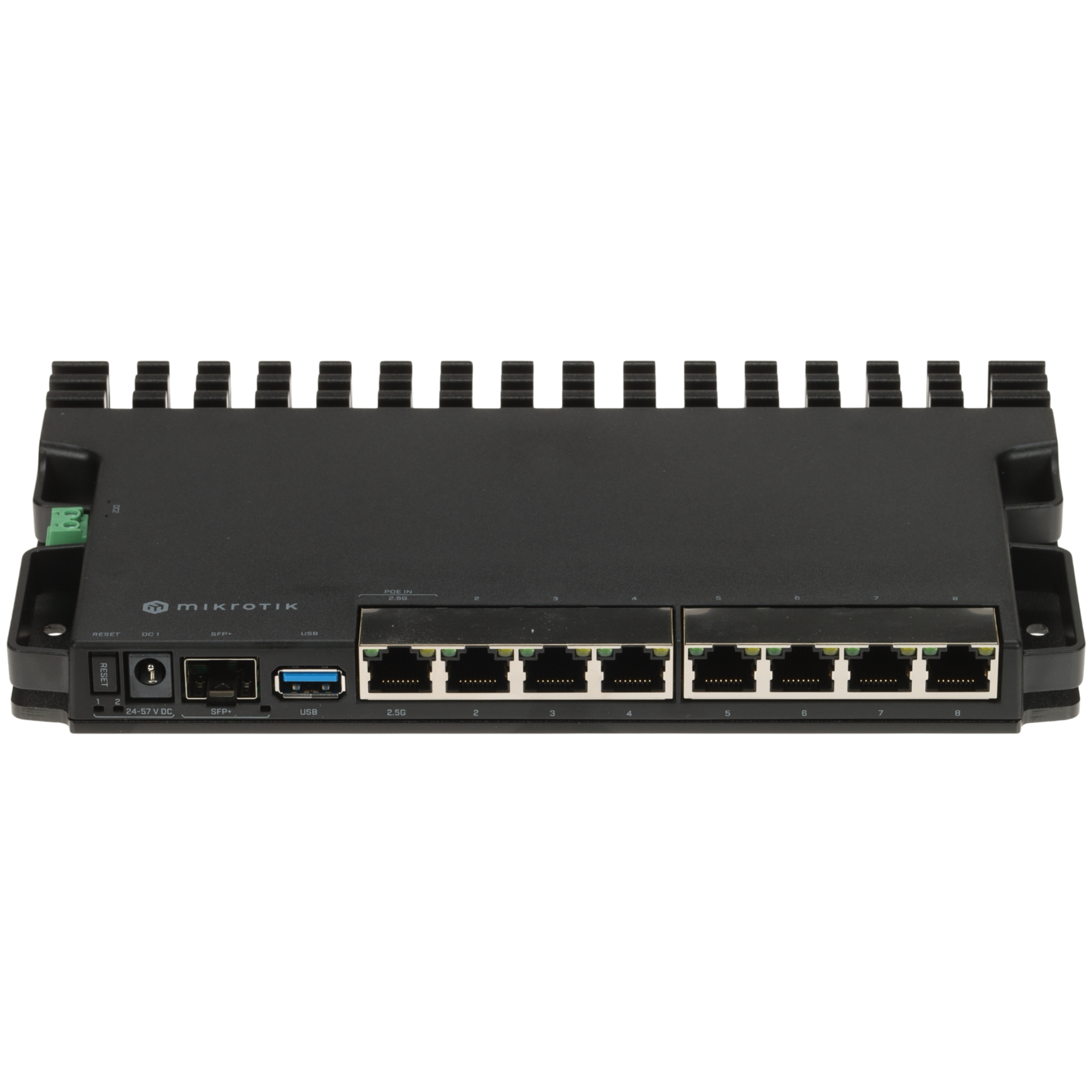

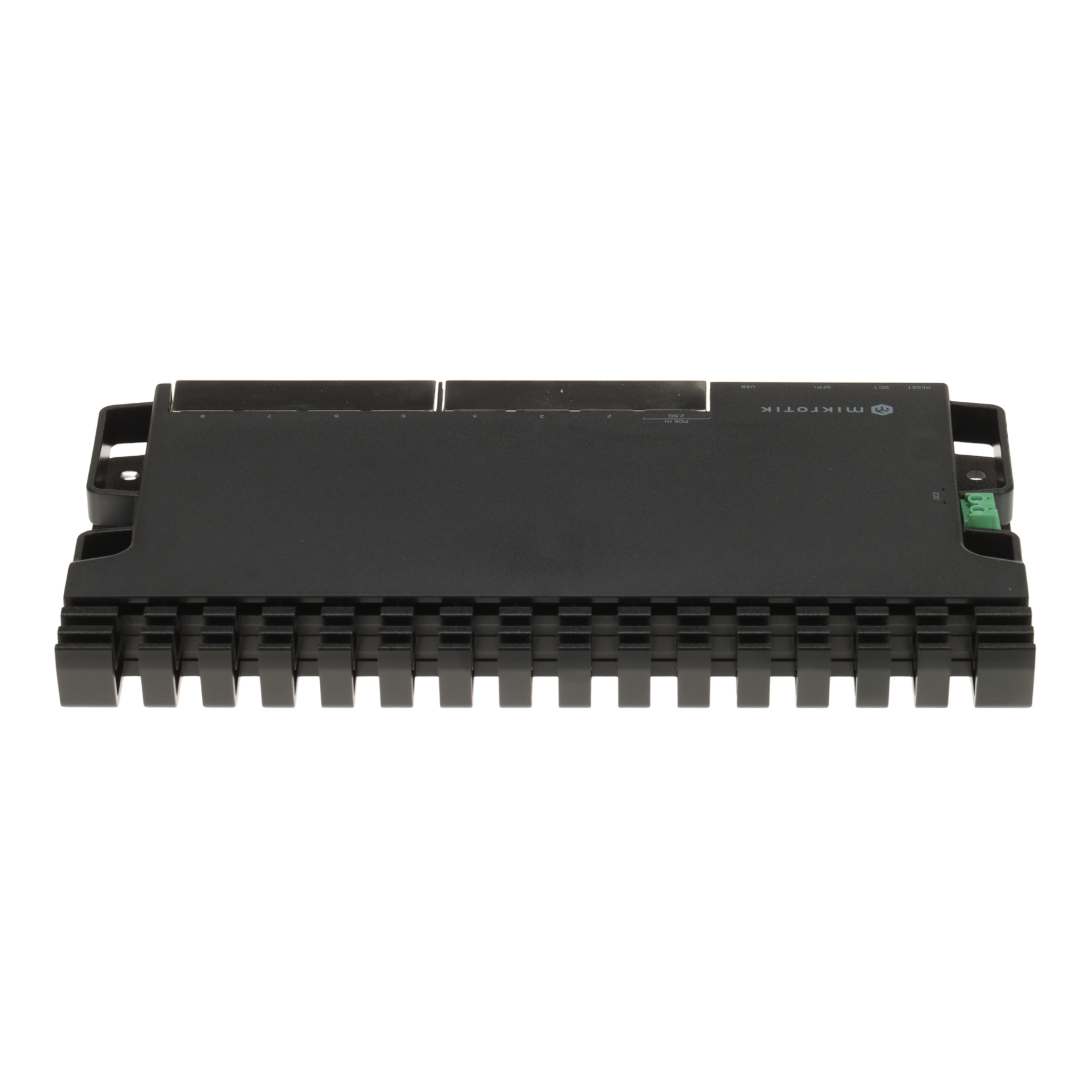

The MikroTik RB5009UG+S+IN is a powerful and compact wired router designed for professional networks, small and medium-sized businesses, advanced home users, and various demanding networking environments. Featuring a high-performance quad-core ARM CPU, 1GB RAM, and RouterOS support, this device delivers excellent routing performance, advanced network management capabilities, and reliable connectivity for modern applications. The RB5009UG+S+IN provides a versatile interface combination including seven Gigabit Ethernet ports, one 2.5 Gigabit Ethernet port, and one 10G SFP+ port, allowing users to build high-speed fiber, copper, and multi-gigabit network infrastructures with ease. Powered by MikroTik’s renowned RouterOS, it supports a wide range of professional networking features such as advanced firewall rules, VLAN configuration, VPN services, bandwidth management, load balancing, routing protocols, and network monitoring tools. Its compact metal enclosure ensures durability and efficient heat dissipation, while the flexible power options provide convenient deployment in different environments. With its impressive performance, rich feature set, and cost-effective design, the MikroTik RB5009UG+S+IN is an ideal solution for ISPs, system integrators, enterprise networks, branch offices, and users who require a reliable, high-performance router for secure and scalable network management. As an original MikroTik networking product, the RB5009UG+S+IN offers excellent stability, long-term reliability, and professional-grade performance for customers looking to upgrade their network infrastructure.
RB5009UG+S+IN
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Product Model | RB5009UG+S+IN |
Product Series | MikroTik RB Series Router | |
Device Type | Professional Gigabit/10G Ethernet Router, Smart Home & Enterprise Gateway | |
Application Scenarios | Home Lab, Small Office, Branch Office, VPN Gateway, Network Routing & Security Management | |
Core Hardware Specifications | CPU Model | Marvell Armada 88F7040 (7040) |
CPU Architecture | ARM 64-bit (ARMv8) | |
CPU Core Count | 4 Cores, 1.4 GHz Clock Speed | |
RAM | 1 GB DDR4 | |
Storage | 1 GB NAND Flash | |
Switch Chip Model | Marvell 88E6393 | |
Port Configuration | 10/100/1000BASE-T Ethernet Ports | 7 x Gigabit RJ45 Ports |
2.5G Ethernet Port | 1 x 2.5G RJ45 Port (10/100/1000/2500 Mbps) | |
10G SFP+ Slot | 1 x 10G SFP+ Fiber Slot (Supports 10G/5G/2.5G/1G SFP/SFP+ Transceivers) | |
USB Port | 1 x USB 3.0 Type-A Port | |
Power Input Ports | 1 x DC Jack, 1 x 2-Pin Terminal Block, 1 x PoE-In on Ethernet Port #1 | |
Power Supply Specifications | PoE-In Input Voltage | 24-57 V DC (802.3af/at PoE Compliant) |
Power Consumption | Max 25 W (No PoE Load) | |
Power Supply Type | Passive PoE, DC Input, Terminal Block Input (No Built-in PoE-Out) | |
Physical & Environmental | Dimensions (W × D × H) | 220 mm × 125 mm × 22 mm |
Cooling Design | Passive Cooling (No Fan, Silent Operation) | |
Operating Temperature | -40°C to +60°C | |
Storage Temperature | -50°C to +70°C | |
Operating Humidity | 10%–90% Non-condensing | |
Mounting | Desktop, Wall-mountable, 1U Rack-mountable (with optional mounting kit, 4 units per 1U rack space) | |
System & Software | Operating System | RouterOS v7 (License Level 5) |
Management | WebFig (Web UI), CLI, SNMP, SSH, Telnet | |
Core Features | BGP, OSPF, RIP, WireGuard, OpenVPN, IPSec, Firewall, NAT, QoS, VLAN, DHCP Server/Client, Hotspot, Queue Management | |
Security Features | Access Control List, DoS Protection, Encrypted Configuration, User Authentication, RADIUS/TACACS+ Support | |
Compliance & Certifications | Industry Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3bz (2.5G), 802.3af/at PoE |
Certifications | CE, FCC, RoHS, UL, EAC | |
Regulatory Compliance | Compliant with local telecom regulations (EU, US, etc.) |
