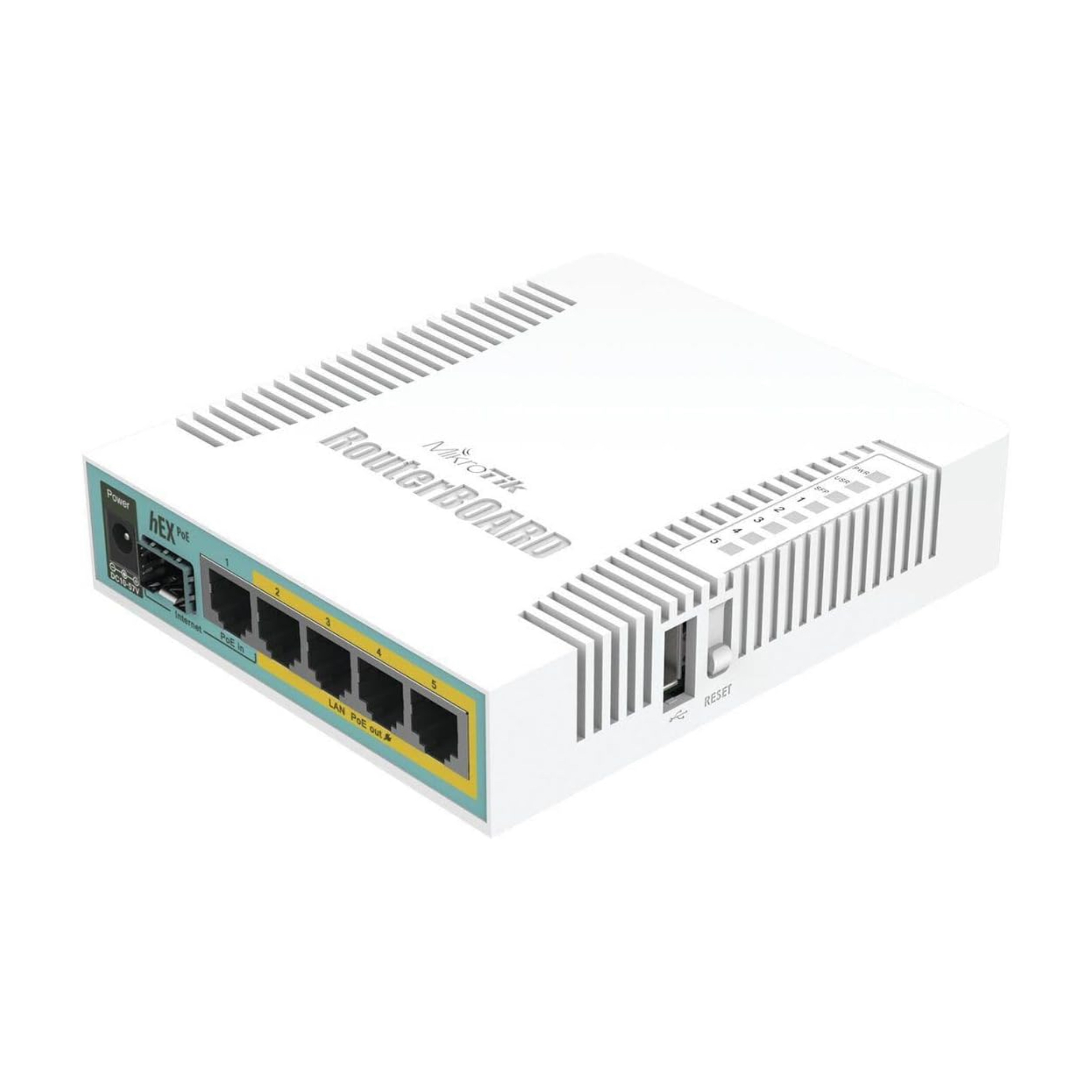

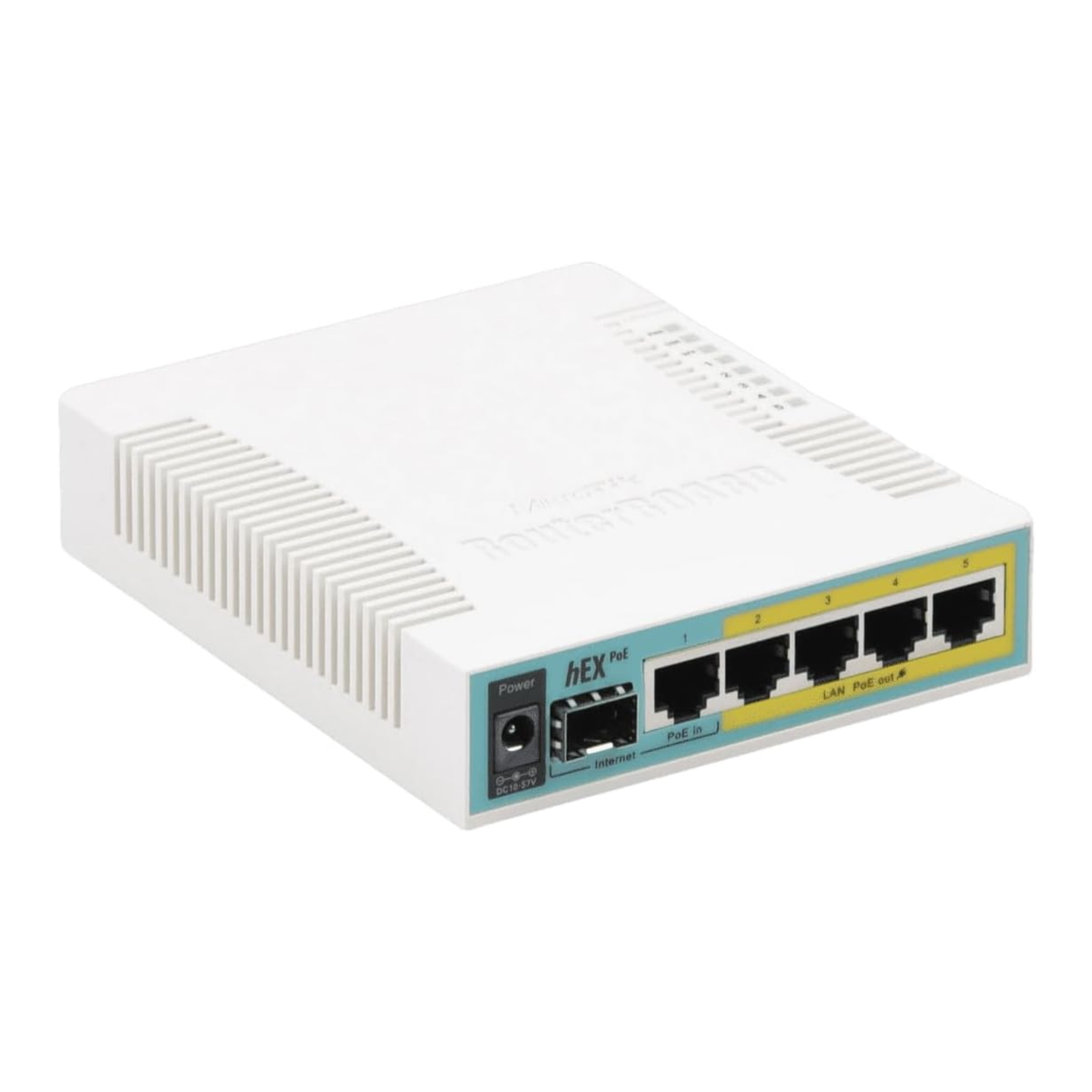

MikroTik RB960PGS (also known as hEX PoE) is a compact and powerful Gigabit Ethernet router designed for small and medium-sized business networks, home offices, and professional network deployments that require reliable routing performance with PoE capability. Powered by a high-performance CPU, the RB960PGS provides excellent processing power for managing multiple network services, including firewall rules, bandwidth management, VPN connections, and advanced routing functions through the intuitive RouterOS operating system. The device features five Gigabit Ethernet ports and one SFP port, allowing users to build flexible fiber and copper network infrastructures with high-speed connectivity. With integrated Passive PoE output on selected Ethernet ports, the RB960PGS can power compatible devices such as wireless access points, IP cameras, and other network equipment, helping simplify installation and reduce additional power cabling requirements. Supporting MikroTik’s feature-rich RouterOS, this Gigabit PoE router offers advanced functions including VLAN support, QoS, hotspot gateway, VPN, firewall protection, and dynamic routing protocols, making it suitable for various applications such as small enterprise networks, surveillance systems, wireless deployments, and ISP customer solutions. Its compact desktop design, low power consumption, stable performance, and versatile interfaces make the MikroTik RB960PGS an ideal choice for users seeking an affordable yet professional network router with PoE functionality. As an original MikroTik network equipment supplier, we provide brand-new RB960PGS units with reliable supply, competitive pricing, and global shipping services for distributors, system integrators, and business customers worldwide.
RB960PGS
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Product Information | Model Name | RB960PGS (hEX PoE) |
Product Series | MikroTik hEX Series | |
Device Type | 5-Port Gigabit Ethernet PoE+ Managed Router | |
Architecture | MIPSBE | |
Operating System | RouterOS (pre-installed, Level 4 License) | |
Target Application | Small Office, Home Office (SOHO), Branch Office, IP Camera, Wireless AP, VoIP Phone Deployment | |
Hardware Specifications | CPU Model | QCA9557 |
CPU Core Count | 1 Core | |
CPU Nominal Frequency | 800 MHz | |
Switch Chip Model | QCA8337 | |
RAM Size | 128 MB | |
Flash Memory Size | 16 MB | |
Cooling Type | Passive (Fanless, Silent Operation) | |
Monitoring Features | PCB Temperature Monitor, Voltage Monitor, Beeper | |

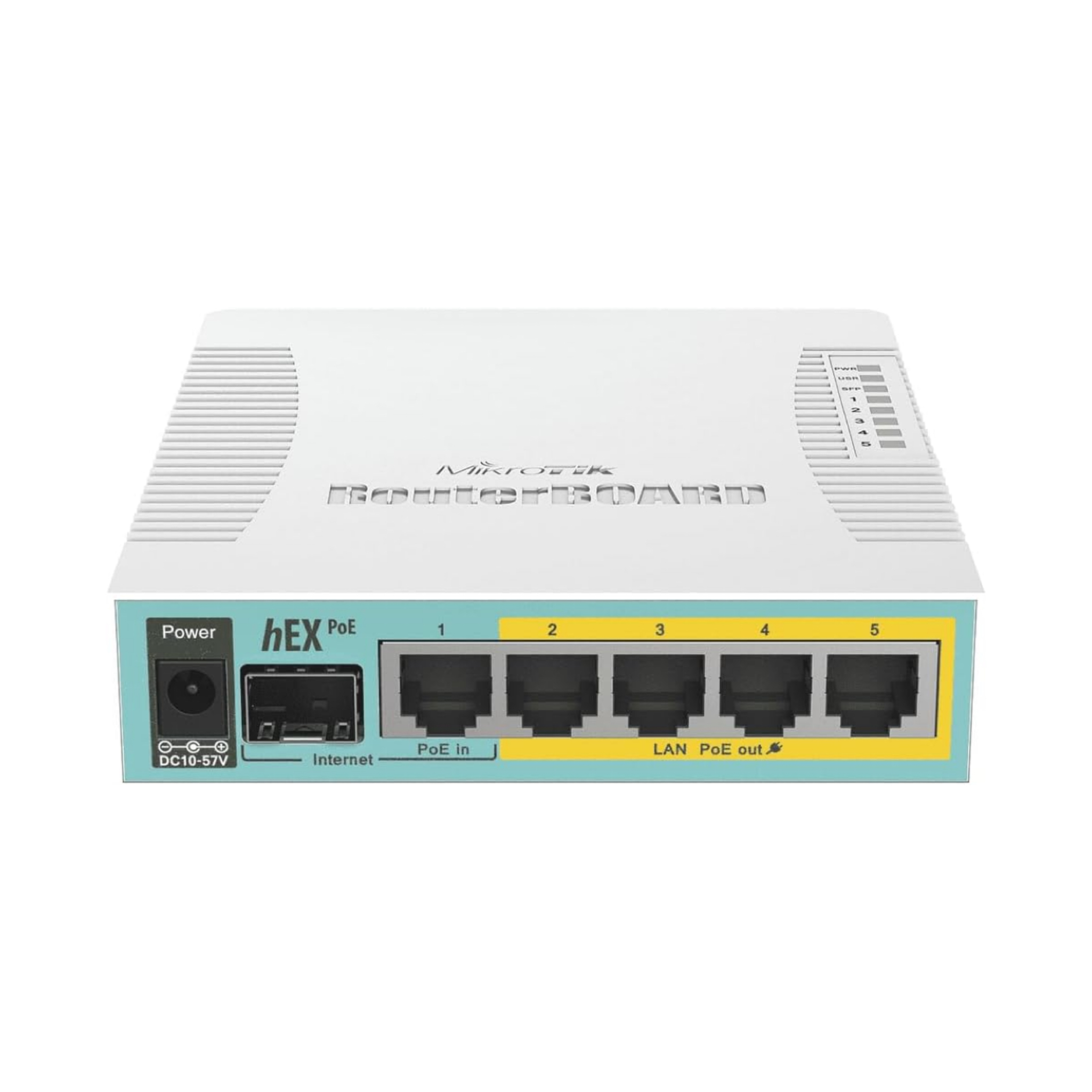

Port Configuration | 10/100/1000BASE-T RJ45 Ethernet Ports | 5 ports (Ether1-Ether5), Auto MDI/X supported |
SFP Fiber Port | 1 x Gigabit SFP slot (for 1G fiber/copper SFP transceivers) | |

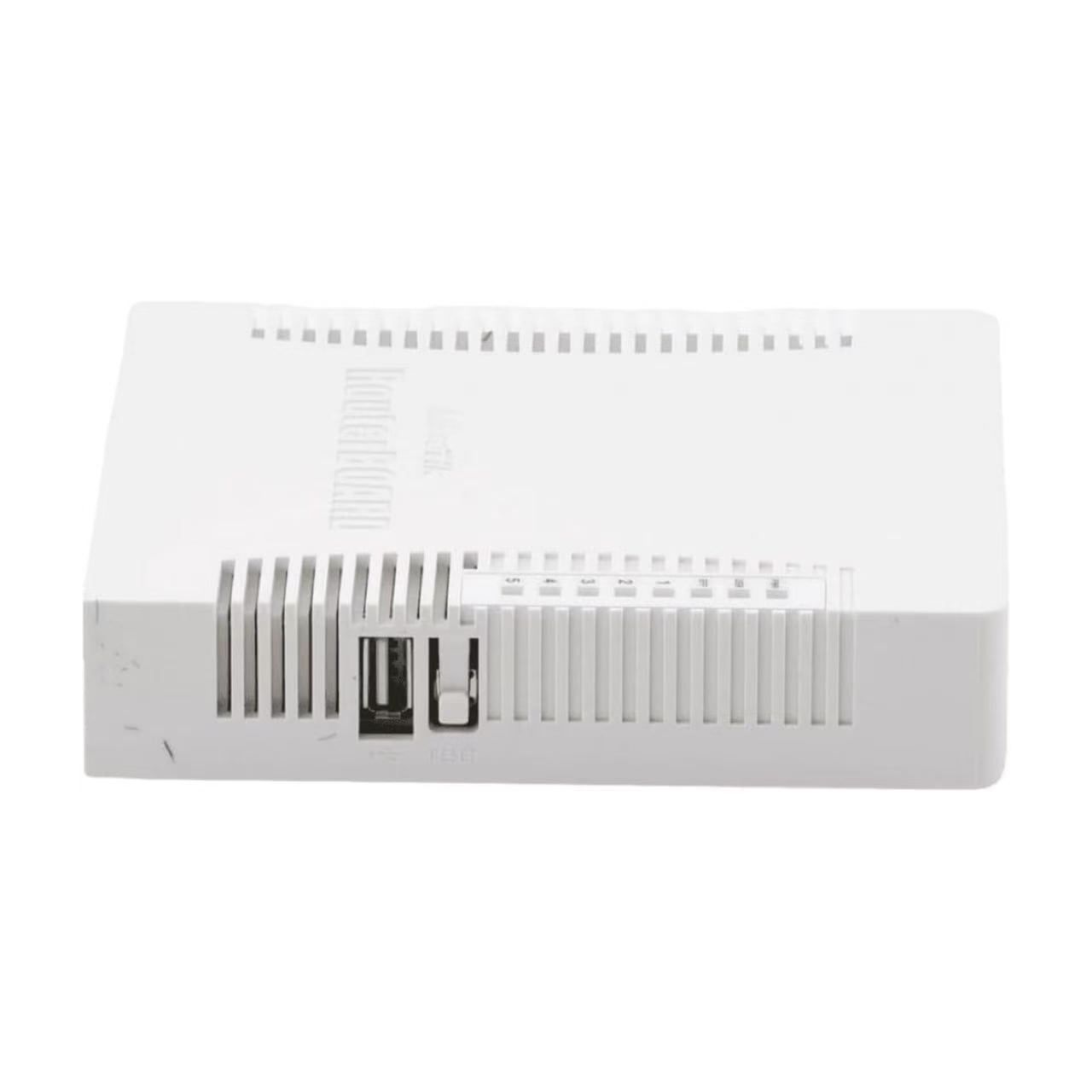

USB Port | 1 x USB 2.0 Type-A port (supports USB Power Reset, max 1A output) | |
Power Input Interfaces | 1 x DC Jack + 1 x PoE-IN Ethernet Port | |
PoE Features | PoE Standards | IEEE 802.3af (PoE), IEEE 802.3at (PoE+) |
PoE-Out Ports | Ether2-Ether5 (4 ports) | |
PoE-Out Current Limit (Low Voltage) | 1 A per port, 2 A total (12-30V input) | |
PoE-Out Current Limit (High Voltage) | 450 mA per port (31-57V input) | |
PoE-In Type | Passive PoE | |
PoE-In Input Voltage | 12-57 V | |
Performance Specifications | Bridging Throughput (Fast Path) | 1966.1 Mbps (1518-byte packets) |
Routing Throughput (Fast Path) | 1966.1 Mbps (1518-byte packets) | |
Max Concurrent Sessions | 16,000 | |
VLAN Support | Up to 4,094 VLANs (802.1Q tagged) | |
Jumbo Frame Support | Up to 9,216 bytes | |
Power Supply Parameters | DC Jack Input Voltage | 12-57 V |
Max Power Consumption | 54 W (full load with PoE) | |
Idle Power Consumption | 6 W (without attachments) | |
Included Power Adapter | 24V 2.5A power adapter | |
Environmental & Physical Specifications | Operating Temperature | -40°C to +70°C |
Operating Humidity | 10%–90% non-condensing | |
Ingress Protection | IP20 | |
Dimensions (W × D × H) | 114 mm × 137 mm × 29 mm | |
Weight | ~0.3 kg | |
Management & Security Features | Management Methods | Web-based GUI, CLI, Winbox, SNMP v1/v2c/v3 |
Security Features | Firewall, DoS attack protection, port isolation, password encryption, firmware integrity verification | |
Network Protocols | DHCP Client/Server, NAT, OSPF, BGP, VLAN, LACP, IGMP Snooping | |
QoS Support | 8 hardware priority queues, 802.1p CoS, DSCP mapping, traffic shaping & policing | |
Certification & Compliance | Industry Certifications | CE, EAC, RoHS |
Software Support | Free lifetime software updates (minimum 5 years from purchase date) | |
Package Contents | Standard Accessories | 24V 2.5A power adapter, IEC power cord |
