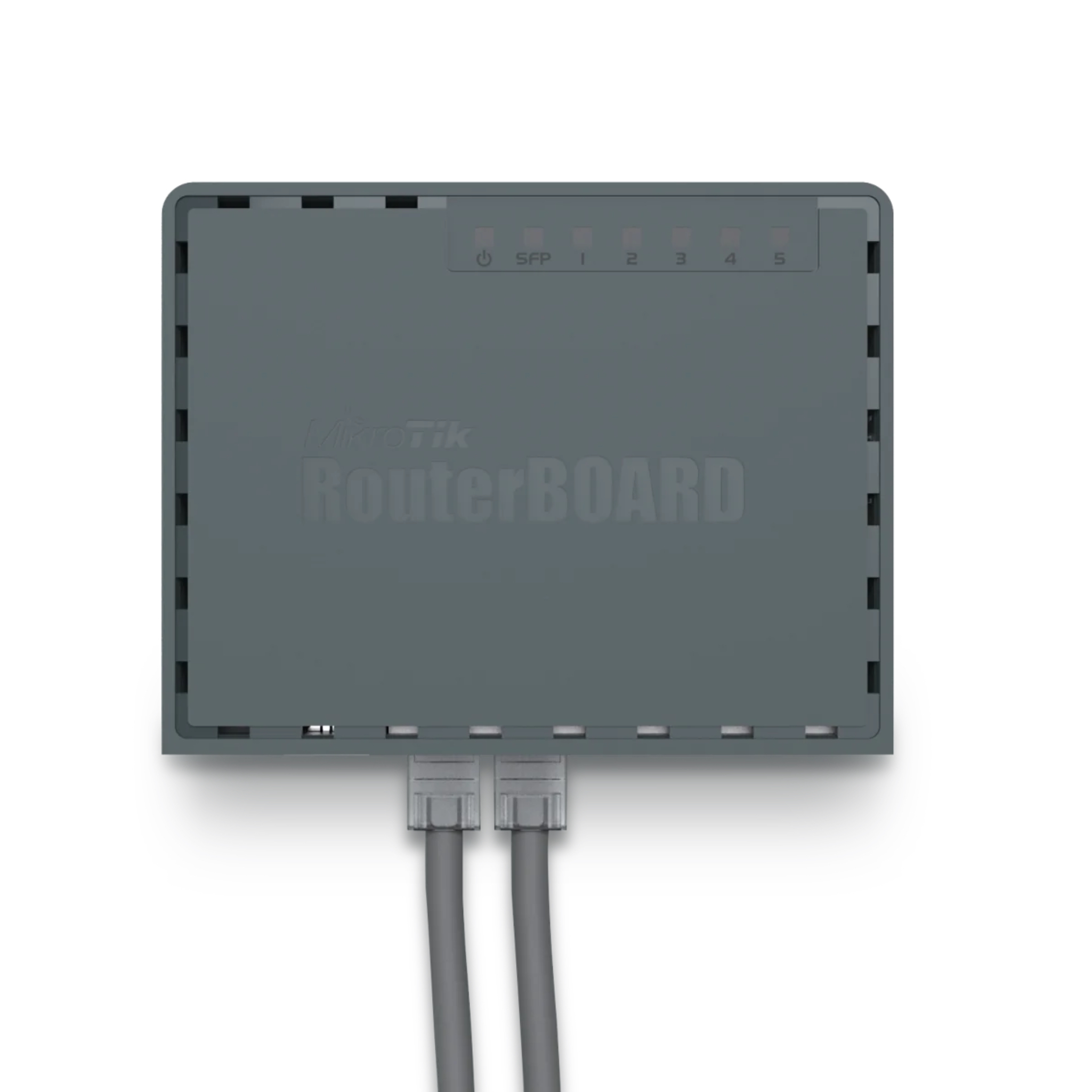

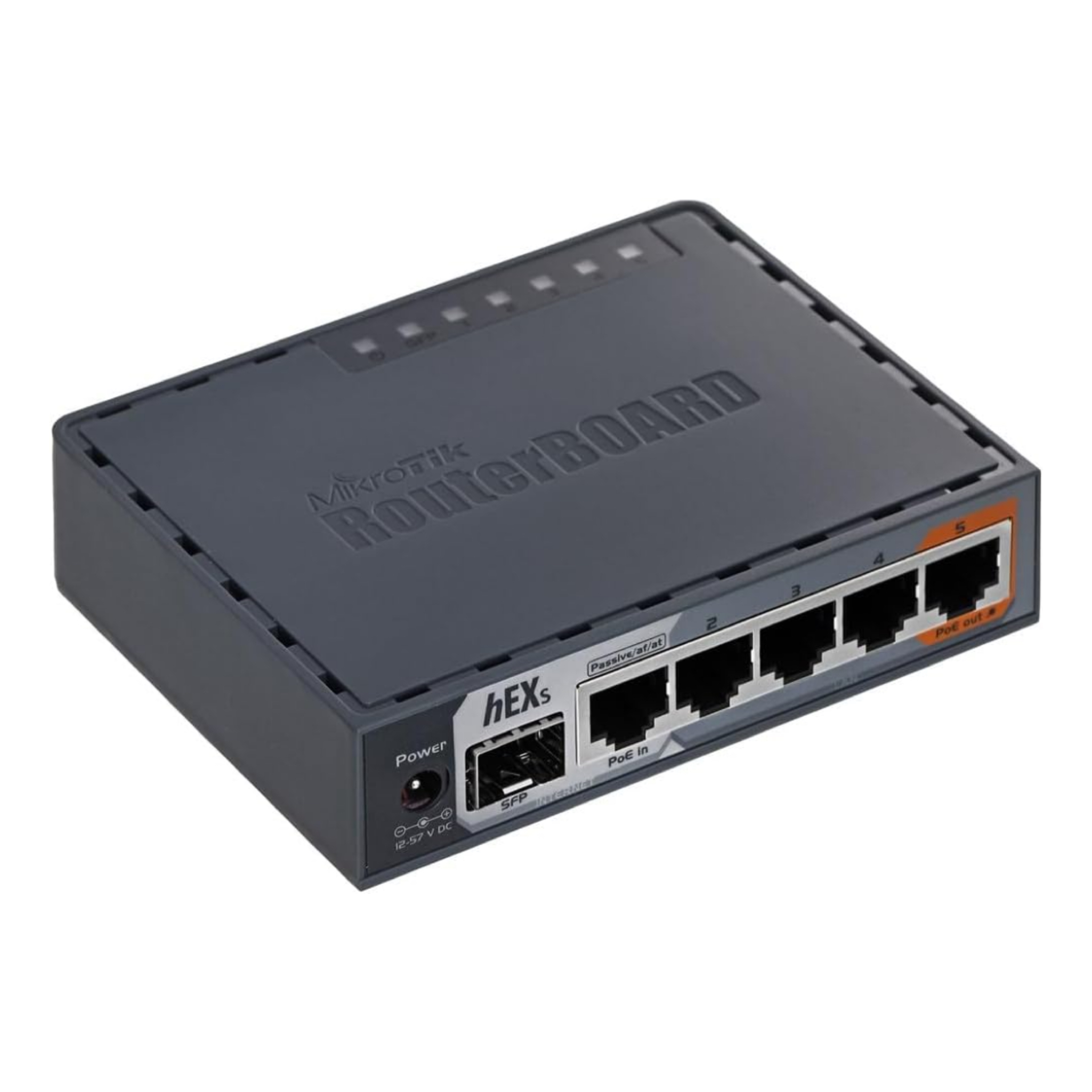

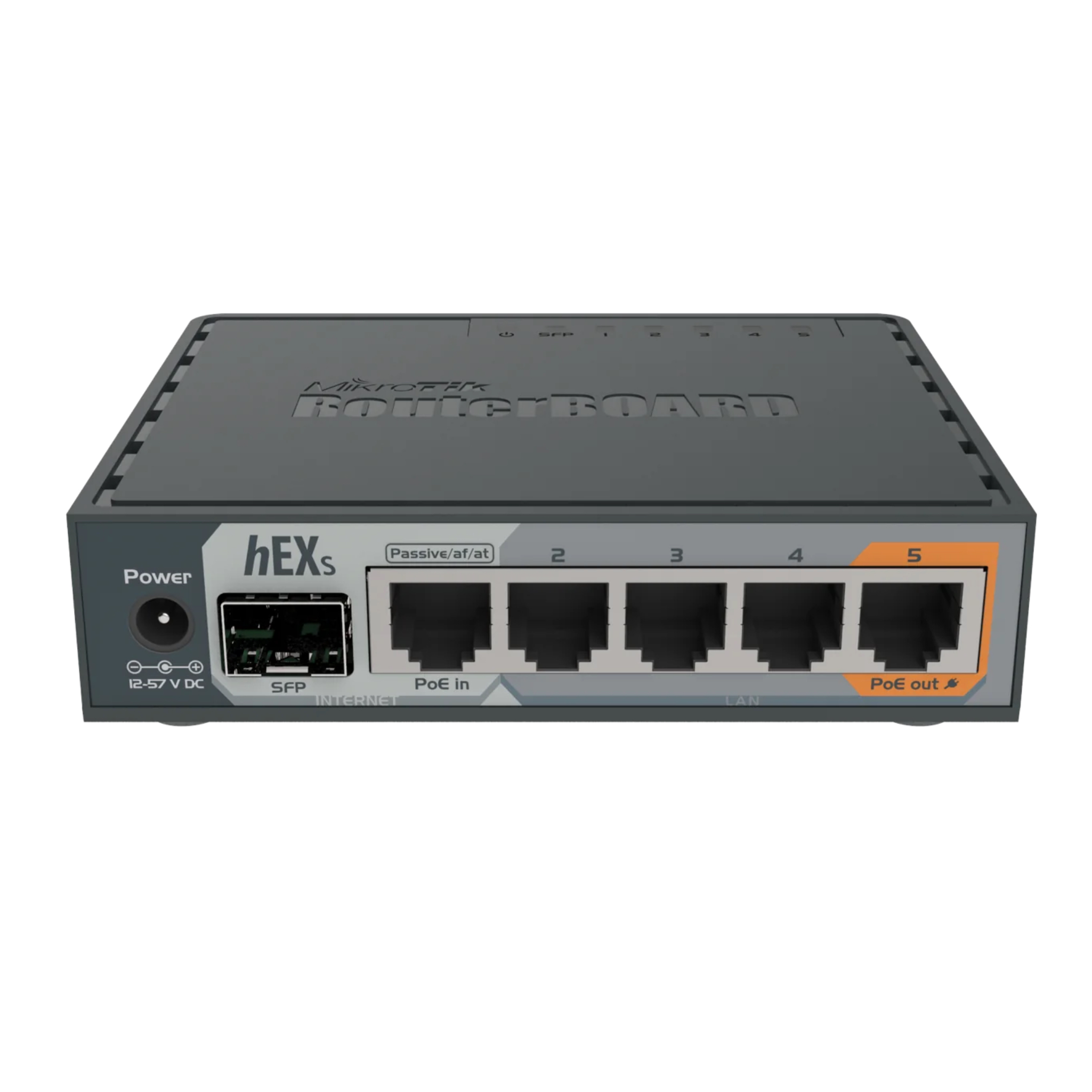

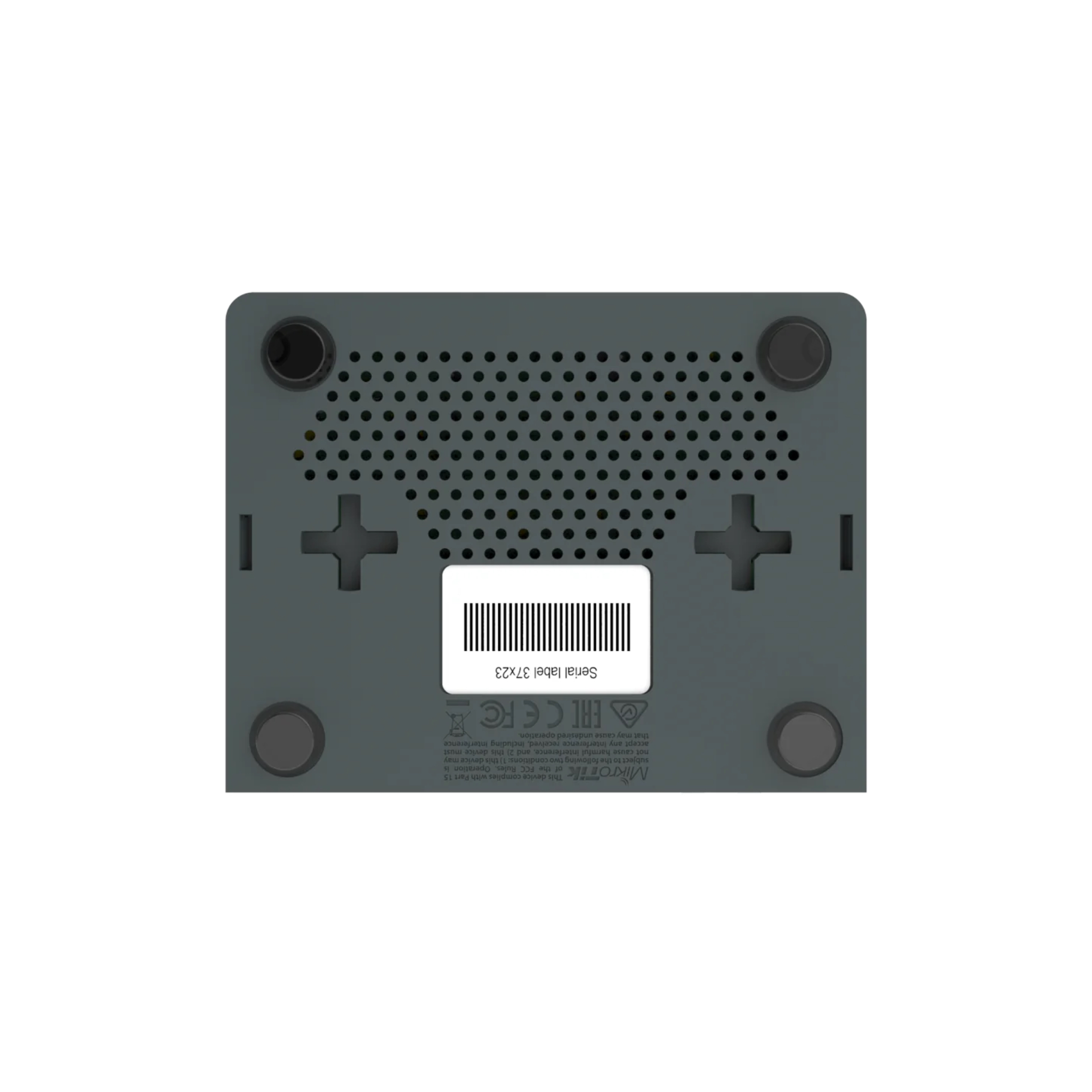

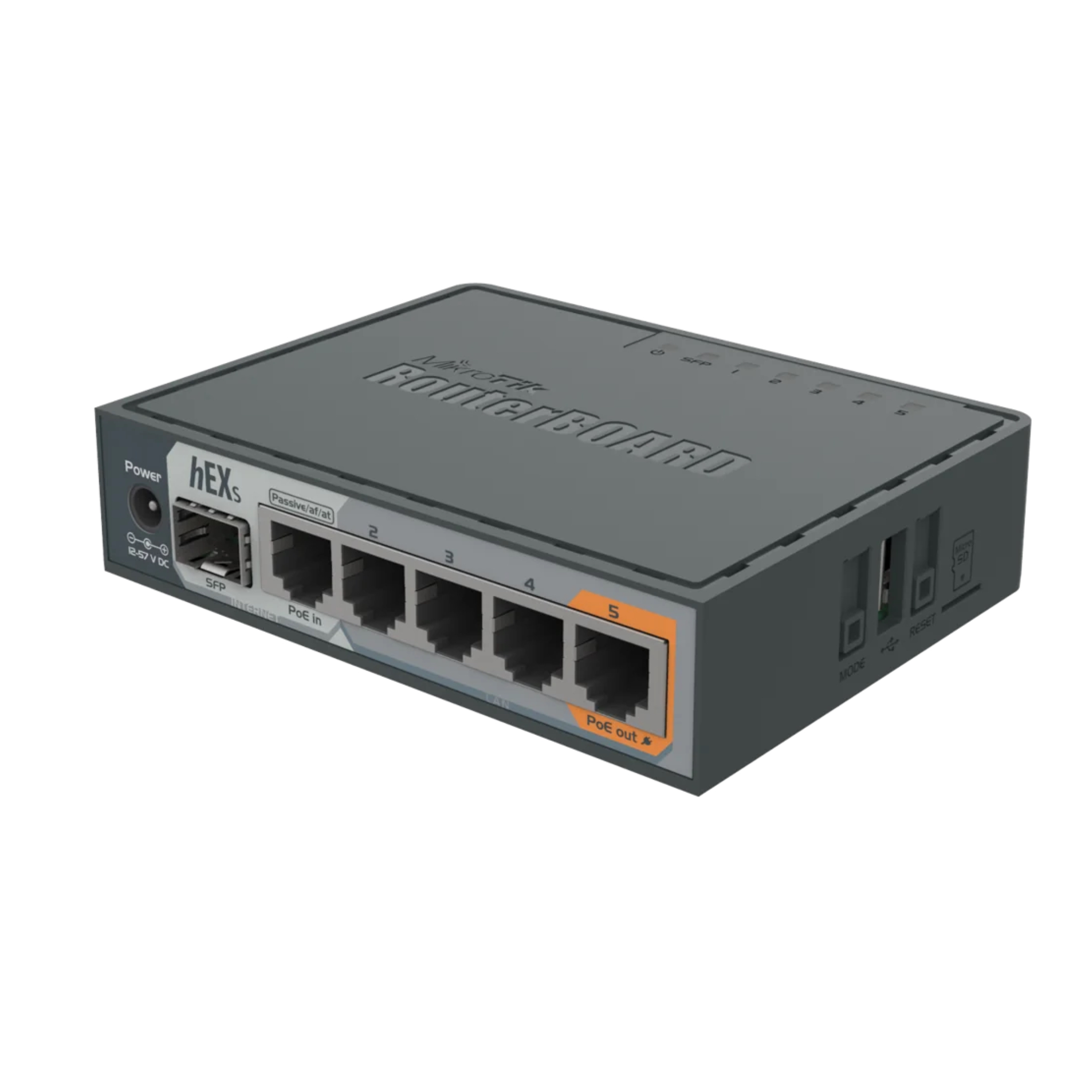

MikroTik hEX S Gigabit Ethernet Router with SFP, 5x Gigabit LAN Ports, Dual Core 880MHz CPU, 256MB RAM, RouterOS L4, RB760iGS

The MikroTik RB760iGS, also known as the hEX S, is a powerful and cost-effective Gigabit Ethernet router designed for small businesses, branch offices, home offices, and advanced networking environments requiring high-speed wired connectivity and flexible network management. Equipped with a dual-core 880MHz CPU, 256MB RAM, and five Gigabit Ethernet ports, the RB760iGS delivers reliable routing performance for bandwidth-intensive applications while supporting advanced features such as firewall filtering, VPN, VLAN, QoS, load balancing, and static or dynamic routing through MikroTik's powerful RouterOS operating system. The device also features a high-speed SFP port for fiber connectivity, making it an excellent choice for expanding network infrastructure or integrating with fiber-optic networks. One of its Gigabit Ethernet ports supports PoE input, while another provides PoE output, allowing the router to power compatible devices such as wireless access points or IP phones, reducing installation complexity and cable requirements. A built-in USB 2.0 port offers additional flexibility for 3G/4G LTE modem connectivity or external storage applications. With hardware IPsec acceleration, the RB760iGS ensures secure VPN connections with improved encryption performance, making it suitable for remote office communication and secure business networking. The compact fanless metal enclosure provides excellent durability, silent operation, and efficient heat dissipation for long-term stable performance in demanding environments. Powered by the highly customizable RouterOS platform, users can easily configure advanced networking functions including traffic monitoring, bandwidth management, hotspot services, CAPsMAN centralized wireless management, IPv6 support, MPLS, BGP, OSPF, and numerous enterprise-grade networking features that exceed the capabilities of typical consumer routers. The RB760iGS is widely deployed in retail stores, educational institutions, hospitality, healthcare facilities, enterprise branches, and industrial networking scenarios where reliability, security, and flexible management are essential. Combining Gigabit performance, fiber connectivity, Power over Ethernet support, advanced security capabilities, and MikroTik's industry-leading RouterOS software, the RB760iGS provides an ideal networking solution for organizations seeking a dependable, feature-rich, and affordable wired router that can easily adapt to future business growth while maintaining exceptional network stability and operational efficiency.

  • RB760iGS

  • Mikrotik

  • Original New

  • 1 year

Availability:
Quantity:

Category

Parameter

Specification

Basic Information

Model Name

MikroTik RB760iGS (hEX S)

Product Type

Gigabit Ethernet Router

Brand

MikroTik

Target Application

SMB, Home Office, Branch Office, Network Gateway, VPN Router

Hardware Core Specs

CPU Model

MediaTek MT7621A

CPU Frequency

880 MHz

CPU Cores/Threads

2 Cores / 4 Threads

RAM

256 MB

Storage

16 MB Flash Memory

Additional Storage

1 x MicroSD Card Slot

USB Port

1 x USB 2.0 Type-A Port

Interface Configuration

10/100/1000BASE-T Ethernet Ports

5 x Gigabit RJ45 Ports

SFP Cage

1 x 1.25Gbps SFP Slot (supports 1G/2.5G SFP transceivers)

PoE Input

Passive PoE, 802.3af/at Compliant

PoE Output

Passive PoE up to 57V (Ethernet Port #5)

Power & PoE Specs

Input Voltage

12 - 57 V DC (Dual input: DC Jack + PoE-IN)

Max Power Consumption

24 W (with attachments), 6 W (base unit only)

PoE Output Current

Max 500 mA per port, total 500 mA

Performance & Networking Features

IPsec Hardware Encryption

Yes (up to ~470 Mbps throughput)

WAN-LAN Throughput

Up to 1 Gbps

Concurrent Connections

Up to 100,000

Supported Protocols

TCP/IP, BGP, OSPF, RIP, DHCP, NAT, PPPoE, VLAN, STP, LACP, IGMP Snooping

Advanced Features

The Dude Server Package Support, Firewall, QoS, Load Balancing, Failover

Environmental & Physical Specs

Operating Temperature

-40°C to +70°C (-40°F to 158°F)

Dimensions (W × D × H)

113 × 89 × 28 mm

Cooling Design

Fanless, Silent Operation

Mounting

Desktop, Wall-mountable (optional)

Software & Licensing

Operating System

MikroTik RouterOS

License Level

Level 4

Management Methods

WebFig, CLI, SNMP, SSH, Telnet, API

Firmware Upgrade

Supported via RouterOS, TFTP, USB

Compliance & Certifications

Industry Standards

IEEE 802.3, 802.3u, 802.3ab, 802.3af, 802.3at

Certifications

CE, FCC, RoHS, EAC, UL

Shenzhen Importgm Technology Co., Ltd.

Shenzhen Importgm Technology Co., Ltd. has been operating in the I T services market since 2010, focusing on the R&D, design and sales of core equipment and general accessories in the field of network communications, we are distributors and resellers of worldwide brands of communication equipment, general accessories and system solutions for global customers.We offer a wide range of products, including networking routers, switches, firewalls, servers, I P phones, video conferencing equipment, wireless A P, P D U and modules. We are located in Shenzhen with convenient transportation access. Over the years we have developed a team of highly skilled staff that delivers quality and effective solutions and services. Based on our rich experience, we can supply products with stable packages, reliable delivery, competitive prices and on-time support. Our products are exported to customers in such regions as the Middle East, Africa, America,Europe and Asia. We also welcome O E M and O D M orders.Whether selecting current products from our inventory or seeking engineering assistance for your project bid, you can consult our business staff at any time. Our service does not end when the invoice is printed but begins as soon as you have received your order. Any customers' business visit and negotiation is warmly welcomed. Let's work together and win-win.

gs图片IMG_8380(1)


客户

包装

物流



Q: What are the application scenarios for the RB760iGS?

A: The RB760iGS is ideal for small offices, home offices, and branch networks, providing reliable routing, VPN support, and Gigabit connectivity.

Q: How to install the RB760iGS router?

A: The RB760iGS can be placed on a desktop or mounted as needed. Connect the power adapter, WAN, and LAN cables, then configure it using RouterOS or WebFig.

Q: Does the RB760iGS need upgrades?

A: Regular RouterOS firmware updates are recommended for the RB760iGS to improve security, stability, and overall network performance.

Q: Are there alternative products to the RB760iGS?

A: Alternatives to the RB760iGS include other MikroTik routers, such as the hAP ac² and RB4011 series, offering different performance and feature options.

Q: What are common troubleshooting tips for the RB760iGS?

A: For common issues, check power and cable connections, verify IP configuration, and ensure RouterOS is updated to the latest version.
