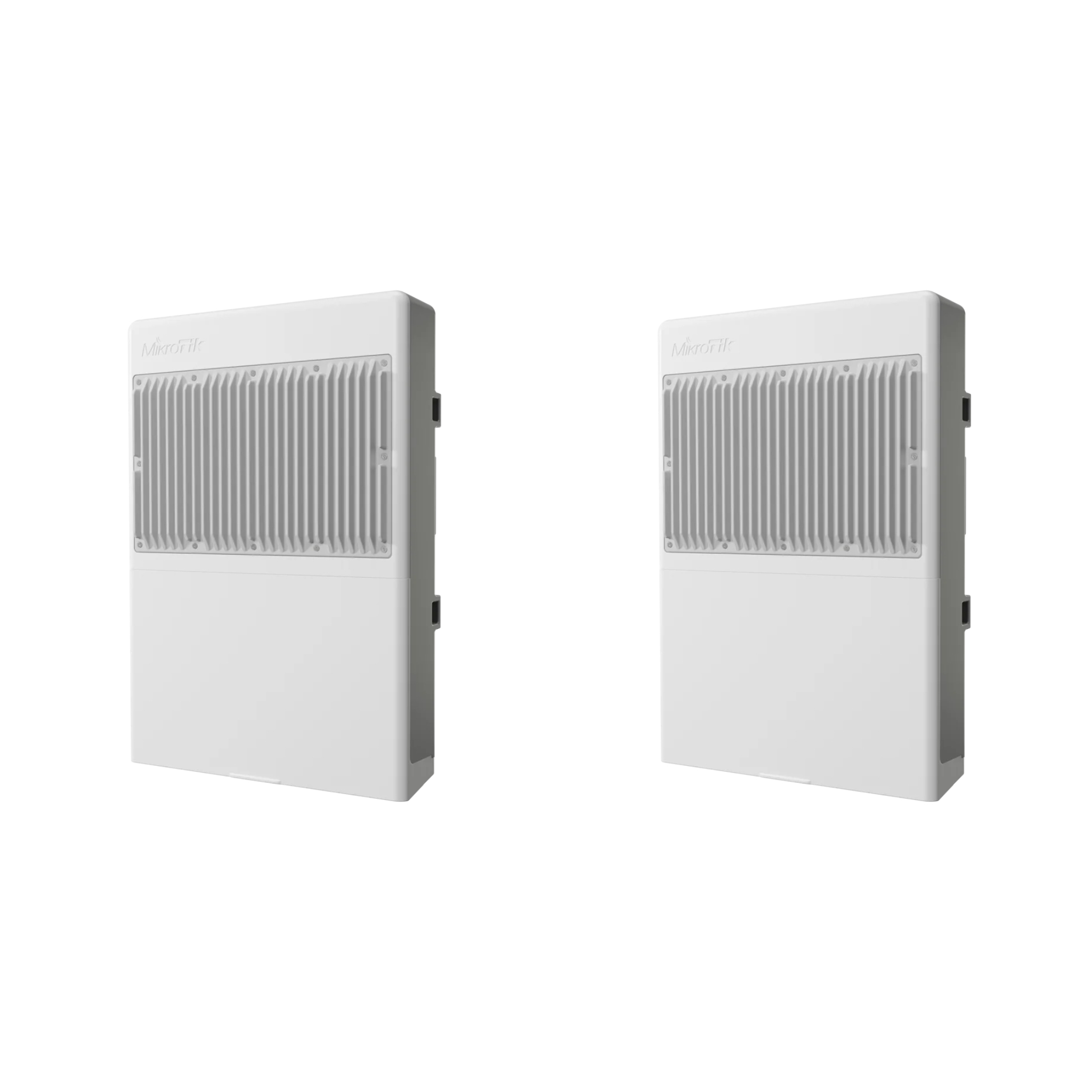

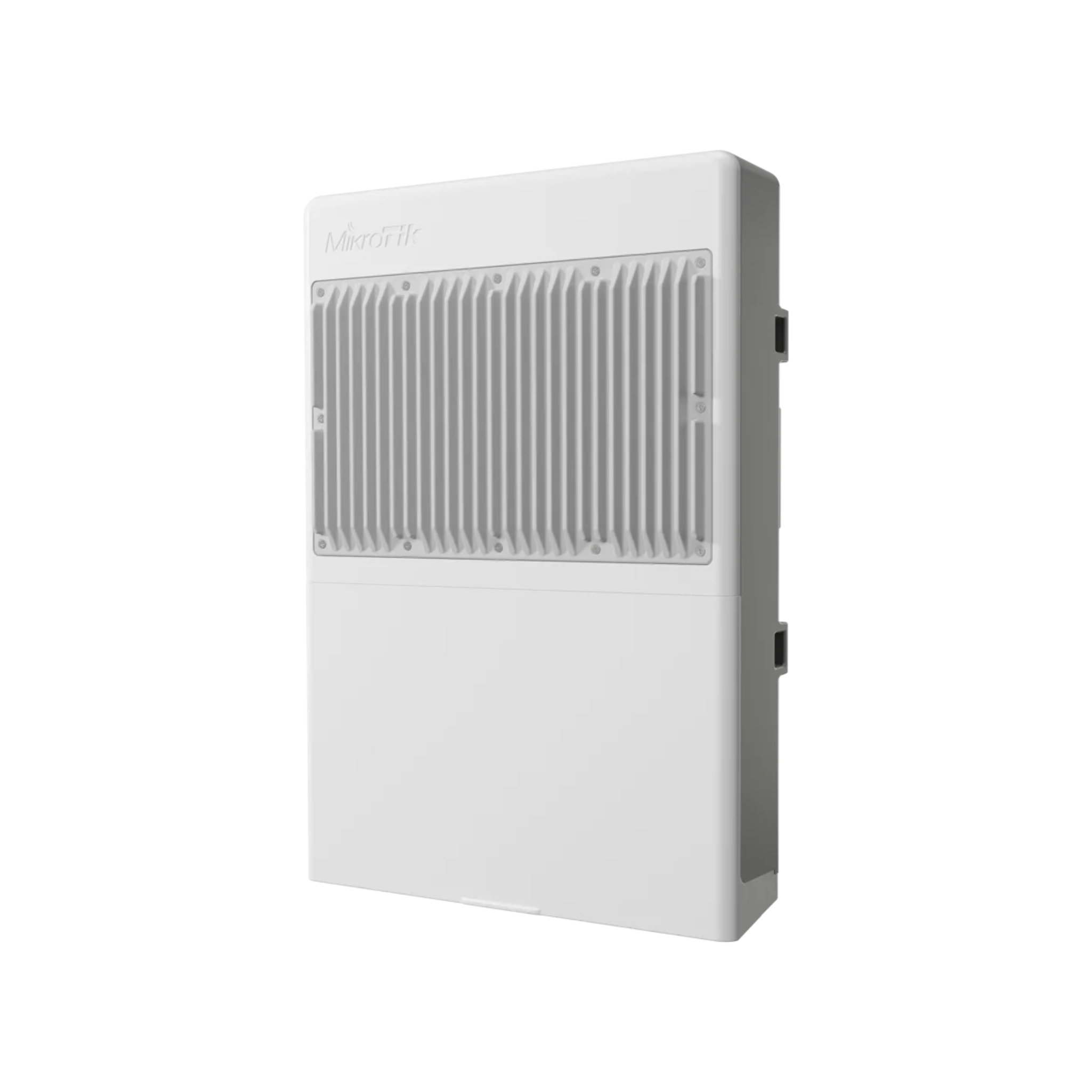

CRS318-16P-2S+OUT
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Product Information | Model Name | CRS318-16P-2S+OUT |
Product Series | MikroTik netPower 16P | |
Device Type | Outdoor Managed PoE Gigabit Ethernet Switch | |
Application Scenarios | Outdoor wireless AP deployment, IP camera monitoring, tower/mast pole mounting, industrial outdoor networking | |
Enclosure Type | IP-rated outdoor rugged enclosure | |

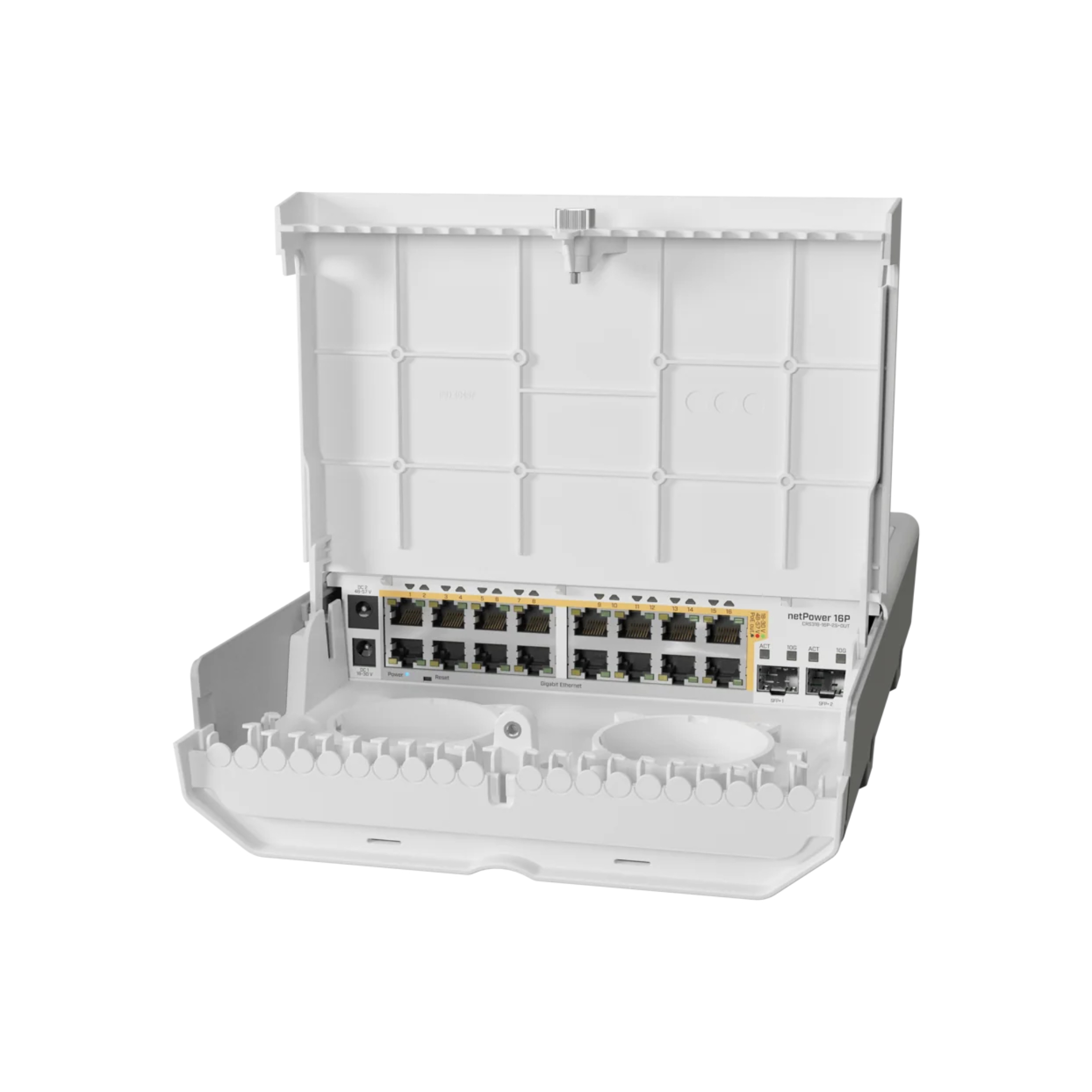

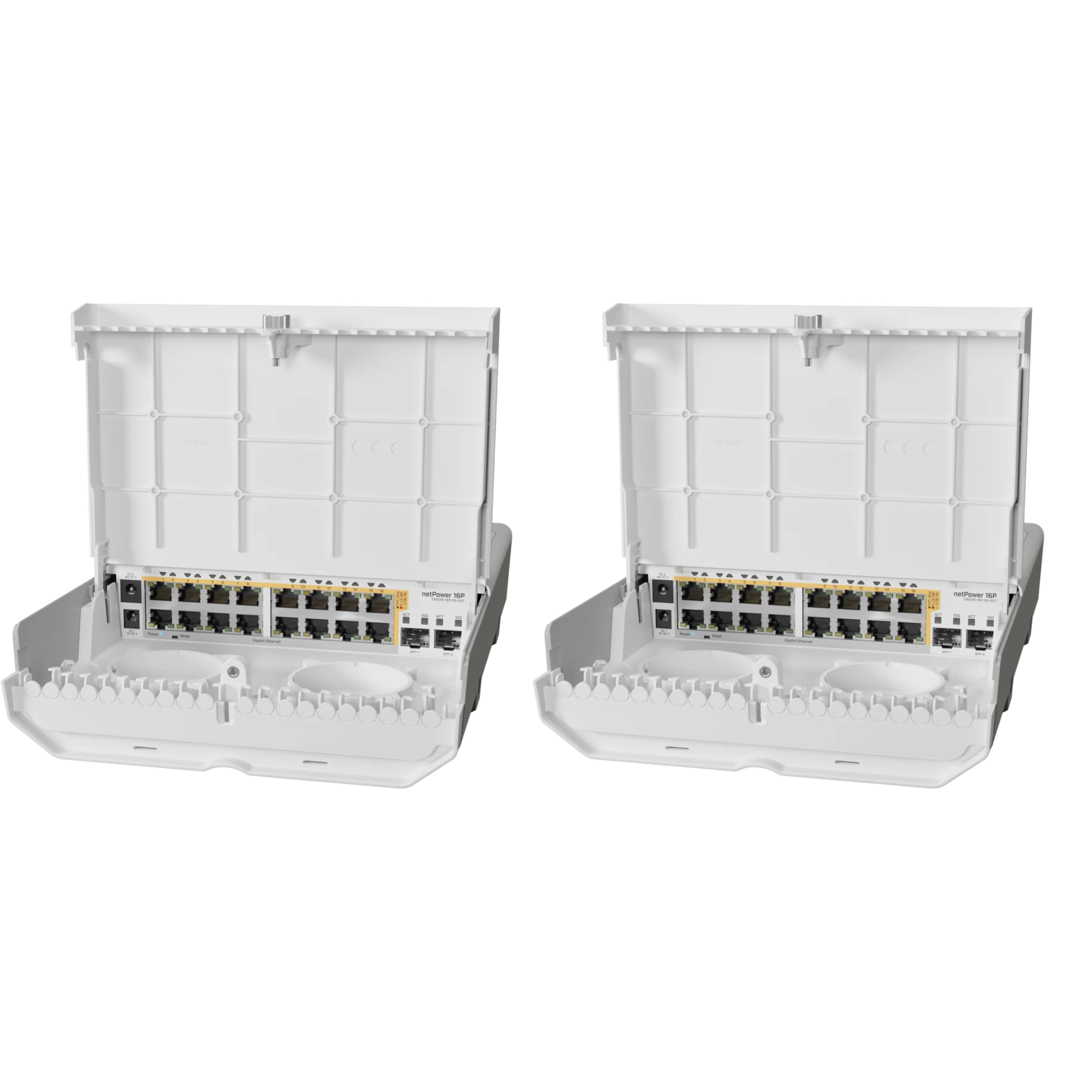

Port Configuration | 10/100/1000BASE-T RJ45 PoE-out Ports | 16 ports (Ether1 - Ether16), IEEE 802.3af/at compliant with auto-sensing Passive PoE |
10G SFP+ Uplink Slots | 2 x SFP+ cages (support 10Gbps fiber/copper SFP+ transceivers) | |
DC Power Input Interfaces | 2 x DC jack power inputs | |
Performance Specifications | Switching Capacity | 72 Gbps |
Forwarding Rate (64-byte packets) | 53.6 Mpps | |
Non-blocking Throughput | 36 Gbps | |
Switch Chip Model | 98DX226S | |
MAC Address Table Size | 16,000 entries | |
Jumbo Frame Support | Up to 10,000 bytes | |
VLAN Support | Up to 4,094 802.1Q tagged VLANs | |
PoE Output Specifications | PoE Standards | Passive PoE (auto-sensing), IEEE 802.3af (15.4W), IEEE 802.3at (30W) |
Low Voltage Input (<30V) | Max 5.6A total output (2.8A per 8-port group, max 1.1A per port) | |
High Voltage Input (>30V) | Max 2.8A total output (1.4A per 8-port group, max 0.6A per port) | |
Compatible Power Supplies | MikroTik 24HPOW, 48POW, 48V2A96W, and third-party 24V/48V DC power supplies | |
Hardware & System Specifications | CPU Model | 98DX226S (ARM 32-bit architecture, 1 core, 800 MHz nominal frequency) |
RAM Size | 256 MB | |
Storage | 16 MB Flash memory | |
Operating System | Dual boot: RouterOS (License Level 5) / SwOS | |
Management Methods | Web-based GUI, CLI, SNMP, MikroTik Cloud Management | |
Physical & Mechanical Specifications | Dimensions (W × D × H) | 303 mm × 212 mm × 78 mm |
Cooling Design | Passive cooling (fanless, silent operation) | |

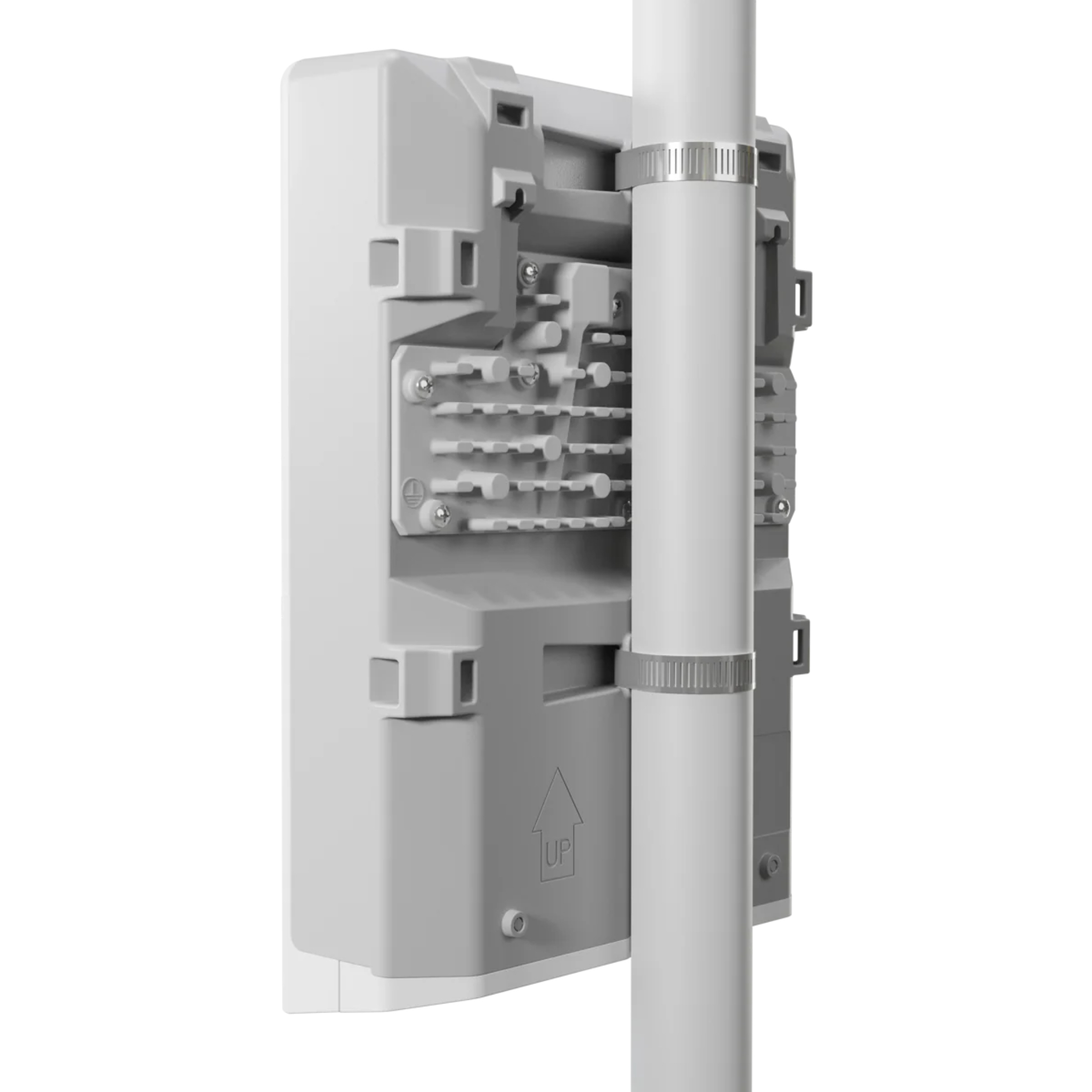

Mounting Options | Pole/tower mounting with hose clamps, wall mounting, outdoor cabinet installation | |
Weight | 1.8 kg | |
Power Supply Specifications | DC Input Voltage | 18-30 V DC / 48-57 V DC |
Max Total Power Consumption | 316 W (full PoE load) | |
Idle Power Consumption | 16 W (without any attached devices) | |
Environmental Specifications | Operating Temperature | -40°C to +70°C (-40°F to 158°F) |
Storage Temperature | -40°C to +70°C (-40°F to 158°F) | |
Operating Humidity | 10%–90% non-condensing | |
Ingress Protection | IP-rated for outdoor use (dustproof, water-resistant) | |
Compliance & Standards | Industry Standards | IEEE 802.3, 802.3u, 802.3ab (Gigabit Ethernet); IEEE 802.3af/at PoE; IEEE 802.1Q VLAN, 802.1p QoS |
Regulatory Certifications | CE, FCC Class A, RoHS, UL, EAC | |
Installation Requirement | Professional installation required |
