The MikroTik CSS610-1Gi-7R-2S+OUT is a compact and reliable outdoor Ethernet switch designed for network deployments that require flexible connectivity, high-speed uplinks, and durable operation in challenging environments. Powered by MikroTik’s SwOS Lite operating system, this switch provides an easy-to-use web-based management interface for configuring essential Layer 2 switching functions, making it a practical choice for wireless networks, outdoor surveillance systems, ISP infrastructure, industrial sites, smart city projects, and other distributed network applications. The CSS610-1Gi-7R-2S+OUT features 1 Gigabit Ethernet port, 7 Gigabit Ethernet ports with flexible connectivity options, and 2 SFP+ ports supporting high-speed 10G fiber uplinks, allowing network administrators to connect multiple access devices while maintaining fast backbone connections. Its compact outdoor-oriented design makes it suitable for installations where space and environmental protection are important, while its fanless architecture helps provide quiet and dependable operation. The switch supports essential management features such as VLAN, port isolation, traffic monitoring, bandwidth limitation, port mirroring, and other Layer 2 functions, giving users greater control over network traffic and device connectivity. With its combination of Gigabit access ports and 10G SFP+ uplinks, the MikroTik CSS610-1Gi-7R-2S+OUT can help reduce network bottlenecks and provide an efficient solution for connecting access points, IP cameras, wireless bridges, IoT devices, and other Ethernet-based equipment. Its flexible design and MikroTik reliability make it an excellent option for network integrators, ISPs, businesses, and professional users looking for a cost-effective managed outdoor switch with high-speed fiber uplink capabilities.
CSS610-1Gi-7R-2S+OUT
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Model Name | CSS610-1Gi-7R-2S+OUT (netPower Lite 7R) |
Brand | MikroTik | |
Product Series | Cloud Switch Series / netPower Lite Series | |
Device Type | Outdoor Reverse PoE Gigabit Ethernet Switch with 10G SFP+ Uplinks | |
Target Application | ISP FTTH deployment, outdoor network installation, pole-mounted networking, apartment internet delivery | |

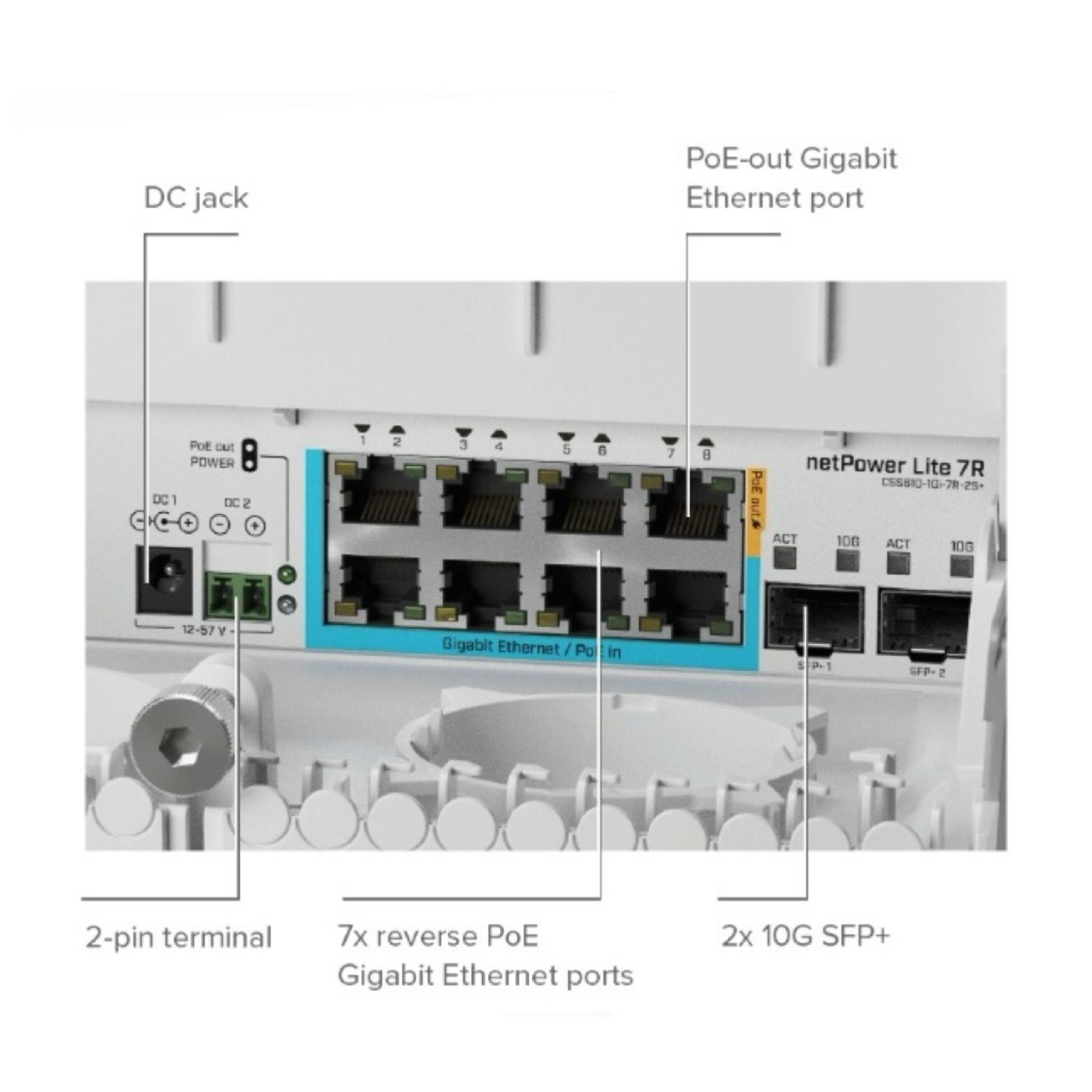

Port Configuration | 10/100/1000BASE-T Ethernet Ports | 8 ports total: 7 x Reverse PoE-in ports, 1 x PoE-out port |
10G SFP+ Uplink Ports | 2 x 10G SFP+ fiber slots (support 10G/5G/2.5G/1G SFP+ transceivers) | |
Power Interfaces | 1 x DC jack, 1 x 2-pin terminal block, PoE-in support | |
Performance Specifications | Switching Capacity | 56 Gbps |
Forwarding Rate (64-byte packets) | 41.7 Mpps | |
Switching Architecture | Full non-blocking wirespeed forwarding | |
MAC Address Table Size | Up to 16,000 entries | |
Jumbo Frame Support | Up to 10,218 bytes | |
PoE Power Specifications | PoE Standard | Passive PoE |
PoE-in Input Voltage | 12–57 V DC | |
PoE-out Port | Port 8 (Passive PoE-out, same voltage as input) | |
PoE-out Current Limit | 600 mA (low voltage) / 450 mA (high voltage), max total 600 mA | |
Max Power Consumption | 29 W (full load), 7 W (idle) | |
Core Software & Features | Operating System | SwitchOS Lite (preinstalled, free lifetime updates) |
VLAN Support | IEEE 802.1Q compliant, port-based VLAN, up to 250 VLAN entries | |
Spanning Tree Protocol | RSTP (Rapid Spanning Tree Protocol) support | |
Link Aggregation | 802.3ad LACP & static link aggregation, up to 16 groups, 8 ports per group | |
Multicast Forwarding | IGMP Snooping v1/v2/v3, Unknown Multicast Filtering | |
QoS & Bandwidth Control | Port-based egress rate limiting, broadcast storm control | |
Security Features | Port Lock, DHCP & PPPoE Snooping, port isolation | |
Monitoring & Mirroring | Port-based mirroring (SPAN) | |
Physical & Environmental Specifications | Dimension (W × D × H) | 304 mm × 212 mm × 71 mm |
Enclosure Rating | IP54 (outdoor weatherproof) | |
Cooling Design | Passive cooling (fanless, silent operation) | |

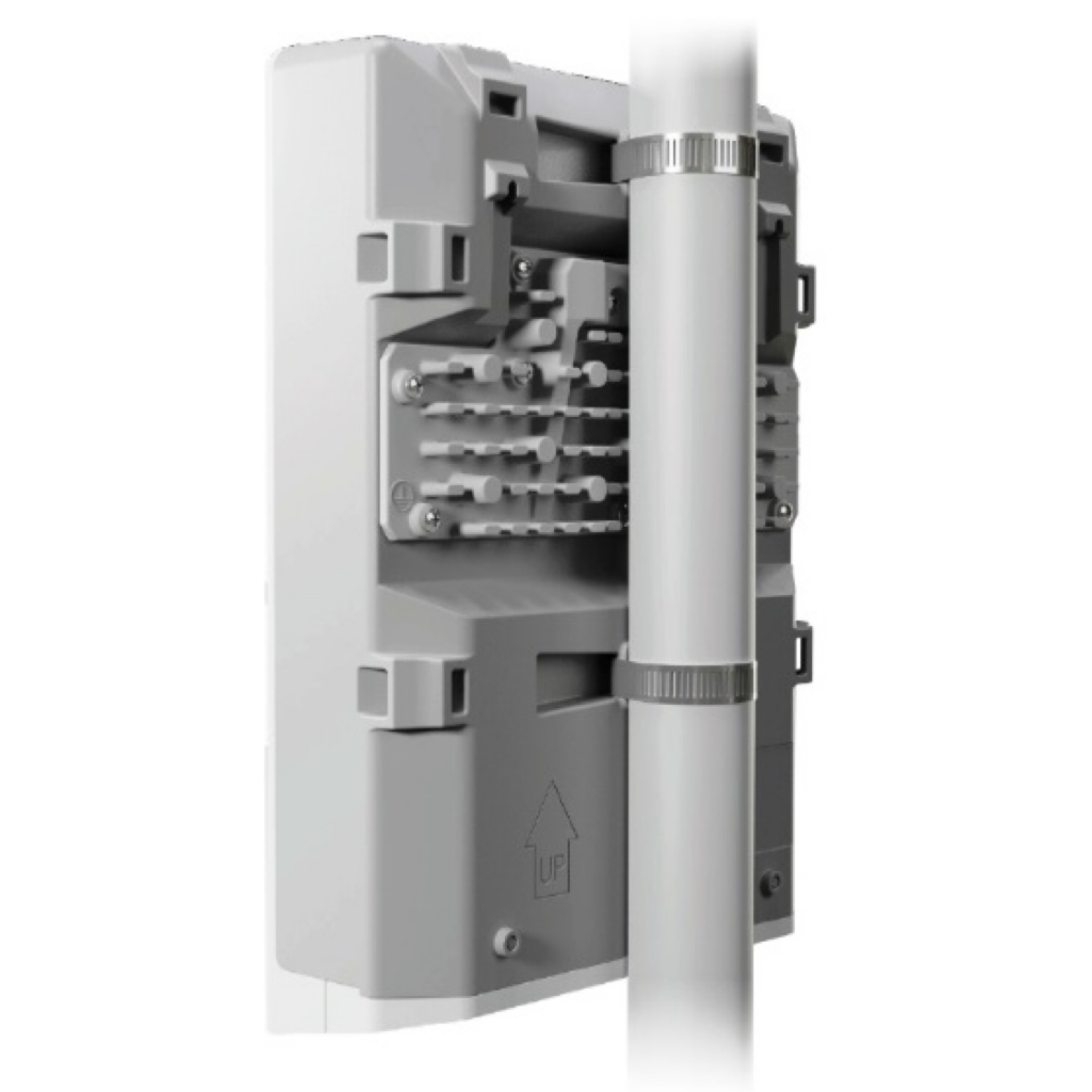

Mounting Options | Wall mount, pole mount (hose clamps included) | |
Operating Temperature | -40°C to +70°C | |
Operating Humidity | 10%–90% non-condensing | |
Storage Temperature | -40°C to +70°C | |
Compliance & Certifications | Industry Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3ad, 802.1Q, 802.1w (RSTP) |
Certifications | CE, EAC, RoHS | |
Management Methods | Supported Management | Web-based GUI, CLI, SNMP |
Firmware & Configuration | TFTP firmware upgrade, configuration backup/restore |
