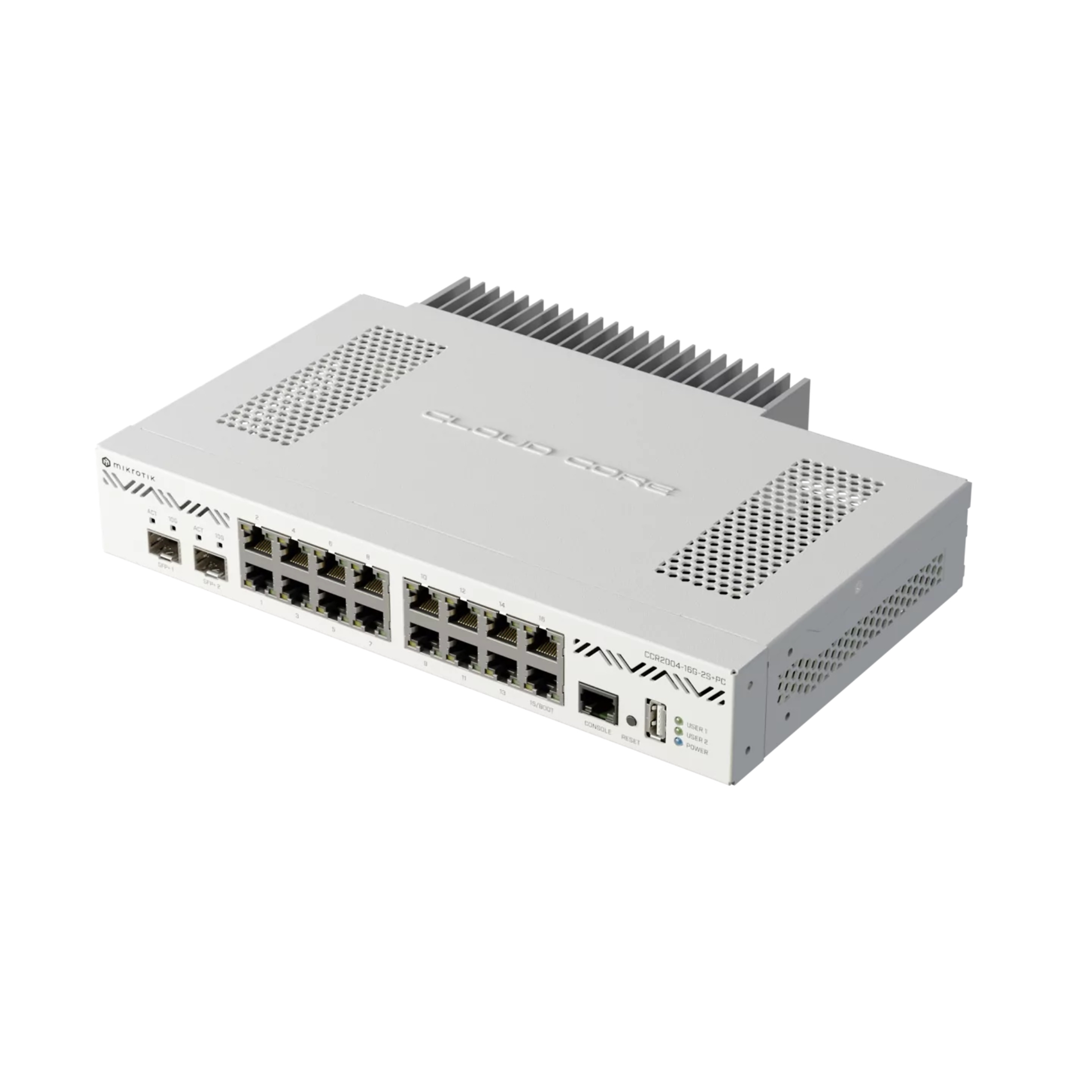

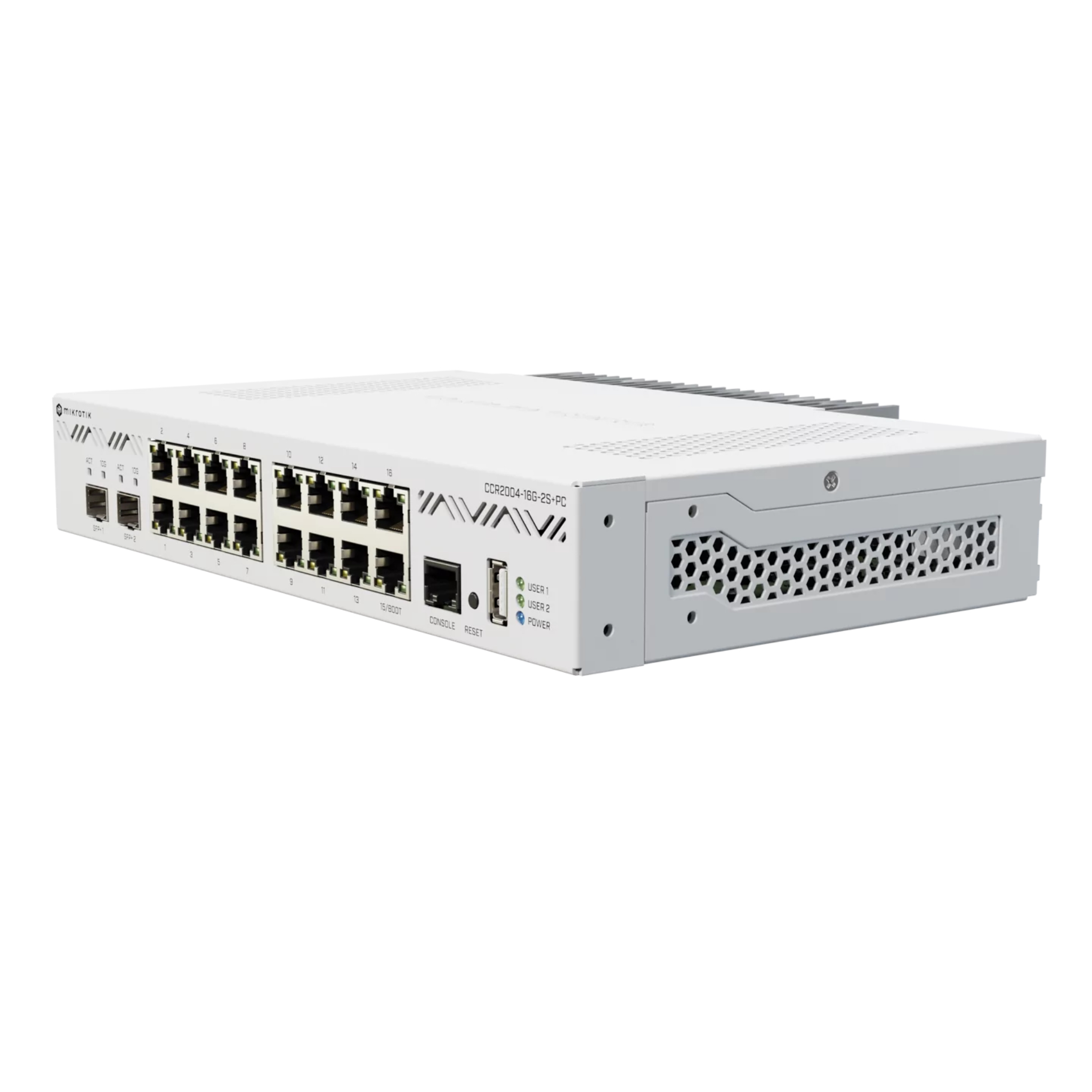

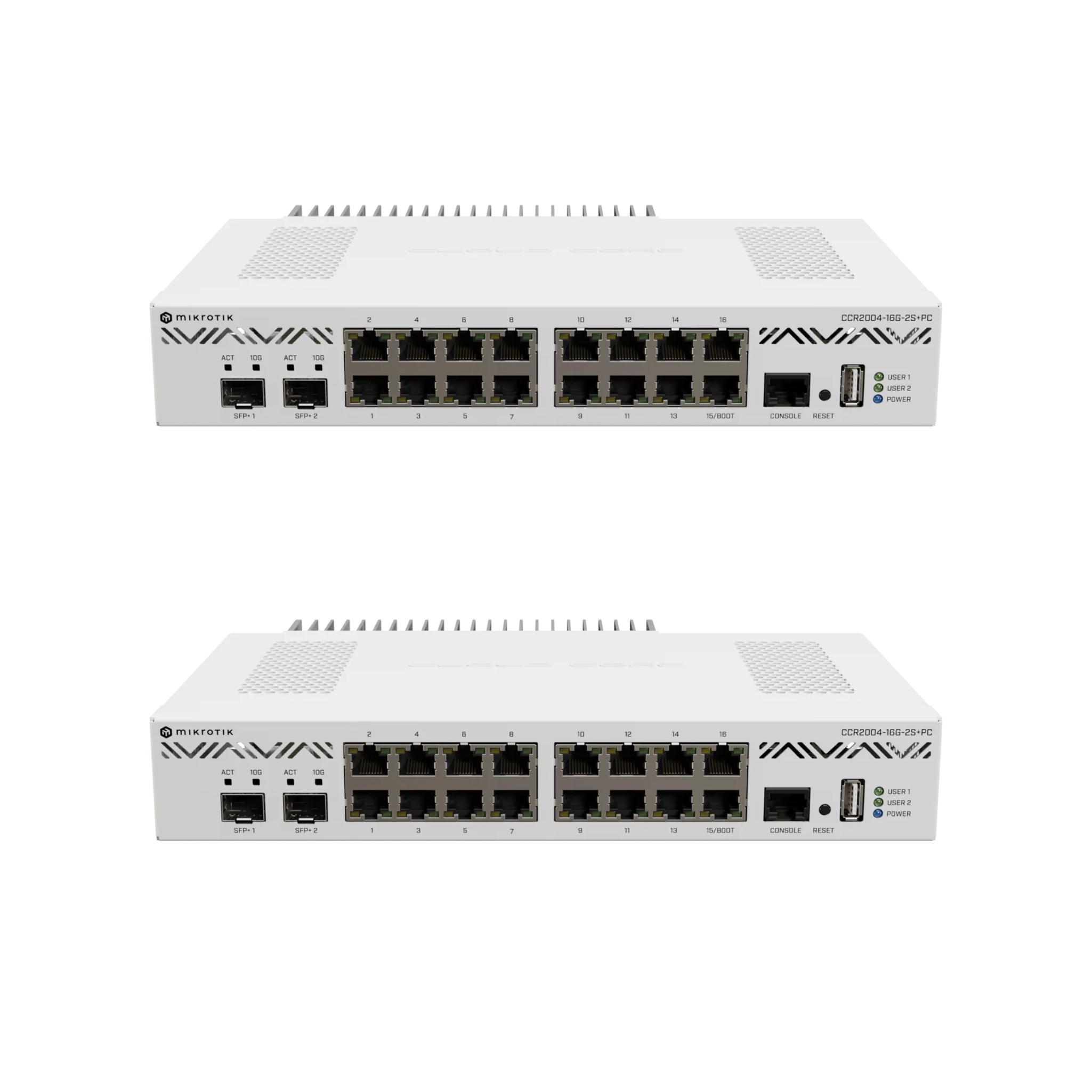

The MikroTik CCR2004-16G-2S+PC is a high-performance cloud core router engineered for enterprise networks, ISPs, data centers, and growing business environments that require exceptional routing efficiency, reliable connectivity, and silent operation. Powered by a powerful 64-bit quad-core ARM CPU and advanced RouterOS software, this compact router delivers outstanding throughput while maintaining low power consumption, making it an ideal solution for demanding networking applications. It features 16 Gigabit Ethernet ports and 2 high-speed 10G SFP+ ports, providing flexible connectivity for LAN aggregation, fiber uplinks, server connections, and backbone networking. The passive cooling design ensures completely silent operation, making it suitable for offices, conference rooms, and noise-sensitive installations while reducing maintenance requirements. With comprehensive Layer 3 routing capabilities, advanced firewall protection, VPN support, VLAN management, QoS, dynamic routing protocols including BGP, OSPF, and RIP, load balancing, traffic shaping, and network monitoring, the CCR2004-16G-2S+PC offers the flexibility required for modern enterprise and service provider networks. Its rack-friendly compact design allows easy deployment in various environments while delivering carrier-grade reliability and stability. Whether used as a core router, branch gateway, VPN concentrator, network edge device, or data center router, the CCR2004-16G-2S+PC provides outstanding performance for high-bandwidth applications, cloud services, video streaming, VoIP communications, and large-scale business operations. Built with MikroTik's renowned reliability and extensive RouterOS feature set, this router offers an excellent balance of performance, scalability, security, and cost-effectiveness, making it a preferred choice for IT professionals, system integrators, network administrators, and organizations seeking a future-ready networking solution with long-term value and dependable operation.
CCR2004-16G-2S+PC
Mikrotik
Original New
1 year
| Quantity: | |
|---|---|
Category | Parameter | Specification |
|---|---|---|
Basic Information | Model Name | CCR2004-16G-2S+PC |
Brand | MikroTik | |
Device Type | Wired Router / Managed Gateway | |
Product Series | CCR2004 Series | |
Application Scenarios | SMB Office Network, FTTB/FTTH, Enterprise Branch, Home Lab, Network Edge Deployment | |
Form Factor | 1U Rack-mountable / Desktop Placement | |
Core Hardware Specifications | CPU Model | Amazon Annapurna Labs Alpine v2 (AL32400) |
CPU Architecture | 64-bit ARMv8-A Cortex-A57 | |
CPU Core Count | 4 Cores | |
CPU Frequency | 1.2 GHz | |
RAM | 4 GB DDR4 | |
Storage | 128 MB NAND Flash | |
Switch Chip Model | Marvell Amethyst 88E6191X (2 chips, 8 ports per chip) | |

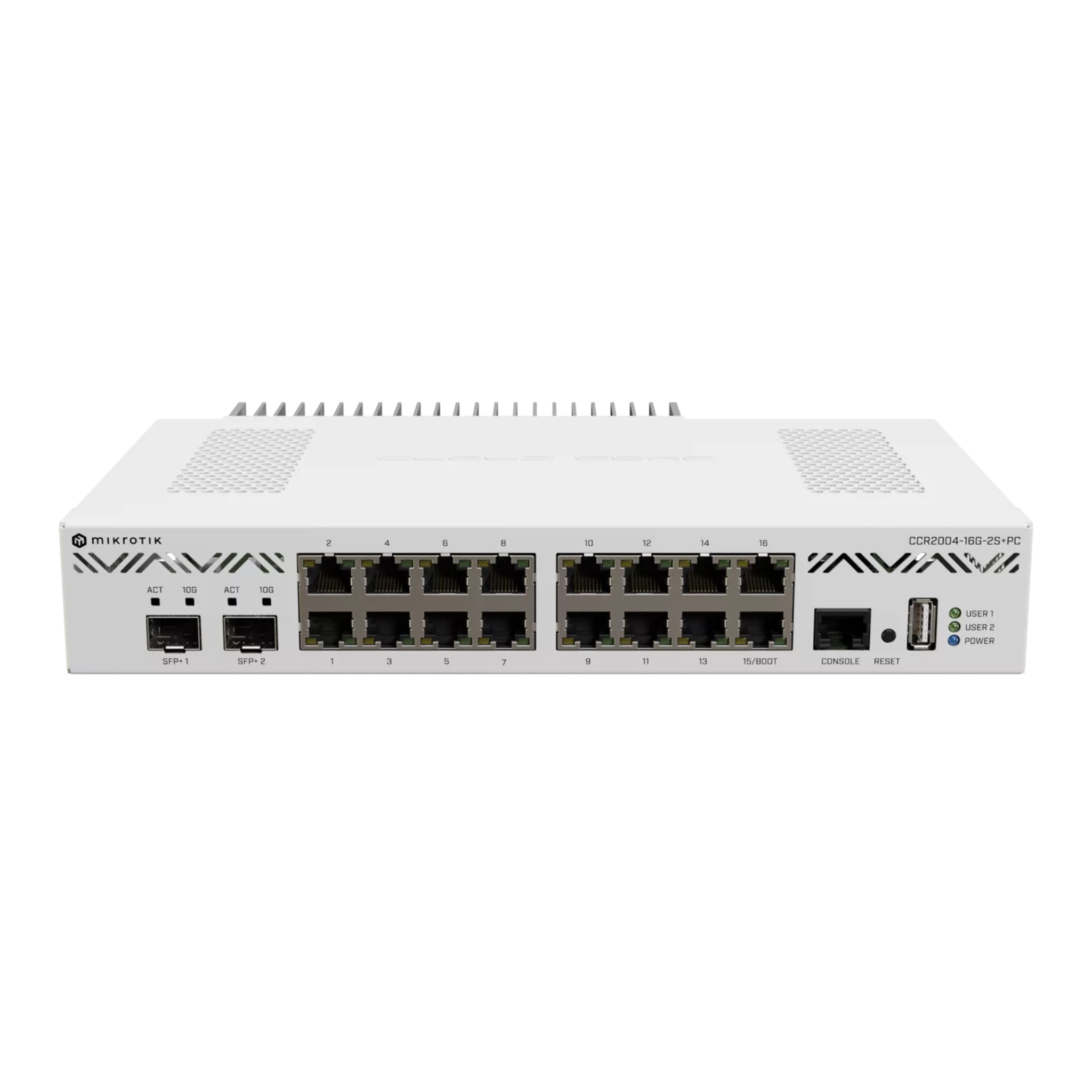

Port Configuration | 10/100/1000BASE-T Ethernet Ports | 16 x Gigabit RJ45 Ports |
10G SFP+ Fiber Ports | 2 x 10G SFP+ Slots | |
Management Console Port | 1 x RJ45 Serial Console Port | |
USB Port | 1 x USB 3.0 Type-A Port | |

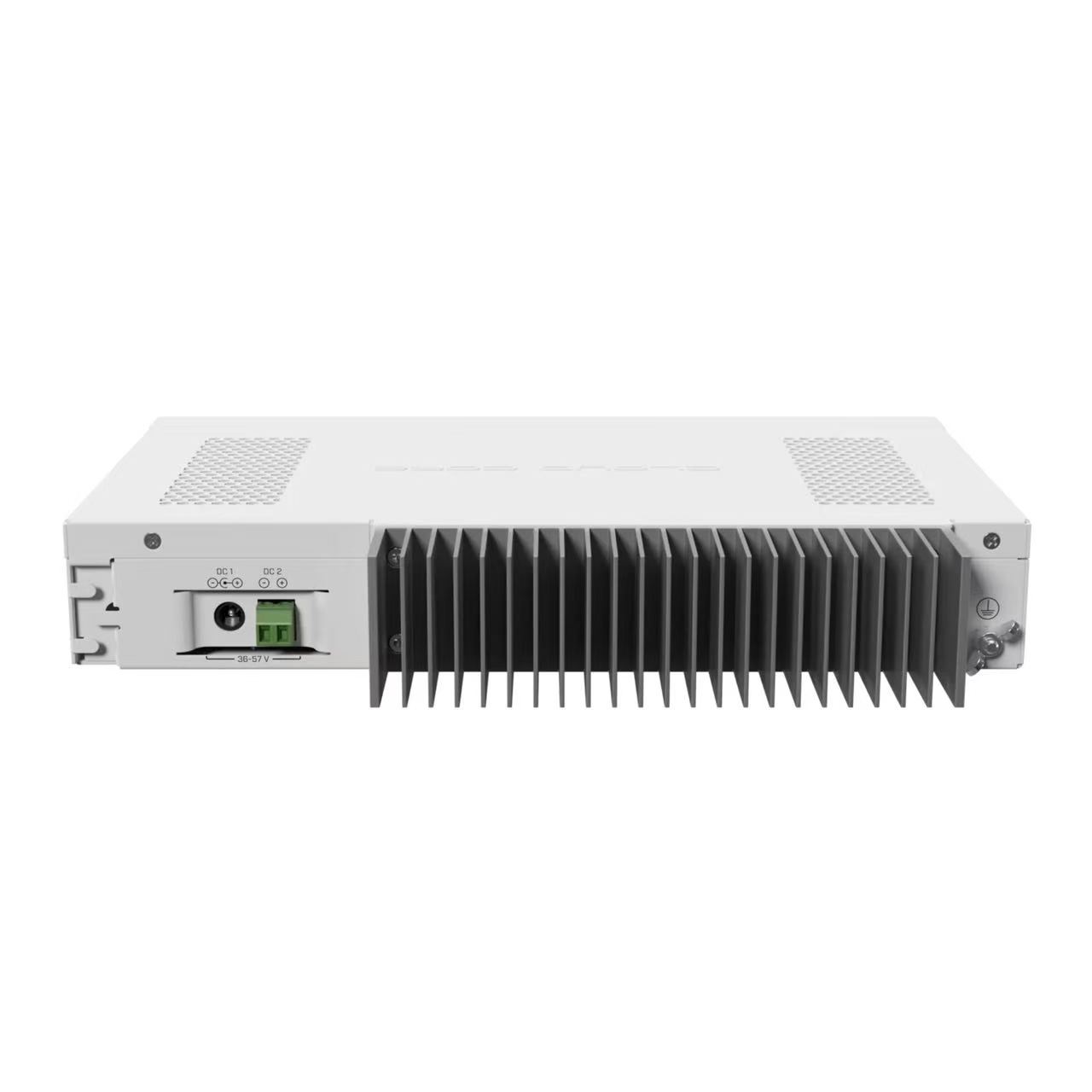

Power Input Interface | 2 x DC Jack (2-pin Terminal) | |
Performance Specifications | Routing Throughput (No Fast Path) | Up to 2925.9 Mbps |
Routing Throughput (25 Simple Queues) | Up to 1186.3 Mbps | |
Routing Throughput (25 IP Filter Rules) | Up to 722.2 Mbps | |
IPsec Hardware Acceleration | Supported | |
MAC Address Table Size | 16,000 Entries | |
Jumbo Frame Support | Up to 10,000 Bytes | |
Power Supply Specifications | Input Voltage Range | 36-57 V DC |
Nominal Power Adapter Spec | 48 V, 0.9 A | |
Max Power Consumption (No Attachments) | 30 W | |
Max Total Power Consumption | 36 W | |
Power Input Count | 2 x DC Inputs (Redundant Power Support) | |
Physical & Mechanical Specifications | Dimensions (W × D × H) | 272 mm × 195 mm × 44 mm (1U Rack Height) |
Cooling Type | Passive Cooling (Fanless, Silent Operation) | |
Mounting Options | Standard 19-inch Rack Mount (Brackets Included), Desktop Placement | |
Included Accessories | Rackmount Brackets, Fastening Set, 48V Power Adapter | |
Environmental Parameters | Operating Temperature | -20°C to +60°C (-4°F to 140°F) |
Storage Temperature | -40°C to +70°C (-40°F to 158°F) | |
Operating Humidity | 10%–90% Non-condensing | |
Operating Altitude | Up to 2,000 Meters Above Sea Level | |
IP Rating | IP20 | |
System & Supported Features | Operating System | RouterOS v7 (Only) |
License Level | RouterOS License Level 6 | |
Supported Routing Protocols | BGP, OSPF, RIP, IS-IS, Static Routing, Inter-VLAN Routing | |
Security Features | IPsec VPN, Firewall, NAT, DHCP Snooping, MAC Filtering, DoS Protection, SSH/HTTPS Management | |
QoS Features | 802.1p CoS, DSCP Mapping, Traffic Shaping, Queue Management, Bandwidth Policing | |
Management Methods | WebFig (Web UI), CLI, SNMP v1/v2c/v3, API, Netinstall, Cisco Discovery Protocol | |
Compliance & Certifications | Industry Standards | IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3ad (LACP), 802.1Q (VLAN), 802.1p (QoS) |
Safety & EMC Certifications | CE, EAC, RoHS, FCC Class B, UL |
